50217-8000

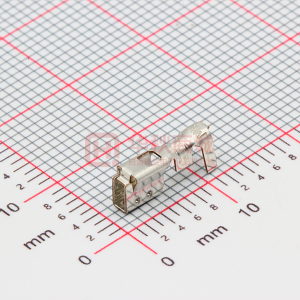

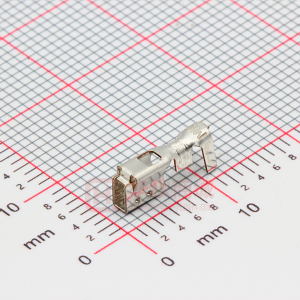

This document was generated on 04/15/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Description: 0502178000 Active 3.50mm (.138") Pitch Crimp Terminal 50217, 18-24 AWG, Reel, Phosphor Bronze Documents: 3D Model Drawing (PDF) Product Specification PS-51067-003 (PDF) Product Specification PS-51067-004 (PDF) Product Specification PS-51067-006 (PDF) Product Specification PS-51067-018 (PDF) Product Specification PS-51067-022 (PDF) Product Specification PS-51067-023 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Crimp Quality Equipment Product Name Crimp Terminals 50217 Yes N/A EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Phosphor Bronze Tin Tin Reel 36 0.90 36 0.90 Crimp or Compression 1.40-3.00mm (.055-.118") 18, 20, 22, 24 N/A Material Info Reference - Drawing Numbers Product Specification PS-51067-003, PS-51067-004, PS-51067-006, PS-51067-018, PS-51067-022, PS-51067-023, RPS-51067-030, RPS-51067-037 SD-50217-**** Search Parts in this Series 50217Series Mates With 50419 Use With 51067 Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Hand Crimp Tool, UL 0638118300 Approved T2 Terminator Die, 0638503000 Large Insulation T2 Terminator Die, 0638503100 Small Insulation Sales Drawing FineAdjust™ 0638603100 Applicator, Small Insulation FineAdjust™ 0638603000 Applicator, Large Insulation Japan Description Product # Hand Extraction Tool 0011260100 Applicator for M211A 0571833000 Bench Press, 18-24 AWG, for 50217 and 50539 Crimp Terminal Side-Feed Applicator 0571833200 For Full-Auto Machine This document was generated on 04/15/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
