53047-1010

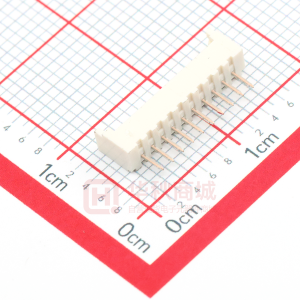

This document was generated on 05/26/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0530471010 Active picoblade 1.25mm (.049") Pitch PicoBlade™ Wire-to-Board Header, Vertical, with Friction Lock, 10 Circuits Documents: 3D Model Drawing (PDF) Product Specification PS-51021-010 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only PCB Headers 53047 Wire-to-Board picoblade PicoBlade™ EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Not Reviewed Halogen-Free Status Not Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. General Product Family Series Application Overview Product Name Physical Breakaway Circuits (Loaded) Circuits (maximum) Durability (mating cycles max) First Mate / Last Break Glow-Wire Compliant Guide to Mating Part Keying to Mating Part Lock to Mating Part Mated Height (in) Mated Height (mm) Material - Plating Mating Material - Plating Termination Number of Rows Orientation PC Tail Length (in) PC Tail Length (mm) PCB Locator PCB Retention PCB Thickness Recommended (in) PCB Thickness Recommended (mm) Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Polarized to PCB Shrouded Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style No 10 10 30 No No No None Yes 0.205 In 5.20 mm Tin Tin 1 Vertical 0.091 In 2.30 mm No None 0.031 In 0.80 mm Tray 0.049 In 1.25 mm No Fully No No -40°C to +85°C Through Hole Search Parts in this Series 53047Series Mates With 51021 PicoBlade™ Wire-to-Wire Electrical Current - Maximum per Contact Voltage - Maximum 1A 125V Material Info Reference - Drawing Numbers Packaging Specification SPK-53047 Product Specification Sales Drawing PS-51021-010, RPS-51021-007, RPS-51021-011, RPS-51021-019, RPS-51021-041, RPS-51021-059, RPS-51021-060, RPS-51021-071, RPS-51021-089 SD-53047-**10 This document was generated on 05/26/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
