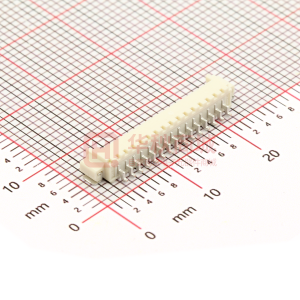

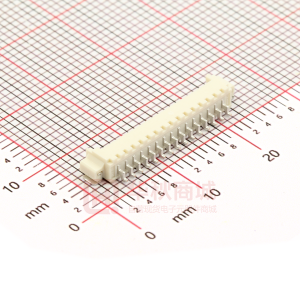

53261-1571

厂商：
MOLEX7
封装：
描述：
53261-1571 - 1.25mm (.049") Pitch PicoBlade™ Header, Surface Mount, Right Angle, Lead-free, - Molex ...

数据手册：

下载53261-1571.pdf

立即购买

详情介绍
数据手册
价格&库存

53261-1571 数据手册

This document was generated on 05/25/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0532611571 Active picoblade 1.25mm (.049") Pitch PicoBlade™ Header, Surface Mount, Right Angle, Lead-free, 15 Circuits Documents: 3D Model Drawing (PDF) Product Specification PS-51021-024 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only LR19980 E29179 EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Not Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Agency Certification CSA UL General Product Family Series Application Overview Product Name PCB Headers 53261 Wire-to-Board picoblade PicoBlade™ Physical Breakaway Circuits (Loaded) Circuits (maximum) Color - Resin Durability (mating cycles max) First Mate / Last Break Flammability Glow-Wire Compliant Guide to Mating Part Keying to Mating Part Lock to Mating Part Mated Height (in) Mated Height (mm) Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Number of Rows Orientation PCB Locator PCB Retention Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Polarized to PCB Shrouded Stackable Temperature Range - Operating Termination Interface: Style No 15 15 Natural 30 No 94V-0 No Yes None Yes 0.134 In 3.40 mm Phosphor Bronze Tin Tin High Temperature Thermoplastic 1 Right Angle No Yes Embossed Tape on Reel 0.049 In 1.25 mm 40 1 40 1 Yes Fully No -40°C to +85°C Surface Mount Search Parts in this Series 53261Series Mates With 51021 PicoBlade™ Wire-to-Wire and Wireto-Board Housing Electrical Current - Maximum per Contact Voltage - Maximum 1A 125V Material Info Reference - Drawing Numbers Packaging Specification Product Specification SPK-53261-001, SPK-53261-002 PS-51021-024, RPS-51021-036, RPS-51021-038, RPS-51021-039, RPS-51021-040, RPS-51021-042, RPS-51021-043, RPS-51021-045, RPS-51021-046, RPS-51021-047, RPS-51021-051, RPS-51021-053, RPS-51021-054, RPS-51021-057, RPS-51021-058, RPS-51021-061, RPS-51021-062, RPS-51021-066, RPS-51021-067, RPS-51021-068, RPS-51021-072, RPS-51021-073, RPS-51021-076, RPS-51021-079, RPS-51021-081, RPS-51021-085, RPS-51021-086, RPS-51021-091, RPS-51021-097, RPS-51021-099, RPS-51021-101, RPS-53261-001, RPS-53261-002 SD-51021-002, SD-53261-023, SD-53261-024 Sales Drawing This document was generated on 05/25/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

下载 PDF

53261-1571

1. 物料型号： - 型号为：0532611571 - 状态：Active（活跃）

2. 器件简介： - 产品家族：PCB Headers - 系列：53261 - 应用：Wire-to-Board - 产品名称：PicoBlade™ - 概述：1.25mm (.049") Pitch PicoBlade™ Header, Surface Mount, Right Angle, Lead-free, 15 Circuits

3. 引脚分配： - 电路（已加载）：15 - 电路（最大）：15 - 行数：1 - 引脚间距：1.25mm（0.049英寸）

4. 参数特性： - 颜色 - 树脂：自然色 - 耐久性（最大插拔次数）：30 - 阻燃等级：94V-0 - 材料 - 金属：磷青铜 - 材料 - 镀层：镀锡 - 材料 - 树脂：高温热塑性塑料 - 极化到PCB：是 - 全封闭：是

5. 功能详解： - 操作温度范围：-40°C至+85°C - 终止接口：表面贴装 - 引脚间距：1.25mm（0.049英寸）

6. 应用信息： - 与51021 PicoBlade™ Wire-to-Wire和Wire-to-Board Housing配合使用

7. 封装信息： - 封装类型：浮雕胶带卷装 - 配合件：Mated Height (in) 0.134 In，Mated Height (mm) 3.40 mm
