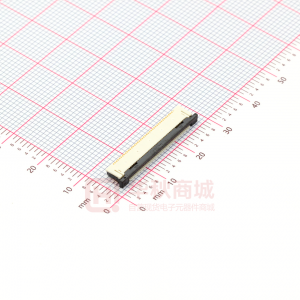

54132-4062 - 0.50mm (.020") Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom ContactStyle, 40 ...

数据手册：

下载54132-4062.pdf

立即购买

详情介绍
数据手册
价格&库存

54132-4062 数据手册

This document was generated on 06/07/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0541324062 Active ffc_fpc_smt 0.50mm (.020") Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom Contact Style, 40 Circuits, 0.1µm (4µ") Gold (Au) Contact Plating Documents: 3D Model Drawing (PDF) Product Specification PS-54132-061 (PDF) RoHS Certificate of Compliance (PDF) image - Reference only E29179 EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Not Reviewed Halogen-Free Status Not Halogen-Free Need more information on product environmental compliance? Series Agency Certification UL General Product Family Series Overview Product Name FFC/FPC Connectors 54132 ffc_fpc_smt N/A Physical Circuits (Loaded) Color - Resin Contact Position Durability (mating cycles max) Entry Angle Flammability Mated Height (in) Mated Height (mm) Material - Metal Material - Plating Mating Material - Plating Termination Material - Resin Number of Rows Orientation PCB Locator PCB Retention Packaging Type Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Polarized to PCB Stackable Surface Mount Compatible (SMC) Temperature Range - Operating Termination Interface: Style Wire/Cable Type 40 Black, Natural Bottom 20 90° Angle 94V-0 0.079 In 2.00 mm Phosphor Bronze Gold Gold High Temperature Thermoplastic 1 Right Angle No Yes Embossed Tape on Reel 0.020 In 0.50 mm 4 0.1 2 0.05 Yes No N/A -20°C to +85°C Surface Mount FFC/FPC Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Search Parts in this Series 54132Series Electrical Current - Maximum per Contact Voltage - Maximum 0.5A 50V Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-54132-061, RPS-54132-070, RPS-54132-071, RPS-54132-072, RPS-54132-076 SD-54132-064 This document was generated on 06/07/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

下载 PDF

54132-4062

1. 物料型号： - Part Number: 0541324062 - Status: Active

2. 器件简介： - 描述：0.50mm (.020") Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom Contact Style, 40 Circuits, 0.1µm (4µ") Gold (Au) Contact Plating - 产品家族：FFC/FPC Connectors - 系列：54132 - 物理特性：黑色或自然色的树脂，底部接触位置，90°角，20次耐用性（mating cycles max）

3. 引脚分配： - 电路（已加载）：40路 - 引脚排列：单排

4. 参数特性： - 电流 - 每个接触点最大：0.5A - 电压 - 最大：50V - 接触镀层：最小4微米金层 - 终止镀层：最小0.05微米金层 - 操作温度范围：-20°C至+85°C

5. 功能详解： - 极性到PCB：是 - 堆叠：否 - 表面安装兼容（SMC）：不适用 - 线/电缆类型：FFC/FPC

6. 应用信息： - 应用FFC/FPC连接器 - 包装类型：压花胶带卷

7. 封装信息： - 间距 - 配合接口（英寸）：0.020英寸 - 间距 - 配合接口（毫米）：0.50毫米 - 金属材质：磷青铜 - 树脂材质：高温热塑性塑料 - 接触位置：底部
