Part Number: Status: Overview: Description:
0561349000 Active

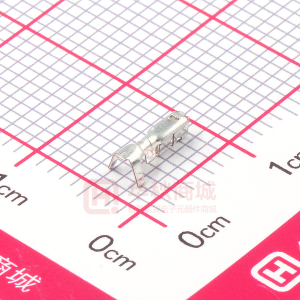

microclasp 2.00mm (.079") Pitch Crimp Terminal 56134, Female, 22-28 AWG, Reel, Copper Alloy, for 51242/51353/51382/500915 Housings
Documents: 3D Model Drawing (PDF) Product Specification PS-500637-001 (PDF) Product Specification PS-500730-001 (PDF) Product Specification PS-51242-001 (PDF)
Product Specification PS-51242-002 (PDF) Product Specification PS-51353-003 (PDF) Product Specification PS-51382-004 (PDF) RoHS Certificate of Compliance (PDF)
Series image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions.
General
Product Family Series Crimp Quality Equipment Overview Product Name Crimp Terminals 56134 Yes microclasp MicroClasp™
Physical
Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Copper-Nickel-Silicon Tin Tin Reel 36 0.90 36 0.90 Crimp or Compression 0.90-1.70mm (.035-.067") 22, 24, 26, 28 N/A
Search Parts in this Series 56134Series Use With 500915 Dual Row Crimp Housing, 51242 Dual Row Crimp Housing, 51353 Dual Row Crimp Housing, 51382 Single Row Crimp Housing Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Fine Adjust 0639019600 Applicator for 2.00mm (.079") Pitch Female Crimp Terminal T2 Terminator for 0639119600 2.00mm (.079")
Material Info Reference - Drawing Numbers
Product Specification PS-500637-001, PS-500730-001, PS-51242-001, PS-51242-002, PS-51353-003, PS-51382-004, RPS-500637-001, RPS-500730-001, RPS-501844-001, RPS-51216-009, RPS-51216-012, RPS-51242-004, RPS-51242-005, RPS-51353-005, RPS-51353-008, RPS-51353-009, RPS-51353-010, RPS-51353-013, RPS-51353-014, RPS-51353-016, RPS-51353-017, RPS-51353-018, RPS-51353-019, RPS-51353-020, RPS-51353-022, RPS-51353-024, RPS-51353-025, RPS-51353-026, RPS-51353-027, RPS-51353-031, RPS-51382-006, RPS-51382-007, RPS-51382-008, RPS-51382-009, RPS-51382-010, RPS-51382-011, RPS-51382-012, RPS-51382-013, RPS-51382-014, RPS-51382-015 SD-56134-005
Sales Drawing
Pitch Female Crimp Terminal HAND CRIMP TOOL 0638116300 Extraction Tool 0638132700 Japan Description Product # Applicator for M211A 0574043000 Bench Press, 18-22 AWG, for 59370 and 56134 Crimp Terminal Side-Feed Applicator 0574043200 for Full-Auto Machine
