64320-3311

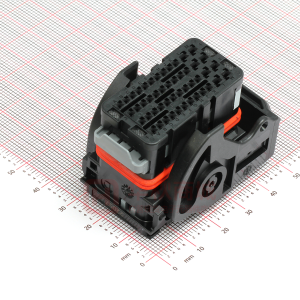

This document was generated on 05/19/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0643203311 Active cmc_connectors .635mm (.025"), 1.50mm (.059"), CMC Receptacle, 48 Circuits, Right Wire Output, Black Coding, Mat Sealed Documents: 3D Model Drawing (PDF) Application Specification (PDF) Product Specification PS-64319-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Comments Crimp Housings 64320 * Current tested on a 5 terminals loaded connector, current for temperature increase of 40°C . Current max = 6.0A for 0.635mm Terminal (0.75mm² wire) and 12.0A for 1.5mm Terminal (2.0mm² wire) * Sealed, high-density, modular connecting system for Power Train and Body Electronics applications in cars, trucks, busses cmc_connectors CMC EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Not Reviewed Halogen-Free Status Not Reviewed Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. More Detailed Tech Information Overview Product Name Physical Circuits (maximum) Circuits Detail Color - Resin Gender Glow-Wire Compliant Keying to Mating Part Lock to Mating Part Material - Resin Number of Rows Packaging Type Panel Mount Pitch - Mating Interface (in) Pitch - Mating Interface (mm) Polarized to Mating Part Stackable Temperature Range - Operating 48 8 x 1.5mm & 40 x 0.635mm terminals Black Female No Yes Yes Polyester 4 Carton No 0.100 In, 0.146 In 2.54 mm, 3.70 mm Yes No -40°C to +125°C Search Parts in this Series 64320Series Mates With 500762-0481 48 Circuit CMC Header, 36638 CMC Header Use With CMC CP Female Terminal 64322 , 64323. Circuit Way Plugs 643251010 , 643251023. CMC Wire Cap 643201301. CMC 48 Circuit Header 5007620481 , 36638 , Electrical Current - Maximum per Contact 12A, 6A Material Info Reference - Drawing Numbers Application Specification Packaging Specification Product Specification Sales Drawing AS-64319-001 PK-64320-001 PS-64319-001 SD-64320-001, SD-98644-006, SD-98993-008 This document was generated on 05/19/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION VOID AND SUPERSEDED BY SD-64320-001 rev C
