0874210000 数据手册

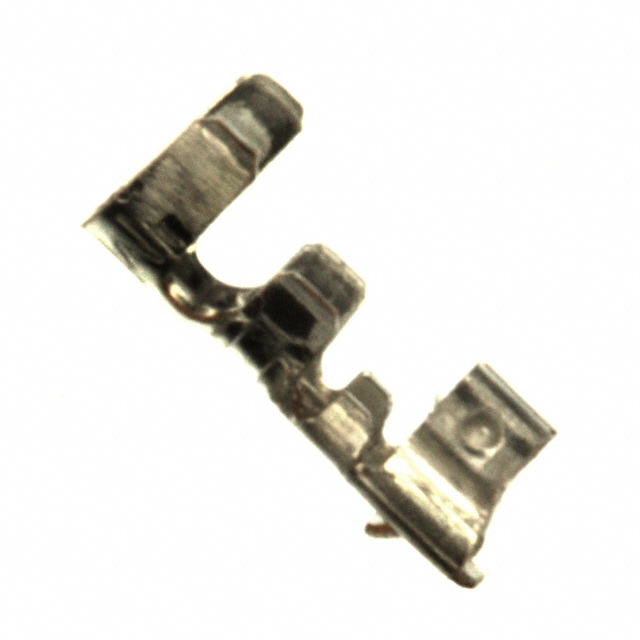

This document was generated on 06/08/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: Documents: 3D Model Drawing (PDF) 0874210000 Active picospox 1.50mm (.059") Pico-SPOX™ Crimp Terminal, Female, Tin(Sn), 24-30 AWG, Reel Product Specification PS-87437 (PDF) RoHS Certificate of Compliance (PDF) Series Crimp Terminals 87421 Yes Yes picospox USA-235 Pico-SPOX™ image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. General Product Family Series Crimp Quality Equipment MolexKits Overview Product Literature Order No Product Name Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Phosphor Bronze Tin Tin Reel 101.600 2.54 101.600 2.54 Crimp or Compression 0.70mm (.028) max., 0.90mm (.035") max., 1.00mm (.039) max., 1.15mm (.045") max. 24, 26, 28, 30 N/A Search Parts in this Series 87421Series Use With 87439 Pico-SPOX™ Wire-to-Board Housing Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # T2 Terminator for 0639114200 1.50mm (.059") PicoSPOX™ Female Crimp Terminal Extraction Tool 0638132700 FineAdjust Applictor 0639014200 for 1.50mm (.059") Pico-SPOX™ Female Crimp Electrical Current - Maximum per Contact Voltage - Maximum 1A, 2A, 3A 50V Material Info Reference - Drawing Numbers Product Specification Sales Drawing PS-87437, RPS-78048-002, RPS-87437, RPS-87437-001, RPS-87437-200 SD-87421-0000 Terminal, 24-30 AWG Hand Crimp Tool 0638116400 Japan Description Product # Applicator for M211A 0572943000 Bench Press, 26 AWG, for 87421 Crimp Terminal This document was generated on 06/08/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

下载 PDF

0874210000

1. 物料型号： - 型号：0874210000 - 描述：Active picospox 1.50mm (.059") Pico-SPOX™ Crimp Terminal, Female, Tin(Sn), 24-30 AWG, Reel

2. 器件简介： - 产品系列：Crimp Terminals - 产品名称：PICO SPOXIN - 物理属性：Female, 材料 - 金属：Phosphor Bronze, 材料 - 镀层配对：Tin, 材料 - 镀层终止：Tin - 包装类型：Reel

3. 引脚分配： - 引脚绝缘直径：0.70mm (.028") max., 0.90mm (.035") max., 1.00mm - 线规AWG：24, 26, 28, 30

4. 参数特性： - 电流 - 每个接触点最大值：未提供具体数值 - 电压 - 最大值：J2A3A

5. 功能详解： - 该产品为Pico-SPOX™系列的压接端子，用于连接24至30AWG的电线，具有优良的电气和物理性能。

6. 应用信息： - 与87439 Pico-SPOX™ Wire-to-Board Housing配合使用 - 应用工具：包括Crimp Terminal T2 Terminator和Extraction Tool等

7. 封装信息： - 封装类型：Reel - 镀层最小值：Mating (uin) 101.600, Mating (um) 2.54, Termination (uin) 101.600, Termination (um) 2.54
