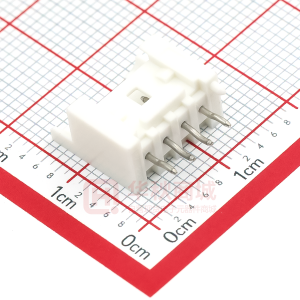

53375-0410 - Fully Shrouded Positive Lock Vertical and Right Angle Header and Receptacle - MolexKits

数据手册：

下载53375-0410.pdf

立即购买

详情介绍
数据手册
价格&库存

53375-0410 数据手册

1801 Morgan Street Rockford, Illinois 61102 800-435-2931 www.molexkits.com Datasheet for 76650-0117 General Information Part Number: 76650-0117 Manufacturer: Title: Description: Product Family: Certificates: Molex / Waldom Mini-Lock Deluxe Connector Kit Fully Shrouded Positive Lock Vertical and Right Angle Header and Receptacle Mini-Lock™ (Molex parts within this kit) - EU and China RoHS Compliant, UL and CSA Country of Origin: Kit assembled in U.S.A. Specifications Design Configuration: Pitch: Connector Type: Mounting Orientation: Circuit Sizes: Current Rating: Voltage: Wire size: Product Highlights Mini-Lock is a versatile wire-to-board system from Molex for a broad range of 2.50mm (.098" ) pitch industry standard applications. The kit includes Right Angle headers. Mini-Lock is fully shrouded to protect contacts, and includes high guide walls to facilitate mating. Features and Benefits • Four point contact design for good electrical reliability • Thumb-latch locking feature for easy mating and unmating • High guide walls to facilitate mating • Fully shrouded headers to protect pins • Pull tabs to assist in unmating Applications • White goods • Vending machines • Automotive • PDAs • TVs Wire-to-Board 2.50mm (.098") Receptacle and Header Vertical and Right Angle 2, 3, 4, 5 and 6 3 Amps 250 Volts 28-22 AWG For additional Molex / Waldom Design and Solution kits please go to www.molexkits.com Page 1 of 3 1801 Morgan Street Rockford, Illinois 61102 800-435-2931 www.molexkits.com Datasheet for 76650-0117 Bill of Materials for Part No. 76650-0117 Country Molex Part No. of Origin 50351-8100-C 51103-0200 51103-0300 51103-0400 51103-0500 51103-0600 53426-0210 53426-0310 53426-0410 53426-0510 53426-0610 Japan Japan Japan Japan Japan Japan Japan Japan Japan Japan Japan Description Mini-Lock™ Female Crimp Terminals 28-22 AWG 2.50mm (.098") Pitch Mini-Lock™ Receptacles 2 Circuits 2.50mm (.098") Pitch Mini-Lock™ Receptacles 3 Circuits 2.50mm (.098") Pitch Mini-Lock™ Receptacles 4 Circuits 2.50mm (.098") Pitch Mini-Lock™ Receptacles 5 Circuits 2.50mm (.098") Pitch Mini-Lock™ Receptacles 6 Circuits 2.50mm (.098") Pitch Mini-Lock™ Right Angle Headers 2 Circuits 2.50mm (.098") Pitch Mini-Lock™ Right Angle Headers 3 Circuits 2.50mm (.098") Pitch Mini-Lock™ Right Angle Headers 4 Circuits 2.50mm (.098") Pitch Mini-Lock™ Right Angle Headers 5 Circuits 2.50mm (.098") Pitch Mini-Lock™ Right Angle Headers 6 Circuits Quantity in Kit 200 10 10 10 10 10 5 5 5 5 5 For additional Molex / Waldom Design and Solution kits please go to www.molexkits.com Page 2 of 3 1801 Morgan Street Rockford, Illinois 61102 800-435-2931 www.molexkits.com Datasheet for 76650-0117 53375-0210 53375-0310 53375-0410 53375-0510 53375-0610 Korea Korea Korea Korea Korea 2.50mm (.098") Pitch Mini-Lock™ Circuits 2.50mm (.098") Pitch Mini-Lock™ Circuits 2.50mm (.098") Pitch Mini-Lock™ Circuits 2.50mm (.098") Pitch Mini-Lock™ Circuits 2.50mm (.098") Pitch Mini-Lock™ Circuits Vertical Headers 2 5 Vertical Headers 3 5 Vertical Headers 4 5 Vertical Headers 5 5 Vertical Headers 6 5 Recommended Molex Tool(s) for Part No. 76650-0117* Country Molex Part No. of Origin 63811-8100 * 57309-6000 * Sweden Hand Crimp Tool Japan Extraction Tool Description *Tool(s) not included in kit. Tool(s) ordered separately. For additional Molex / Waldom Design and Solution kits please go to www.molexkits.com Page 3 of 3

下载 PDF

53375-0410

1. 物料型号： - 50351-8100-C：Mini-Lock™ Female Crimp Terminals 28-22 AWG，日本制造，数量200。 - 51103-0200：2.50mm (.098") Pitch Mini-Lock™ Receptacles 2 Circuits，日本制造，数量10。 - 51103-0300：2.50mm (.098") Pitch Mini-Lock™ Receptacles 3 Circuits，日本制造，数量10。 - 51103-0400：2.50mm (.098") Pitch Mini-Lock™ Receptacles 4 Circuits，日本制造，数量10。 - 51103-0500：2.50mm (.098") Pitch Mini-Lock™ Receptacles 5 Circuits，日本制造，数量10。 - 51103-0600：2.50mm (.098") Pitch Mini-Lock™ Receptacles 6 Circuits，日本制造，数量10。 - 53426-0210：2.50mm (.098") Pitch Mini-Lock™ Right Angle Headers 2 Circuits，日本制造，数量5。 - 53426-0310：2.50mm (.098") Pitch Mini-Lock™ Right Angle Headers 3 Circuits，日本制造，数量5。 - 53426-0410：2.50mm (.098") Pitch Mini-Lock™ Right Angle Headers 4 Circuits，日本制造，数量5。 - 53426-0510：2.50mm (.098") Pitch Mini-Lock™ Right Angle Headers 5 Circuits，日本制造，数量5。 - 53426-0610：2.50mm (.098") Pitch Mini-Lock™ Right Angle Headers 6 Circuits，日本制造，数量5。 - 53375-0210：2.50mm (.098") Pitch Mini-Lock™ Vertical Headers 2 Circuits，韩国制造，数量5。 - 53375-0310：2.50mm (.098") Pitch Mini-Lock™ Vertical Headers 3 Circuits，韩国制造，数量5。 - 53375-0410：2.50mm (.098") Pitch Mini-Lock™ Vertical Headers 4 Circuits，韩国制造，数量5。 - 53375-0510：2.50mm (.098") Pitch Mini-Lock™ Vertical Headers 5 Circuits，韩国制造，数量5。 - 53375-0610：2.50mm (.098) Pitch Mini-Lock™ Vertical Headers 6 Circuits，韩国制造，数量5。

2. 器件简介： - 该器件为Mini-Lock Deluxe Connector Kit，由Molex / Waldom制造，是一款全屏蔽正锁定垂直和直角头座和插座。

3. 引脚分配： - 提供了从2到6个电路的不同配置。

4. 参数特性： - 配置：线对板。 - 间距：2.50mm (.098")。 - 连接器类型：插座和头部。 - 安装方向：垂直和直角。 - 电路尺寸：2、3、4、5和6。 - 电流额定值：3安培。 - 电压：250伏特。 - 线规：28-22 AWG。

5. 功能详解： - Mini-Lock是一款适用于2.50mm (.098")间距行业标准应用的多功能线对板系统。该套件包括直角头部，全屏蔽以保护接触点，并包括高导向壁以便于配合。

6. 应用信息： - 应用领域包括白色家电、自动售货机、汽车、PDA和电视。

7. 封装信息： - 该套件包括直角和垂直头部，具体型号和数量如上所述。
