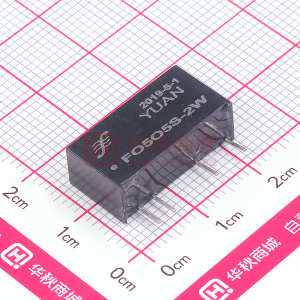

F0505S-2W

E_S-2W & F_S-2W Series 2W, FIXED INPUT, ISOLATED & UNREGULATED DUAL/SINGLE OUTPUT DC-DC CONVERTER Multi-country patent protection RoHS FEATURES High Efficiency up to 85% 3000VDC Isolation SIP Package Internal SMD construction No Heat sink Required Temperature Range: -40°C to +85°C No External Component Required Industry Standard Pinout RoHS Compliance PRODUCT PROGRAM Input P art Number E0505S-2W E0509S-2W E0512S-2W E0515S-2W F0503S-2W* F0505S-2W F0509S-2W F0512S-2W F0515S-2W E1205S-2W E1209S-2W E1212S-2W E1215S-2W F1205S-2W F1209S-2W F1212S-2W F1215S-2W E2405S-2W E2409S-2W E2412S-2W E2415S-2W F2405S-2W F2409S-2W F2412S-2W F2415S-2W F2424S -2W *Designing Output Voltage (VDC) ±5 ±9 ±12 ±15 Current (mA) Max ±200 ±111 ±83 ±67 400 400 222 167 133 ±200 ±111 ±83 ±67 400 222 167 133 ±200 ±111 ±83 ±67 400 222 167 133 83 Min ±20 ±12 ±9 ±7 40 40 23 17 14 ±20 ±12 ±9 ±7 40 23 17 14 ±20 ±12 ±9 ±7 40 23 17 14 9 82 83 84 82 74 81 83 83 83 80 83 85 82 80 82 83 83 82 82 85 85 80 82 83 84 85 UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE Efficiency (%, Typ) Certificate Voltage (VDC) Nominal Range 5 4.5-5.5 3.3 5 9 12 15 ±5 ±9 ±12 ±15 5 9 12 15 ±5 ±9 ±12 ±15 APPLICATIONS The E_S-2W & F_S-2W Series are specially designed for applications where a group of polar power supplies are isolated from the input power supply in a distributed power supply system on a circuit board. These products apply to: 1) 2) 3) W here the voltage of the input power W here isolation is necessary between W here the regulation of the output supply is fixed (voltage variation ≤ ±10%); input and output (isolation voltage ≤ 3000VDC); voltage and the output ripple noise are not demanding. Such as: purely digital circuits, ordinary low frequency analog circuits, and IGBT power device driving circuits. 12 10.8-13.2 24 21.6-26.4 5 9 12 15 24 MODEL SELECTION COMMON SPECIFICATIONS I tem Test conditions Min -40 -55 15 1.5mm from case for 10 seconds Typ M ax 95 85 125 25 300 1 Free air convection Plastic (UL94-V0) 3500 2.1 K hours g s °C Units % Storage humidity range Operating Temp. Range Storage Temp. Range Temp. rise at full load Lead temperature Short circuit protection Cooling E 0505S-2W Rated Po wer Packag e Style Ou tpu t Volt age Input Volta ge Produ ct Se rie s MORNSUN Science& Technology co., Ltd. Address: 2th floor 6th building, Hangzhou Industrial District, Guangzhou, China Tel: 86-20-38601850 Fax: 86-20-38601272 http://www.mornsun-power.com Case material MTBF W eight *supply voltage must be discontinued at the end of short circuit duration. MORNSUN reserves the copyright Specifications subject to change without notice. E_S-2W & F_S-2W A/2-2008 Page 1 of 2 ISOLATION SPECIFICATIONS Item Isolation voltage Isolation resistance Test conditions Tested for 1 minute and 1 mA max Test at 500VDC Min 3000 1000 Typ M ax Units VDC MΩ Overload Protection Under normal operating conditions, the output circuit of these products has no protection against overload. The simplest method is to connect a self-recovery fuse in series at the input end or add a circuit breaker to the circuit. OUTPUT SPECIFICATIONS Item Output power Line regulation For Vin change of ±1% (3.3V output) (others output) (3.3V output) (5V output) Load regulation 10% to 100% load (9V output) (12V output) (15V output) Output voltage accuracy Temperature drift Ripple& Noise* Switching frequency 100% full load 20MHz Bandwidth Full load, nominal input 75 70 12 10 8.3 6.8 6.3 Test conditions Min 0.2 Typ M ax 2 ±1.5 ±1.2 20 15 10 10 10 0.03 150 %/°C mVp-p KHz % Units W Recommended circuit If you want to further decrease the input/output ripple, an “LC” f iltering network may be connected to the input and output ends of the DC/DC converter, see (Figure 1). Dual Output L L Vin Cin +Vo Cout DC DC GND Single Output L L Cout 0V -Vo See tolerance envelope graph L Vin Cin +Vo Cout DC DC (Figure 1) GND *Test ripple and noise by “parallel cable” method. See detailed operation instructions at Testing of Power Converter section, application notes. Note: 1. All specifications measured at TA=25° C, humidity
