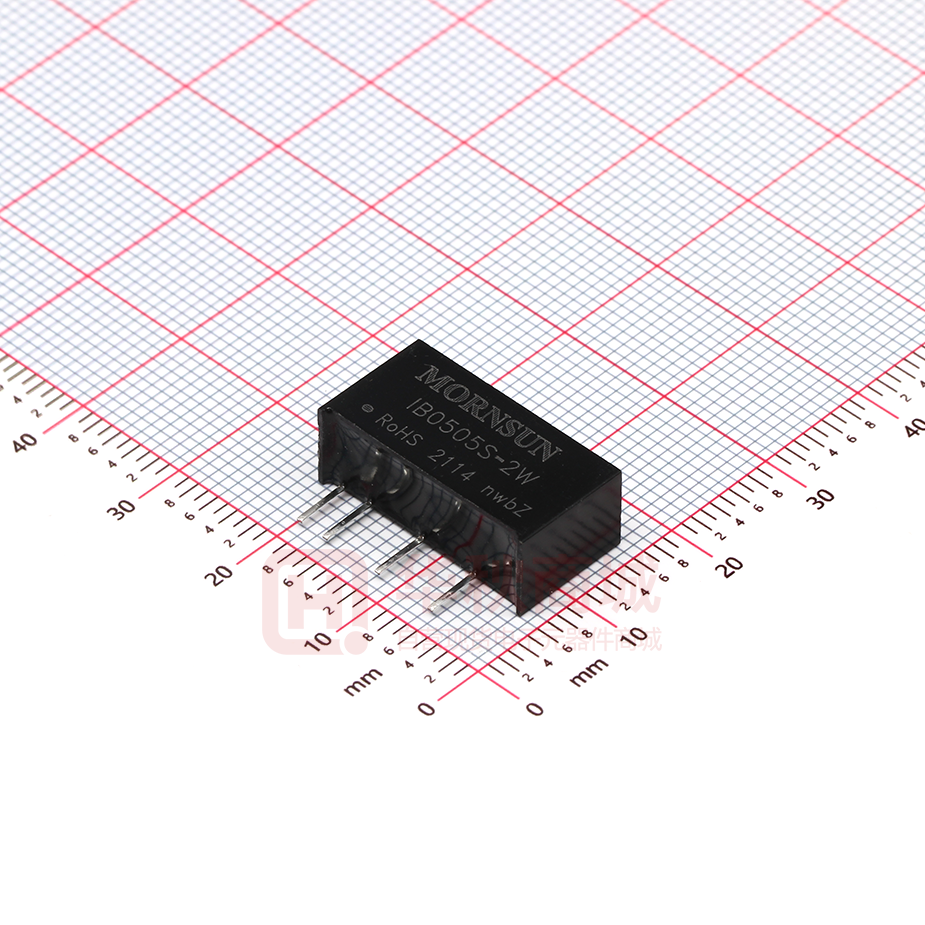

IB0505S-2W

IB_S-2W Series 2W, FIXED INPUT, ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER m ulti-country patent protection FEATURES Small Footprint SIP Package 1KVDC Isolation Temperature Range: -40°C to +85°C No External Component Required Internal SMD construction Continuous Short Circuit Protection Industry Standard Pinout RoHS Compliance RoHS PRODUCT PROGRAM Input P art Number I B0505S-2W I B1205S-2W I B1505S-2W* I B2405S-2W Voltage (VDC) Nominal 5 12 15 24 Range 4.75-5.25 11.40-12.60 14.25-15.75 22.8-25.2 Voltage (VDC) 5 5 5 5 Output Current (mA) Max 400 400 400 400 Min 40 40 40 40 Switching Efficiency frequency (%, Typ) (KHz) 70 71 71 71 333 58 66 APPLICATIONS The IB_S-2W Series are specially designed f or applications where a single power supply is highly isolated from the input power supply in a distributed power supply system on a circuit board. These products apply to: 1) Where the voltage of the input power supply is fixed (voltage variation ≤± 5%); 2) Where isolation is necessary between input and output (isolation voltage ≤1000VDC); 3) Where the regulation of the output voltage and the output ripple and noise are demanded. * Designing. ISOLATION SPECIFICATIONS I tem I solation voltage I solation resistance I solation capacitance Test condition Min Typ Max Units VDC MΩ 100 pF Tested for 1 minute and 1mA max 1000 Test at 500VDC 1000 MODEL SELECTION IB0505S-2W Rated Power Package Style Output Voltage Input Voltage Product Series C OMMON SPECIFICATION I tem Output power Line regulation Load regulation Output voltage accuracy Temperature drift Ripple* For Vin change of 5% 10% to 100% load 100% full load 100% full load 20MHz Bandwidth 20MHz Bandwidth 20 50 Test condition Min 0.2 Typ Max 2 ±0.5 ±1.5 ±3 0.03 30 150 %/ °C mVp-p % Units W MORNSUN Science & Technology co.,Ltd. Address: 2th floor 6th building, Hangzhou Industrial District, Guangzhou, China Tel: 86-20-38601850 Fax: 86-20-38601272 http://www.mornsun-power.com Noise* * Test ripple and noise by “parallel cable” method. See detailed operation instructions at Testing of Power Converter section, application notes. Note: 1. All specifications measured at TA=25°C, humidity
