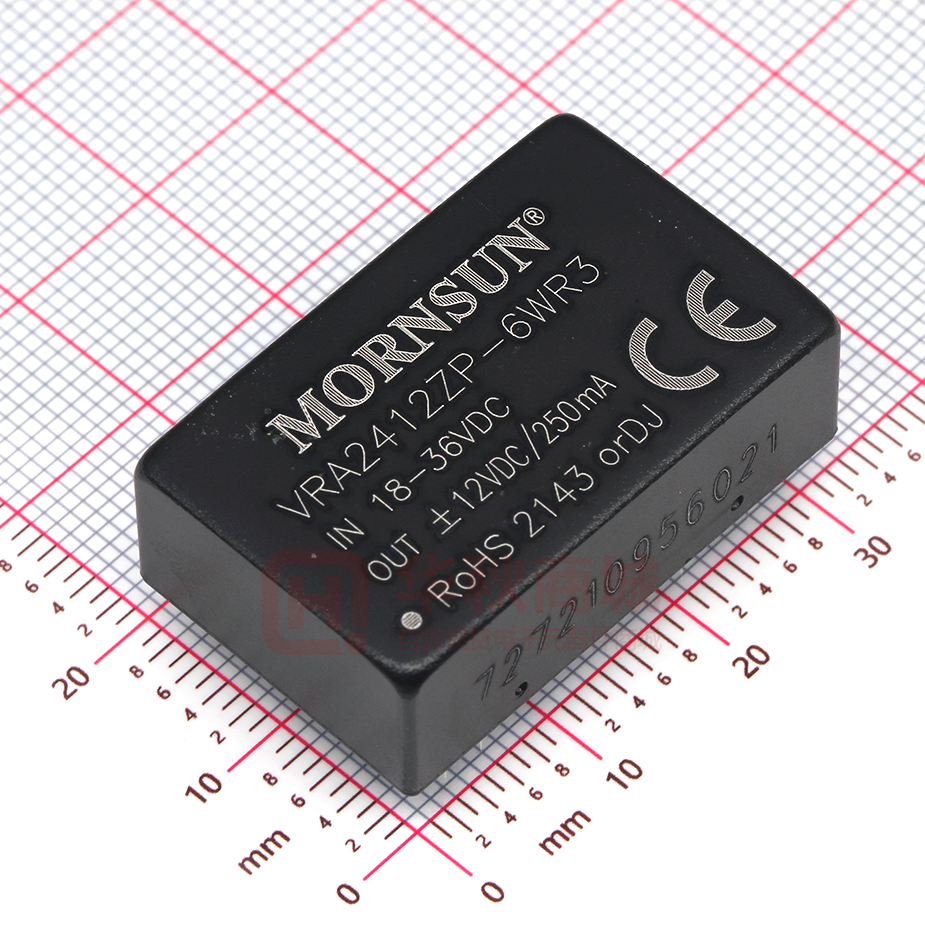

VRA2412ZP-6WR3

DC/DC Converter VRA_ZP-6WR3 & VRB_ZP-6WR3 Series FEATURES 6W,wide input, isolated & regulated dual/ single output, DIP package, DC-DC converter Wide input voltage range (2:1) High efficiency up to 88% No-load power consumption as low as 0.09W Isolation voltage :1.5K VDC Operating temperature range: -40℃ to +85℃ Input under-voltage protection, output short circuit, over-current, over-voltage protection  Meet CISPR22/EN55022 CLASS A without external components Patent Protection RoHS  International standard pin-out  EN60950 approval VRA_ZP-6WR3 & VRB_ZP-6WR3 series products are of 6W output power, wide range of voltage input of 9-18VDC,18-36VDC,36-75VDC       isolation voltage of 1500VDC, input under-voltage protection, output over-voltage, over-current, short circuit protection and EMI meets CISPR22/EN55022 CLASS A without external components; these products are widely used in fields such as industrial control, electric power, instruments and communication. Selection Guide Input Voltage (VDC) Certification Part No. Nominal (Range) ② Efficiency (%,M Max. Capacitive  Output Voltage Output Current (mA) in./Typ.) Load (µF) (Max./Min.) (VDC) @ Full Load VRA1205ZP-6WR3 ±5 ±600/0 78/80 680 VRA1212ZP-6WR3 ±12 ±250/0 82/84 330 VRA1215ZP-6WR3 ±15 ±200/0 83/85 220 VRA1224ZP-6WR3 ±24 ±125/0 82/84 100 3.3 1500/0 73/75 1800 5 1200/0 78/80 1000 VRB1212ZP-6WR3 12 500/0 82/84 470 VRB1215ZP-6WR3 15 400/0 83/85 220 VRB1224ZP-6WR3 24 250/0 83/85 100 VRA2405ZP-6WR3 ±5 ±600/0 81/83 680 VRA2412ZP-6WR3 ±12 ±250/0 84/86 330 VRA2415ZP-6WR3 ±15 ±200/0 85/87 220 VRA2424ZP-6WR3 ±24 ±125/0 83/85 100 3.3 1500/0 76/78 1800 5 1200/0 80/82 1000 VRB2412ZP-6WR3 12 500/0 83/85 470 VRB2415ZP-6WR3 15 400/0 84/86 220 VRB1203ZP-6WR3 VRB1205ZP-6WR3 CE ① Max. Output VRB2403ZP-6WR3 VRB2405ZP-6WR3 12 (9-18) 24 (18-36) 20 40 VRB2424ZP-6WR3 24 250/0 84/86 100 VRA4805ZP-6WR3 ±5 ±600/0 81/83 680 VRA4812ZP-6WR3 ±12 ±250/0 85/87 330 VRA4815ZP-6WR3 ±15 ±200/0 83/85 220 ±24 ±125/0 83/85 100 3.3 1500/0 77/79 1800 5 1200/0 81/83 1000 VRB4812ZP-6WR3 12 500/0 85/87 470 VRB4815ZP-6WR3 15 400/0 86/88 220 VRB4824ZP-6WR3 24 250/0 85/87 100 VRA4824ZP-6WR3 VRB4803ZP-6WR3 VRB4805ZP-6WR3 48 (36-75) 80 Notes： 1 Absolute maximum rating without damage on the converter, but it isn't recommended; 2 Efficiency is measured In nominal input voltage and rated output load; 3 The capacitive loads of positive and negative outputs are identical. 2016.06.20-A/1 Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation DC/DC Converter VRA_ZP-6WR3 & VRB_ZP-6WR3 Series Input Specifications Item Operating Conditions Min. Typ. Max. 3.3V output -- 550/7 566/25 Others -- 607/7 641/25 3.3V output -- 265/7 272/25 Others -- 296/7 313/25 3.3V output -- 131/7 134/25 Others -- 147/7 155/25 -- 20 -- 12VDC input -0.7 -- 25 24VDC input -0.7 -- 50 48VDC input -0.7 -- 100 12VDC input -- -- 9 24VDC input -- -- 18 48VDC input -- -- 36 12VDC input 5.5 6.5 -- 24VDC input 13 15 -- 48VDC input 26 30 12VDC input Input Current (full load / no-load) 24VDC input 48VDC input Reflected Ripple Current Surge Voltage (1sec. max.) Starting Voltage Shutdown Voltage Input Filter Unit mA VDC -Pi filter Hot Plug Unavailable Output Specifications Item Operating Conditions Positive output Output Voltage Accuracy ① Negative output Full load, the input voltage is from Positive output low voltage tohigh voltage Negative output Line Regulation Load Regulation Transient Recovery Time Max. -- ±1 ±3 -- ±0.2 ±0.5 -- ±0.5 ±1 -- ±0.5 ±1 Negative output -- ±0.5 ±1.5 -- -- ±5 -- 300 500 3.3V, 5V, ±5V output -- ±5 ±8 Others -- ±3 ±5 Dual output, main circuit with 50% load, auxiliary circuit with 10%-100% load Cross Regulation Typ. Positive output 5%-100% load ② Min. Unit % µs Transient Response Deviation 25% load step change, Nominal input voltage Temperature Coefficient Full load -- -- ±0.03 %/℃ Ripple & Noise 20MHz bandwidth, 5%-100% load -- -- 100 mV p-p 110 -- 160 %Vo 140 190 %Io ③ Over-voltage Protection Over-current Protection Input voltage range 110 Short circuit Protection % Continuous, self-recovery Note: ①At 0%~5% load, the Max. output voltage accuracy of ±5VDCoutput converter is ±5%. ②When testing from 0% to100%load working conditions，load regulation index of ±5%； ③0%-5% load ripple&Noise is no more than 5%Vo.Ripple and noise are measured by “parallel cable” method, please see DC-DC Converter Application Notes for specific operation. General Specifications Item Operating Conditions Min. Isolation Voltage Input-output, with the test time of 1 minute and the leak current lower than 1mA 1500 Insulation Resistance Input-output, insulation voltage 500VDC Isolation Capacitance Input-output, 100KHz/0.1V Operating Temperature see Fig. 1 Storage Temperature Typ. Max. Unit -- -- VDC 1000 -- -- MΩ -- 1000 -- pF -40 -- 85 -55 -- 125 2016.06.20-A/1 ℃ Page 2 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation DC/DC Converter VRA_ZP-6WR3 & VRB_ZP-6WR3 Series Storage Humidity Non-condensing 5 -- 95 %RH Pin Welding Resistance Temperature Welding spot is 1.5mm away from the casing, 10 seconds -- -- 300 ℃ Vibration 10-55Hz, 10G, 30 Min. along X, Y and Z Switching Frequency * PWM mode MTBF MIL-HDBK-217F@25℃ -- 300 -- KHz 1000 -- -- K hours Note：* This series of products using reduced frequency technology, the switching frequency is test value of full load,When the load is reduced to below 50%, the switching frequency decreases with decreasing load. Physical Specifications Casing Material Aluminum alloy Package Dimensions 32.00*20.00*10.80mm Weight 14g(Typ.) Cooling Method Free air convection EMC Specifications EMI EMS CE RE CISPR22/EN55022 CLASS A (Bare component)/ CLASS B (see Fig.3-② for recommended circuit) CISPR22/EN55022 CLASS A (Bare component)/ CLASS B (see Fig.3-② for recommended circuit) ESD IEC/EN61000-4-2 Contact ±4KV perf. Criteria B RS IEC/EN61000-4-3 10V/m perf. Criteria A EFT IEC/EN61000-4-4 ±2KV (see Fig.3-① for recommended circuit) perf. Criteria B Surge IEC/EN61000-4-5 line to line ±2KV (see Fig.3-①for recommended circuit) perf. Criteria B CS IEC/EN61000-4-6 3 Vr.m.s perf. Criteria A Immunities of voltage dip, IEC/EN61000-4-29 0%, 70% drop and short interruption perf. Criteria B Output Power Percentage(%) Product Characteristic Curve Temperature Derating Curve 120 100 80 60 Safe Operating Area 40 20 0 -40 0 40 71 85 120 Operating Temperatu re(℃ ) Fig. 1 2016.06.20-A/1 Page 3 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation DC/DC Converter VRA_ZP-6WR3 & VRB_ZP-6WR3 Series Design Reference 1. Typical application All the DC/DC converters of this series are tested according to the recommended circuit (see Fig. 2) before delivery. If it is required to further reduce input and output ripple, properly increase the input & output of additional capacitors Cin and Cout or select capacitors of low equivalent impedance provided that the capacitance is no larger than the max. capacitive load of the product. Dual Vin DC Cin DC GND +Vo Cout 0V Cout -Vo Single Vin Vin(VDC) Cin Cout 12/24 100µF 10µF 48 10µF ~47µF 10µF +Vo DC Cin DC Cout 0V GND Fig. 2 2. EMC solution-recommended circuit Parameter description: Model V in CY1 LDM 1 FU SE Vin M OV C0 + DC/DC C1 GND GND ① ② CY2 FUSE +Vo C2 LOAD -Vo (0V) Fig. 3 Notes: Part ① in the Fig. 3 is used for EMS test and part ② for EMI filtering; selected based on needs. Vin:12V Vin:48V Choose according to actual input current MOV S14K20 C0 1000µF/35V C1 Vin:24V S20K30 S14K60 1000µF/50V 680µF/100V 1µF/50V 1µF/100V C2 Refer to the Cout in Fig.2 LDM1 4.7µH CY1, CY2 1nF/2KV 3. The product does not support output in parallel with power per liter 4. For more information please find the application notes on www.mornsun-power.com 2016.06.20-A/1 Page 4 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation DC/DC Converter VRA_ZP-6WR3 & VRB_ZP-6WR3 Series Dimensions and Recommended Layout THIRD ANGLE PROJECTION ∅1.00 [∅0.039] Dual 4.10 [0.161] 10.80 [0.425] 23 22 Front View 2 3 16 14 9 11 16 14 ∅0.50[0.020] Single 23 22 32.00 [1.260] 22.86 [0.900] 3 20.00 [0.787] 15.24 [0.600] 2 9 11 2 3 11 Bottom View 23 22 16 Note:Grid 2.54*2.54mm 14 Pin-Out 2.54 [0.100] 5.08 [0.200] Note: Unit :mm[inch] Pin diameter tolerances :±0.10[±0.004] General tolerances:±0.50[±0.020] Pin 2,3 Single Dual GND GND 9 No Pin 0V 11 NC -Vo 14 +Vo +Vo 16 22,23 0V 0V Vin Vin NC: No Connection 1102001602-B0 Notes: 1. Packing Information please refer to 'Product Packing Information'. Packing bag number : 58210008; 2. The recommended unbalance degree of the dual output module load is ≤±5%; if the degree exceeds ±5%, than the product performance cannot be guaranteed to comply with all parameters in the datasheet. Please contact our technicians directly for specific information; 3. The maximum capacitive load offered were tested at input voltage range and full load; 4. Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity
