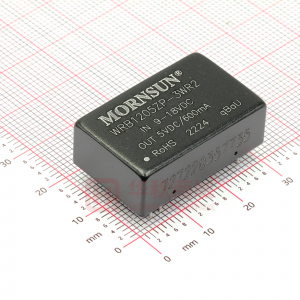

WRB1205ZP-6W

WRA_ZP-6W & WRB_ZP-6W Series 6W, WIDE INPUT, ISOLATED & REGULATED DUAL/ SINGLE OUTPUT DIP DC-DC CONVERTER m ulti-country patent protection FEATURES Efficiency up to 86% Wide (2:1) Input Range 1.5KVDC Input/Output Isolation Short circuit protection(automatic recovery) Operating Temperature: -40°C to +85°C Internal SMD construction Metal Shielding Package No Heat Sink Required Industry-Standard Pinout MTBF>1,000,000 hours RoHS Compliance RoHS PRODUCT PROGRAM P art Number W RA0505ZP-6W W RA0512ZP-6W W RA0515ZP-6W W RB0505ZP-6W W RB0512ZP-6W W RB0515ZP-6W W RB0524ZP-6W W RA1205ZP-6W W RA1212ZP-6W W RA1215ZP-6W W RB1203ZP-6W W RB1205ZP-6W W RB1212ZP-6W W RB1215ZP-6W W RB1224ZP-6W W RA2405ZP-6W W RA2412ZP-6W W RA2415ZP-6W W RB2403ZP-6W W RB2405ZP-6W W RB2412ZP-6W W RB2415ZP-6W W RB2424ZP-6W W RA4805ZP-6W W RA4812ZP-6W W RA4815ZP-6W W RB4805ZP-6W W RB4812ZP-6W 48 36-72 80 24 18-36 40 12 9-18 20 5 4.5-9 11 Input Voltage (VDC) Nominal Range Max* Voltage (VDC) ±5 ±12 ±15 5 12 15 24 ±5 ±12 ±15 3.3 5 12 15 24 ±5 ±12 ±15 3.3 5 12 15 24 ±5 ±12 ±15 5 12 15 24 Output Current (mA) M ax ±600 ±250 ±200 1200 500 400 250 ±600 ±250 ±200 1500 1200 500 400 250 ±600 ±250 ±200 1500 1200 500 400 250 ±600 ±250 ±200 1200 500 400 250 Min ±60 ±25 ±20 120 50 40 25 ±60 ±25 ±20 150 120 50 40 25 ±60 ±25 ±20 150 120 50 40 25 ±60 ±25 ±20 120 50 40 25 76 80 82 76 80 82 83 78 82 84 77 78 82 84 83 80 84 86 79 80 84 86 85 80 84 86 80 84 86 85 Efficiency (%, Typ) APPLICATIONS The WRA_ZP-6W & WRB_ZP-6W Series are specially designed for applications where a wide range input voltage power supplies are isolated from the input power supply in a distributed power supply system on a circuit board. These products apply to: 1) Where the voltage of the input power supply is wide range (voltage range≤ 2:1); 2) Where isolation is necessary between input and output(Isolation Voltage≤ 1500VDC); 3) Where the regulation of the output voltage and the output ripple noise are demanded. MODEL SELECTION WRB2405ZP-6W Rated Power Package Style Output Voltage Input Voltage Product Series W RB4815ZP-6W W RB4824ZP-6W * Input voltage can’t exceed this value, or will cause the permanent damage. Note: The load shouldn't be less than 10%, otherwise ripple will increase dramatically. Operation under 10% load will not damage the converter; However, they may not meet all specification listed. OUTPUT SPECIFICATIONS Item Output Power P ositive Voltage Accuracy Negative Voltage Accuracy Test Conditions See below products program Refer to recommended circuit Refer to recommended circuit From 10% To 100% load Refer to recommended circuit 20MHz bandwidth 20MHz bandwidth 100% load, nominal Input voltage Min 0.6 ±1 ±3 ±0.5 ±0.2 0.02 20 50 300 50 100 Typ Max 6 ±3 ±5 ±1* ±0.5 %/ °C m Vp-p KHz % Units W MORNSUN Science & Technology co.,Ltd. Address: 2th floor 6th building, Huangzhou Industrial District, Guangzhou, China Tel: 86-20-38601850 Fax: 86-20-38601272 Http://www.mornsun-power.com Load Regulation Temperature Drift(Vout) Ripple** Noise** Switching Frequency Line Regulation(at full load) I nput voltage from low to high *Dual output models unbalanced load: ±5%. ** Test ripple and noise by “parallel cable” method. See detailed operation instructions at Testing of Power Converter section, application notes. MORNSUN reserves the copyright Specifications subject to change without notice. WRA_ZP-6W & WRB_ZP-6W A/2-2008 Page 1 of 2 COMMON SPECIFICATION Item Storage humidity Operating temperature Storage temperature Temp. rise at full load Lead temperature Cooling Short circuit protection Case material Isolation voltage Isolation resistance No-load power consumption MTBF W eight 1000 17 Test at 500VDC 1.5mm from case for 10 seconds -40 -55 40 300 Free air convection Continuous, automatic recovery Copper, Nickel Plated Tested for 1 minute and 1 mA max 1500 1000 500 VDC MΩ mW K hours g Test Conditions Min Typ M ax 95 85 125 °C Units % Recommended Circuit All the WRA_ZP-6W&WRB_ZP- 6W recommended testing circuit Series have been tested according to the following before leaving factory. This series should be tested under load. Never be tested under no load (see Figure 1). Dual Output Vin Ci n +Vout DC DC 0V -Vout GND Single Output Vin C in +Vout DC DC 0V GND Note: 1.All specifications measured at TA=25° C, humidity
