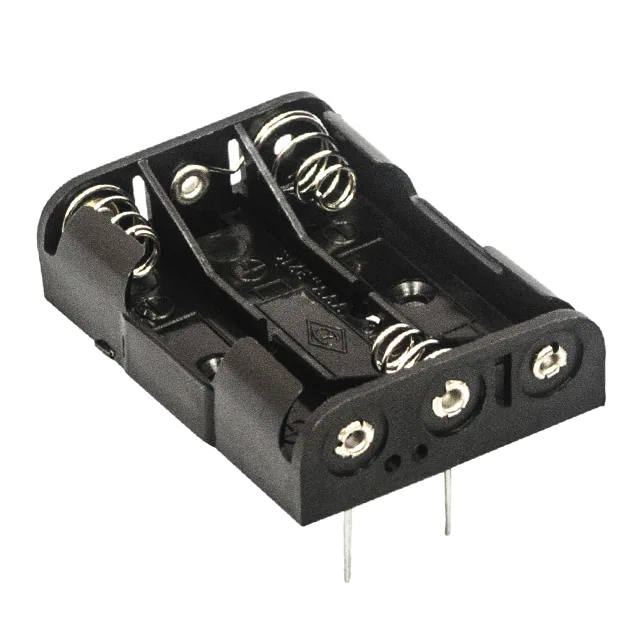

BC3AAAPC

07/07/17 D 07/22/17 E DIM. 38.0 WAS 37.0 DIM. 2.48 WAS 2.82 DIM. 11.10 WAS 12.32 DIM. 0.50 WAS 0.51, DIM. 0.85 WAS 1.02 UPDATED TO "ROHS COMPLIANT" 03/06/19 SIZE "AAA" F OR UM-4 PCB LAYOUT NOTES: 1. MATERIAL: HOUSING : BLACK POLYPROPYLENE FLAMMABILITY RATING -UL94-HB, UL FILE NO. E216959 TEMPERATURE RANGE: -10°C to +100°C RIVETS: BRASS, NICKEL PLATED. PC PINS: STEEL, NICKEL PLATED SPRING: SPRING STEEL, NICKEL PLATED. CONTACTS: SPRING STEEL, NICKEL PLATED. CONTACT RESISTANCE: UNDER 50mΩ FOR +/- CONTACTS PER EIA-540J000 ROHS COMPLIANT MOUNTING INSTRUCTION: USE 2-56 MACHINE SCREWS OR EYELETS 0.089" OD BY 0.15" FLANGE STIMPSON GS-3 SERIES OR EQUIVALENT. ALSO ADHESIVES AND DOUBLE SIDED TAPES WORK WELL. T.B. B.S. T.B. B.S. T.B. B.S.
