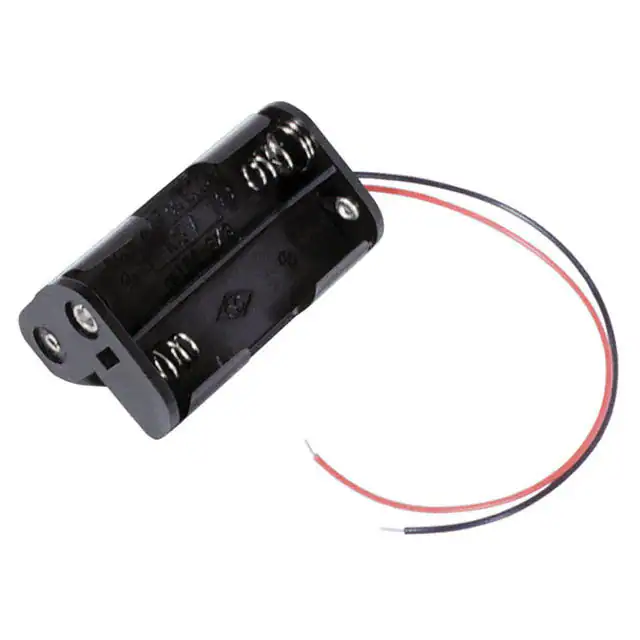

BC3AAGW

DATE SYM 06/30/20 REVISION RECORD AUTH remove snap text A tb DR. CK. dl 57.8 (2.275") 1.5V + 5.0 152.4 (6") 33 (1.3") 29.0 (1.16") WIRE LEADS SHOWN ABOVE Note: Dimensions in mm. ORDERING CODE BC3AAG TOLERANCES ( inches ) Memory Protection Devices, Inc. (EXCEPT AS NOTED) 200 Broad Hollow Road, Farmingdale, New York 11735 SPECIFICATIONS : Plastic material - polypropylene Springs - nickel plated spring steel Wire - 152.4 mm Ref.Long 26 AWG, UL1007, CSA - TR-64, 300V, 80 C. Rivets - Brass, nickel plated SOLDER LUGS =L ( 6") WIRE LEADS =W 9 VOLT TYPE SNAPS =SF DECIMAL + - .5 (.020") SCALE NONE FRACTIONAL + - .8 (.030") TITLE ANGULAR + 3 - DATE DRAWN BY APPROVED BY THREE "AA" CELL HOLDER 06/30/2020 DRAWING NUMBER BC3AAGW S.C. bs
