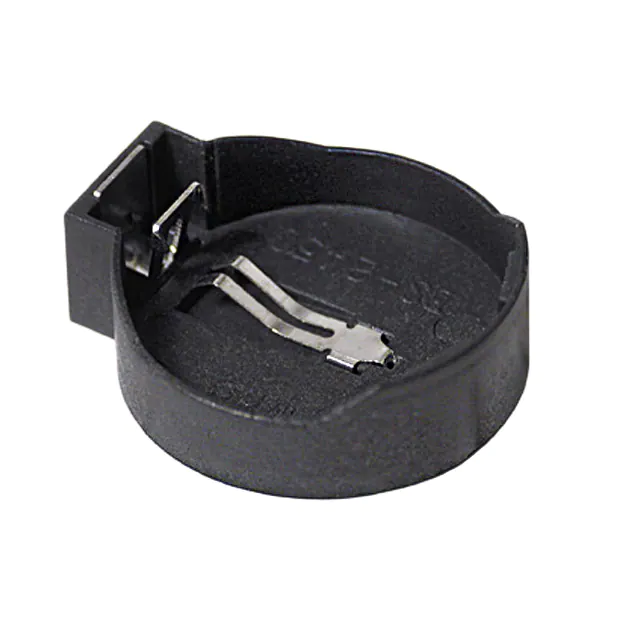

BS-2450

05/08/20 K Ø27.0 [Ø1.06] MAX. REDRAWN IN AUTOCAD DIM. 27.0 WAS 26.92 DIM. 9.10 WAS 9.14 DIM. 29.63 WAS 29.46 T.B. MPD 11.00 [0.43] BS-2450 POSITIVE NEGATIVE 29.63 [1.17] Ø1.52 [Ø0.06] Ø1.17 [Ø0.05] 20.00 [0.79] 9.10 [0.36] 0.40 [0.015] 3.50 [0.14] NOTES: Material: Housing: PA66 FR-Nylon with 15% glass filled, UL94v-0, UL file No. E171666 Contact: Phosphor Bronze, Nickel plated overall Application for 3V Lithium Battery: Insulator Resistance: 5000mΩ Max. Operating Temperature: -55°c to +105°C Durability: 50 Cycles Min. Contact Resistance: 30mΩ Max. Approximate weight: 2.12g ROHS COMPLIANT PCB LAYOUT B.S.
