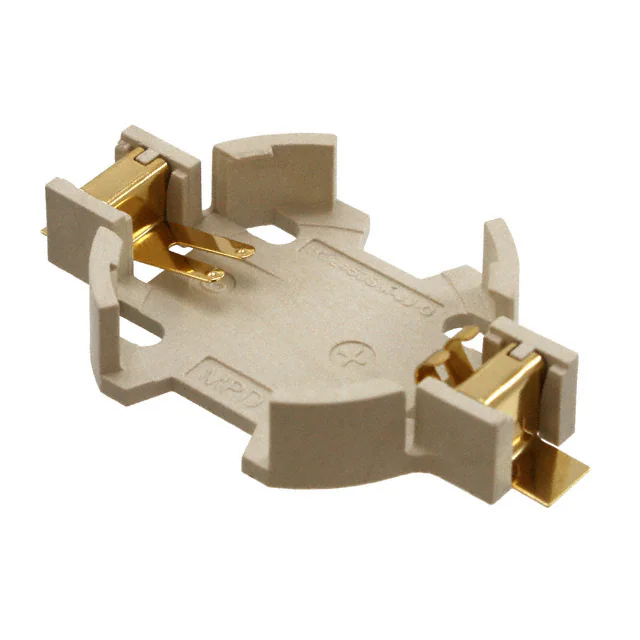

BU2450SM-JJ-GTR

10/05/18 12/12/19 H J Added weight of the part T.B. B.S. Updated to ROHS Compliant T.B. B.S. 42.5±0.40 [1.67±0.02] 8.07 [0.32] Ø 27.70 [Ø 1.09] 5.00 [0.20] BU2450SM-JJ-G 8.92 [0.35] + 4.60 [0.18] 5.08 [0.20] MPD NEGATIVE CONTACT 23.97 [0.94] 7.00 [0.28] 9.5 [0.37] 38.10 [1.50] 37.22 [1.47] 6.50 [0.26] SPECIFICATIONS: * Holder material- Zenite 6130, 30% glass reinforced Liquid Crystal Polymer resin, UL File No. E344082 * Color: Off White * Contacts : 0.020" thick PHOS-BRONZE, GOLD FLASH * Temperature range: -40°C to +280°C * Vibration Test: 10-50-10 Hz sweeped in 60 seconds X,Y,Z direction: 1 hour each direction * Result: No dislodgement of the cell or damage No discontinuity over 10 ms * Shock Test: Half sine wave acceleration 150G. 6 micro-seconds 3 shock pulses each direction per axis, total of 18 pulses * Result: No evidence of physical damage * Drop Test: 1 meter * Result: No dislodgement of the cell or damage * Aprroximate weight: 2.37g * ROHS COMPLIANT 5.08 [0.20] 7.00 [0.28] PCB LAYOUT
