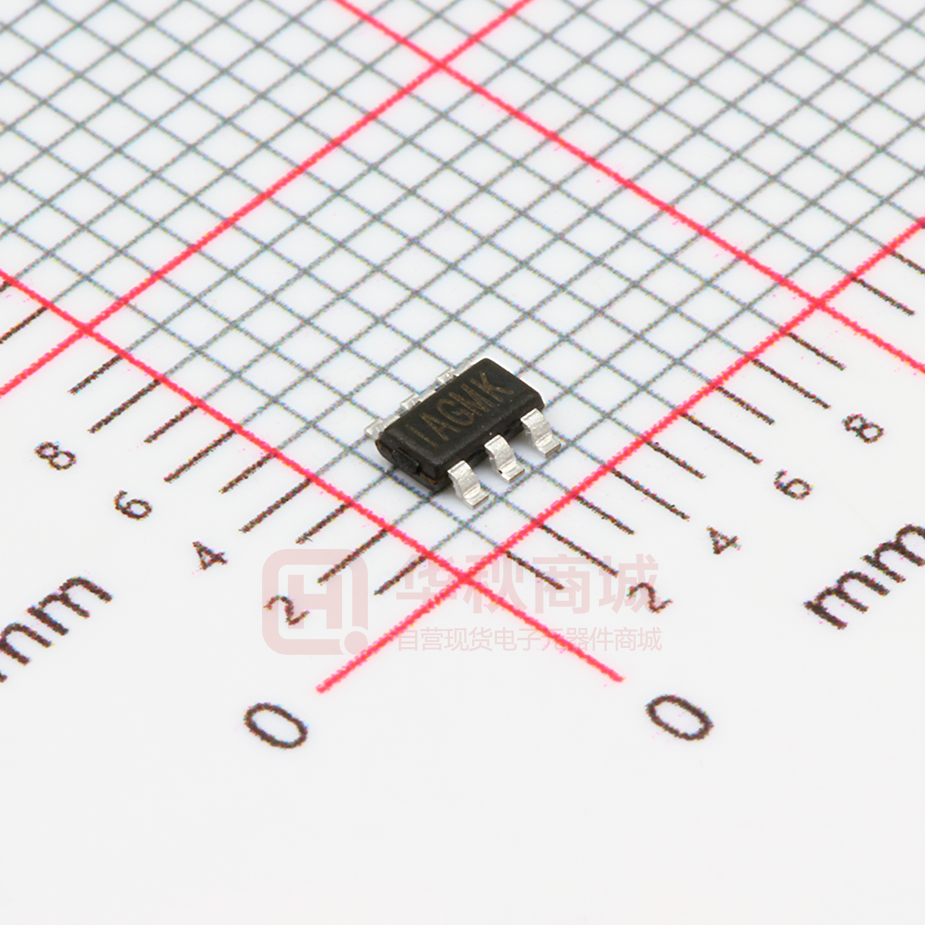

MP1471AGJ-Z

MP1471A High-Efficiency, 3A 16V, 500kHz Synchronous, Step-Down Converter In a 6-Pin TSOT 23 DESCRIPTION FEATURES The MP1471A is a high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 3A output current over a wide input supply range, with excellent load and line regulation. The MP1471A has synchronous-mode operation for higher efficiency over the output current-load range.   Current-mode operation provides fast transient response and eases loop stabilization. Protection features include protection and thermal shutdown. over-current The MP1471A requires a minimal number of readily-available, standard, external components and is available in a space-saving 6-pin TSOT23 package.          Wide 4.5V-to-16V Operating Input Range 110mΩ/57mΩ Low-RDS(ON) Internal Power MOSFETs Proprietary Switching-Loss–Reduction Technology High-Efficiency Synchronous-Mode Operation Fixed 500kHz Switching Frequency Internal AAM Power-Save Mode for High Efficiency at Light Load Internal Soft-Start Over-Current Protection and Hiccup Thermal Shutdown Output Adjustable from 0.8V Available in a 6-pin TSOT-23 package APPLICATIONS     Game Consoles Digital Set-Top Boxes Flat-Panel Television and Monitors General Purposes All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Products, Quality Assurance page. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION MP1471A Rev. 1.0 www.MonolithicPower.com 8/18/2013 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2013 MPS. All Rights Reserved. 1 MP1471A – SYNCHRONOUS, STEP-DOWN CONVERTER WITH INTERNAL MOSFETS ORDERING INFORMATION Part Number* MP1471AGJ Package TSOT23-6 Top Marking AGM * For Tape & Reel, add suffix –Z (e.g. MP1471AGJ–Z); PACKAGE REFERENCE ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance VIN ................................................ -0.3V to 17V VSW .................................................................... -0.3V (-5V for
