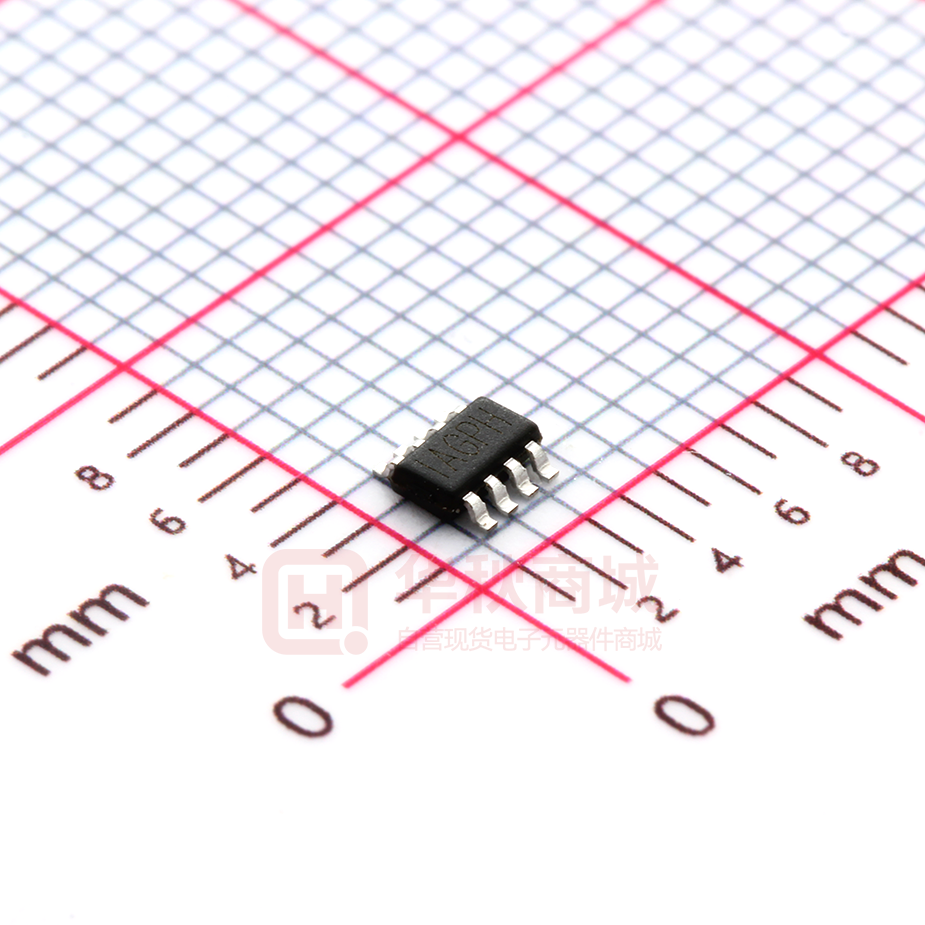

MP1495SGJ-Z

MP1495S High Efficiency 3A, 16V, 500kHz Synchronous Step-Down Converter DESCRIPTION FEATURES The MP1495S is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 3A continuous output current with excellent load and line regulation over a wide input supply range. The MP1495S has synchronous mode operation for higher efficiency over the output current load range.   Current-mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection and thermal shut down. The MP1495S requires a minimal number of readily-available standard external components, and is available in a space-saving 8-pin TSOT23 package.          Wide 4.5V-to-16V Operating Input Range 120mΩ/50mΩ Low RDS(ON) Internal Power MOSFETs High-Efficiency Synchronous Mode Operation Fixed 500kHz Switching Frequency Synchronizes to a 300kHz to 2MHz External Clock AAM Power-Save Mode Internal Soft-Start OCP Protection and Hiccup Thermal Shutdown Output Adjustable from 0.8V Available in an 8-pin TSOT-23 package APPLICATIONS     Notebook Systems and I/O Power Digital Set-Top Boxes Flat-Panel Television and Monitors Distributed Power Systems All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION MP1495S Rev. 1.0 www.MonolithicPower.com 12/13/2013 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2013 MPS. All Rights Reserved. 1 MP1495S – SYNCHRONOUS STEP-DOWN CONVERTER ORDERING INFORMATION Part Number* MP1495SGJ Package TSOT-23-8 Top Marking AGP For Tape & Reel, add suffix –Z (e.g. MP1495SGJ–Z); PACKAGE REFERENCE ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance VIN ................................................ -0.3V to 17V VSW .................................................................... -0.3V (-5V for
