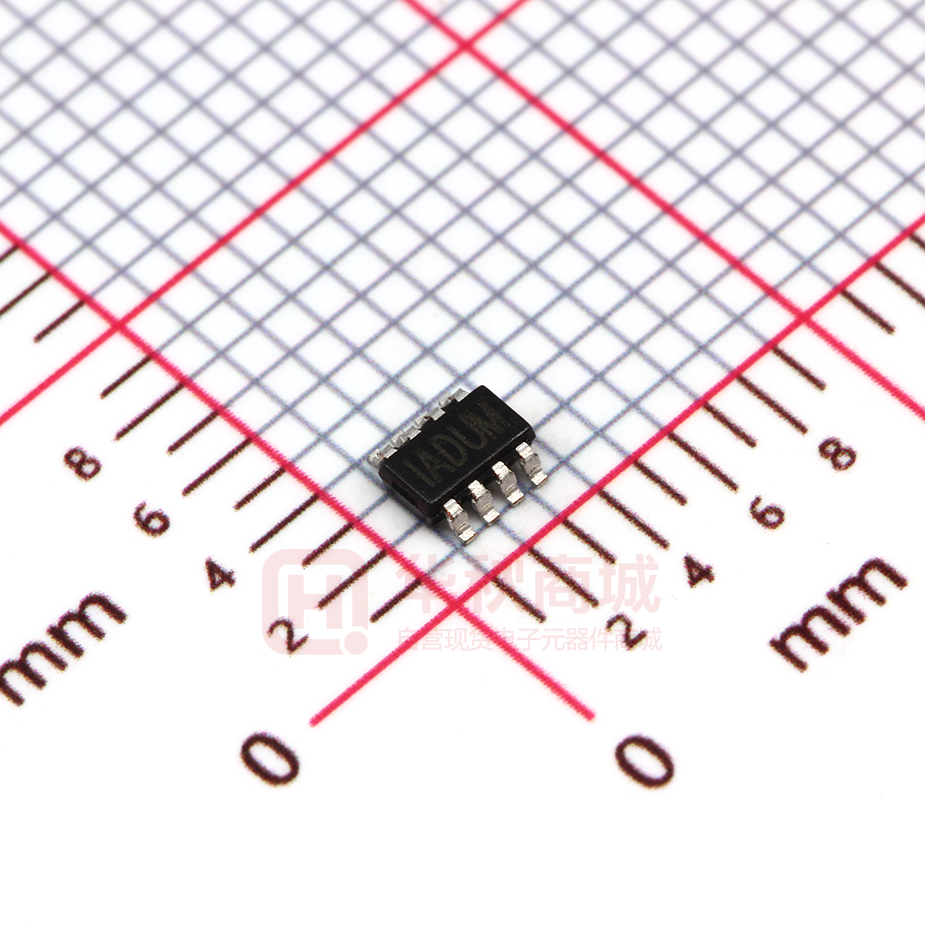

MP1498DJ-LF-Z

MP1498 High-Efficiency, 2A, 16V, 1.4MHz Synchronous, Step-Down Converter R EC R N O EF EW M ER D M E TO ES ND I E G M D N P2 S F O 33 R 2H The Future of Analog IC Technology DESCRIPTION FEATURES The MP1498 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in internal power MOSFETs. It offers a very compact solution to achieve 2A continuous output current with excellent load and line regulation over a wide input supply range. The MP1498 has synchronous mode operation for higher efficiency over the output current load range.   Current-mode operation provides a fast transient response and eases loop stabilization. Protective features include over-current protection, thermal shutdown, and external SS control. The MP1498 requires a minimal number of readily-available external components and is available in a space-saving 8-pin TSOT23 package.          Wide 4.5V-to-16V Operating Input Range 100mΩ/40mΩ Low RDS(ON) Internal Power MOSFETs Proprietary Switching-Loss–Reduction Technique High-Efficiency Synchronous Mode Operation Fixed 1.4MHz Switching Frequency Can Synchronize to a 300kHz-to-3MHz External Clock Externally-Programmable Soft-Start OCP and Hiccup Thermal Shutdown Output Adjustable from 0.8V Available in an 8-pin TSOT-23 Package APPLICATIONS     Notebook Systems and I/O Power Digital Set-Top Boxes Flat-Panel Televisions and Monitors Distributed Power Systems All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Products, Quality Assurance page. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Systems, Inc. N O T TYPICAL APPLICATION VIN 2 IN C1 22 F BST MP1498 6 EN/ SYNC 7 C3 0.1 F EN/SYNC SW C5 22nF R3 20 3 95 3.3V/2A L1 2.2 H VCC SS 100 C4 0.1 F GND 4 90 85 R1 40.2k C2 22 F FB 1 5 80 75 8 70 R5 24k R2 13k 65 60 55 50 0.0 0.4 0.8 1.2 1.6 MP1498 Rev. 1.01 www.MonolithicPower.com 12/18/2012 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2012 MPS. All Rights Reserved. 2.0 1 MP1498 – SYNCHRONOUS, STEP-DOWN CONVERTER WITH INTERNAL MOSFETS ORDERING INFORMATION Package TSOT-23-8 Top Marking ADU R EC R N O EF EW M ER D M E TO ES ND I E G M D N P2 S F O 33 R 2H Part Number* MP1498DJ For Tape & Reel, add suffix –Z (e.g. MP1498DJ–Z); For RoHS, compliant packaging, add suffix –LF (e.g. MP1498DJ–LF–Z). PACKAGE REFERENCE ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance VIN .................................................. -0.3V to 17V VSW ... -0.3V (-5V for
