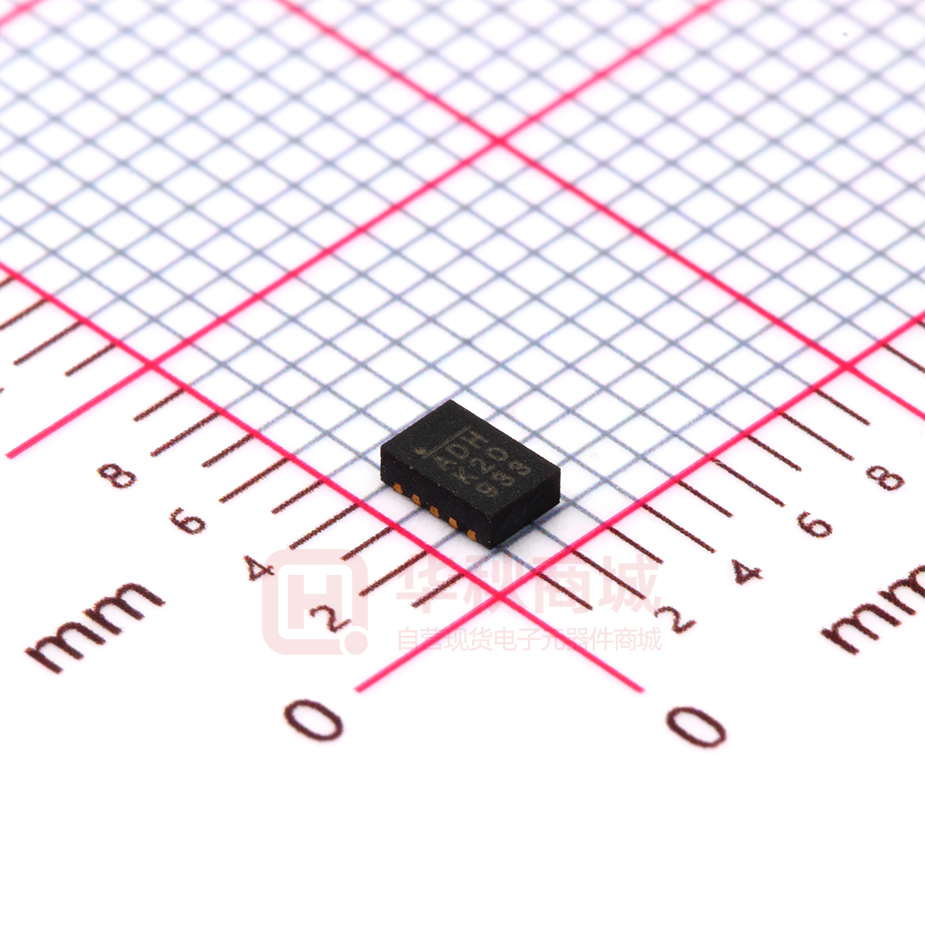

MP1499GD-Z

MP1499 High Efficiency 5A Peak, 16V, 500kHz Synchronous Step Down Converter The Future of Analog IC Technology DESCRIPTION FEATURES The MP1499 is a high frequency synchronous rectified step-down switch mode converter with built in internal power MOSFETs. It offers a very compact solution to achieve 5A peak output current over a wide input supply range with excellent load and line regulation. The MP1499 has synchronous mode operation for higher efficiency over output current load range. • • • • • • • • • • • Current mode operation provides fast transient response and eases loop stabilization. Full protection features include over current protection and thermal shut down. The MP1499 requires a minimum number of readily available standard external components and is available in a space saving 10-pin QFN (2x3mm) package. Wide 4.5V to 16V Operating Input Range 70mΩ/25mΩ Low RDS(ON) Internal Power MOSFETs Proprietary Switching Loss Reduction Technique Fixed 500kHz Switching Frequency Sync from 200kHz to 2MHz External Clock AAM Power Save Mode External Soft Start OCP Protection and Hiccup Thermal Shutdown Output Adjustable from 0.8V Available in a QFN10 (2x3mm) Package APPLICATIONS • • • Digital Set Top Boxes Flat Panel Television and Monitors Distributed Power Systems All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Products, Quality Assurance page. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION Efficiency vs. Output Current R5 10 VIN C1 22 9 BST SW EN/SYNC R3 100k 8 MP1499 FB 1 10 SS VCC C5 22nF C4 100nF 4 IN 3 V =3.3V 100 OUT C6 2 NC GND 5 6, 7 R8 33k 95 90 L1 3.3 R1 40.2k VOUT 3.3V/5A 85 80 VIN=12V VIN=5V 75 70 R2 13k C2 47 65 60 VIN=16V 55 50 0.01 0.10 1.00 10.00 OUTPUT CURRENT(A) MP1499 Rev. 1.01 4/13/2016 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 1 MP1499 – 16V/5A PEAK SYNCHRONOUS STEP-DOWN CONVERTER ORDERING INFORMATION Part Number* MP1499GD Package QFN10 (2x3mm) Top Marking ADH * For Tape & Reel, add suffix –Z (e.g.MP1499GD–Z); PACKAGE REFERENCE TOP VIEW FB 1 10 SS VCC 2 9 IN EN/SYNC 3 8 SW BST 4 7 GND NC 5 6 GND ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance VIN .................................................–0.3V to 17V VSW ...................................................................... -0.3V (-5V for
