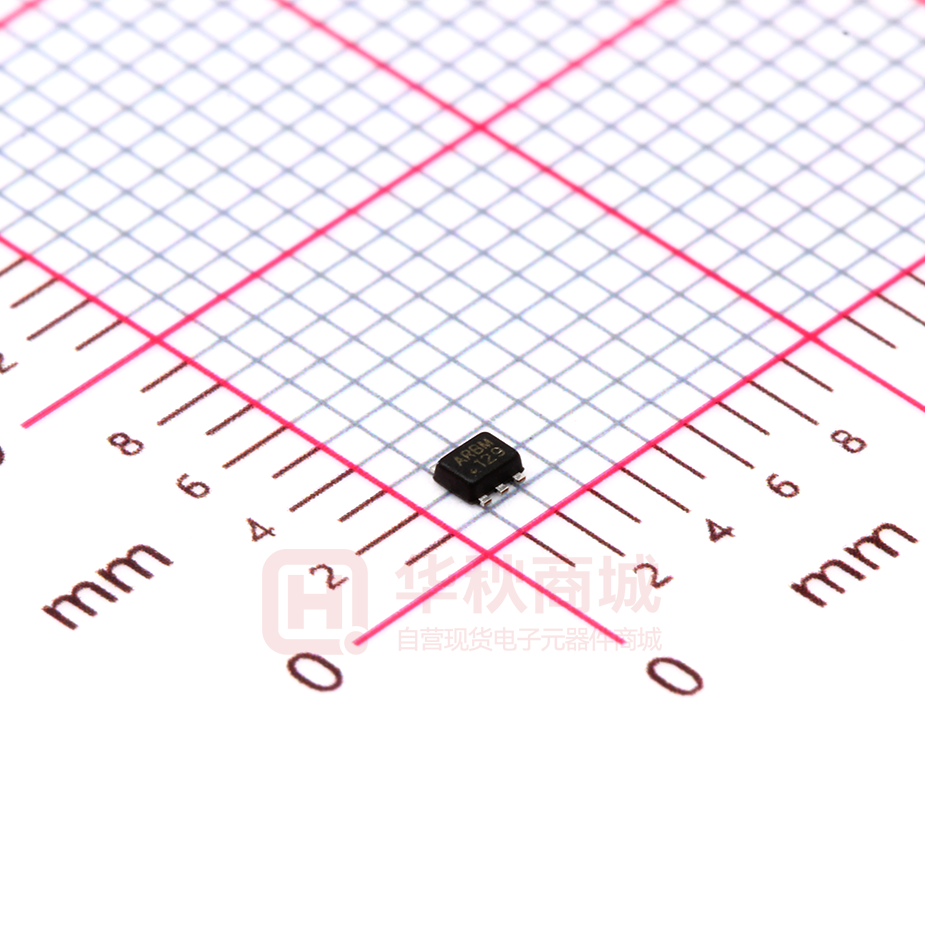

MP1601GTF-Z

MP1601 1A, Synchronous, Step-Down Converter with 11µA Quiescent Current in SOT563 The Future of Analog IC Technology DESCRIPTION FEATURES The MP1601 is a monolithic, step-down, switchmode converter with built-in, internal power MOSFETs. It can achieve 1A of continuous output current from a 2.3V-to-5.5V input voltage range with excellent load and line regulation. The output voltage can be regulated as low as 0.6V.         The constant-on-time control scheme provides a fast transient response and eases loop stabilization. Fault protections include cycle-bycycle current limiting and thermal shutdown. The MP1601 is available in an ultra-small SOT563 package and requires a minimal number of readily available, standard, external components. The MP1601 is ideal for a wide range of applications including high-performance DSPs, wireless power, portable and mobile devices, and other low-power systems.      Low Quiescent Current: 11μA 2.2MHz Switching Frequency EN for Power Sequencing Power Good Only for Fixed Output Version Wide 2.3V-to-5.5V Operating Input Range Output Adjustable from 0.6V Up to 1A of Output Current 160mΩ and 120mΩ Internal Power MOSFET Switches Output Discharging Short-Circuit Protection (SCP) with Hiccup Mode Stable with Low ESR Output Ceramic Capacitors 100% Duty Cycle Available in a SOT563 Package APPLICATIONS     Wireless/Networking Cards Portable and Mobile Devices Battery-Powered Devices Low-Voltage I/O System Power All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION L1 1μH VIN 5V SW VIN OUT C1 10μF R1 200kΩ MP1601 EN EN C2 10μF FB GND MP1601 Rev. 1.01 12/7/2018 VOUT 1.2V/1A R2 200kΩ www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2018 MPS. All Rights Reserved. 1 MP1601 – 1A, SYNCHRONOUS, STEP-DOWN CONVERTER WITH 11µA IQ ORDERING INFORMATION Part Number* MP1601GTF MP1601GTF-12 MP1601GTF-15 MP1601GTF-18 MP1601GTF-25 MP1601GTF-33 Package SOT563 Top Marking See Below See Below See Below See Below See Below See Below VOUT Range Adjustable Fixed 1.2V Fixed 1.5V Fixed 1.8V Fixed 2.5V Fixed 3.3V * For Tape & Reel, add suffix –Z (e.g. MP1601GTF–Z) TOP MARKING (MP1601GTF) ARB: Product code of MP1601GTF Y: Year code LLL: Lot number TOP MARKING (MP1601GTF-12) AUU: Product code of MP1601GTF-12 Y: Year code LLL: Lot number TOP MARKING (MP1601GTF-15) AUN: Product code of MP1601GTF-15 Y: Year code LLL: Lot number MP1601 Rev. 1.01 12/7/2018 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2018 MPS. All Rights Reserved. 2 MP1601 – 1A, SYNCHRONOUS, STEP-DOWN CONVERTER WITH 11µA IQ TOP MARKING (MP1601GTF-18) AUP: Product code of MP1601GTF-18 Y: Year code LLL: Lot number TOP MARKING (MP1601GTF-25) AUQ: Product code of MP1601GTF-25 Y: Year code LLL: Lot number TOP MARKING (MP1601GTF-33) AUR: Product code of MP1601GTF-33 Y: Year code LLL: Lot number MP1601 Rev. 1.01 12/7/2018 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2018 MPS. All Rights Reserved. 3 MP1601 – 1A, SYNCHRONOUS, STEP-DOWN CONVERTER WITH 11µA IQ PACKAGE REFERENCE TOP VIEW TOP VIEW FB 1 6 OUT PG 1 6 OUT GND 2 5 EN GND 2 5 EN VIN 3 4 SW VIN 3 4 SW MP1601GTF-12 MP1601GTF-15 MP1601GTF-18 MP1601GTF-25 MP1601GTF-33 MP1601GTF SOT563 ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance (4) Supply voltage (VIN) ........................................ 6V VSW ................................ -0.6V (-5V for
