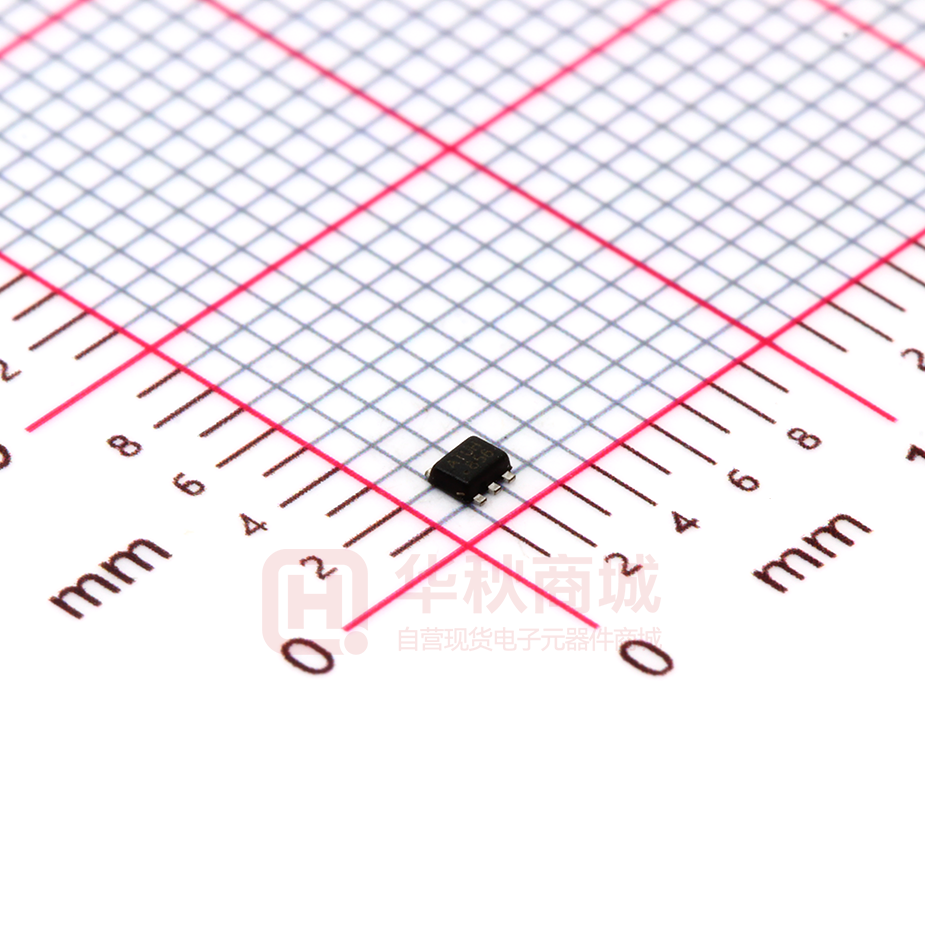

MP1652GTF

MP1652 High-Efficiency, 2A, 18V, 680kHz Synchronous, Step-Down Converter In SOT 563 The Future of Analog IC Technology DESCRIPTION • • The MP1652 is a fully-integrated highfrequency, synchronous rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 2A continuous output current over a wide input range, with excellent load and line regulation. The MP1652 has synchronousmode operation for higher efficiency over the output current-load range. Constant On-Time control operation provides very fast transient response and easy loop design as well as very tight output regulation. • • The MP1652 requires a minimal number of readily-available, standard, external components and is available in a space-saving SOT563 package. P M C T O C3 1μF L1 4.7μH N R3 47kΩ D N E APPLICATIONS • • • • E T U B I Security Camera Digital Set-Top Boxes Flat-Panel Television and Monitors General Purposes R T S I “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. R4 30 O T Wide 4.2V-to-18V Operating Input Range 130mΩ/65mΩ Low-RDS(ON) Internal Power MOSFETs 180μA Low Iq High-Efficiency Synchronous-Mode Operation Power Save Mode at Light Load Fast Load Transient Response 680kHz Switching Frequency Internal Soft-Start Over-Current Protection and Hiccup Thermal Shutdown Output Adjustable from 0.8V Available in a SOT563 package All MPS parts are lead-free, halogen free, and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Assurance. TYPICAL APPLICATION C1 22μF • • • • • • • • D I F Full protection features include SCP, OCP, UVP and thermal shutdown. S A I FEATURES N O L PRELIMINARY SPECIFICATIONS SUBJECT TO CHANGE C5 10pF R1 40.2kΩ R2 13kΩ D 100 95 90 85 C2 22μF VIN=5V 80 VIN=12V 75 70 VIN=18V 65 60 0.01 0.10 1.00 10.00 OUTPUT CURRENT (A) MP1652 Rev. 0.81 www.MonolithicPower.com 1/21/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. Preliminary Specifications Subject to Change © 2016 MPS. All Rights Reserved. 1 MP1652 – SYNCHRONOUS, STEP-DOWN CONVERTER WITH INTERNAL MOSFETS PRELIMINARY SPECIFICATIONS SUBJECT TO CHANGE L ORDERING INFORMATION Part Number* MP1652GTF Package SOT563 Top Marking See below * For Tape & Reel, add suffix –Z (e.g. MP1652GTF–Z) S P M N O C O D N E D I ATU: Product code of MP1652GTF Y: Year code LLL: Lot number F A I T TOP MARKING T R PACKAGE REFERENCE T O N T TOP VIEW S I D E U B I SOT563 MP1652 Rev. 0.81 www.MonolithicPower.com 1/21/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. Preliminary Specifications Subject to Change © 2016 MPS. All Rights Reserved. 2 MP1652 – SYNCHRONOUS, STEP-DOWN CONVERTER WITH INTERNAL MOSFETS PRELIMINARY SPECIFICATIONS SUBJECT TO CHANGE Thermal Resistance VIN ..................................................-0.3V to 20V VSW ...................................................................... -0.3V (-5V for
