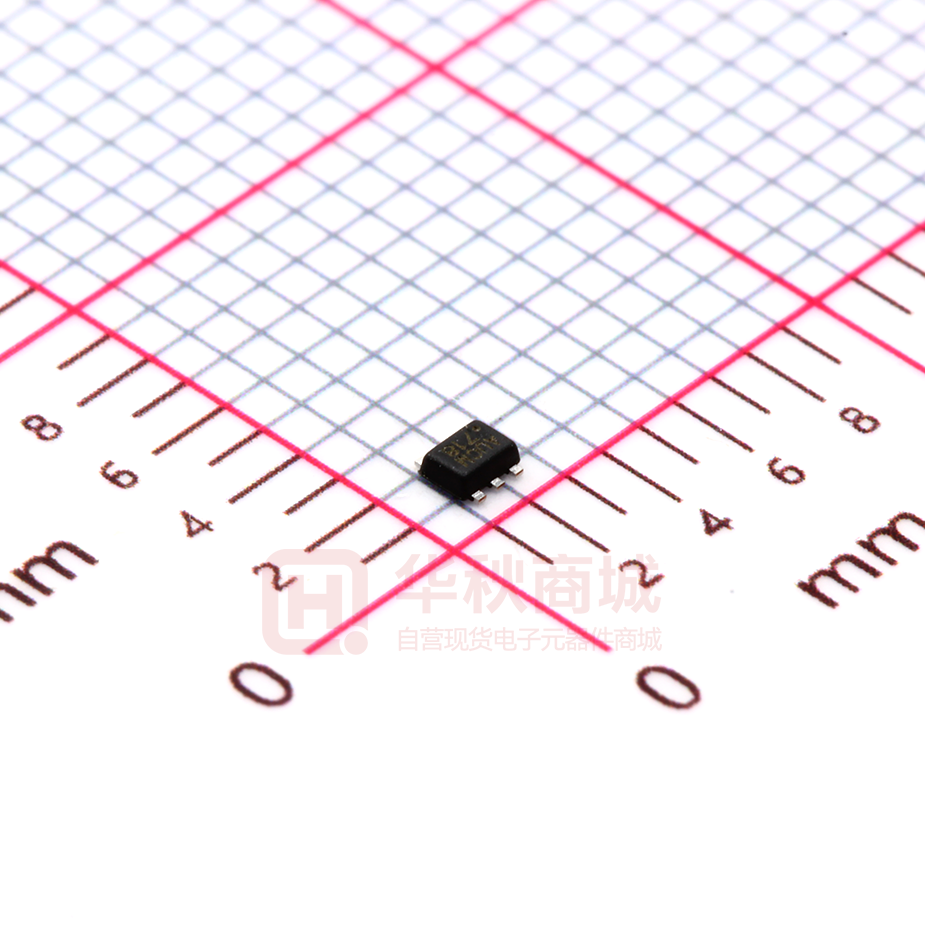

MP1653GTF-Z

MP1653 The Future of Analog IC Technology High-Efficiency, 3A, 17V, 800kHz Synchronous, Step-Down Converter In SOT 563 DESCRIPTION FEATURES The MP1653 is a fully-integrated highfrequency, synchronous rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 3A continuous output current over a wide input range, with excellent load and line regulation. The MP1653 has synchronousmode operation for higher efficiency over the output current-load range.   Constant On-Time control operation provides very fast transient response and easy loop design as well as very tight output regulation. N O   The MP1653 requires a minimal number of readily-available, standard, external components and is available in a space-saving SOT563 (1.6mmх1.6mm) package. P M C D A I T Wide 4.2V-to-17V Operating Input Range 63mΩ/36mΩ Low-RDS(ON) Internal Power MOSFETs 180µA Low IQ Current High-Efficiency Synchronous-Mode Operation Power Save Mode at Light Load Fast Load Transient Response 800kHz Switching Frequency Internal Soft-Start Over-Current Protection and Hiccup Thermal Shutdown Output Adjustable from 0.8V Available in a SOT563(1.6mmх1.6mm) package N E R APPLICATIONS     U B I Security Camera Digital Set-Top Boxes Flat-Panel Television and Monitors General Purposes T S I N T O D E T All MPS parts are lead-free, halogen free, and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION O         D I F Full protection features include SCP, OCP, UVP, and thermal shutdown. S L PRELIMINARY SPECIFICATIONS SUBJECT TO CHANGE 100 VIN=5V 95 90 85 VIN=12V VIN=17V 80 75 0.01 0.1 1 LOAD CURRENT (A) MP1653 Rev. 0.81 www.MonolithicPower.com 2/25/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. Preliminary Specifications Subject to Change © 2016 MPS. All Rights Reserved. 10 1 MP1653 – SYNCHRONOUS, STEP-DOWN CONVERTER WITH INTERNAL MOSFETS PRELIMINARY SPECIFICATIONS SUBJECT TO CHANGE L ORDERING INFORMATION Part Number* MP1653GTF Package SOT563(1.6mmх1.6mm) Top Marking See Below * For Tape & Reel, add suffix –Z (e.g. MP1653GTF–Z). N O N E D I AUC: product code of MP1653GTF; Y: year code; LLL: lot number; F A I T TOP MARKING T PACKAGE REFERENCE S P M C 1 6 SW 2 5 GND 3 T O S I D 4 FB EN R T TOP VIEW VIN E U B I BST SOT563(1.6mmх1.6mm) O D N MP1653 Rev. 0.81 www.MonolithicPower.com 2/25/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. Preliminary Specifications Subject to Change © 2016 MPS. All Rights Reserved. 2 MP1653 – SYNCHRONOUS, STEP-DOWN CONVERTER WITH INTERNAL MOSFETS PRELIMINARY SPECIFICATIONS SUBJECT TO CHANGE Thermal Resistance VIN ..................................................-0.3V to 18V VSW ...................................................................... -0.6V (-5V for
