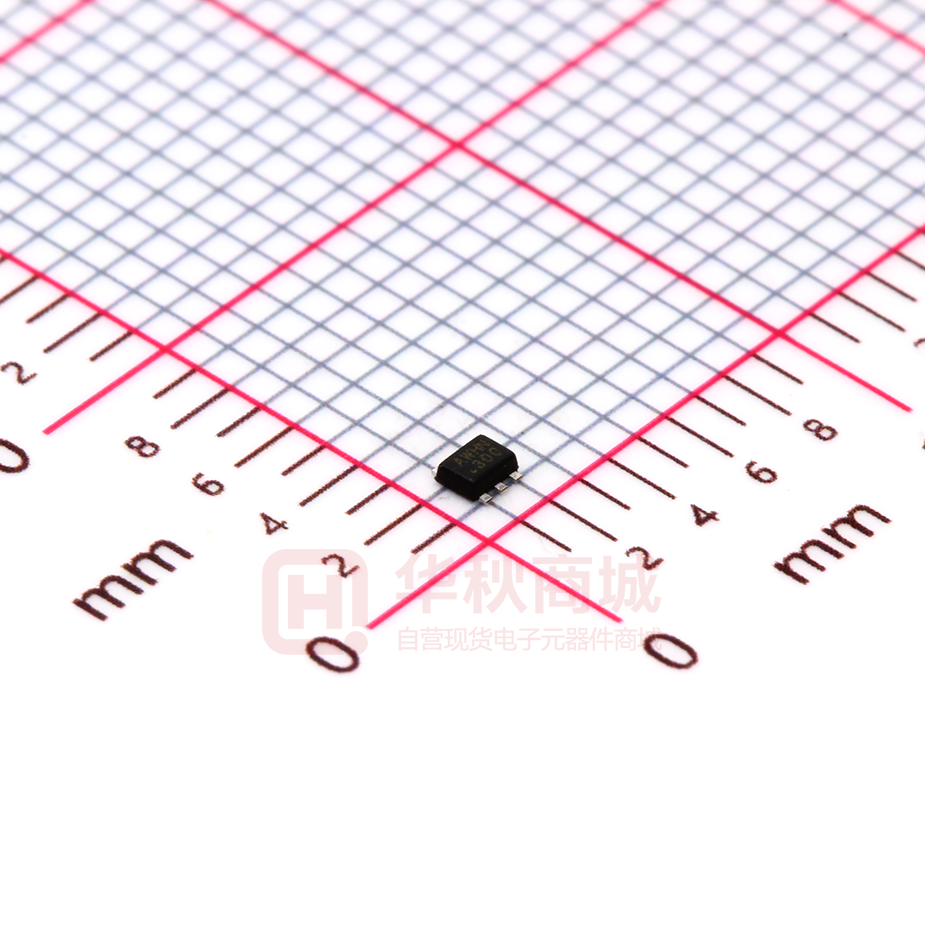

MP1657GTF-Z

MPS Confidential - For A-UNIT Use Only MP1657 16V, 2A, 800kHz, High-Efficiency, Synchronous, Step-Down Converter In a SOT563 Package DESCRIPTION FEATURES The MP1657 is a fully integrated, highfrequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. The MP1657 offers a very compact solution that achieves 2A of continuous output current with excellent load and line regulation over a wide input range. The MP1657 uses synchronous-mode operation for higher efficiency over the output current-load range.   Constant-on-time (COT) control operation provides very fast transient response, easy loop design, and very tight output regulation. Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown. The MP1657 requires a minimal number of readily available, standard, external components and is available in a space-saving SOT563 package.           Wide 4.5V to 16V Operating Input Range 130mΩ/75mΩ Low RDS(ON) Internal Power MOSFETs 190μA Low IQ High-Efficiency Synchronous Mode Operation Power-Save Mode (PSM) at Light Load Fast Load Transient Response 800kHz Switching Frequency Internal Soft Start (SS) Over-Current Protection (OCP) and Hiccup Thermal Shutdown Output Adjustable from 0.8V Available in a SOT563 Package APPLICATIONS     Security Cameras Digital Set-Top Boxes Flat-Panel Television and Monitors General Purposes All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION R4 10Ω C3 1μF 12V VIN L1 4.7μH BST VIN C1 22μF MP1657 EN MP1657 Rev. 1.0 9/13/2017 EN 3.3V/2A VOUT SW FB R3 47kΩ R1 40.2kΩ C2 22μF R2 13kΩ GND www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2017 MPS. All Rights Reserved. 1 MPS Confidential - For A-UNIT Use Only MP1657 – SYNCHRONOUS, STEP-DOWN CONVERTER WITH INTERNAL MOSFETS ORDERING INFORMATION Part Number* MP1657GTF Package SOT563 Top Marking See Below * For Tape & Reel, add suffix –Z (e.g. MP1657GTF–Z) TOP MARKING AWH: Product code of MP1657GTF Y: Year code LLL: Lot number PACKAGE REFERENCE TOP VIEW VIN 1 SW 2 6 FB MP1657 GND 3 5 EN 4 BST SOT563 MP1657 Rev. 1.0 9/13/2017 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2017 MPS. All Rights Reserved. 2 MPS Confidential - For A-UNIT Use Only MP1657 – SYNCHRONOUS, STEP-DOWN CONVERTER WITH INTERNAL MOSFETS θJA θJC ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance VIN ................................................ -0.3V to 20V VSW ............................ -0.6V (-6.5V for
