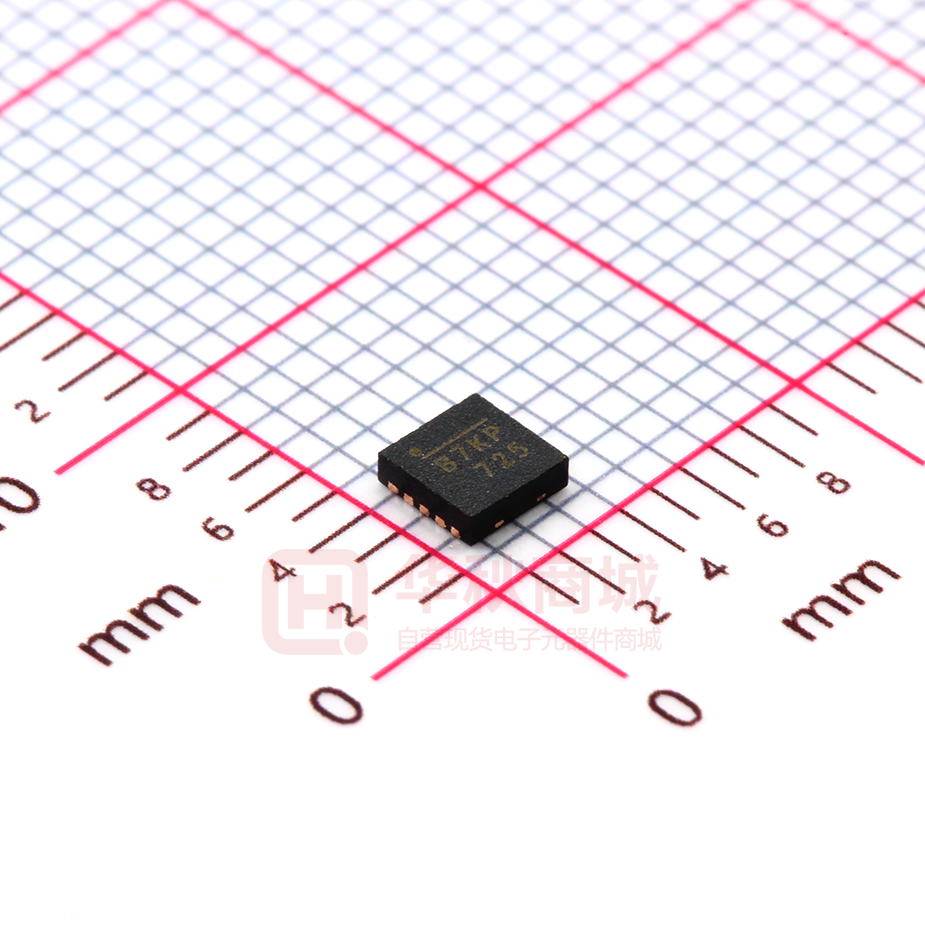

MP2109DQ-LF-Z

MP2109 Dual 1.2MHz, 800mA Synchronous Step-Down Converter EC R NE O EF W M ER D ME E N TO SI D ED G M N P2 S FO 14 R 9 The Future of Analog IC Technology DESCRIPTION FEATURES The MP2109 contains two independent 1.2MHz constant frequency, current mode, PWM step-down converters. Each converter integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. The MP2109 is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) battery. Each converter can supply 800mA of load current from a 2.5V to 6V input voltage. The output voltage can be regulated as low as 0.6V. The MP2109 can also run at 100% duty cycle for low dropout applications. • • • • • • • • • • • • EVALUATION BOARD REFERENCE APPLICATIONS Board Number Dimensions EV2109DQ-00A 1.5”X x 1.0”Y x 0.5”Z • • • • • • Up to 95% Efficiency 1.2MHz Constant Switching Frequency 800mA Load Current on Each Channel 2.5V to 6V Input Voltage Range Output Voltage as Low as 0.6V 100% Duty Cycle in Dropout Current Mode Control Short Circuit Protection Thermal Fault Protection
