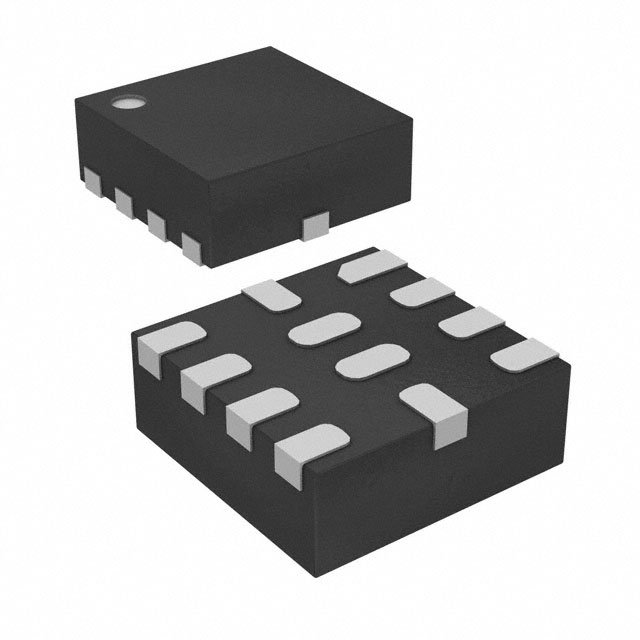

MP2130DG-LF-Z

MP2130 EC R NE O EF W M M ER D E E N TO SI D ED G M N P2 S FO 18 R 4 The Future of Analog IC Technology High Efficiency, 3.5A, 6V, 1.2MHz Synchronous Step-Down Converter in an Ultra–Small QFN12 (2x2mm) Package DESCRIPTION FEATURES The MP2130 is a monolithic step-down switch mode converter with built-in internal power MOSFETs. It achieves 3.5A continuous output current from a 2.7V to 6V input voltage with excellent load and line regulation. The MP2130 is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) Battery. The output voltage can be regulated as low as 0.6V.               The Constant-On-time (COT) control scheme provides fast transient response high light-load efficiency and easy loop stabilization. Fault condition protection includes cycle-by-cycle current limit and thermal shutdown. The MP2130 requires a minimum number of readily available standard external components and is available in an ultra-small QFN12 (2x2mm) package. The MP2130 is ideal for a wide range of applications including PDAs, portable instruments, DVD drives, small handhold and battery–powered devices.  Above 95% Peak Efficiency Above 80% Light Load Efficiency. Wide 2.7V to 6V Operating Input Range Output Voltage as Low as 0.6V 100% Duty Cycle in Dropout 3.5A Output Current 50mΩ and 40mΩ Internal Power MOSFET 1.2MHz Frequency EN and Power Good for Power Sequencing Cycle-by-Cycle Over Current Protection Auto Discharge at Power-off Short Circuit Protection with Hiccup Mode Thermal Shutdown Stable with Low ESR Output Ceramic Capacitors Available in a QFN12 (2x2mm) Package APPLICATIONS     Storage Drives Portable/Handheld Devices Wireless/Networking Cards Low Voltage I/O System Power R All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are Trademarks of Monolithic Power Systems, Inc. Efficiency VIN=5V L VIN 5V 1 C1 22 10 SW PVIN VIN OUT 2,11 PG 8 9 EN FB PG NC AGND PGND 4 3,12 1 VOUT 1.2V 6 MP2130 EN 100 7 5 C2 10 R1 200k R2 200k VO=3.3V 95 EFFICIENCY (%) N O T TYPICAL APPLICATION VO=2.4V 90 85 VO=1.8V 80 75 VO=1.2V 70 0.01 MP2130 Rev. 1.3 5/8/2021 0.1 1 LOAD CURRENT (A) www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2021 MPS. All Rights Reserved. 10 1 MP2130 – HIGH EFFICIENCY, 3.5A, 6V, 1.2MHz SYNCHRONOUS STEP-DOWN CONVERTER ORDERING INFORMATION Package QFN12 (2x2mm) Top Marking AB Free Air Temperature -40C to +85C EC R NE O EF W M M ER D E E N TO SI D ED G M N P2 S FO 18 R 4 Part Number MP2130DG * For Tape & Reel, add suffix –Z (e.g. MP2130DG–Z); For RoHS Compliant Packaging, add suffix –LF (e.g. MP2130DG–LF–Z) PACKAGE REFERENCE TOP VIEW VIN PVIN 1 SW 2 PGND 3 AGND 4 10 11 SW 12 PGND 5 9 PG 8 EN 7 FB 6 OUT NC ABSOLUTE MAXIMUM RATINGS (1) R Supply Voltage VIN ....................................... 6.5V VSW ........................ (-3V for
