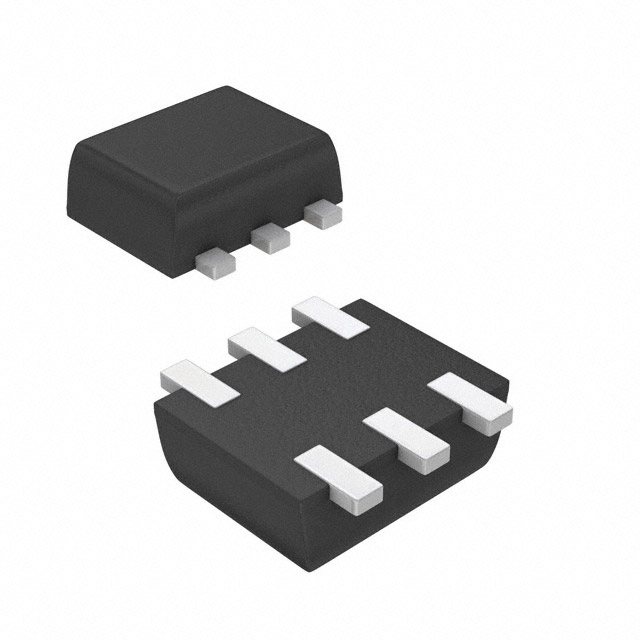

MP2152GTF-Z

MP2152 The Future of Analog IC Technology 5.5V, 2A, Sync Step-Down Converter with 25μA IQ and Output Discharge in QFN and SOT563 Packages DESCRIPTION FEATURES The MP2152 is a monolithic, step-down, switchmode converter with built-in, internal power MOSFETs. The MP2152 achieves 2A of continuous output current from a 2.5V to 5.5V input voltage with excellent load and line regulation. The output voltage can be regulated as low as 0.6V.         The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-bycycle current limiting and thermal shutdown. The MP2152 is ideal for a wide range of applications including high performance DSPs, wireless power, portable and mobile devices, and other low-power systems. The MP2152 requires a minimal number of readily available, standard, external components and is available in ultra-small SOT563 or 1.2mmx1.6mm UTQFN packages.       Low IQ: 25μA 1.1MHz Switching Frequency EN for Power Sequencing 1% FB Accuracy Wide 2.5V to 5.5V Operating Input Range Output Adjustable from 0.6V Up to 2A Output Current 75mΩ and 45mΩ Internal Power MOSFET Switches 100% Duty On Output Discharge VOUT Over-Voltage Protection (OVP) Short-Circuit Protection (SCP) with Hiccup Mode Power Good Only for Fixed Output Version Available in SOT563 or UTQFN (1.2mmx1.6mm) Packages APPLICATIONS       Wireless/Networking Cards Portable Instruments Battery-Powered Devices Low-Voltage I/O System Power Multi-Function Printers Solid-State Drives All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION                 Efficiency vs. Output Current VIN = 5V(DCR=27mohm) 100 95 Efficiency(%) 90 85 80 75 70 65 60 0.001 MP2152 Rev. 1.01 10/25/2018 Vout=3.3V Vout=1.2V Vout=1.8V Vout=2.5V 0.010 0.100 Output  Current  (A) www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2018 MPS. All Rights Reserved. 1.000 1 MP2152 – 2A, SYNCHRONOUS STEP-DOWN SWITCHER WITH 25µA IQ ORDERING INFORMATION Part Number* MP2152GTF MP2152GTF-12 MP2152GTF-15 MP2152GTF-18 MP2152GTF-25 MP2152GTF-33 Package Top Marking SOT563 See Below VOUT Range Adjustable Fixed 1.2V Fixed 1.5V Fixed 1.8V Fixed 2.5V Fixed 3.3V * For Tape & Reel, add suffix –Z (e.g. MP2152GTF–Z) TOP MARKING (MP2152GTF) TOP MARKING (MP2152GTF-12) BBJ: Product code of MP2152GTF-12 Y: Year code LLL: Lot number AYR: Product code of MP2152GTF Y: Year code LLL: Lot number TOP MARKING (MP2152GTF-15) BBK: Product code of MP2152GTF-15 Y: Year code LLL: Lot number TOP MARKING (MP2152GTF-25) BBM: Product code of MP2152GTF-25 Y: Year code LLL: Lot number TOP MARKING (MP2152GTF-18) BBL: Product code of MP2152GTF-18 Y: Year code LLL: Lot number TOP MARKING (MP2152GTF-33) BBN: Product code of MP2152GTF-33 Y: Year code LLL: Lot number PACKAGE REFERENCE MP2152 Rev. 1.01 10/25/2018 TOP VIEW TOP VIEW Adjustable Version MP2152GTF Fixed VOUT Version MP2152GTF-12, MP2152GTF-15, MP2152GTF-18, MP2152GTF-25, MP2152GTF-33 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2018 MPS. All Rights Reserved. 2 MP2152 – 2A, SYNCHRONOUS STEP-DOWN SWITCHER WITH 25µA IQ ORDERING INFORMATION (continued) Part Number* MP2152GQFU MP2152GQFU-12 MP2152GQFU-15 MP2152GQFU-18 MP2152GQFU-25 MP2152GQFU-33 Package Top Marking UTQFN (1.2mmx1.6mm) See Below VOUT Range Adjustable Fixed 1.2V Fixed 1.5V Fixed 1.8V Fixed 2.5V Fixed 3.3V * For Tape & Reel, add suffix –Z (e.g. MP2152GQFU–Z) TOP MARKING (MP2152GQFU) FT: Product code of MP2152GQFU LL: Lot number TOP MARKING (MP2152GQFU-12) GJ: Product code of MP2152GQFU-12 LL: Lot number TOP MARKING (MP2152GQFU-15) GK: Product code of MP2152GQFU-15 LL: Lot number TOP MARKING (MP2152GQFU-25) GM: Product code of MP2152GQFU-25 LL: Lot number TOP MARKING (MP2152GQFU-18) GL: Product code of MP2152GQFU-18 LL: Lot number TOP MARKING (MP2152GQFU-33) GN: Product code of MP2152GQFU-33 LL: Lot number PACKAGE REFERENCE MP2152 Rev. 1.01 10/25/2018 TOP VIEW TOP VIEW Adjustable Version MP2152GQFU Fixed VOUT Version MP2152GQFU-12, MP2152GQFU-15, MP2152GQFU-18, MP2152GQFU-25, MP2152GQFU-33 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2018 MPS. All Rights Reserved. 3 MP2152 – 2A, SYNCHRONOUS STEP-DOWN SWITCHER WITH 25µA IQ ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance Supply voltage (VIN) ..................................... 6.5V VSW ................................ -0.3V (-5V for
