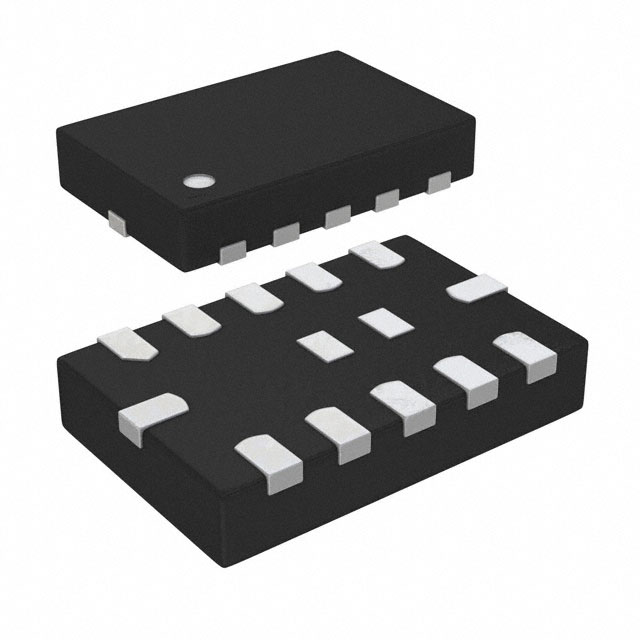

MP2326GD-Z

MP2326 The Future of Analog IC Technology 19V, 4A, 40µA IQ, High-Efficiency Constant-On-Time (COT) Step-Down Converter in a 2mmx3mm QFN Package DESCRIPTION The MP2326 is a fully integrated, high-efficiency, synchronous, step-down, switch-mode converter with only a 40μA quiescent current. This very compact device achieves a 4A continuous output current over a wide input-supply range with excellent load and line regulation, and it operates with high efficiency over a wide output current load range. It’s optimized for battery-operated applications and applications requiring high lightload efficiency. With constant-on-time (COT) control, the MP2326 provides very fast transient response, easy loop design, and very tight output regulation. Full protection features include SCP, OCP, UVP, and thermal shutdown. The MP2326 requires a minimal number of readily available, standard, external components with a space saving 2mmx3mm 14-pin QFN package. FEATURES             3.9V to 19V Operating Input Range 4A Output Current 40μA Quiescent Current Output Adjustable from 0.6V 90mΩ/30mΩ High Side/Low Side RDS(ON) for Internal Power MOSFETs Power Good Indicator Programmable Soft-Start Time Forced PWM or Auto PFM/PWM Mode Selectable Programmable Switching Frequency Thermal Shutdown Short-Circuit Protection: Hiccup Mode Available in a QFN-14 (2mmx3mm) Package APPLICATIONS     Tablet PCs Solid State Drives Gaming Battery-Operated Applications All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION MP2326 Rev. 1.2 5/24/2019 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2019 MPS. All Rights Reserved. 1 MP2326 – 19V, 4A, LOW IQ STEP-DOWN CONVERTER ORDERING INFORMATION Part Number* MP2326GD Package QFN-14 (2mmx3mm) Top Marking See Below * For Tape & Reel, add suffix –Z (e.g. MP2326GD–Z); TOP MARKING AQV: Product Code of MP2326GD Y: Year Code WW: Week Code LLL: Lot number PACKAGE REFERENCE TOP VIEW QFN-14 (2mmx3mm) MP2326 Rev. 1.2 5/24/2019 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2019 MPS. All Rights Reserved. 2 MP2326 – 19V, 4A, LOW IQ STEP-DOWN CONVERTER ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance (6) VIN ................................................................ +21V VSW .. –0.3V (-5V
