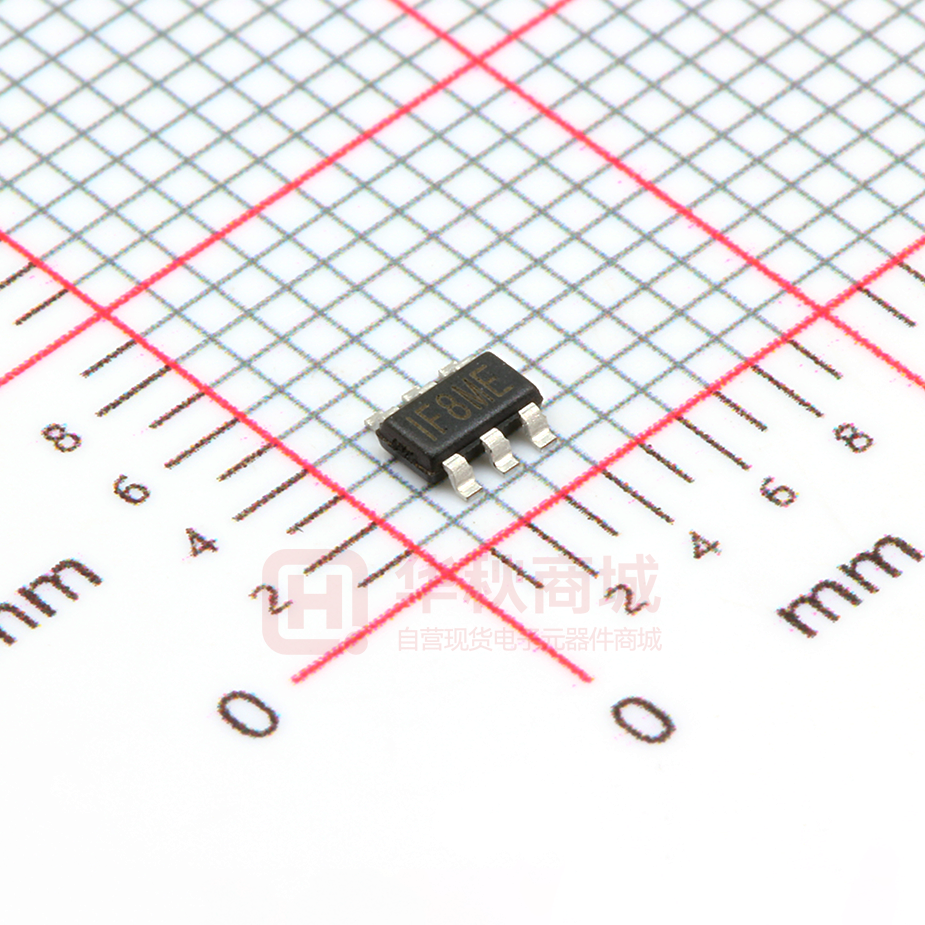

MP2359DJ-LF-Z

MP2359 1.2A, 24V, 1.4MHz Step-Down Converter in a TSOT23-6 The Future of Analog IC Technology DESCRIPTION FEATURES The MP2359 is a monolithic step-down switch mode converter with a built-in power MOSFET. It achieves 1.2A peak output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. • • • The MP2359 requires a minimum number of readily available standard external components. The MP2359 is available in TSOT23-6 and SOT23-6 packages. EVALUATION BOARD REFERENCE Board Number Dimensions EV2359DJ-00B 2.1”X x 1.9”Y x 0.4”Z • • • • • • • • 1.2A Peak Output Current 0.35Ω Internal Power MOSFET Switch Stable with Low ESR Output Ceramic Capacitors Up to 92% Efficiency 0.1μA Shutdown Mode Fixed 1.4MHz Frequency Thermal Shutdown Cycle-by-Cycle Over Current Protection Wide 4.5V to 24V Operating Input Range Output Adjustable from 0.81V to 15V Available in TSOT23-6 and SOT23-6 Packages APPLICATIONS • • • • Distributed Power Systems Battery Charger Pre-Regulator for Linear Regulators WLED Drivers For MPS green status, please visit MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION Efficiency vs Load Currents 5 IN BST 12V 90 CB 10nF MP2359 OFF ON 100 1 4 EN GND 2 SW 6 D1 B230A FB 3 VIN = 12V 80 VOUT 3.3V @ 1.2A EFFICIENCY (%) VIN 70 60 VIN = 24V 50 40 30 20 10 0 0.01 MP2359 Rev. 1.21 7/18/2011 VOUT = 5V 0.1 1 LOAD CURRENT (A) www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 10 1 MP2359 – 1.2A, 24V, 1.4MHz STEP-DOWN CONVERTER IN A TSOT23-6 ORDERING INFORMATION Part Number Top Marking Free Air Temperature (TA) MP2359DJ* Package TSOT23-6 F8 -40°C to +85°C MP2359DT** SOT23-6 J6 -40°C to +85°C *For Tape & Reel, add suffix –Z (eg. M2359DJ–Z); For RoHS compliant packaging, add suffix –LF (eg. MP2359DJ–LF–Z) **For Tape & Reel, add suffix –Z (eg. M2359DT–Z); For RoHS compliant packaging, add suffix –LF (eg. MP2359DT–LF–Z) PACKAGE REFERENCE TOP VIEW BST 1 6 SW GND 2 5 IN FB 3 4 EN ABSOLUTE MAXIMUM RATINGS (1) Supply Voltage VIN ....................................... 26V VSW ............................................................... 27V VBS ....................................................... VSW + 6V All Other Pins ..................................-0.3V to +6V Continuous Power Dissipation (TA = +25°C) (2) TSOT23-6 .............................................. 0.568W SOT23-6 ................................................ 0.568W Junction Temperature ...............................150°C Lead Temperature ....................................260°C Storage Temperature............... -65°C to +150°C Recommended Operating Conditions (3) Supply Voltage VIN ...........................4.5V to 24V Output Voltage VOUT .......................0.81V to 15V Ambient Temperature ................ -40°C to +85°C Max input current into the EN pin............. 300μA MP2359 Rev. 1.21 7/18/2011 Thermal Resistance (4) θJA θJC TSOT23-6.............................. 220 .... 110.. °C/W SOT23-6 ................................ 220 .... 110.. °C/W Notes: 1) Exceeding these ratings may damage the device. 2) The maximum allowable power dissipation is a function of the maximum junction temperature TJ(MAX), the junction-toambient thermal resistance θJA, and the ambient temperature TA. The maximum allowable continuous power dissipation at any ambient temperature is calculated by PD(MAX)=(TJ(MAX)TA)/θJA. Exceeding the maximum allowable power dissipation will cause excessive die temperature, and the regulator will go into thermal shutdown. Internal thermal shutdown circuitry protects the device from permanent damage. 3) The device function is not guaranteed outside of the recommended operating conditions. 4) Measured on JESD51-7, 4-layer PCB.. www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 2 MP2359 – 1.2A, 24V, 1.4MHz STEP-DOWN CONVERTER IN A TSOT23-6 ELECTRICAL CHARACTERISTICS VIN = 12V, TA = +25°C, unless otherwise noted. Parameters Symbol Condition Feedback Voltage VFB Feedback Current Switch-On Resistance (5) Switch Leakage Current Limit (5) Oscillator Frequency Fold-back Frequency Maximum Duty Cycle Minimum On-Time (5) Under Voltage Lockout Threshold Rising Under Voltage Lockout Threshold Hysteresis EN Input Low Voltage EN Input High Voltage IFB Typ Max Units 0.790 0.810 0.830 V 0.1 0.35 RDS(ON) VEN = 0V, VSW = 0V fSW VFB = 0.6V VFB = 0V VFB = 0.6V 10 1.2 tON 2.5 1.8 1.4 460 87 100 2.8 150 1.7 3.1 0.4 1.2 EN Input Current Supply Current (Shutdown) Supply Current (Quiescent) Thermal Shutdown (5) 4.5V ≤ VIN ≤ 24V VFB = 0.8V Min IS IQ VEN = 2V VEN = 0V VEN = 0V VEN = 2V, VFB = 1V 2.1 0.1 0.1 0.8 150 μA Ω μA A MHz kHz % ns V mV V V μA 1.0 1.0 μA mA °C Note: 5) Guaranteed by design. PIN FUNCTIONS Pin # Name Description 1 BST 2 GND 3 FB 4 EN 5 IN 6 SW MP2359 Rev. 1.21 7/18/2011 Bootstrap. A capacitor is connected between SW and BS pins to form a floating supply across the power switch driver. This capacitor is needed to drive the power switch’s gate above the supply voltage. Ground. This pin is the voltage reference for the regulated output voltage. For this reason care must be taken in its layout. This node should be placed outside of the D1 to C1 ground path to prevent switching current spikes from inducing voltage noise into the part. Feedback. An external resistor divider from the output to GND, tapped to the FB pin sets the output voltage. To prevent current limit run away during a short circuit fault condition, the frequency foldback comparator lowers the oscillator frequency when the FB voltage is below 250mV. On/Off Control Input. Pull EN above 1.2V to turn the device on. For automatic enable, connect a 100kΩ resistor between this pin and Vin pin. Supply Voltage. The MP2359 operates from a +4.5V to +24V unregulated input. C1 is needed to prevent large voltage spikes from appearing at the input. Switch Output. www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 3 MP2359 – 1.2A, 24V, 1.4MHz STEP-DOWN CONVERTER IN A TSOT23-6 TYPICAL PERFORMANCE CHARACTERISTICS VIN = 12V, VOUT = 3.3V, L = 4.7µH, C1 = 10µF, C2 = 22µF, TA = +25ºC, unless otherwise noted. 100 Efficiency vs Load Current 100 VIN = 18V 90 80 80 70 70 60 EFFICIENCY (%) EFFICIENCY (%) 90 VIN = 24V 50 40 30 10 VIN = 24V 60 50 40 30 10 VOUT = 2.5V 0 0.01 0.1 1 LOAD CURRENT ( A) 0 0.01 10 0.818 0.816 0.814 0.812 0.810 0.808 0.806 0.804 0.802 0.800 -50 -25 0 25 50 75 100 125 150 DIE TEMPERATURE (OC) SWITCHING FREQUENCY (MHz) 0.820 VOUT = 5V 0.1 1 LOAD CURRENT (A) 10 Switching Frequency vs Die Temperature Feedback Voltage vs Die Temperature FEEDBACK VOLTAGE (V) VIN = 12V 20 20 MP2359 Rev. 1.21 7/18/2011 Efficiency vs Load Current 1.50 1.48 1.46 1.44 1.42 1.40 1.38 1.36 1.34 1.32 1.30 -50 -25 0 25 50 75 100 125 150 DIE TEMPERATURE (OC) www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 4 MP2359 – 1.2A, 24V, 1.4MHz STEP-DOWN CONVERTER IN A TSOT23-6 TYPICAL PERFORMANCE CHARACTERISTICS (continued) VIN = 12V, VOUT = 3.3V, L = 4.7µH, C1 = 10µF, C2 = 22µF, TA = +25ºC, unless otherwise noted. Current Limit vs Duty Cycle Steady State Test IOUT = 0.5A 3.0 CURRENT LIMIT (A) 2.5 VOUT 20mV/div. VOUT AC Coupled 50mV/div. 2.0 1.5 1.0 IL 500mA/div. ILOAD 1A/div. 0.5 0 VSW 10V/div. IL 1A/div. 0 20 40 60 80 DUTY CYCLE (%) 400ns/div. 100 Short Circuit Entry Short Circuit Recovery Start-up through Enable No Load VEN 5V/div. VOUT 1V/div. VOUT 1V/div. IL 1A/div. VOUT 1V/div. VSW 10V/div. IL 500mA/div. IL 1A/div. Shut-down through Enable Start-up through Enable VEN 5V/div. VEN 5V/div. VOUT 2V/div. IL 1A/div. MP2359 Rev. 1.21 7/18/2011 IOUT = 1A Resistive Load VEN 5V/div. VOUT 2V/div. VOUT 1V/div. VSW 10V/div. Shut-down through Enable No Load IOUT = 1A Resistive Load VSW 10V/div. IL 1A/div. VSW 10V/div. IL 1A/div. www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 5 MP2359 – 1.2A, 24V, 1.4MHz STEP-DOWN CONVERTER IN A TSOT23-6 OPERATION The MP2359 is a current mode buck regulator. That is, the EA output voltage is proportional to the peak inductor current. At the beginning of a cycle, M1 is off. The EA output voltage is higher than the current sense amplifier output, and the current comparator’s output is low. The rising edge of the 1.4MHz CLK signal sets the RS Flip-Flop. Its output turns on M1 thus connecting the SW pin and inductor to the input supply. The increasing inductor current is sensed and amplified by the Current Sense Amplifier. Ramp compensation is summed to the Current Sense Amplifier output and compared to the Error Amplifier output by the PWM Comparator. When the sum of the Current Sense Amplifier output and the Slope Compensation signal exceeds the EA output voltage, the RS FlipFlop is reset and M1 is turned off. The external Schottky rectifier diode (D1) conducts the inductor current. If the sum of the Current Sense Amplifier output and the Slope Compensation signal does not exceed the EA output for a whole cycle, then the falling edge of the CLK resets the Flip-Flop. The output of the Error Amplifier integrates the voltage difference between the feedback and the 0.81V bandgap reference. The polarity is such that a FB pin voltage lower than 0.81V increases the EA output voltage. Since the EA output voltage is proportional to the peak inductor current, an increase in its voltage also increases current delivered to the output. IN 5 RAMP GENERATOR EN 4 REGULATOR D REGULATOR OSCILLATOR 1.4MHz/460KHz S + -1pF REFERENCE FB 3 CURRENT SENSE AMPLIFIER + -- x20 Q DRIVER 1 BST 6 SW M1 R CURRENT LIMIT COMPARATOR R 27pF +EA -- ERROR AMPLIFIER + -- PWM COMPARATOR GND 2 Figure 1—Functional Block Diagram MP2359 Rev. 1.21 7/18/2011 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 6 MP2359 – 1.2A, 24V, 1.4MHz STEP-DOWN CONVERTER IN A TSOT23-6 APPLICATION INFORMATION Setting Output Voltage The external resistor divider is used to set the output voltage (see the schematic on front page). Table 1 shows a list of resistor selection for common output voltages. The feedback resistor R1 also sets the feedback loop bandwidth with the internal compensation capacitor (see Figure 1). R2 can be determined by: R2 = R1 VOUT −1 0.81V Table 1—Resistor Selection for Common Output Voltages VOUT (V) R1 (kΩ) R2 (kΩ) 1.8 2.5 3.3 5 80.6 (1%) 49.9 (1%) 49.9 (1%) 49.9 (1%) 64.9 (1%) 23.7 (1%) 16.2 (1%) 9.53 (1%) Selecting the Inductor A 1µH to 10µH inductor with a DC current rating of at least 25% percent higher than the maximum load current is recommended for most applications. For highest efficiency, the inductor’s DC resistance should be less than 200mΩ. Refer to Table 2 for suggested surface mount inductors. For most designs, the required inductance value can be derived from the following equation. L= VOUT × ( VIN − VOUT ) VIN × ΔIL × f SW Selecting the Input Capacitor The input capacitor reduces the surge current drawn from the input supply and the switching noise from the device. The input capacitor impedance at the switching frequency should be less than the input source impedance to prevent high frequency switching current from passing through the input. Ceramic capacitors with X5R or X7R dielectrics are highly recommended because of their low ESR and small temperature coefficients. For most applications, a 4.7µF capacitor is sufficient. Selecting the Output Capacitor The output capacitor keeps the output voltage ripple small and ensures feedback loop stability. The output capacitor impedance should be low at the switching frequency. Ceramic capacitors with X5R or X7R dielectrics are recommended for their low ESR characteristics. For most applications, a 22µF ceramic capacitor will be sufficient. PCB Layout Guide PCB layout is very important to achieve stable operation. Please follow these guidelines and take Figure2 for references. 1) Keep the path of switching current short and minimize the loop area formed by Input cap, high-side MOSFET and schottky diode. 2) Keep the connection of schottky diode between SW pin and input power ground as short and wide as possible. 3) Ensure all feedback connections are short and direct. Place the feedback resistors and compensation components as close to the chip as possible. 4) Route SW away from sensitive analog areas such as FB. 5) Connect IN, SW, and especially GND respectively to a large copper area to cool the chip to improve thermal performance and long-term reliability. For single layer PCB, exposed pad should not be soldered. Where ΔIL is the inductor ripple current. Choose the inductor ripple current to be 30% of the maximum load current. The maximum inductor peak current is calculated from: IL(MAX ) = ILOAD + ΔI L 2 Under light load conditions below 100mA, a larger inductance is recommended for improved efficiency. See Table 2 for suggested inductors. Also note that the maximum recommended load current is 1A if the duty cycle exceeds 35%. MP2359 Rev. 1.21 7/18/2011 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 7 MP2359 – 1.2A, 24V, 1.4MHz STEP-DOWN CONVERTER IN A TSOT23-6 R2 External Bootstrap Diode An external bootstrap diode may enhance the efficiency of the regulator, the applicable conditions of external BST diode are: R1 SGND C3 1 BST SW 6 2 GND IN 5 3 FB EN 4 z VOUT=5V or 3.3V; and z Duty cycle is high: D= VOUT >65% VIN In these cases, an external BST diode is recommended from the output of the voltage regulator to BST pin, as shown in Fig.3 R3 L1 External BST Diode IN4148 C1 D1 BST C2 CBST MP2359 PGND SW Figure 2—PCB Layout L 5V or 3.3V COUT Figure 3—Add Optional External Bootstrap Diode to Enhance Efficiency The recommended external BST diode is IN4148, and the BST cap is 0.1~1µF. Table 2—Suggested Surface Mount Inductors Manufacturer Part Number Inductance(µH) Max DCR(Ω) Toko Sumida Wurth Electronics A921CY-4R7M CDRH4D28C/LD 7440530047 4.7 4.7 4.7 0.027 0.036 0.038 MP2359 Rev. 1.21 7/18/2011 Current Rating (A) 1.66 1.5 2.0 Dimensions L x W x H (mm3) 6 x 6.3 x 3 5.1 x 5.1 x 3 5.8 x 5.8 x 2.8 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 8 MP2359 – 1.2A, 24V, 1.4MHz STEP-DOWN CONVERTER IN A TSOT23-6 TYPICAL APPLICATION CIRCUITS D3 1N4148 (Optional) 5 VIN IN BS 1 D2 1N4148 (Optional) C3 22nF 4 OFF ON MP2359 EN Notes: 1) D3 can be installed if VIN < 5V 2) D2 can be installed if VOUT < 5V 3) No need for both D2 and D3 SW VOUT 3.3V D1 B230A-13-F FB GND 6 3 U1 Figure 4—1.4MHz, 3.3V Output at 1A Step-Down Converter VIN 6V-12V 5 IN BST 1 C3 10nF MP2359 SW 6 D1 1N5819HW-7 -VOUT OFF ON 4 EN GND FB -VOUT 3 LED1 LED2 2 LED3 -VOUT -VOUT Figure 5—White LED Driver Application MP2359 Rev. 1.21 7/18/2011 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 9 MP2359 – 1.2A, 24V, 1.4MHz STEP-DOWN CONVERTER IN A TSOT23-6 PACKAGE INFORMATION TSOT23-6 6 See Note 7 EXAMPLE TOP MARK 4 AAAA PIN 1 0.95 BSC 0.60 TYP 2.80 3.00 1 1.20 TYP 1.50 1.70 2.60 TYP 2.60 3.00 3 TOP VIEW RECOMMENDED LAND PATTERN 0.84 0.90 1.00 MAX 0.09 0.20 SEATING PLANE 0.30 0.50 0.95 BSC 0.00 0.10 SEE DETAIL "A" FRONT VIEW SIDE VIEW NOTE: GAUGE PLANE 0.25 BSC 0o-8o DETAIL “A” MP2359 Rev. 1.21 7/18/2011 0.30 0.50 1) ALL DIMENSIONS ARE IN MILLIMETERS. 2) PACKAGE LENGTH DOES NOT INCLUDE MOLD FLASH, PROTRUSION OR GATE BURR. 3) PACKAGE WIDTH DOES NOT INCLUDE INTERLEAD FLASH OR PROTRUSION. 4) LEAD COPLANARITY (BOTTOM OF LEADS AFTER FORMING) SHALL BE 0.10 MILLIMETERS MAX. 5) DRAWING CONFORMS TO JEDEC MO-193, VARIATION AB. 6) DRAWING IS NOT TO SCALE. 7) PIN 1 IS LOWER LEFT PIN WHEN READING TOP MARK FROM LEFT TO RIGHT, (SEE EXAMPLE TOP MARK) www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 10 MP2359 – 1.2A, 24V, 1.4MHz STEP-DOWN CONVERTER IN A TSOT23-6 SOT23-6 6 See Note 7 EXAMPLE TOP MARK 4 AAAA PIN 1 0.95 BSC 0.60 TYP 2.80 3.00 1 1.20 TYP 1.50 1.70 2.60 TYP 2.60 3.00 3 TOP VIEW RECOMMENDED LAND PATTERN 0.90 1.30 1.45 MAX 0.09 0.20 SEATING PLANE 0.30 0.50 0.95 BSC 0.00 0.15 SEE DETAIL "A" FRONT VIEW SIDE VIEW NOTE: GAUGE PLANE 0.25 BSC 0o-8o 0.30 0.55 DETAIL “A” 1) ALL DIMENSIONS ARE IN MILLIMETERS. 2) PACKAGE LENGTH DOES NOT INCLUDE MOLD FLASH, PROTRUSION OR GATE BURR. 3) PACKAGE WIDTH DOES NOT INCLUDE INTERLEAD FLASH OR PROTRUSION. 4) LEAD COPLANARITY (BOTTOM OF LEADS AFTER FORMING) SHALL BE 0.10 MILLIMETERS MAX. 5) DRAWING CONFORMS TO JEDEC MO-193, VARIATION AB. 6) DRAWING IS NOT TO SCALE. 7) PIN 1 IS LOWER LEFT PIN WHEN READING TOP MARK FROM LEFT TO RIGHT, (SEE EXAMPLE TOP MARK) NOTICE: The information in this document is subject to change without notice. Please contact MPS for current specifications. Users should warrant and guarantee that third party Intellectual Property rights are not infringed upon when integrating MPS products into any application. MPS will not assume any legal responsibility for any said applications. MP2359 Rev. 1.21 7/18/2011 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 11
