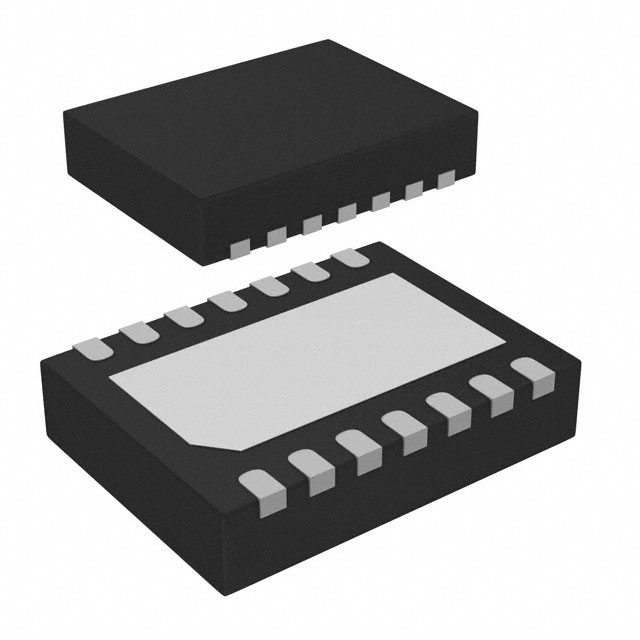

MP2607DL-LF-Z

MP2607 Li + LINEAR Charger WithSystem Power Path Management The Future of Analog IC Technology DESCRIPTION FEATURES MP2607 is a highly-integrated single-cell LiIon/Li-Polymer battery charger with system power path management function. It takes input from either AC adapter or USB port to supply the system and charge the battery independently. The charger section features trickle charge, high-accuracy constant current (CC) and constant voltage (CV) regulation, charge termination and charge status. • The system power path management function ensures continuous supply to the system by automatically selecting the input, the battery or both to power the system. This section features a low drop-out regulator from input to system, and a 50mΩ switch from battery to system. Power path management separates charging current from system load, which allows proper charge termination and keeps battery stay fullycharged. It also allows instantaneous power up of system with a deeply discharged battery. MP2607 is available in 14pin 3mm*4mm QFN package. • • • • • • • • • Fully Autonomous Charger for Single-Cell Li-Ion/Polymer Batteries Selectable Input Power Sources from AC Adapter or USB Port Built-in Current Limit for USB Port Complete Power Path Management for Simultaneously Powering the System and Charging the Battery 0.75% Charging Voltage Accuracy 12V Maximum Voltage for the Input Source Programmable Charging Current Built-in Timer for Charge Termination No External Blocking Diode Required Tiny QFN14 (3mm x 4mm) Package APPLICATIONS • • • • Smart Handheld Devices Cell Phones, PDAs, MP3 Players Digital Cameras, GPS Handheld Test Equipment All MPS parts are lead-free, halogen free, and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION MP2607 Rev. 1.03 5/18/2015 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 1 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT ORDERING INFORMATION Part Number* Package Top Marking Free Air Temperature (TA) MP2607DL QFN-14 (3mm x 4mm) 2607 -40°C to +85°C * For Tape & Reel, add suffix –Z (e.g. MP2607DL –Z); For RoHS compliant packaging, add suffix –LF; (e.g. MP2607DL –LF–Z) PACKAGE REFERENCE TOP VIEW ABSOLUTE MAXIMUM RATINGS (1) VIN ................................................ -0.3V to 13V VSYS – VBATT ....................................... -5V to 5V All Other Pins ............................... -0.3V to 6.5 V (2) Continuous Power Dissipation (TA = +25°C) ............................................................3.1W Junction Temperature .............................. 150°C Lead Temperature ................................... 260°C Storage Temperature ................. -65°C to 150°C Recommended Operating Conditions (3) Supply Voltage VIN ...... 4.51V to 5.9V (AC Input) 4.51V to 6.27V (USB Input) Output Voltage VBATT...................... 3.0V to 4.5V Operating Junct. Temp (TJ) ...... -40°C to +125°C MP2607 Rev. 1.03 5/18/2015 Thermal Resistance (4) θJA θJC QFN-14 (3mm x 4mm) ........... 40 ....... 6 .... °C/W Notes: 1) Exceeding these ratings may damage the device. 2) The maximum allowable power dissipation is a function of the maximum junction temperature TJ(MAX), the junction-toambient thermal resistance θJA, and the ambient temperature TA. The maximum allowable continuous power dissipation at any ambient temperature is calculated by PD(MAX)=(TJ(MAX)TA)/ θJA. Exceeding the maximum allowable power dissipation will cause excessive die temperature, and the regulator will go into thermal shutdown. Internal thermal shutdown circuitry protects the device from permanent damage. 3) The device is not guaranteed to function outside of its operating conditions. 4) Measured on JESD51-7 4 layers board. www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 2 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT ELECTRICAL CHARACTERISTICS (5) VIN = 5.5V, VBATT = 3.5V, VCEB = GND, TA = 25°C, unless otherwise noted. Parameter Symbol Condition IN Input Voltage VIN IN Input Over Voltage Threshold VIN VIN OV AC OV US IN Input Over Voltage Hysteresis Input Undervoltage Threshold VIN_UV Input Undervoltage Threshold Hysteresis Input vs. Battery Threshold Input vs. Battery Threshold Hysteresis BATT Undervoltage Threshold BATT Undervoltage Threshold Hysteresis Power Path Management VIN_BAT VUV_BAT VAC AC Regulator Current Limit USB input current limit Input selection threshold SYS Output Voltage 4.51 MODE = 5V MODE = GND 5.9 6.27 AC mode, MODE = 5V 260 USB mode, MODE=GND 310 Input rising threshold 4.25 4.38 Max Units 12 V V mV 4.51 V AC mode, MODE = 5V USB mode, MODE = GND 520 150 mV Input rising vs. battery 120 mV 70 mV BATT voltage rising 2.4 2.8 3.2 V mV VIN = 5.5V, MODE = 5V 4.65 4.85 5.05 V IAC_MAX VIN = 5V, MODE = 5V 1.4 2 2.6 A IUSB MODE = GND, VIN = 5V, VBATT=4V MODE > VMODE, AC adapter MODE < VMODE, USB port ISYS+ICHG < adapter current limit, I =100mA SYS VIN = 5.5V MODE = 5V ISYS+ICHG > adapter current limit, ISYS=400mA 410 1.5 450 490 mA V V REG MAX VMODE 4.85 4.2 4.93 ISYS > USB port current limit, VBATT=3.5V 3.4 VIN = 3.5V, VBATT=3.2V (VBATT Rising edge) 3.2 ISYS(400mA)+ICHG >I_Adapter, MODE = 5V 300 MODE=GND RON_SYS 0.3 ISYS+ICHG < USB port current limit, ISYS=100mA VSYS VIN = 5V, IN to SYS Switch On Resistance Typ 200 AC Regulator Out Voltage MP2607 Rev. 1.03 5/18/2015 Min www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. V 450 mΩ 3 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT ELECTRICAL CHARACTERISTICS (5) (continued) VIN = 5.5V, VBATT = 3.5V, VCEB = GND, TA = 25°C, unless otherwise noted. Parameter Symbol Condition Min CEB = GND, ICHG = 0A, ISYS = 0A, VBATT=4.5V , VIN = 5.5V, MODE = 5V IIN 400 VBATT=4.5V, VIN = 5.5V, MODE = GND CEB = 5V, ICHG = 0A, ISYS = 0A, CEB = 5V, ICHG = 0A, ISYS = 0A, VBATT=4.5V, VIN = 12V IBATT CEB = GND, VIN =5.5V, VBATT=4.5V ISYS=0A VIN = 4V, VBATT=4.5V 80 mΩ 100 160 mV ICHG Programmable Charge Current ICHG MP2607 Rev. 1.03 5/18/2015 VBATT=3.5V, VSYS=GND, (guaranteed by design) CEB 40 =5V 300 mA VBATT=2.3V, VIN=VSYS=GND, CEB =5V 1 µA VSYS=5V, VIN=VBATT=GND, CEB =5V 1 µA 4.20 4.20 4.20 4.221 4.232 4.242 V 200 400 mΩ 880 1000 1120 mA 210 300 390 mA T = +25°C, IBATT = 0 T = 0°C to +50°C, IBATT = 0 T = –5°C to +75°C, IBATT = 0 4.179 4.168 4.158 RON_BATT VIN=4.3V, VBATT=4.165V, ICHG=1A Constant Current Regulation for Charging µA 50 VBATT=3.5V, ISYS =600mA, VIN =5V (Battery supplement mode), CEB = GND, MODE = GND IN to BATT Switch On Resistance 125 30 VD_BSW VBATT mA 20 BATT Input to SYS Switch On Voltage Drop Battery Voltage Regulation 1.4 CEB = 5V, ISYS = 0A, VBATT=3.5V VIN =GND, VBATT=3.5V, ISYS=100mA BATT to SYS Switch Leakage SYS Reverse to BATT Switch Leakage Charger µA 35 RON_BSW IBATT_MAX 120 25 BATT Input to SYS Switch On Resistance BATT to SYS Short Protection Current Units µA VBATT=4.5V, VIN = 5.5V Supply Current at BATT Input Max 420 CEB = GND, ICHG = 0A, ISYS = 0A, Supply Current at Input Typ VIN = 5V, VBATT = 3.5V, MODE = 5V RCHG = 2.263kΩ VIN = 5V, VBATT = 3.5V, MODE = GND RCHG = 7.6kΩ VIN = 5V, VBATT = 3.5V, MODE = 5V www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. (5) 1.5 A 4 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT ELECTRICAL CHARACTERISTICS (5) (continued) VIN = 5.5V, VBATT = 3.5V, VCEB = GND, TA = 25°C, unless otherwise noted. Parameter Symbol Condition Charging current Thermal Fold-back Threshold Min Typ Max Units 105 120 135 °C ΔICHG VSYS = 5V, VBATT = 3.5V 1.5kΩ < RCHG < 7.6kΩ -12 12 Trickle Charge Current ITRKL 7.6kΩ < RCHG < 22kΩ VBATT = 2.0V, RCHG = 2.263kΩ -30 5 8.5 30 12 %ICHG End of Charge (EOC) (8) current threshold IEOC RCHG = 2.263kΩ (1A ICHG) 7 10 13 %ICHG RCHG = 22.6kΩ (100mA Ichg) 9 Voltage at ICHSET pin VICHSET 1.5kΩ < RCHG < 4.5kΩ Trickle Threshold Voltage Trickle Voltage Hysteresis Auto Re-charge Fall Threshold VTH VBATT Rising Constant Current Variation for Charging (7) TRKL VRECHG VBATT Falling CEB Threshold Logic Low CEB Threshold Logic High 15 25 RCHG*IC RCHG*IC RCHG*IC HG/201 HG/180 HG/158 6 0 4 2.7 2.8 2.9 190 3.95 Pin Voltage = 0.3V CTMR CTMR Timer Count Temperature Fault Threshold Voltage mA VTH VTH LT HT µA 1.1 Hour 8.4 Hour 17 2 15 2 T INTC MΩ 1 F Timer Accuracy NTC pin Output Current V V IN pin grounded, VBATT = 4.3V τTMR_F V mV 0.3 8 CTMR=1µF, RCHG=2.263kΩ (1A ICHG) CTMR=1µF, RCHG=22.6kΩ (100mA ICHG) V V 1 STAT1 , STAT2 Sink Current Battery Reverse Current to IN pin mA 4.15 2 CEB pin Pull-up Resistor Timer for Charging 4.05 %ICHG RCHG=2.263kΩ (1A ICHG) RCHG=22.6kΩ (100mA ICHG) -20 -40 CEB = GND -100 58 28 Ambient Temp = 0°C Ambient Temp = 50°C 20 40 % % 0 100 nA 60 30 62 32 %VIN %VIN Notes: 5) Min. VIN is determined by internal UVLO and relative to BATT voltage 6) High Charge current make MP2607 get into thermal fold-back and charge current will drop down. 7) ICHG is the target preprogrammed charge current (Die temperature below 110°C), i.e. typical value of ICHG. 8) IEOC is the target preprogrammed battery full current threshold, i.e. typical value of IEOC. MP2607 Rev. 1.03 5/18/2015 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 5 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT PIN FUNCTIONS Pin # Name I/O Description 1, 2 3 4 BATT MODE ICHSET I/O I O 5 TMR I Connected to battery Input select for AC adapter or USB port Connected to an external resistor to set charging current ICHG Program pin to set timer for the charger with an external capacitor; 470nF equivalents to 1 hour if RCHG is 4.2kΩ 6 CEB I 7 8 GND NTC Power O 9 STAT2 O 10 STAT1 O 11, 12 13, 14 IN SYS Power Power MP2607 Rev. 1.03 5/18/2015 Enable pin for MP2607. CEB high (>2V) disables IN (AC or USB) regulation path and charger, the system is supplied only from battery Ground Battery temperature sense pin, connected to the thermistor of battery pack Charging status indication pin: 1. charging; 2. end of charge; 3. charge suspend; 4. Fault Input for AC adapter or USB port System power supply. www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 6 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT TYPICAL PERFORMANCE CURVES VIN=5.5V, CIN=4.7µF, CSYS=10µF, CBAT=4.7µF, TA=25°C, unless otherwise noted. Battery Charge Curve VBAT 4 3.5 800 600 700 ICHG (mA) ICHG (mA) 400 2.5 300 200 200 100 100 0 0 ICHG 0 20 40 60 300 600 400 2.5 3 3.5 4 0 4.5 0 0.1 0.2 0.3 0.4 0.5 0.6 VBAT (V) CC Charge Current vs. Input Voltage CC Charge Current vs. Temperature VBAT CV Regulation Voltage vs. Temperature 700 1200 Rchg=2.21k 800 200 2 80 TIME (Min) Thermal Fold back 600 1000 4.3 Mode=1 4.2 500 ICHG (mA) 800 ICHG (mA) MODE=1, Rchg=8.66k Rchg=3.6k 600 400 400 VBAT (V) 0 MODE=0, Rchg=3.6k 400 2 0.5 1200 1000 500 1.5 1 1400 MODE=1, Rchg=3.6k 600 500 3 VBAT (V) 700 ICHG vs. 1/RCHG ICHG (mA) 4.5 Charge Current vs. Battery Voltage Mode=0 300 200 3.9 100 4.8 5.1 5.4 VIN (V) 4 200 Rchg=8.66k 0 4.5 4.1 5.7 0 -50 -30 -10 10 30 50 Temperature ( C) 6 70 90 3.8 -40 -20 0 20 40 60 80 Temperature ( C) Power Path Management Power Path Management Power Path Management MODE=1, 1.5A Source Current Limit, W/ Battery MODE=0, W/ Battery MODE=0, W/ Battery VIN 2V/div. VBAT 1V/div. VSYS 2V/div. VBAT 2V/div. IIN 0.2A/div. IIN 0.2A/div. IIN 0.5A/div. IBAT 0.5A/div. ISYS 0.5A/div. 4s/div. MP2607 Rev. 1.03 5/18/2015 VBAT 2V/div. IBAT 0.5A/div. IBAT 0.5A/div. ISYS 0.5A/div. ISYS 0.5A/div. 10s/div. 4s/div. www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 7 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT TYPICAL PERFORMANCE CURVES (continued) VIN=5.5V, CIN=4.7µF, CSYS=10µF, CBAT=4.7µF, TA=25°C, unless otherwise noted. Power On Power On Power On MODE=1, RCHG=3.6k, W/O Battery MODE=1, RCHG=3.6k, W/ Battery MODE=0, RCHG=3.6k, W/ Battery VIN 2V/div VSYS 2V/div VBAT 2V/div ISYS 0.5A/div VIN 2V/div VSYS 2V/div VBAT 2V/div VIN 2V/div VSYS 2V/div VBAT 2V/div IBAT 0.2A/div IBAT 0.2A/div 200ms/div 200ms/div Power Off Power Off MODE=1, W/O Battery MODE=1, RCHG=3.6k, W/ Battery VIN 2V/div VSYS 2V/div VBAT 2V/div ISYS 1A/div 200ms/div Power Off MODE=0, RCHG=3.6k, W/ Battery VIN 2V/div VIN 2V/div VSYS 2V/div VSYS 2V/div VBAT 2V/div IBAT 1A/div VBAT 2V/div IBAT 0.2A/div 10ms/div 10ms/div 10ms/div Enable Control On Enable Control On Enable Control On MODE=1, W/O Battery MODE=1, RCHG=3.6k, W/ Battery MODE=0, RCHG=3.6k, W/ Battery VCEB 2V/div VSYS 2V/div VBAT 2V/div VCEB 2V/div VSYS 2V/div VBAT 2V/div VSYS 2V/div VBAT 2V/div IBAT 1A/div ISYS 1A/div 10ms/div MP2607 Rev. 1.03 5/18/2015 VCEB 2V/div IBAT 0.2A/div 10ms/div 10ms/div www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 8 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT TYPICAL PERFORMANCE CURVES (continued) VIN=5.5V, CIN=4.7µF, CSYS=10µF, CBAT=4.7µF, TA=25°C, unless otherwise noted. Enable Control Off Enable Control Off Enable Control Off MODE=1, W/O Battery MODE=1, RCHG=3.6k, W/ Battery MODE=0, RCHG=3.6k, W/ Battery VCEB 2V/div VSYS 2V/div VBAT 2V/div VCEB 2V/div VSYS 2V/div VCEB 2V/div VSYS 2V/div VBAT 2V/div ISYS 1A/div IBAT 1A/div VBAT 2V/div IBAT 0.2A/div 10ms/div 10ms/div 10ms/div Input Selection Input OVP Input OVP Recovery RCHG=3.6k, W/ Battery VIN from 5V to 6V, MODE=1, RCHG=3.6k, W/ Battery VIN from 6V to 5V, MODE=1, RCHG=3.6k, W/ Battery VIN 5V/div VSYS 1V/div IBAT 0.2A/div VMODE=0.65V VIN 2V/div VSYS 1V/div VBAT 1V/div VIN 1V/div VBAT 2V/div VSYS 1V/div IBAT 0.2A/div VMODE 0.2V/div IBAT 0.2A/div 200ms/div MP2607 Rev. 1.03 5/18/2015 40ms/div 40ms/div www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 9 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT BLOCK DIAGRAM IN AC Adaptor or USB port EN VIN REGULATOR VIN UVLO References VBG &Bias EN MP1SEN MP1 1. For AC: Vout = 5V Coarse current limit = 2A SYS 2. For USB: Vout=VIN Accurate current limit set internally to 450mA typ. MODE SYSTEM COMP SYS2V, or no VIN High High NTC Temperature Sensor The NTC pin allows MP2607 to sense the ambient temperature using the Negative Thermal Coefficient (NTC) thermistor usually available in the battery pack to ensure a safe operating environment of the battery. A resistor with appropriate value should be connected from VIN to NTC and the NTC resistor parallel connected a regular resistor is connected form NTC pin to ground. The voltage on NTC pin is determined by the resistor divider whose divide ratio depends on the ambient temperature. MP2607 internally sets a pre-determined upper and lower bound of the divide ratio. If NTC pin voltage falls out of this range which means the temperature is outside the safe operating range, MP2607 will stop charging and report it on status pins. Charging will automatically resume after the temperature falls back into the safe range. Enable Enable of MP2607 is controlled by pulling CEB pin below 0.3V. Pulling CEB pin above 2V will put MP2607 in sleep mode, which disables power path management and battery charger. In sleep mode, the N-channel switch between BATT and SYS is fully on to maintain system supply. Battery under-voltage and current limit are kept alive to provide safeguard. www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 12 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT APPLICATION INFORMATION COMPONENT SELECTION Battery Charging Current The charging current of MP2607 is programmable using an external resistor RCHG at ICHSET pin: ICHG 1.260V = 1800 × R CHG (Ω) Where 1.260V is an internal reference voltage for ICHSET programming. Typically RCHG is chosen between 1.51kΩ (1.50A ICHG) and 7.5kΩ (300mA ICHG). However, due to current limit constraint at the input source, either adapter or USB port input, the charging current could be less than above calculated value if system load demand is high. MP2607 will always ensure the sum of system load current and charging current complies with source current limit, with system load has the priority. Especially for USB mode, when system load exceeds the source current limit, charging is actually stopped and battery is pulled in to supplement the system load. When using USB port as input source, if the charging current is set higher than USB port current limit IUSB_MAX, then the real charging current will not be higher than USB current limit and could be reduced further if system draws any load. End of Charge Threshold Current The end of charge threshold current is set internally to be at 10% of ICHG: IEOC = 180 × 1.260V R CHG (Ω) Where 1.260V is an internal reference voltage and RCHG is the programming resistor at ICHSET pin. When the charging current falls below IEOC in CV charge mode, MP2607 will terminate charge, and latch the status pin to indicate the end of charge. MP2607 Rev. 1.03 5/18/2015 Trickle Charge Current When the battery voltage is below the minimum battery voltage VTH_TRKL (defined in the electrical characteristics table), the charger operates in a trickle/preconditioning mode, where the charging current is typically 7.5% of the programmed charge current ICHG. ITRKL = 150 × 1.260V RCHG (Ω) Timer for Charge Termination MP2607 has a built-in timer to terminate the charge if the timer times out, no matter whether IEOC is reached or not. And once the battery is charged full, the timer is reset. This timer is programmable using an external capacitor CTMR at TMR pin, to allow user adjust to different battery capacity. The timer can be calculated as: τTMR_F = 1.1hours × 2μA + 1A/36000 CTMR × 2μA + ICHG /36000 1μF The timer period is strictly inversely proportional to the real charging current (either in power path state or CV charge mode), the sink and source current of CTMR is 2μA + Ichg / 36000 . So, the trickle charge timer can be calculated based on the τTMR_F: τ TMR_T 215 2μA + ICHG /36000 = τ TMR_F × 17 × 2 2μA + ITRKL /36000 Due to the power path management function, the real charging current usually varies during the whole charging process, thus MP2607 automatically takes into account this variation and adjust the timer time out accordingly. Basically the timer increases the same proportion as the charging current decreases. If the charging is stopped due to high system load, the timer is temporarily suspended. In this way, the actual energy delivered to the battery, which is charging current multiplying the charging time, remains constant. The time out operation will set the charger into suspended state and be reported at the status output pins. To clear the time out status, one has to recycle the chip enable pin or IN supply. www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 13 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT Resistor Choose for NTC Sensor NTC pin uses a resistor divider from input source (IN) to sense the ambient temperature. The two resistors RT1 and RT2 allow the high temperature limit and low temperature limit to be programmed independently. In another word, MP2607 can fit most type of NTC resistor and different temperature operation range requirement with the two extra resistors. RT1 and RT2 values depend on the type of the NTC resistor: RT2 = 0.3 × RNTCH × RNTCL 0.12 × RNTCL − 0.42 × RNTCH RT1 = 0.667 × (RT2 / /RNTCL ) RNTCH is the value of the NTC resistor at high temperature of the required temperature operation range, and RNTCL is the value of the NTC resistor at low temperature. MP2607 Rev. 1.03 5/18/2015 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 14 MP2607 – LI-ION CHARGER WITH POWER PATH MANAGEMENT PACKAGE INFORMATION QFN 14 (3mm x 4mm) 2.90 3.10 1.60 1.80 0.30 0.50 PIN 1 ID SEE DETAIL A PIN 1 ID MARKING 1 14 0.18 0.30 3.20 3.40 3.90 4.10 PIN 1 ID INDEX AREA 0.50 BSC 7 8 TOP VIEW BOTTOM VIEW PIN 1 ID OPTION A 0.30x45º TYP. 0.80 1.00 PIN 1 ID OPTION B R0.20 TYP. 0.20 REF 0.00 0.05 SIDE VIEW DETAIL A 2.90 0.70 NOTE: 1.70 1) 2) 3) 4) 5) 0.25 ALL DIMENSIONS ARE IN MILLIMETERS. EXPOSED PADDLE SIZE DOES NOT INCLUDE MOLD FLASH. LEAD COPLANARITY SHALL BE 0.10 MILLIMETER MAX. DRAWING CONFORMS TO JEDEC MO-229, VARIATION VEED-5. DRAWING IS NOT TO SCALE. 3.30 0.50 RECOMMENDED LAND PATTERN NOTICE: The information in this document is subject to change without notice. Please contact MPS for current specifications. Users should warrant and guarantee that third party Intellectual Property rights are not infringed upon when integrating MPS products into any application. MPS will not assume any legal responsibility for any said applications. MP2607 Rev. 1.03 5/18/2015 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2015 MPS. All Rights Reserved. 15
