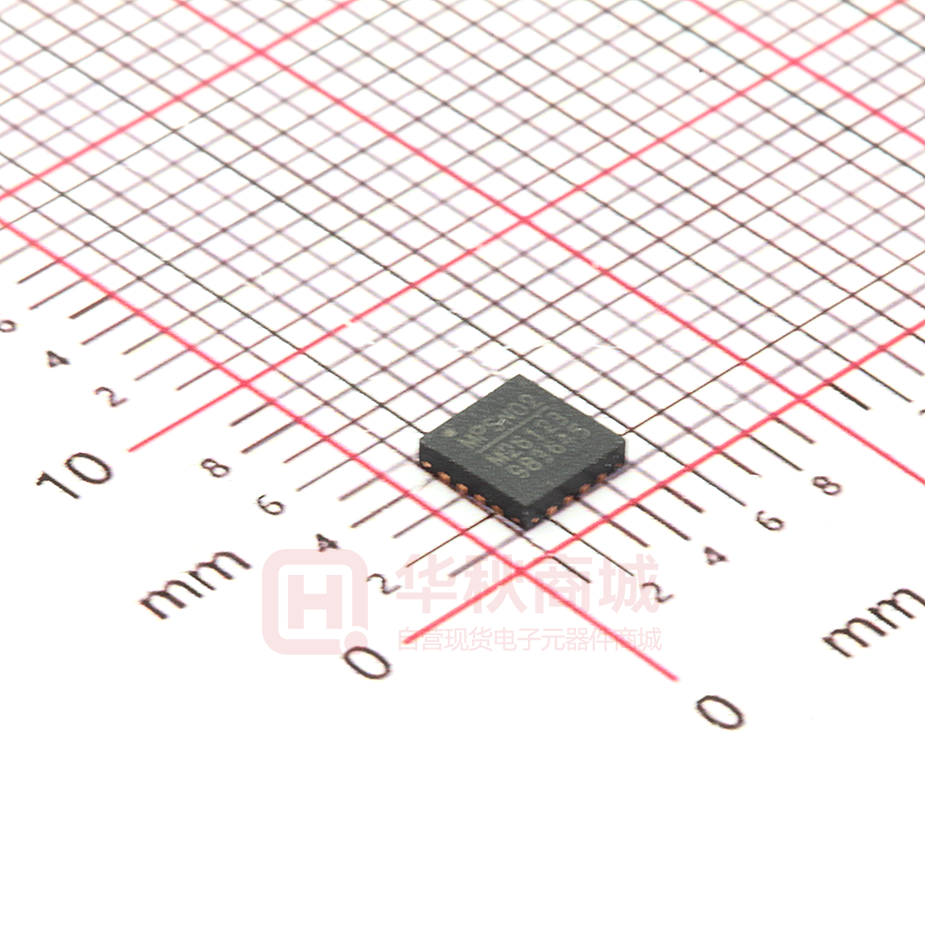

MP26123DR-Z

MP26123 2A,24V Input, 600kHz 2/3-Cell Switching Li-ion Battery Charger The Future of Analog IC Technology DESCRIPTION The MP26123 is a monolithic DC-DC stepdown switching charger for 2- or 3-cell Li-ion battery packs. It has an integrated high-side power MOSFET can output up to a 2A charge current. It also has peak-current–mode control for fast loop response and easy compensation. The MP26123 uses a sense resistor to control a programmable charge current, and accurately regulates the charge current and charge voltage using two control loops. The MP26123 has multiple fault condition protections that include cycle-by-cycle current limiting and thermal shutdown. Other safety features include battery temperature monitoring and protection, charge status indication and programmable timer to cease the charging cycle when timer out. The MP26123 requires a minimal number of readily-available external components. The MP26123 is available in a 4mm x 4mm 16pin QFN package. FEATURES              Charges 2- or 3-Cell Li-Ion Battery Packs Wide Operating Input Range Programmable Charging Current of up to 2A ±0.75% VBATT Accuracy 0.2Ω Integrated Power MOSFET Up to 90% Efficiency Fixed 600kHz Frequency Preconditioning for Fully Depleted Batteries Charging Status Indicator Input Supply Fault Indicator Thermal Shutdown Cycle-by-Cycle Over-Current Protection Battery Temperature Monitor and Protection APPLICATIONS      Mobile Internet Device Portable Media Player Netbook Charger for 2- or 3-Cell Li-Ion Batteries Distributed Power Systems For MPS green status, please visit MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION MP26123 Rev. 1.01 www.MonolithicPower.com 10/28/2011 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 1 MP26123 – 2A, 24V INPUT, 600kHz 2-3 CELL SWITCHING LI-ION BATTERY CHARGER ORDERING INFORMATION Part Number* MP26123DR Package QFN16 (4x4mm) Top Marking M26123 Free Air Temperature (TA) -40°C to +85°C *For Tape & Reel, add suffix –Z (e.g. MP26123DR–Z) For RoHS compliant packaging, add suffix –LF (e.g. MP MP26123DR–LF–Z) PACKAGE REFERENCE TOP VIEW PIN 1 ID VIN SW BST TMR 16 15 14 13 VCC 1 12 GND NTC 2 11 CSP ACOK 3 10 BATT CHGOK 4 9 COMPI 5 6 7 8 VREF33 EN CELLS COMPV EXPOSED PAD ON BACKSIDE ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance Supply Voltage VCC, VIN ............................ 26V VSW ..................................... -0.3V to (VIN + 0.3V) VBST ...................................................... VSW + 6V VCSP, VBATT, ...................................-0.3V to +18V VACOK, VCHGOK, ..............................-0.3V to +26V All Other Pins ..................................-0.3V to +6V (2) Continuous Power Dissipation (TA = 25°C) ............................................................. 2.7W Junction Temperature ...............................150°C Lead Temperature ....................................260°C Storage Temperature............... -65°C to +150°C QFN16 (4x4mm) ..................... 46 ...... 10... °C/W Recommended Operating Conditions (3) (4) θJA θJC Notes: 1) Exceeding these ratings may damage the device. 2) The maximum allowable power dissipation is a function of the maximum junction temperature TJ(MAX), the junction-toambient thermal resistance θJA, and the ambient temperature TA. The maximum allowable continuous power dissipation at any ambient temperature is calculated by PD(MAX)=(TJ(MAX)-TA)/θJA. Exceeding the maximum allowable power dissipation will cause excessive die temperature, and the regulator will go into thermal shutdown. Internal thermal shutdown circuitry protects the device from permanent damage. 3) The device is not guaranteed to function outside of its operating conditions. 4) Measured on JESD51-7 4-layer board. Supply Voltage VIN ..............................9V to 24V Maximum Junction Temp. (TJ) ..................125°C MP26123 Rev. 1.01 www.MonolithicPower.com 10/28/2011 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 2 MP26123 – 2A, 24V INPUT, 600kHz 2-3 CELL SWITCHING LI-ION BATTERY CHARGER ELECTRICAL CHARACTERISTICS VIN = 19V, TA = 25°C, CELLS=0V, unless otherwise noted. Parameters Terminal battery voltage CSP，BATT current Switch on resistance Symbol Condition VBATT CC current Trickle charge current Trickle charge voltage threshold Typ Max Units 8.337 12.505 8.4 12.6 8.463 12.695 V ICSP,IBATT Charging disabled RDS(ON) Switch leakage Peak current limit CELLS=0V CELLS=Float Min (5) TRICKLE ICC RS1=100mΩ 1.8 1 μA 4.1 A 2 A 2.0 2.2 A ICC VTC 3 V/cell 350 mV IBF Oscillator frequency fSW 5% CELLS=0V, VBATT =7V VBATT =0V 10% 15% 170 VSENSE tON kHz 190 kHz % VDRAIN =0.3V In trickle mode CTMR=0.1μF Dead battery indicator 200 230 100 3 mV ns 3.2 3.4 V 200 1000 mV 5 VRECHG ICC 600 90 Under-voltage lockout threshold rising Under-voltage lockout threshold hysteresis Open-drain sink current Recharge threshold at VBATT Recharge hysteresis Ω 10% Termination current threshold Minimum on time (5) 0.2 ITRICKLE Trickle charge hysteresis Fold-back frequency Maximum duty cycle Maximum current sense voltage (CSP to BATT) µA 0 EN = 4V, VSW = 0V CC 1 mA 30 min 4.0 100 V/cell mV %of VREF33 %of VREF33 NTC low-temp rising threshold RNTC=NCP18X103, 0°C 70.5 73.5 76.5 NTC high-temp falling threshold RNTC=NCP18X103, 50°C 27.5 29.5 31.5 VIN min head-room (reverse blocking) VIN−VBATT 180 MP26123 Rev. 1.01 www.MonolithicPower.com 10/28/2011 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. mV 3 MP26123 – 2A, 24V INPUT, 600kHz 2-3 CELL SWITCHING LI-ION BATTERY CHARGER ELECTRICAL CHARACTERISTICS (continued) VIN = 19V, TA = 25°C, CELLS=0V, unless otherwise noted. Parameters Symbol Condition Min Typ EN input low voltage Supply current (shutdown) Supply current (quiescent) 0.4 V V EN =4V 4 EN =0V 0.2 EN =4V 0.5 mA 0.665 mA EN =4V, Consider VREF33 pin output current, R3=10k,RNTC=10k ILOAD =0 to 10mA μA 2.0 EN =0V, CELLS=0V (5) Thermal shutdown VREF33 output voltage VREF33 load regulation Units 1.8 EN input high voltage EN input current Max 150 3.3 30 mA °C V mV Notes: 5) Guaranteed by design. MP26123 Rev. 1.01 www.MonolithicPower.com 10/28/2011 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 4 MP26123 – 2A, 24V INPUT, 600kHz 2-3 CELL SWITCHING LI-ION BATTERY CHARGER PIN FUNCTIONS Pin # Name 1 VCC 2 3 4 5 6 Description IC supply voltage. Thermistor Input. Connect a resistor from this pin to VREF33, and the thermistor from this NTC pin to ground. Valid Input Supply Indicator. Open drain output. Add pull-up resistor. Logic LOW indicates ACOK the presence of a valid input supply. Charging Status Indicator. Open drain output. Add pull-up resistor. Logic LOW indicates CHGOK normal charging. Logic HIGH indicates either a completed charge process or suspended process because of some fault. Internal Linear Regulator, 3.3V Reference Output. Bypass to GND with a 1μF ceramic VREF33 capacitor. EN On/Off Control Input. 8 Command Input for the Number of Li-ion Cells. Connect to VREF33 or float for 3-cell operation. Ground for 2-cell operation. COMPV V-LOOP Compensation. Decouple this pin with a capacitor and a resistor. 9 COMPI I-LOOP Compensation. Decouple this pin with a capacitor and a resistor. 7 CELLS 10 BATT 11 CSP 12 GND 13 TMR 14 BST 15 SW 16 VIN Positive Battery Terminal. Battery-Charge Current-Sense–Positive Input. Connect a resistor RS1 between CSP and 200mV . BATT. The full charge current is: ICHG A   RS1mΩ  Ground. This pin is the voltage reference for the regulated output voltage. This node should be placed outside of the switching diode (D2) to the input ground path to prevent switching current spikes from inducing voltage noise into the part. Set Safe Timer Period. 0.1µA current charges and discharges the external capacitor decoupled to GND. The capacitor value programs the timer period. Bootstrap. Requires a charged capacitor to drive the power switch’s gate above the supply voltage. Connect a capacitor between SW and BST pins to form a floating supply across the power switch driver. Switch Output. Regulator Input Voltage. The MP26123 regulates a 9V-to-24V input to a voltage suitable for charging either a 2- or 3-cell Li-ion battery. Requires capacitors to prevent large voltage spikes from appearing at the input. MP26123 Rev. 1.01 www.MonolithicPower.com 10/28/2011 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 5 MP26123 – 2A, 24V INPUT, 600kHz 2-3 CELL SWITCHING LI-ION BATTERY CHARGER TYPICAL PERFORMANCE CHARACTERISTICS VIN=19V, C1=4.7μF, C2=22μF, L=4.7μH, RS1=100mΩ, Real/Simulation Battery Load, TA=25°C, unless otherwise noted. MP26123 Rev. 1.01 www.MonolithicPower.com 10/28/2011 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 6 MP26123 – 2A, 24V INPUT, 600kHz 2-3 CELL SWITCHING LI-ION BATTERY CHARGER TYPICAL PERFORMANCE CHARACTERISTICS (continued) VIN=19V, C1=4.7μF, C2=22μF, L=4.7μH, RS1=100mΩ, Real/Simulation Battery Load, TA=25°C, unless otherwise noted. MP26123 Rev. 1.01 www.MonolithicPower.com 10/28/2011 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 7 MP26123 – 2A, 24V INPUT, 600kHz 2-3 CELL SWITCHING LI-ION BATTERY CHARGER TYPICAL PERFORMANCE CHARACTERISTICS (continued) VIN=19V, C1=4.7μF, C2=22μF, L=4.7μH, RS1=100mΩ, Real/Simulation Battery Load, TA=25°C, unless otherwise noted. MP26123 Rev. 1.01 www.MonolithicPower.com 10/28/2011 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 8 MP26123 – 2A, 24V INPUT, 600kHz 2-3 CELL SWITCHING LI-ION BATTERY CHARGER FUNCTIONAL BLOCK DIAGRAM Figure 1—Functional Block Diagram MP26123 Rev. 1.01 www.MonolithicPower.com 10/28/2011 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 9 MP26123 – 2A, 24V INPUT, 600kHz 2-3 CELL SWITCHING LI-ION BATTERY CHARGER OPERATION The MP26123 is a peak-current–mode controlled switching charger for use with Li-ion batteries. At the beginning of a cycle, M1 is off, and the COMP voltage is higher than the output of current sense amplifer, A1. The PWM comparator’s output is low, and the rising edge of the 600kHz CLK signal sets the RS flip-flop, which turns on M1, thus connecting the SW pin and the inductor to the input supply. As the inductor current increases, the output of A1 increases. While the sum of A1’s output and the slope compensation remains below the COMP voltage, the falled edge of the CLK resets the RS flip-flop. When this signal exceeds the COMP voltage, the RS flip-flop resets and turns M1 off. The external switching diode D2 then conducts the inductor current. The MP26123 uses COMP to select the smaller value of GMI and GMV to implement either current loop control or voltage loop control. Current loop control occurs when the battery voltage is low, which results in the saturation of the GMV output. GMI compares the charge current (as a voltage sensed through RS1) against the reference voltage to regulate the charge current to a constant value. When the battery voltage charges up to the reference voltage, the output of GMV goes low and initiates voltage loop control to control the duty cycle to regulate the output voltage. The MP26123 has an internal linear regulator— VREF33—to power internal circuitry. It can also power external circuitry as long as the load does not exceed the maximum current (30mA). Connect a 1μF bypass capacitor from VREF33 to GND to ensure stability. If the charge stays in the “trickle-charging mode” until “time out” condition is triggered, charging terminates and will not resume until the input power or EN signal refreshes. Otherwise, GMI regulates the charge current to the level set by RS1. The charger is operating at “constant current charging mode.” The duty cycle of the switcher is determined by the COMPI voltage that is regulated by the amplifier GMI. When the battery voltage reaches constantvoltage–mode threshold, GMV regulates the COMP pin and the duty cycle for constant voltage mode. When the charge current drops to the battery-full threshold, IBF (typical 10% CC), the battery is defined as fully charged, the charger stops charging, and CHGOK goes high to indicate the charge-full condition. If the total charge time exceeds the timer period, the charging terminates at once and will resume when either the input power or EN signal can restart the charger. Figure 2 shows the typical charge profile of MP26123. Figure 2—Li-Ion Battery Charge Profile Charge Cycle (Mode change: Trickle CC CV) At the start of a charging cycle, the MP26123 monitors VBATT. If VBATT is lower than the tricklecharge threshold, VTC (typically 3.0V/cell), the charging cycle will start in “trickle-charge mode” (10% of the RS1 programmed constant-charge current, ICC) until the battery voltage reaches VTC. MP26123 Rev. 1.01 www.MonolithicPower.com 10/28/2011 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2011 MPS. All Rights Reserved. 10 MP26123 – 2A, 24V INPUT, 600kHz 2-3 CELL SWITCHING LI-ION BATTERY CHARGER Automatic Recharge After the battery has completely recharged, the charger disables all blocks except the battery voltage monitor to limit leakage current. If the battery voltage falls below 4.0V/Cell, the chip will begin recharging using soft-start. The timer will then reset to avoid timer-related charging disruptions. Charger Status Indication MP26123 has two open-drain status outputs: ACOK and CHGOK . The ACOK pin goes low when the IC supply voltage VCC exceeds the under-voltage lockout threshold and the regulated voltage VIN is 300mV higher than VBATT to make sure the regulator can operate normally. CHGOK indicates charge status. Table 1 describes ACOK and CHGOK outputs under different charge conditions. Table 1―Charging Status Indication ACOK CHGOK low low low high high high Charger Status In charging End of charge, NTC fault, timer out, thermal shutdown, EN disable VIN –VBATT
