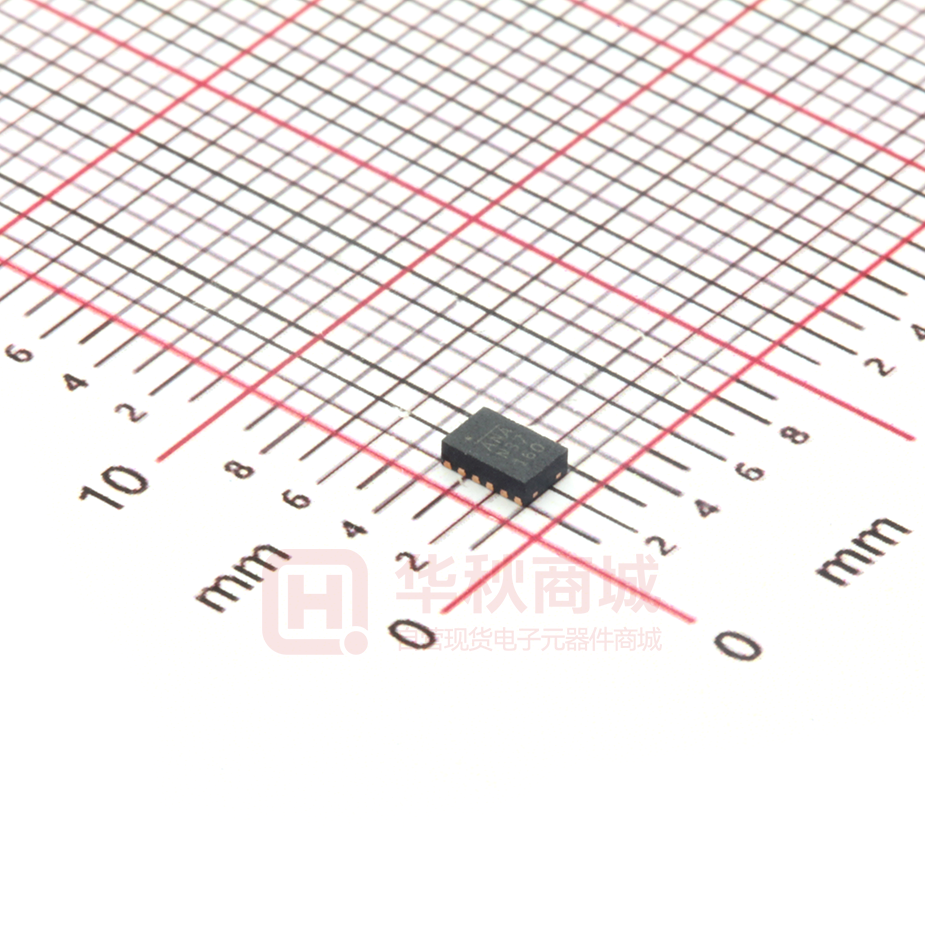

MP28164GD-Z

MP28164 The Future of Analog IC Technology High-Efficiency, Single-Inductor, Buck-Boost Converter with 4.2A Switches DESCRIPTION FEATURES The MP28164 is a high-efficiency, lowquiescent current, buck-boost converter that operates from an input voltage above, equal to, or below the output voltage. The device provides a compact solution for products powered by one-cell Lithium-Ion or multi-cell alkaline batteries where the output voltage is within the battery voltage range.      The MP28164 uses current-mode control with fixed PWM frequency for optimal stability and transient response. The fixed 2MHz switching frequency and integrated low RDS(ON) MOSFETs minimize the solution footprint while maintaining high efficiency.        To ensure the longest possible battery life, the MP28164 uses an optional pulse skipping mode that reduces the switching frequency under light-load conditions. For other low-noise applications where pulse skipping mode may cause interference, a high-logic input on MODE/SYNC guarantees fixed-frequency PWM operation under all load conditions. The MP28164 operates with an input voltage from 1.2V to 5.5V to provide an adjustable output voltage from 1.5V to 5V. With an input from 2.5V to 5.5V, the device can supply 2A of current to the load with a 3.3V output voltage. The MP28164 is available in a small QFN-11 (2mmx3mm) package.    1.8V Minimum Start-Up Input Voltage 1.2V to 5.5V Input Work Range 1.5V to 5V Output Range 4.2A Switching Current Limit 3.3V/2A Load Capability from a 2.5V-to5.5V Input Supply 2MHz Fixed or External Synchronous Switching Frequency Selectable PSM/PWM Mode Typical 25μA Quiescent Current High Efficiency up to 95% Load Disconnect during Shutdown Internal Soft Start and Compensation Power Good Indicator Hiccup Mode for Short-Circuit Protection (SCP) Over-Temperature Protection (OTP) Available in a Small QFN-11 (2mmx3mm) Package APPLICATIONS     Battery-Powered Devices Portable Instruments Tablet PC Super-Cap Charger All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION 100 95 90 85 80 75 70 65 60 55 50 0.001 0.01 0.1 1 MP28164 Rev. 1.0 www.MonolithicPower.com 3/28/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 10 1 MP28164 – SINGLE-INDUCTOR, BUCK-BOOST CONVERTER WITH 4.2A SWITCHES ORDERING INFORMATION Part Number* MP28164GD Package QFN-11 (2mmx3mm) Top Marking See Below * For Tape & Reel, add suffix –Z (e.g. MP28164GD–Z) TOP MARKING ANA: Product code of MP28164GD Y: Year code WW: Week code LLL: Lot number PACKAGE REFERENCE TOP VIEW QFN-11 (2mmx3mm) MP28164 Rev. 1.0 www.MonolithicPower.com 3/28/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 2 MP28164 – SINGLE-INDUCTOR, BUCK-BOOST CONVERTER WITH 4.2A SWITCHES ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance VIN to GND ....................................... -0.3V to 6V SW1/2 to GND .................. -0.3V (-2V for VOUT) When the input voltage is significantly higher than the output voltage, the converter can deliver energy to the load within SWA’s maximum duty cycle by switching SWA and SWB. The converter operates in buck mode. In this condition, SWD remains on and SWC remains off. VC-Buck compares with the current ramp signal normally and generates a PWM output. Therefore, SWA/SWB are pulse-width modulated to produce the required duty cycle and eventually support the output voltage. Buck-Boost Region (VIN ≈ VOUT) When VIN is close to VOUT, the converter is unable to provide enough energy to load due to SWA’s maximum duty cycle, so the current ramp signal cannot trigger VC-Buck in the first period, and SWA remains on with 100% duty cycle. If SWB is not turned on in the first period, boost begins working in the secondary period (SWC switches in the secondary period) and an offset voltage is added to the current ramp signal to allow it to reach VC-Buck. SWC turns off when the current ramp signal intersects with VC-Boost in the secondary period, and SWD conducts the inductor current when SWC is off. This is called boost operation. SWA turns off when the current ramp signal intersects with VC-Buck in the secondary period, and SWB turns on to conduct the inductor current after SWA turns off. This is called buck operation. If SWB turns on in the secondary period, the boost operation (SWC on) is disabled in the following cycle. If SWA continues to conduct with 100% duty in the secondary cycle, the boost operation is also enabled in the following duty cycle. SWA/SWB and SWC/SWD switch during this condition simultaneously. This is called buckboost mode. Boost Region (VIN < VOUT) When the input voltage is significantly lower than the output voltage, the control voltage (VC-Buck) is always higher than the current ramp signal. The offset voltage is added to the current signal, so SWB cannot turn on in all cycles. The boost operation (SWC on) is enabled in every cycle based on the logic, so only SWC and SWD switch. This is called boost mode. In this condition, SWC/SWD are pulse-width modulated to produce the required duty cycle and eventually support the output regulation voltage. Under-Voltage Lockout (UVLO) Under-voltage lockout (UVLO) is used to protect the device from operating at an insufficient supply voltage. The MP28164’s UVLO circuit monitors the VCC voltage. During start-up, VIN must rise higher than VIN-UVLO-R to support enough VCC voltage and enable the IC. After the IC is enabled, VCC is powered by VIN or VOUT (depending on which is higher), so the IC can work, even if VIN drops to 1.2V, unless VCC drops to the VCC-UVLO-F threshold. During start-up, if VCC has a bias voltage from another power supply, the MP28164 can work with 1.2V of input power. If VIN is much lower than 1.2V, SWA RDS(ON) is high, and the MP28164 cannot supply high power to the output. If VIN drops to 0.69V, the MP28164 stops working. MP28164 Rev. 1.0 www.MonolithicPower.com 3/28/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 14 MP28164 – SINGLE-INDUCTOR, BUCK-BOOST CONVERTER WITH 4.2A SWITCHES VCC Power Supply When EN is high and VIN ramps up, VIN charges VCC. If VIN is higher than VIN-UVLO-R, the MP28164 begins working. All internal circuits of the MP28164 are supplied by VCC, and VCC only needs to be decoupled with a ceramic capacitor less than 1µF. After the system starts up, VCC is powered by the higher value of VIN or VOUT internally. If VCC is powered by VOUT, the MP28164 does not shut down until VIN drops to the UVLO falling threshold (0.69V) or VCC drops to the VCC UVLO falling threshold (1.56V). It is not suggested to supply the MP28164 with an input lower than 1.2V, even if VCC has a bias voltage due to SWA (P-FET) having an RDS(ON) that is too high when VIN is low. Even with 1.2V of input power, the load capability is weaker than the high input condition due to the RDS(ON). Internal Soft Start (SS) When EN is high and VIN is above the UVLO rising threshold, the MP28164 starts up with a soft-start function. The internal soft-start (SS) signal ramps up and controls the feedback reference voltage. After 4ms of blank time, if VOUT has not risen to 60% of the normal output voltage, or if VOUT is pulled down to 60% of the normal output voltage due to an overload, the soft-start signal is pulled down to GND and hiccup protection is initiated. During start-up or hiccup recovery condition, an internal SS signal is clamped to VFB + 0.3V if VOUT does not rise up. This limit can prevent a VOUT overshoot if the heavy load disappears suddenly during startup. During start-up or recovery from hiccup, if there is already some voltage on the output, this voltage is discharged by the negative current limit (-1A when the MP28164 operates in PWM mode regardless of the MODE/SYNC setting) to equal the SS voltage. VOUT then rises normally. When MODE/SYNC is pulled low, the MP28164 enters PSM automatically when the load decreases. In PSM, a group of switching pulses are initiated when the internal VC-Buck rises higher than the PSM threshold (group pulses start with SWA/SWC on and end with SWB/SWD on). SWD is turned off if the SWD current flows from VOUT to SW2 in each period. During start-up or short-circuit protection (SCP) recovery condition, the MP28164 works in fixedfrequency PWM mode, even if MODE/SYNC is low. The negative inductor current is limited to -1A, the same as in constant frequency mode. OCP/SCP and Two Current Limits There are two peak-current limits in the MP28164. One is a steady-state switching current limit with a 4.2A typical value. Another one is a start-up switching current limit with a 2.5A typical value. The start-up current limit can control the input inrush current at a lower level when VFB < 60% x VREF during start-up. In overload or short-circuit condition, VOUT drops due to the steady-state switching current limit. If VOUT drops below 60% of its normal output, the MP28164 stops switching and recovers after ~8ms with hiccup mode protection. After the switching stops in hiccup protection, the internal soft-start signal is clamped to VFB + 0.3V, where VFB is the divided voltage from the residual VOUT. This smooths the soft start-up when the MP28164 recovers from hiccup protection. During the soft-start time, the MP28164 blanks during hiccup protection for about 4ms. After the 4ms blank time, if VOUT is still lower than 60% of the normal voltage, the MP28164 resumes hiccup mode. If VOUT rises above 60% of the normal value, the MP28164 enters normal operation. MODE/SYNC Setting The MP28164 can be set in PSM or fixedfrequency PWM mode in light load through the MODE/SYNC setting. When MODE/SYNC is pulled high, the MP28164 operates in fixedfrequency PWM mode. The current conducts while the inductor current direction reverses. In this mode, the VOUT ripple is lower than in power-save mode (PSM), but the power loss is higher due to the high-frequency switching. MP28164 Rev. 1.0 www.MonolithicPower.com 3/28/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 15 MP28164 – SINGLE-INDUCTOR, BUCK-BOOST CONVERTER WITH 4.2A SWITCHES Power Good (PG) The MP28164 has a power-good (PG) output. PG is the open drain of the MOSFET. Pull PG up to VCC through a resistor (typically 100kΩ) during application. After the FB voltage reaches 91.5% of the VREF voltage, PG is pulled high. When the FB voltage drops to 76% of the VREF voltage, PG is pulled low. PG has self-driving capability. If the MP28164 is off and PG is pulled up to another DC power source through a resistor, PG can also be pulled low (~0.7V) by the self-driving circuit. Over-Voltage Protection (OVP) If VOUT is higher than the typical 6.3V value, the switching stops. This helps protect the device from high-voltage stress. After the output drops below 5.3V, the switching recovers automatically. Over-Temperature Protection (OTP) An internal temperature sensor continuously monitors the IC junction temperature. If the IC temperature exceeds 160°C, the device stops operating. Once the temperature falls below 140°C, normal operation resumes. MP28164 Rev. 1.0 www.MonolithicPower.com 3/28/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 16 MP28164 – SINGLE-INDUCTOR, BUCK-BOOST CONVERTER WITH 4.2A SWITCHES APPLICATION INFORMATION Setting the Output Voltage A resistor divider from VOUT to FB is necessary to set the MP28164’s output voltage. The highside feedback resistor (R1) can be calculated with Equation (1): R1  ( VOUT  1)  R2 VFB (1) Where R2 is the low-side feedback resistor with a recommended value from 60kΩ through 360kΩ to balance the stability and transient response. Inductor Selection With one buck-boost topology circuit, the inductor must support the buck application with the maximum input voltage and boost application with the minimum input voltage. Two critical inductance values can be determined according to the buck mode and boost mode current ripple, as shown in Equation (2) and Equation (3): L MINBUCK  L MINBOOST  VOUT  ( VIN(MAX )  VOUT ) VIN(MAX )  FREQ  IL VIN(MIN)  ( VOUT  VIN(MIN) ) VOUT  FREQ  IL Input and Output Capacitor Selection It is recommended to use ceramic capacitors with a low ESR as input and output capacitors to filter any disturbance present in the input and output line and to achieve stable operation. Output capacitors with a minimum 10µF input and 22µF output are required to achieve optimal behavior from the device. The output capacitor affects loop stability. The input and output capacitors must be placed as close as possible to the device. Refer to the Typical Application Circuits section for optimized capacitor selection details. (2) (3) Where FREQ is the switching frequency, and ∆IL is the peak-to-peak inductor current ripple. The peak-to-peak ripple can be set to 10%-30% of the inductor current. The minimum inductor value for the application must be higher than the calculated value from both Equation 2 and Equation 3. In addition to the inductance value, the inductor must support the peak current based on Equation (4) and Equation (5) to avoid saturation: IPEAKBUCK  IOUT  IPEAK BOOST  VOUT (VIN(MAX)  VOUT ) 2 VIN(MAX) FREQ L VOUT  IOUT VIN(MIN)  (VOUT  VIN(MIN) )   VIN(MIN) 2  VOUT  FREQ  L (4) (5) Where η is the estimated efficiency. MP28164 Rev. 1.0 www.MonolithicPower.com 3/28/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 17 MP28164 – SINGLE-INDUCTOR, BUCK-BOOST CONVERTER WITH 4.2A SWITCHES PCB Layout Guidelines Efficient PCB layout of the high-frequency switching power supplies is critical for stable operation. Poor layout can result in reduced performance, excessive EMI, resistive loss, and system instability. For best results, refer to Figure 3 and follow the guidelines below. 1. Place the input capacitor and output capacitor close to VIN, VOUT, and PGND. 2. Place the VCC decoupling capacitor close to VCC and AGND. 3. Keep the FB resistor divider very close to FB. 4. Keep the FB trace far away from noise sources, such as SW1 and SW2. 5. Ensure the layout of the copper of GND, VIN, and VOUT is wide enough to conduct high current and lower the die temperature. 6. Place vias in the GND copper around the chip for better thermal performance. Figure 4: Reference Circuit for PCB Guide Design Example Table 1 is a design example following the application guidelines for the specifications below: Table 1: Design Example 1.8 - 5.5 Start-Up VIN (V) 1.2 - 5.5 Operation VIN (V) 3.3V VOUT (V) The detailed application schematic is shown in Figure 5, and the performance can be found in the Typical Performance Characteristics sections. Top Layer GND Bottom Layer Figure 3: PCB Layout Recommendation MP28164 Rev. 1.0 www.MonolithicPower.com 3/28/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 18 MP28164 – SINGLE-INDUCTOR, BUCK-BOOST CONVERTER WITH 4.2A SWITCHES TYPICAL APPLICATION CIRCUITS Figure 5: 3.3V Output Application Circuit Figure 6: 5V Output Application Circuit MP28164 Rev. 1.0 www.MonolithicPower.com 3/28/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 19 MP28164 – SINGLE-INDUCTOR, BUCK-BOOST CONVERTER WITH 4.2A SWITCHES PACKAGE INFORMATION QFN-11 (2mmx3mm) PIN 1 ID PIN 1 ID MARKING PIN 1 ID INDEX AREA BOTTOM VIEW TOP VIEW SIDE VIEW NOTE: 1) ALL DIMENSIONS ARE IN MILLIMETERS. 2) EXPOSED PADDLE SIZE DOES NOT INCLUDE MOLD FLASH. 3) LEAD COPLANARITY SHALL BE 0.10 MILLIMETERS MAX. 4) JEDEC REFERENCE IS MO-220. 5) DRAWING IS NOT TO SCALE. RECOMMENDED LAND PATTERN NOTICE: The information in this document is subject to change without notice. Please contact MPS for current specifications. Users should warrant and guarantee that third party Intellectual Property rights are not infringed upon when integrating MPS products into any application. MPS will not assume any legal responsibility for any said applications. MP28164 Rev. 1.0 3/28/2016 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 20
