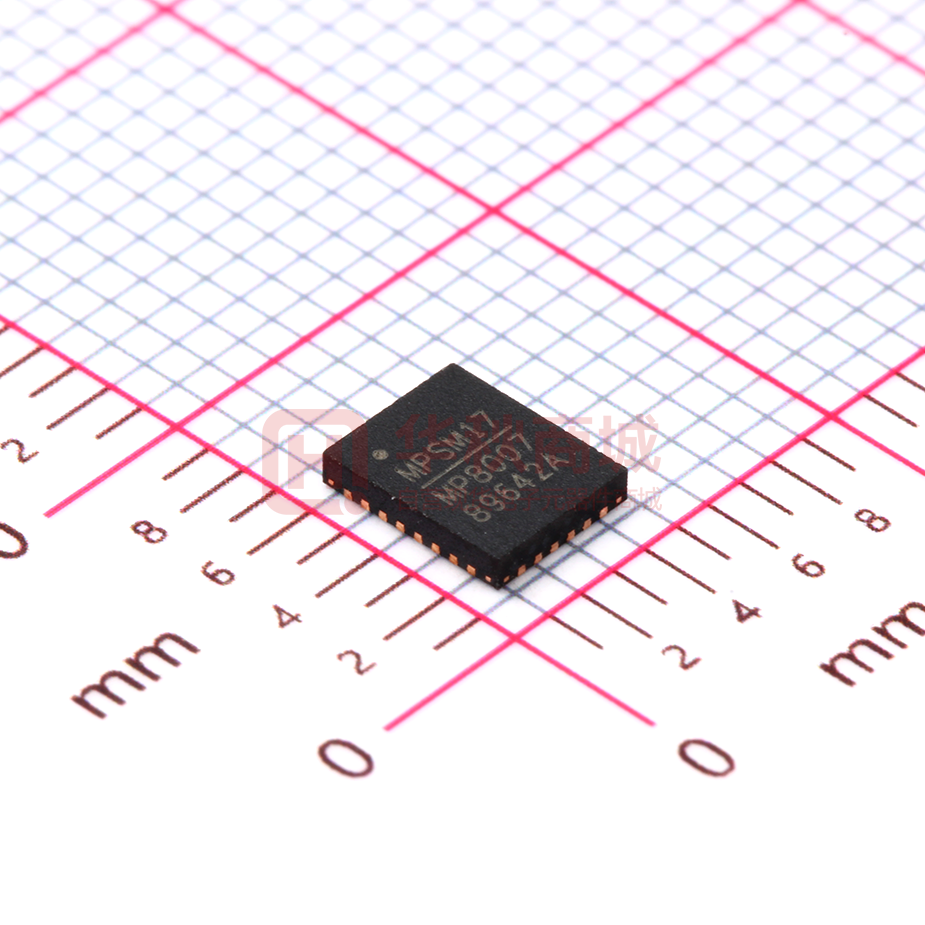

MP8007GV-Z

MP8007 The Future of Analog IC Technology Fully-Integrated 802.3af-Compatible PoE PD Interface with 13W Primary-side Regulated Flyback or Buck Converter DESCRIPTION FEATURES The MP8007 is an integrated IEEE 802.3af compatible PoE Powered Device with PD interface and power converter. It is targeted for isolated or non-isolated 13W PoE application.         The PD interface has all the functions of IEEE 802.3af, including detection, classification, 120mA inrush current, 840mA operation current limit as well as 100V Hot-swap MOSFET. The DCDC converter uses fixed peak current and variable frequency discontinuous conduction mode (DCM) to regulate constant output voltage. The primary-side regulation without opto-coupler feedback in flyback mode simplifies the design while buck mode continues minimizes the solution size for nonisolated applications. A 180V integrated power MOSFET optimizes the device for various wide voltage applications. The MP8007 features protection including over current protection, over voltage protection, open circuit protection and thermal shutdown. The MP8007 can support a front-end solution for PoE-PD application with minimum external component, it is available in QFN-28 (4mmX5mm) package.      Compatible with 802.3af Specifications Support 13W PoE Power Application 100V 0.48Ω PD Integrated Pass Switch 120mA PD Inrush Current 840mA PD Operation Current Limit Auxiliary Adaptor ORing Power Supply Integrated 180V Switching Power MOSFET Supports Primary-Side Regulated Flyback without Opto-Coupler Feedback Supports Low-side Switch Buck Converter Up to 3A Programmable Switching Current Limit OLP, OVP, Open-Circuit, and Thermal Protection Minimal External Components Available in QFN-28 (4mmx5mm) Package APPLICATIONS      IEEE 802.3af-Compliant Devices Security Camera VoIP Phones WLAN Access Points IoT Devices All MPS parts are lead-free, halogen free, and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION 90 85 80 75 70 65 60 55 50 45 40 10 MP8007 Rev.1.0 6/27/2016 100 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 1000 1 MP8007 ― IEEE 802.3AF PD WITH 13W FLYBACK / BUCK CONVERTER ORDERING INFORMATION Part Number* MP8007GV Package QFN-28 (4mm X 5mm) Top Marking See blew * For Tape & Reel, add suffix –Z (e.g. MP8007GV–Z) TOP MARKING MPS: MPS prefix: Y: year code; WW: week code: MP8007: part number; LLLLLL: lot number; PACKAGE REFERENCE TOP VIEW MP8007 Rev.1.0 6/27/2016 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 2 MP8007 ― IEEE 802.3AF PD WITH 13W FLYBACK / BUCK CONVERTER ABSOLUTE MAXIMUM RATINGS (1) Thermal Resistance (8) Pins Voltage Respects to VSS: VDD, RTN, DET, T2P, AUX, GND, AGND ..............................................-0.3V to +100V CLASS, FTY ................................-0.3V to +6.5V Pins Voltage Respects to GND(2): VDD ............................................-0.3V to +100V SW ..............................................-0.7V to +180V FB1 ...........................................-0.7V to +6.5V(3) VCC(4), MODE, ILIM, PG..............-0.3V to +6.5V Pins Voltage Respects to VDD: AUX, FB2 .....................................-6.5V to +0.3V Pins Current: T2P ........................................................... 10mA VCC Sinking Current............................ 1.5 mA(4) AUX Sinking Current.............................. -5 mA(5) FB1 Sinking Current.............................. ±1 mA(3) (6) Continuous Power Dissipation (TA=+25) QFN28 4X5……………………….…..……3.12W Junction Temperature ...............................150C Lead Temperature ....................................260C Storage Temperature............... -65C to +150C Notes: 1) Exceeding these ratings may damage the device. 2) GND and AGND must be connected to RTN 3) Refer to the “Converter Output Voltage Setting” section. 4) VCC voltage can be pulled higher than this rating, but the external pull-up current should be limited. Refer to “VCC sinking current” rating and “VCC Power Supply Setting” section. 5) When VDD to Adapter-ground voltage is high, AUX-VDD voltage may exceed -6.5V if the divider resistor is not appropriate, in this condition VDD will clamp the -6.5V voltage on AUX pin, but the current should be limited by external resistor. 6) The maximum allowable power dissipation is a function of the maximum junction temperature TJ (MAX), the junction-toambient thermal resistance θJA, and the ambient temperature TA. The maximum allowable continuous power dissipation at any ambient temperature is calculated by PD (MAX) = (TJ (MAX)-TA)/θJA. Exceeding the maximum allowable power dissipation produces an excessive die temperature, causing the regulator to go into thermal shutdown. Internal thermal shutdown circuitry protects the device from permanent damage. 7) The device is not guaranteed to function outside of its operating conditions. 8) Measured on JESD51-7, 4-layer PCB. (2) θJA QFN-28 (4mmx5mm) ……. ….…40 θJC 9 °C/W Recommended Operating Conditions (7) Supply Voltage VDD .............................0V to 57V Switching Voltage VSW ................-0.5V to +150V Maximum T2P Current................................ 5mA Maximum VCC Sinking Current ............ 1.2mA(4) Maximum AUX Sinking Current ............. -3 mA(5) Maximum FB1 Sinking Current .......... ±0.5 mA(3) Maximum Switching Frequency ............ 200 kHz Maximum Switching Current Limit ................. 3A Operating Junction Temp. (TJ). -40°C to +125°C MP8007 Rev.1.0 6/27/2016 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. 3 MP8007 ― IEEE 802.3AF PD WITH 13W FLYBACK / BUCK CONVERTER ELECTRICAL CHARACTERISTICS VDD, CLASS, DET, T2P and RTN voltages are referred to VSS, and all other pin voltages are referred to GND, GND and RTN are shorted together. VDD – VSS = 48V, VSS = 0V; RDET = 24.9kΩ, RCLASS =41.2Ω. TJ = -40°C to +125°C, typical values are tested at TJ = 25C, unless otherwise noted. PD Interface Section Parameter Symbol Condition Min Typ Max Units Detection Detection on VDET-ON Detection off DET Leakage Current VDET-OFF VDD Rising VDET-LK VDET=VDD=57V, Measure IDET VDD=10.1V, float DET pin, not in Mark event, Measure ISUPPLY VDD=2.5V, Measure ISUPPLY IDET VDD=10.1V, Measure ISUPPLY Bias Current Detection Current VDD Rising 1.9 11 0.1 96 395 Classification Classification Stability Time VCLASS Output Voltage Classification Current Classification Lower Threshold Classification Upper Threshold Classification Hysteresis VCLASS ICLASS VCL-ON VCL-OFF VCL-HYS HYS MP8007 Rev.1.0 6/27/2016 5 V μA 12 μA 102 425 μA μA 90 Mark Event Reset Threshold VMARK-L Max Mark Event Voltage VMARK-H Mark Event Current IMARK Mark Event Resistance RMARK IC Supply Current during IIN-CLASS Classification Class Leakage Current ILEAKAGE PD UVLO VDD Turn on Threshold VDD-VSS-R VDD Turn off Threshold VDD-VSS-F VDD-VSSVDD UVLO Hysteresis IC Supply Current during Operation 99 410 V IIN 13V
