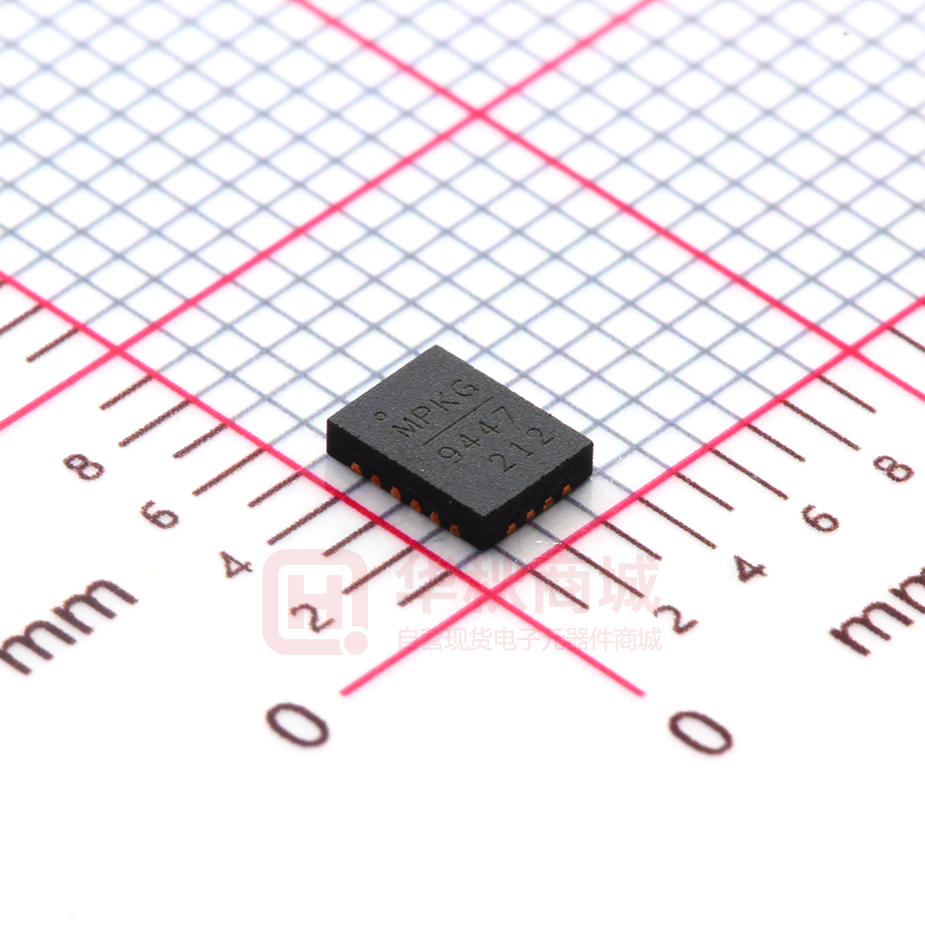

MP9447GL-Z

MP9447 High-Efficiency, Fast-Transient, 5A, 36V Synchronous, Step-Down Converter The Future of Analog IC Technology DESCRIPTION FEATURES The MP9447 is a fully-integrated, highfrequency, synchronous, rectified, step-down, switch-mode converter. It offers a very compact solution to achieve a 5A, continuous-output current over a wide input-supply range with excellent load and line regulation. It also provides fast transient response and good stability for wide input-supply and load range. The MP9447 operates at high efficiency over a wide output current load range.    Full protection features include SCP, OCP, UVP, and thermal shutdown. The MP9447 requires a minimal number of readily-available, standard, external components, and is available in a space-saving 3mm×4mm, 25-pin, QFN package.         Wide 4.5V-to-36V Operating Input Range Guaranteed 5A, Continuous Output Current Internal 65mΩ High-Side, 30mΩ Low-Side Power MOSFETs Proprietary Switching-Loss-Reduction Technology 1.5% Reference Voltage Programmable Soft-Start Time Low Drop-out Mode 200kHz-to-650kHz Switching Frequency SCP, OCP, UVP, and Thermal Shutdown Output Adjustable from 0.8V to 0.9×VIN Available in a 3×4mm 25-pin QFN Package APPLICATIONS     General Consumer USB Power Supplies Cigarette Lighter Adapters Power Supply for Chargers All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc. TYPICAL APPLICATION MP9447 Rev. 1.22 10/24/2018 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2018 MPS. All Rights Reserved. 1 MP9447–HIGH-EFFICIENCY, FAST-TRANSIENT, SYNCHRONOUS, STEP-DOWN CONVERTER ORDERING INFORMATION Part Number* Package Top Marking MP9447GL QFN-25 (3mm×4mm) See Below * For Tape & Reel, add suffix –Z (e.g. MP9447GL–Z) TOP MARKING 9447: product code of MP9447GL; MP: MPS prefix; Y: year code; W: week code: LLL: lot number; PACKAGE REFERENCE TOP VIEW VCC IN 20 AGND 1 FREQ 2 FB 3 SS 4 EN 5 NC 6 19 SW SW 18 17 21 IN 24 SW 22 IN 25 SW 23 IN 7 8 9 16 PGND 15 PGND 14 PGND 13 PGND 12 PGND 11 PGND 10 BST IN SW SW EXPOSED PAD ON BACKSIDE QFN25 (3×4mm) MP9447 Rev. 1.22 10/24/2018 www.MonolithicPower.com MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2018 MPS. All Rights Reserved. 2 MP9447–HIGH-EFFICIENCY, FAST-TRANSIENT, SYNCHRONOUS, STEP-DOWN CONVERTER ABSOLUTE MAXIMUM RATINGS (1) Supply Voltage VIN ........................................ 40V VSW ..................... -0.3V(-7V,50%VREF ILIM=1(HIGH), VFB
