MPL-SE4030-100

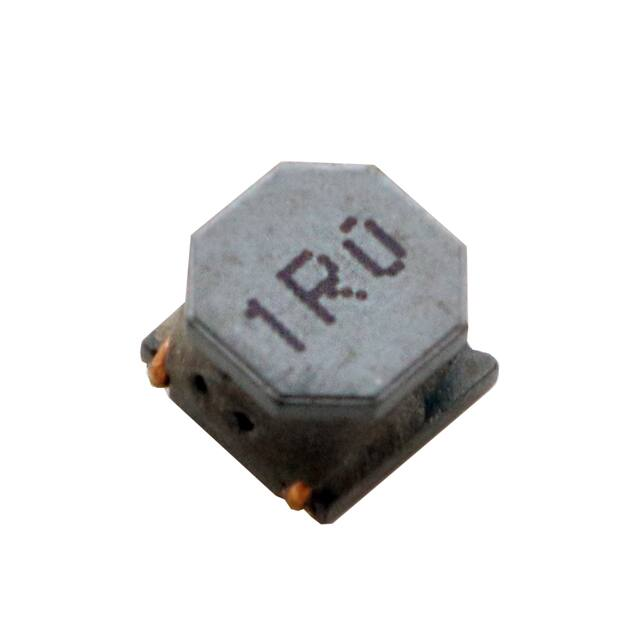

MPL-SE4030-100 Semi-Shielded Inductor 10µH APPLICATIONS FEATURES        Battery-powered devices  High-efficiency SMPS  Embedded computing  Input filters ELECTRICAL CHARACTERISTICS Parameter Size 4mmx4mmx3mm Semi-Shielded Construction Low DCR Low Stray Field Max Operating Temp +125°C RoHS/REACH-Compliant, Halogen-Free Inductance (1) L Value Unit ±20% 10 µH Resistance RDC typ 97 mΩ Resistance MAX RDC MAX max 125 mΩ Rated Current (2) IR typ 2.2 A ISAT 25°C typ 2.4 A ISAT 100°C typ 2 A fr typ 26 MHz Saturation Current 25°C (3) Saturation Current 100°C Resonance Frequency (4) GENERAL SPECIFICATIONS (1) Inductance Measured at 100kHz, 100mA (2) Rated Current Rated current will cause the coil temperature rise ΔT of 40K IR measured with the inductor soldered in a single-layer PCB. Copper layer thickness 35µm Cu / PCB size 30x50mm. Temperature behavior dependent on circuit design, PCB layout, proximity to other components, and trace dimensions and thickness. (3) Saturation Current 25°C Saturation current will cause L to drop from 30% at 25°C ambient temperature (4) Saturation Current 100°C Saturation current will cause L to drop from 30% at 100°C ambient temperature Temperature Test Condition Operating Condition Storage Condition Electrical specifications measured at 25°C, 35% RH if not given differently Operating temperature: -40°C to +125°C (including temp rise) Should not exceed +125°C under worst-case operation conditions Tape and Reel packaging: -10°C to +40°C Humidity:
