MPQ4432
36V, 2.2A, Low Quiescent Current,
Synchronous, Step-Down Converter
AEC-Q100 Qualified
DESCRIPTION
FEATURES
The MPQ4432 is a synchronous, step-down,
switching
regulator
with
programmable
frequency (350kHz to 2.5MHz) and integrated,
internal, high-side and low-side power
MOSFETs. The MPQ4432 provides up to 2.2A
of highly efficient output current with current
mode control for fast loop response.
The wide 3.3V to 36V input range
accommodates a variety of step-down
applications in automotive input environments.
The MPQ4432 is ideal for battery-powered
applications due to its extremely low quiescent
current.
The
MPQ4432
employs
advanced
asynchronous mode (AAM) to achieve high
efficiency in light-load condition by scaling down
the switching frequency to reduce switching and
gate driving losses.
Standard features include soft start, external
clock synchronization, enable control, and power
good indication. High-duty cycle and low dropout
mode are provided for automotive cold-crank.
Over-current protection (OCP) with valleycurrent detection is employed to prevent the
inductor current from running away. Hiccup
mode reduces the average current greatly in
short-circuit condition. Thermal shutdown
provides reliable and fault-tolerant operation.
Wide 3.3V to 36V Operating Input Range
2.2A Continuous Output Current
1μA Low Shutdown Mode Current
10μA Sleep Mode Quiescent Current
Internal 90mΩ High-Side and 40mΩ LowSide MOSFETs
350kHz to 2.5MHz Programmable Switching
Frequency
Fixed Output Options: 3.3V, 3.8V, 5V
Synchronize to External Clock, Selectable
In-Phase or 180°Out-of-Phase
Power Good Indicator
Programmable Soft-Start Time
80ns Minimum On Time
Selectable Forced CCM or AAM
Low Dropout Mode
Over-Current Protection (OCP) with ValleyCurrent Detection and Hiccup
Available in a QFN-16 (3mmx4mm)
Package
Available in Wettable Flank
Available in AEC-Q100 Grade 1
APPLICATIONS
Automotive Systems
Industrial Power Systems
All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive.
For MPS green status, please visit the MPS website under Quality
Assurance. “MPS” and “The Future of Analog IC Technology” are registered
trademarks of Monolithic Power Systems, Inc.

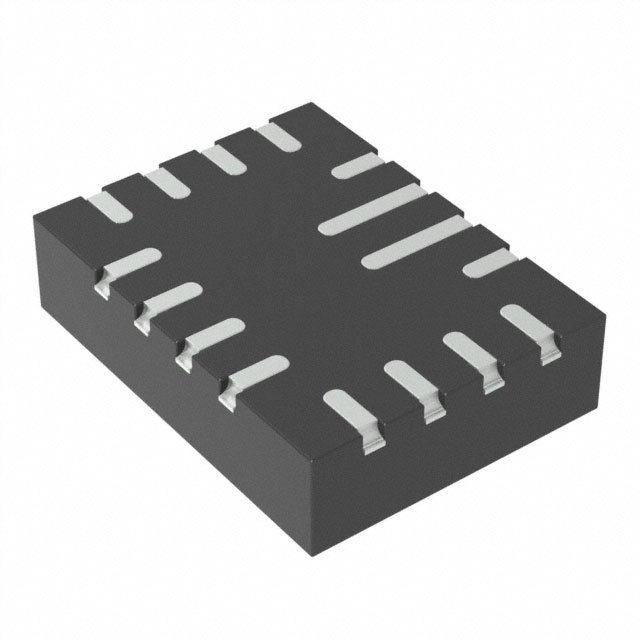

The MPQ4432 is available in a QFN-16
(3mmx4mm) package.
TYPICAL APPLICATION
VIN
VIN
VIN
BST
VOUT
SW
VIN
EN
SYNC
BST
VOUT
SW
MPQ4432 PHASE
MPQ4432 PHASE
GND
GND
FREQ
FB
FREQ
FB
VCC
PG
VCC
PG
BIAS
SS
BIAS
SS
Output Adjustable Version
MPQ4432 Rev. 1.1
5/28/2020
EN
SYNC
Output Fixed Version
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
1
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
ORDERING INFORMATION
Part Number*
MPQ4432GL
MPQ4432GL-AEC1
MPQ4432GLE-AEC1***
MPQ4432GLE-38-AEC1***
MPQ4432GLE-5-AEC1***
Package
Top Marking
MSL Rating**
See Below
QFN-16 (3mmx4mm)
See Below
See Below
See Below
1
* For Tape & Reel, add suffix –Z (e.g. MPQ4430GL–Z)
** Moisture Sensitivity Level Rating
*** Wettable Flank
TOP MARKING (MPQ4432GL & MPQ4432GL-AEC1)
MP: MPS prefix
Y: Year code
W: Week code
4432: First four digits of the part number
LLL: Lot number
TOP MARKING (MPQ4432GLE-AEC1)
MP: MPS prefix
Y: Year code
W: Week code
4432: First four digits of the part number
LLL: Lot number
E: Wettable lead flank
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
2
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TOP MARKING (MPQ4432GLE-38-AEC1)
MP: MPS prefix
Y: Year code
W: Week code
4432: First four digits of the part number
LLL: Lot number
E: Wettable lead flank
38: 3.8V fixed output
TOP MARKING (MPQ4432GLE-5-AEC1)
MP: MPS prefix
Y: Year code
W: Week code
4432: First four digits of the part number
LLL: Lot number
E: Wettable lead flank
5: 5V fixed output
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
3
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
PACKAGE REFERENCE
TOP VIEW
FREQ
16
FB
SS
AGND
15
14
13
PHASE
1
12
VCC
VIN
2
11
BST
SW
3
10
SW
PGND
4
9
5
EN
6
SYNC
7
PG
PGND
8
BIAS
QFN-16 (3mmx4mm)
θJA
θJC
ABSOLUTE MAXIMUM RATINGS (1)
Thermal Resistance
Supply voltage (VIN) ....................... -0.3V to 40V
Switch voltage (VSW) ............-0.3V to VIN + 0.3V
BST voltage (VBST) ............................ VSW + 6.5V
EN voltage (VEN) ............................. -0.3V to 40V
BIAS voltage (VBIAS) ........................ -0.3V to 20V
All other pins ..................................... -0.3V to 6V
Continuous power dissipation (TA = +25°C) (2)
QFN-16 (3mmx4mm) ................................. 2.6W
Junction temperature ................................150°C
Lead temperature .....................................260°C
Storage temperature .................. -65°C to 150°C
QFN-16 (3mmx4mm)
JESD51-7(4) ........................... 48 ....... 11 ... °C/W
EV4432-L-00A (5) ....................43 ....... 5 .... °C/W
Electrostatic Discharge (ESD)
HBM (human body model) .........................±2kV
CDM (charged device model) ................. ±750V
Recommended Operating Conditions
Supply voltage (VIN) ........................ 3.3V to 36V
Operating junction temp (TJ) (3)
........................................... -40°C to +125°C
MPQ4432 Rev. 1.1
5/28/2020
NOTES:
1) Absolute maximum ratings are rated under room temperature
unless otherwise noted. Exceeding these ratings may damage
the device.
2) The maximum allowable power dissipation is a function of the
maximum junction temperature TJ(MAX), the junction-toambient thermal resistance θJA, and the ambient temperature
TA. The maximum allowable continuous power dissipation at
any ambient temperature is calculated by PD(MAX)=(TJ(MAX)TA)/ θJA. Exceeding the maximum allowable power dissipation
produces an excessive die temperature, causing the regulator
to go into thermal shutdown. Internal thermal shutdown
circuitry protects the device from permanent damage.
3) Mission profiles requiring operation above 125°C TJ may be
supported; contact MPS for details.
4) Measured on JESD51-7, 4-layer PCB.
5) Measured on EV4432-L-00A, 6.35cm * 6.35cm size, 2oz, 4layer PCB.
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
4
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
ELECTRICAL CHARACTERISTICS
VIN = 12V, VEN = 2V, TJ = -40°C to +125°C, unless otherwise noted. Typical values are at TJ = +25°C.
Parameter
Symbol
VIN quiescent current
IQ
VIN shutdown current
ISHDN
VIN under-voltage lockout
threshold rising
VIN under-voltage lockout
threshold hysteresis
Condition
Min
VFB = 0.85V, no load, no switching,
TJ = +25°C
VFB = 0.85V, no load, no switching
VEN = 0V
INUVRISING
2.4
INUVHYS
Feedback reference voltage
VREF
Output voltage accuracy of
MPQ4432-38
VOUT
Output voltage accuracy of
MPQ4432-5
VOUT
Switching frequency
FSW
Minimum on time (6)
TON_MIN
Sync input low voltage
VSYNC_LOW
Sync input high voltage
VSYNC_HIGH
Typ
Max
10
18
10
25
1
5
µA
2.8
3.2
V
150
TJ = 25°C
TJ = 25°C
TJ = 25°C
RFREQ = 180kΩ or from sync clock
RFREQ = 82kΩ or from sync clock
RFREQ = 27kΩ or from sync clock
Units
µA
mV
784
800
816
mV
792
800
808
mV
3705
3743
4875
4925
400
850
2250
3800
3800
5000
5000
475
1000
2500
3895
3857
5125
5075
550
1150
2750
mV
mV
mV
mV
kHz
kHz
kHz
80
ns
0.4
1.8
V
V
Current limit
ILIMIT_HS
Duty cycle = 40%
4.1
5.2
6.7
A
Low-side valley current limit
ILIMIT_LS
VOUT = 3.3V, L = 4.7µH
2.5
3.8
5.1
A
ZCD current
IZCD
0.1
A
ILIMIT_REVERSE
3
A
Switch leakage current
ISW_LKG
0.01
1
µA
HS switch on resistance
RON_HS
90
155
mΩ
LS switch on resistance
RON_LS
40
75
mΩ
Reverse current limit
Soft-start current
ISS
EN rising threshold
VEN_HYS
PG rising threshold (VFB/VREF)
PGRISING
PG falling threshold (VFB/VREF)
PGFALLING
PG output voltage low
VCC regulator
VCC load regulation
MPQ4432 Rev. 1.1
5/28/2020
VSS = 0.8V
VEN_RISING
EN threshold hysteresis
PG deglitch timer
VBST - VSW = 5V
TPG_DEGLITCH
VPG_LOW
5
10
15
µA
0.9
1.05
1.2
V
120
mV
VFB rising
85
90
95
VFB falling
105
110
115
VFB falling
79
84
89
VFB rising
%
%
113.5 118.5 123.5
%
PG from low to high
30
µs
PG from high to low
50
µs
ISINK = 2mA
0.2
VCC
0.4
5
ICC = 5mA
V
V
3
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
%
5
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
ELECTRICAL CHARACTERISTICS
VIN = 12V, VEN = 2V, TJ = -40°C to +125°C, unless otherwise noted. Typical values are at TJ = +25°C.
Parameter
Thermal shutdown
Symbol
(6)
Thermal shutdown hysteresis
(6)
Condition
Min
Typ
TSD
170
TSD_HYS
20
Max
Units
C
°C
NOTE:
6) Not tested in production. Guaranteed by design and characterization.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
6
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL CHARACTERISTICS
VIN = 12V, TJ = -40°C to +125°C, unless otherwise noted.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
7
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL CHARACTERISTICS (continued)
VIN = 12V, TJ = -40°C to +125°C, unless otherwise noted.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
8
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL PERFORMANCE CHARACTERISTICS
VIN = 12V, VOUT = 5V, Io=2.2A, L = 4.7μH, fSW = 450kHz, with EMI filters, TA = +25°C, unless
otherwise noted. (7)
CISPR25 Class 5 Peak Conducted Emissions CISPR25 Class 5 Average Conducted Emissions
150kHz -108MHz
75
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
-5
-10
-15
-20
150kHz - 108MHz
75
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
-5
-10
-15
-20
CISPR25 CLASS 5 LIMITS
AVERAGE CONDUCTED EMI (dBuV)
PEAK CONDUCTED EMI (dBuV)
CISPR25 CLASS 5 LIMITS
NOISE FLOOR
Frequency (MHz)
1
0.1
10
NOISE FLOOR
Frequency (MHz)
1
0.1
108
10
108
CISPR25 Class 5 Peak Radiated Emissions
CISPR25 Class 5 Average Radiated Emissions
150kHz-30MHz
150kHz-30MHz
60
60
55
55
CISPR25 CLASS 5 LIMITS
50
AVERAGE RADIATED EMI (dBuV/m)
PEAK RADIATED EMI (dBuV/m)
50
45
40
35
30
25
20
15
10
NOISE FLOOR
5
45
40
35
CISPR25 CLASS 5 LIMITS
30
25
20
15
10
5
0
0
-5
-5
-10
-10
1
0.1
Frequency (MHz)
10
NOISE FLOOR
1
0.1
30
Frequency (MHz)
10
30
CISPR25 Class 5 Peak Radiated Emissions
CISPR25 Class 5 Average Radiated Emissions
Horizontal, 30MHz-200MHz
Horizontal, 30MHz-200MHz
55
55
HORIZONTAL POLARIZATION
PEAK RADIATED EMI (dBuV/m)
45
CISPR25 CLASS 5 LIMITS
40
35
30
25
20
15
10
5
HORIZONTAL POLARIZATION
50
AVERAGE RADIATED EMI (dBuV/m)
50
NOISE FLOOR
45
40
35
30
25
CISPR25 CLASS 5 LIMITS
20
15
10
5
0
0
-5
30
40
50
60
MPQ4432 Rev. 1.1
5/28/2020
70
80
90
100 110 120
Frequency (MHz)
130
140
150
160
170
180
190
200
-5
NOISE FLOOR
30
40
50
60
70
80
90
100 110 120
Frequency (MHz)
130
140
150
160
170
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
180
190
200
9
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
VIN = 12V, VOUT = 5V, Io=2.2A, L = 4.7μH, fSW = 450kHz, with EMI filters, TA = +25°C, unless
otherwise noted. (7)
CISPR25 Class 5 Peak Radiated Emissions
CISPR25 Class 5 Average Radiated Emissions
Vertical, 30MHz-200MHz
55
45
CISPR25 CLASS 5 LIMITS
40
35
30
25
20
15
10
5
40
35
30
25
CISPR25 CLASS 5 LIMITS
20
15
10
NOISE FLOOR
5
0
0
-5
-5
30
40
50
VERTICAL POLARIZATION
50
AVERAGE RADIATED EMI (dBuV/m)
PEAK RADIATED EMI (dBuV/m)
55
VERTICAL POLARIZATION
50
45
Vertical, 30MHz-200MHz
60
70
80
90
100 110 120
Frequency (MHz)
130
140
150
160
170
180
190
200
NOISE FLOOR
30
40
50
60
70
80
90
100 110 120
Frequency (MHz)
130
140
150
160
170
180
190
200
CISPR25 Class 5 Peak Radiated Emissions
CISPR25 Class 5 Average Radiated Emissions
Horizontal, 200MHz-1GHz
Horizontal,200MHz-1GHz
55
55
HORIZONTAL POLARIZATION
50
45
AVERAGE RADIATED EMI (dBuV/m)
45
PEAK RADIATED EMI (dBuV/m)
HORIZONTAL POLARIZATION
50
CISPR25 CLASS 5 LIMITS
40
35
30
25
20
15
10
NOISE FLOOR
5
40
35
30
25
CISPR25 CLASS 5 LIMITS
20
15
10
5
0
0
-5
-5
200
300
400
500
600
Frequency (MHz)
700
800
900
1000
NOISE FLOOR
200
300
400
500
600
Frequency (MHz)
700
800
900
1000
CISPR25 Class 5 Peak Radiated Emissions
CISPR25 Class 5 Average Radiated Emissions
Vertical, 200MHz-1GHz
Vertical,200MHz-1GHz
55
55
VERTICAL POLARIZATION
50
45
AVERAGE RADIATED EMI (dBuV/m)
45
PEAK RADIATED EMI (dBuV/m)
VERTICAL POLARIZATION
50
CISPR25 CLASS 5 LIMITS
40
35
30
25
20
15
10
NOISE FLOOR
5
40
35
30
25
CISPR25 CLASS 5 LIMITS
20
15
10
5
0
0
-5
200
300
400
500
600
Frequency (MHz)
700
800
900
1000
NOISE FLOOR
-5
200
300
400
500
600
Frequency (MHz)
700
800
900
1000
NOTE:
7) The EMC test results are based on the application circuit with EMI filters as shown in Figure17.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
10
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL PERFORMANCE CHARACTERISTICS(continued)
VIN = 12V, VOUT = 3.3V, L = 10μH, fSW = 500kHz, AAM, TA = +25°C, unless otherwise noted.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
11
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
VIN = 12V, VOUT = 3.3V, L = 10μH, fSW = 500kHz, AAM, TA = +25°C, unless otherwise noted.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
12
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
VIN = 12V, VOUT = 3.3V, L = 10μH, fSW = 500kHz, AAM, TA = +25°C, unless otherwise noted.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
13
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
VIN = 12V, VOUT = 3.3V, L = 10μH, fSW = 500kHz, AAM, TA = +25°C, unless otherwise noted.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
14
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
VIN = 12V, VOUT = 3.3V, L = 10μH, fSW = 500kHz, AAM, TA = +25°C, unless otherwise noted.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
15
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
VIN = 12V, VOUT = 3.3V, L = 10μH, fSW = 500kHz, AAM, TA = +25°C, unless otherwise noted.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
16
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
VIN = 12V, VOUT = 3.3V, L = 10μH, fSW = 500kHz, AAM, TA = +25°C, unless otherwise noted.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
17
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
VIN = 12V, VOUT = 3.3V, L = 10μH, fSW = 500kHz, AAM, TA = +25°C, unless otherwise noted.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
18
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
PIN FUNCTIONS
Pin #
Name
1
PHASE
2
VIN
3, 10
SW
4, 9
PGND
5
EN
6
SYNC
7
PG
8
BIAS
11
BST
12
VCC
13
AGND
14
SS
15
FB
16
FREQ
MPQ4432 Rev. 1.1
5/28/2020
Description
Selectable in-phase or 180°out-of-phase of SYNC input. Drive PHASE high to be
in-phase; drive PHASE low to be 180°out-of-phase. Recommend to connect this pin
to GND if not used.
Input supply. VIN supplies power to all of the internal control circuitries and the power
switch connected to SW. Place a decoupling capacitor to ground close to VIN to
minimize switching spikes.
Switch node. SW is the output of the internal power switch. Pin 3 and Pin 10 are
internally connected.
Power ground. PGND is the reference ground of the power device. PGND requires
careful consideration during PCB layout. For best results, connect PGND with copper
pours and vias.
Enable. Pull EN below the specified threshold to shut down the chip. Pull EN above
the specified threshold to enable the chip.
Synchronize. Apply a 350kHz to 2.5MHz clock signal to SYNC to synchronize the
internal oscillator frequency to the external clock. The external clock should be at least
250kHz larger than the RFREQ set frequency. SYNC can also be used to select forced
continuous conduction mode (CCM) or advanced asynchronous mode (AAM). Before
the chip starts up, drive SYNC low or leave SYNC floating to choose AAM, and drive
SYNC high to external power source or pull up SYNC to VCC directly to set the part
forced CCM mode.
Power good indicator. The output of PG is an open drain. PG goes high if the output
voltage is within ±10% of the nominal voltage. Float PG if not used.
External power supply for the internal regulator. Connecting BIAS to an external
power supply (5V ≤ VBIAS ≤ 18V) reduces power dissipation and increases efficiency.
Float BIAS or connect BIAS to ground if it is not being used.
Bootstrap. BST is the positive power supply for the high-side MOSFET driver
connected to SW. Connect a bypass capacitor between BST and SW.
Internal bias supply. VCC supplies power to the internal control circuit and gate
drivers. A ≥1µF decoupling capacitor to ground is required close to VCC.
Analog ground. AGND is the reference ground of the logic circuit.
Soft-start input. Place an external capacitor from SS to AGND to set the soft-start
period. The MPQ4432 sources 10µA from SS to the soft-start capacitor at start-up. As
the SS voltage rises, the feedback threshold voltage increases to limit inrush current
during start-up. Floating the pin will activate the internal 0.7ms soft-tart setting.
Feedback input. For adjustable output version, connect FB to the tap of an external
resistor divider from the output to AGND to set the output voltage. The feedback
threshold voltage is 0.8V. Place the resistor divider as close to FB as possible. Avoid
placing vias on the FB traces. For fixed output version, connect FB pin to VOUT directly.
Switching frequency program. Connect a resistor from FREQ to ground to set the
switching frequency.
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
19
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
BLOCK DIAGRAM
BIAS
VCC
VCC
VCC
Regulator
VIN
VCC
VREF
EN
Reference
FREQ
BST
Oscillator
PLL
SYNC
ISW
PHASE
+
-
PG
VFB
110%xVREF
Logic
90%xVREF
+
-
VFB
Error Amplifier
VREF
SS
+
+
Control Logic,
OCP,
OTP,
BST Refresh
SW
VCC
VC
R1
460kΩ
C1
52pF
VFB -
FB
C2
0.2pF
IREVERSE
PGND
AGND
Figure 1-1: Functional Block Diagram of Output Adjustable Version
BIAS
VCC
VCC
Regulator
VCC
VIN
VCC
EN
VREF
Reference
FREQ
BST
Oscillator
PLL
SYNC
ISW
PHASE
+
-
PG
Logic
+
-
VFB
110%xVREF
90%xVREF
VFB
Error Amplifier
VREF
SS
FB
AGND
+
+
VFB R2
R3
360k
Ω
Control Logic,
OCP,
OTP,
BST Refresh
SW
VCC
VC
R1
460kΩ
C1
52pF
C2
0.2pF
IREVERSE
R2 is 1890kΩ for 5V fixed output.
R2 is 1350kΩ for 3.8V fixed output.
PGND
Figure 1-2: Functional Block Diagram of Fixed Output Version
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
20
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TIMING SEQUENCE
VIN
0
SW
0
EN
EN
T h r e sh ol d
0
VCC
VCC
T h r e s hol d
0
118.5% Vref
90% Vref
50% REF 84% Vref
Vo
110% Vref
SS
0
I L =I L i mi t
IL
0
PG
30µ s
50µ s
30µ s
50µs
30µ s
0
Start-Up
N o r m al
OCP
N o r m al
OC
Release
OV
N o r m al
EN Shutdown
Figure 2: Timing Sequence
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
21
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
OPERATION
The MPQ4432 is a high-frequency, synchronous,
rectified, step-down, switch-mode converter with
integrated, internal, high-side and low-side
power MOSFETs. The MPQ4432 offers a very
compact solution that achieves 2.2A of
continuous output current with excellent load and
line regulation over a wide 3.3V to 36V input
supply range. The MPQ4432 features switching
frequency programmable from 350kHz to
2.5MHz, external soft start, power good
indication, and precision current limit. Its very low
operational quiescent current makes it suitable
for battery-powered applications.
Pulse Width Modulation (PWM) Control
At moderate-to-high output current, the
MPQ4432 operates in a fixed-frequency, peakcurrent-control mode to regulate the output
voltage. An internal clock initiates a PWM cycle.
At the rising edge of the clock, the high-side
power MOSFET (HS-FET) is turned on, and the
inductor current rises linearly to provide energy
to the load. The HS-FET remains on until its
current reaches the value set by the COMP
voltage (VCOMP), which is the output of the
internal error amplifier. If the current in the HSFET does not reach VCOMP in one PWM period,
the HS-FET remains on, saving a turn-off
operation. When the HS-FET is off, it remains off
until the next clock cycle begins. The low-side
MOSFET (LS-FET) turns on immediately while
the inductor current flows through it. To avoid a
shoot-through, dead time is inserted to prevent
the HS-FET and LS-FET from turning on at the
same time. For each turn on and turn off in a
switching cycle, the HS-FET remains on and off
with a minimum on and off time limit.
Drive SYNC below its specified threshold (0.4V)
or leave SYNC floating before the chip starts up
to enable AAM power-save mode. The
MPQ4432
first
enters
non-synchronous
operation for as long as the inductor current
approaches zero at light load. If the load is
further decreased or is at no load, making VCOMP
below the internally set AAM value (VAAM), the
MPQ4432 enters sleep mode, consuming very
low quiescent current to further improve lightload efficiency.
In sleep mode, the internal clock is blocked first,
and the MPQ4432 skips some pulses. Since the
FB voltage (VFB) is lower than the internal 0.8V
reference (VREF), VCOMP ramps up until it crosses
over VAAM. Then the internal clock is reset, and
the crossover time is taken as the benchmark of
the next clock. This control scheme helps
achieve high efficiency by scaling down the
frequency to reduce switching and gate driver
losses during light-load or no-load conditions.
When the output current increases from light
load condition, VCOMP becomes larger, and the
switching frequency increases. If the DC value of
VCOMP exceeds VAAM, the operation mode
resumes discontinuous conduction mode (DCM)
or CCM, which have a constant switching
frequency.
Inductor
Current
Inductor
Current
Forced CCM Mode
(SYNC=high)
AAM Mode
(SYNC=low)
t
t
Load
Load
Decreased
tDecreased
t
Forced CCM and AAM
The MPQ4432 has selectable forced continuous
conduction mode (CCM) and advanced
asynchronous mode (AAM) (see Figure 3). Drive
SYNC above its specified threshold (1.8V)
before the chip starts up to force the device into
CCM with a fixed frequency, regardless of the
output load current. Once the device is in CCM,
SYNC can be pulled low again or driven with an
external clock if needed. The advantage of CCM
is a controllable frequency and smaller output
ripple, but it also has low efficiency at light load.
MPQ4432 Rev. 1.1
5/28/2020
t
t
Figure 3: Forced CCM and AAM
Error Amplifier (EA)
The error amplifier compares VFB with VREF and
outputs a current proportional to the difference
between the two. This output current then
charges or discharges the internal compensation
network to form VCOMP, which controls the power
MOSFET current. The optimized internal
compensation network
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
22
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
minimizes the external component count and
simplifies the control loop design.
Internal Regulator and BIAS
Most of the internal circuitry is powered by the
5V internal regulator. This regulator takes VIN
and operates in the full VIN range. When VIN
exceeds 5V, the output of the regulator is in full
regulation. When VIN falls below 5V, the output
decreases following VIN. A decoupling ceramic
capacitor is needed close to VCC.
For better thermal performance, connect BIAS to
an external power supply between 5V to 18V.
The BIAS supply overrides VIN to power the
internal regulator. Using the BIAS supply allows
VCC to be derived from a high-efficiency
external source, such as VOUT. Float BIAS or
connect BIAS to ground if it is not being used.
Under-Voltage Lockout (UVLO)
Under-voltage lockout (UVLO) protects the chip
from operating at an insufficient supply voltage.
The UVLO comparator monitors the output
voltage of the internal regulator (VCC). The
UVLO rising threshold is about 2.8V with a
150mV hysteresis.
Enable Control (EN)
EN is a digital control pin that turns the regulator
on and off. When EN is pulled below its threshold
voltage, the chip is put into the lowest shutdown
current mode. Pulling EN above its threshold
voltage turns on the part. Do not float EN.
Power Good Indicator (PG)
The MPQ4432 has a power good (PG) indication.
PG is the open drain of a MOSFET and should
be connected to VCC or another voltage source
through a resistor (e.g.: 100kΩ). In the presence
of an input voltage, the MOSFET turns on so that
PG is pulled low before SS is ready. When the
regulator output is within ±10% of its nominal
output, the PG output is pulled high after a delay
(typically 30μs). When the output voltage moves
outside this range with a hysteresis, the PG
output is pulled low with a 50μs delay to indicate
a failure output status.
Programmable Frequency
The oscillating frequency of the MPQ4432 can
be programmed either by an external frequency
resistor (RFREQ) or by a logic level
synchronization clock.
MPQ4432 Rev. 1.1
5/28/2020
The frequency resistor should be placed
between FREQ and ground as close to the
device as possible. The value of RFREQ can be
estimated with Equation (1):
RFREQ (kΩ)
170000
(1)
fs1.11(kHz )
The calculated resistance may need fine tuning
with a bench test. Do not float FREQ even if an
external SYNC clock is added.
SYNC and PHASE
The internal oscillator frequency can also be
synchronized to an external clock ranging from
350kHz to 2.5MHz through SYNC. The external
clock should be at least 250kHz larger than the
RFREQ set frequency. Ensure that the high
amplitude of the SYNC clock is higher than 1.8V
and the low amplitude is lower than 0.4V. There
is no pulse width requirement, but there is
always a parasitic capacitance of the pad, so if
the pulse width is too short, a clear rising and
falling edge may not be seen due to the parasitic
capacitance. A pulse longer than 100ns is
recommended in application.
PHASE is used when two or more MPQ4432
devices are in parallel with the same SYNC clock.
Pulling PHASE high forces the device to operate
in-phase of the SYNC clock. Pulling PHASE low
forces the device to be 180°out-of-phase of the
SYNC clock. By setting different voltages of
PHASE, two devices can operate in 180°out-ofphase to reduce the total input current ripple, so
a smaller input bypass capacitor can be used
(see Figure 4). The PHASE rising threshold is
about 2.5V with a 400mV hysteresis.
SW1: Phase high
SW2: Phase low
SW1, 2 has a 180o phase shift
SYNC
CLK
SW1
SW2
t
Figure 4 : In-Phase and 180°Out-of-Phase
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
23
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
Soft Start (SS)
Soft start (SS) is implemented to prevent the
converter output voltage from overshooting
during start-up. When the chip starts up, an
internal current source begins charging the
external soft-start capacitor. The internal SS
voltage (VSSI) rises with the soft-start voltage
(VSS), but VSSI is a little different with VSS due to a
0.5V offset and some delay. When VSS is lower
than 0.5V, VSSI is 0V. VSSI rises from 0V to 0.8V
during the period of VSS rises from 0.5V to 1.6V.
At this time the error amplifier uses VSSI as the
reference, and the output voltage ramps up from
0V to the regulated value following VSSI rising.
When VSS reaches 1.6V, VSSI is 0.8V and
overrides the internal VREF, so the error amplifier
uses the internal VREF as the reference.
The soft-start time (tSS) set by the external SS
capacitor can be calculated with Equation (2):
t SS (ms)
CSS (nF) 1.1V
ISS (A)
(2)
Where CSS is the external SS capacitor, and ISS
is the internal 10μA SS charge current.
Where CSS is the external SS capacitor, and ISS
is the internal 10μA SS charge current. There is
also an internal 0.7ms soft start when SS PIN
float, the final SS time is determined by the
longer time between 0.7ms and external SS
setting time.
SS can be used for tracking and sequencing.
Pre-Bias Start-Up
At start-up, if VFB is higher than VSSI-150mV(the
output has a pre-bias voltage), neither the HSFET or LS-FET turn on until VSSI-150mV is higher
than VFB.
Over-Current Protection (OCP) and Hiccup
The MPQ4432 has cycle-by-cycle peak current
limit protection with valley-current detection and
hiccup mode.
The power MOSFET current is sensed
accurately via a current sense MOSFET. The
current is then fed to the high-speed current
comparator for current-mode control purposes.
During the HS-FET on-state, if the sensed
current exceeds the peak current limit value set
by the COMP high-clamp voltage, the HS-FET
turns off immediately. Then the LS-FET turns on
MPQ4432 Rev. 1.1
5/28/2020
to discharge the energy, and the inductor current
decreases. The HS-FET remains off unless the
inductor valley current is lower than a certain
current threshold (the valley current limit), even
though the internal clock pulses high.
If the inductor current does not drop below the
valley current limit when the internal clock pulses
high, the HS-FET misses the clock, and the
switching frequency decreases to half the
nominal value. Both the peak and valley current
limits keep the inductor current from running
away during an overload or short-circuit
condition.
When the output is shorted to ground, causing
the output voltage to drop below 55% of its
nominal output, meanwhile the peak current limit
is kicked, the device will consider this an output
dead short and trigger hiccup mode immediately
to periodically restart the part.
In hiccup mode, the MPQ4432 disables its
output power stage and slowly discharges the
soft-start capacitor. The MPQ4432 restarts with
a full soft start when the soft-start capacitor is
fully discharged. If the short-circuit condition still
remains after the soft-start ends, the device
repeats this operation until the fault is removed
and the output returns to the regulation level.
This protection mode reduces the average short
circuit current greatly to alleviate thermal issues
and protect the regulator.
Floating Driver and Bootstrap Charging
A 0.1µF to 1µF external bootstrap capacitor
powers the floating power MOSFET driver. The
floating driver has its own UVLO protection with
a rising threshold of 2.5V and a hysteresis of
200mV.
The bootstrap capacitor voltage is charged to
~5V from VCC through a PMOS pass transistor
when the LS-FET is on.
At high duty cycle operation or sleep-mode
condition, the time period available to the
bootstrap charging is less, so the bootstrap
capacitor may not be charged sufficiently. In
case the external circuit does not have sufficient
voltage or time to charge the bootstrap capacitor,
extra external circuitry can
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
24
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
be used to ensure that the bootstrap voltage is in
the normal operation region.
BST Refresh
To improve drop out, the MPQ4432 is designed
to operate at close to 100% duty cycle for as long
as the BST to SW voltage is greater than 2.5V.
When the voltage from BST to SW drops below
2.5V, the HS-FET is turned off using a UVLO
circuit, which forces the LS-FET on to refresh the
charge on the BST capacitor.
Since the supply current sourced from the BST
capacitor is low, the HS-FET can remain on for
more switching cycles than are required to
refresh the capacitor, thus making the effective
duty cycle of the switching regulator high.
The effective duty cycle during dropout of the
regulator is influenced mainly by the voltage
drops across the HS-FET, LS-FET, inductor
resistance, and printed circuit board resistance.
Start-Up and Shutdown
If both VIN and EN exceed their appropriate
thresholds, the chip starts up. The reference
block starts first, generating a stable reference
voltage and current, and then the internal
regulator is enabled. The regulator provides a
stable supply for the rest of the circuitries.
While the internal supply rail is up, an internal
timer holds the power MOSFET off for about
50µs to blank the start-up glitches. When the
soft-start block is enabled, it first holds its SS
output low to ensure that the rest of the circuitries
are ready, and then slowly ramps up.
Three events can shut down the chip: VIN low,
EN low, and thermal shutdown. During the
shutdown procedure, the signaling path is
blocked first to avoid any fault triggering. VCOMP
and the internal supply rail are then pulled down.
The floating driver is not subject to this shutdown
command, but its charging path is disabled.
In low dropout mode, the COMP is high clamped;
when VIN fast rising, the COMP need time to
jump out high clamped condition, which may
generate overshoot on VOUT; Adjusting the loop
response faster and with bigger COUT
capacitance can help improve the overshoot.
Thermal Shutdown
Thermal shutdown is implemented to prevent the
chip from running away thermally. When the
silicon die temperature exceeds its upper
threshold, the power MOSFETs shut down.
When the temperature drops below its lower
threshold, the chip is enabled again.
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
25
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
APPLICATION INFORMATION
Setting the Output Voltage
For adjustable output version, an external
resistor divider connected to FB sets the output
voltage (see Figure 5).
Since CIN absorbs the input switching current, it
requires an adequate ripple current rating. The
RMS current in the input capacitor can be
estimated with Equation (4):
ICIN ILOAD
MPQ4432
RFB1
FB
ICIN
Figure 5: Feedback Network
Choose RFB1 first, RFB2 can then be calculated
with Equation (3):
RFB1
VOUT
1
0.8V
(3)
Table 1 lists the recommended feedback resistor
values for common output voltages.
Table 1: Resistor Selection for Common Output
Voltages
VOUT (V)
3.3
RFB1 (kΩ)
41.2 (1%)
RFB2 (kΩ)
13 (1%)
5
68.1 (1%)
13 (1%)
For fixed output version, connect FB pin to the
output directly.
Selecting the Input Capacitor
The input current to the step-down converter is
discontinuous and therefore requires a capacitor
to supply AC current to the converter while
maintaining the DC input voltage. For the best
performance, use low ESR capacitors. Ceramic
capacitors with X5R or X7R dielectrics are highly
recommended because of their low ESR and
small temperature coefficients.
For most applications, use a 4.7µF to 10µF
capacitor. It is strongly recommended to use
another lower-value capacitor (e.g.: 0.1µF) with
a small package size (0603) to absorb highfrequency switching noise. Place the smaller
capacitor as close to VIN and GND as possible.
MPQ4432 Rev. 1.1
5/28/2020
(4)
The worst-case condition occurs at VIN = 2VOUT,
shown in Equation (5):
Vout
RFB2
RFB2
VOUT
V
(1 OUT )
VIN
VIN
ILOAD
2
(5)
For simplification, choose an input capacitor with
an RMS current rating greater than half of the
maximum load current.
The input capacitor can be electrolytic, tantalum,
or ceramic. When using electrolytic or tantalum
capacitors, add a small, high-quality ceramic
capacitor (e.g.: 0.1μF) as close to the IC as
possible. When using ceramic capacitors,
ensure that they have enough capacitance to
provide a sufficient charge to prevent excessive
voltage ripple at input. The input voltage ripple
caused by capacitance can be estimated with
Equation (6):
VIN
ILOAD
V
V
OUT (1 OUT )
fSW CIN VIN
VIN
(6)
Selecting the Output Capacitor
The output capacitor maintains the DC output
voltage. Use ceramic, tantalum, or low-ESR
electrolytic capacitors. For best results, use low
ESR capacitors to keep the output voltage ripple
low. The output voltage ripple can be estimated
with Equation (7):
VOUT
VOUT
V
1
(1 OUT ) (RESR
) (7)
fSW L
VIN
8fSW COUT
Where L is the inductor value, and RESR is the
equivalent series resistance (ESR) value of the
output capacitor.
For ceramic capacitors, the capacitance
dominates the impedance at the switching
frequency, and the capacitance causes the
majority of the output voltage ripple.
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
26
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
For simplification, the output voltage ripple can
be estimated with Equation (8):
VOUT
VOUT
V
(1 OUT )
8 fSW L COUT
VIN
2
(8)
VIN and EN can be used to achieve a higher
equivalent UVLO threshold (see Figure 6).
VIN
R UP
EN
For tantalum or electrolytic capacitors, the ESR
dominates the impedance at the switching
frequency. For simplification, the output ripple
can be approximated with Equation (9):
VOUT
VOUT
V
(1 OUT ) RESR
fSW L
VIN
(9)
The characteristics of the output capacitor also
affect the stability of the regulation system. The
MPQ4432 can be optimized for a wide range of
capacitance and ESR values.
Selecting the Inductor
A 1µH to 10µH inductor with a DC current rating
at least 25% higher than the maximum load
current is recommended for most applications.
For higher efficiency, choose an inductor with a
low DC resistance. A larger value inductor
results in less ripple current and a lower output
ripple voltage, but also has a larger physical size,
higher series resistance, and lower saturation
current. A good rule for determining the inductor
value is to allow the inductor ripple current to be
approximately 30% of the maximum load current.
The inductance value can then be calculated
with Equation (10):
VOUT
V
L
(1 OUT )
fSW IL
VIN
(10)
(11)
VIN UVLO Setting
The MPQ4432 has an internal, fixed, undervoltage lockout (UVLO) threshold. The rising
threshold is 2.8V, while the falling threshold is
about 2.65V. For applications requiring a higher
UVLO point, an external resistor divider between
MPQ4432 Rev. 1.1
5/28/2020
Figure 6: Adjustable UVLO Using EN Divider
The UVLO threshold can be calculated with
Equation (12) and Equation (13):
INUVRISING (1
RUP
) VEN_RISING
RDOWN
(12)
INUVFALLING (1
R UP
) VEN_FALLING
RDOWN
(13)
Where VEN_RISING = 1.05V, and VEN_FALLING =
0.93V.
External BST Diode
An external BST diode can enhance the
efficiency of the regulator when the duty cycle is
high. A power supply between 2.5V and 5V can
be used to power the external bootstrap diode.
VCC or VOUT is recommended for this power
supply in the circuit (see Figure 7).
VCC
RBST
External BST diode
IN4148
BST
VCC / VOUT
Choose the inductor ripple current to be
approximately 30% of the maximum load current.
The maximum inductor peak current can be
calculated with Equation (11):
VOUT
V
(1 OUT )
2fSW L
VIN
RDOWN
CBST
Where ∆IL is the peak-to-peak inductor ripple
current.
ILP ILOAD
VIN
L
VOUT
SW
COUT
Figure 7: Optional External Bootstrap Diode to
Enhance Efficiency
The recommended external BST diode is IN4148,
and the recommended BST capacitor value is
0.1µF to 1μF. A resistor in series with the BST
capacitor (RBST) can reduce the SW rising rate
and voltage spikes. This helps enhance EMI
performance and reduce voltage stress at a high
VIN. A higher resistance is better for SW spike
reduction but compromises efficiency. For a
tradeoff between EMI and efficiency, a ≤20Ω
RBST is recommended.
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
27
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
Hot-Plug Application
In a hot-plug application, the VIN pin of the IC
may turn on and off frequently before the power
supply can establish a connection with the IC. In
applications where the input power turns on and
off frequently, the BST capacitor may have a
residual voltage when the IC is turned on. This
may turn on high-side MOSFET (HS-FET) for a
short time before VCC can rise high enough,
which causes an unexpected overshoot on
VOUT.
7.
Route SW and BST away from sensitive
analog areas, such as FB.
8.
Place the feedback resistors close to the
chip to ensure that the trace connecting to
FB is as short as possible.
9.
Use multiple vias to connect the power
planes to the internal layers.
NOTE:
8) The recommended PCB layout is based on Figure 9.
To protect the IC, hot-plug applications are not
recommended. If a hot-plug application must be
initiated, use a small BST capacitor (e.g. 47nF),
a large VCC capacitor (e.g. 4.7μF), and a large
PG resistor (e.g. 1MΩ) to reduce the overshoot
risk. Contact an MPS FAE to confirm the design.
PCB Layout Guidelines (8)
Efficient PCB layout, especially of the input
capacitor placement, is critical for stable
operation. For best results, refer to Figure 8 and
follow the guidelines below. A four-layer layout is
strongly recommended to achieve better thermal
performance.
1.
Place symmetric input capacitors as close to
VIN and GND as possible. Recommend to
connect pin1 to GND for symmetric input
structure if in-phase not used. Pin3 and
pin10 are internally connected. Connecting
together on layout or not are both OK.
Recommend to leave pin3 floating for
shorter pin4 and pin1 trace and smaller input
hot loop.
2.
Use a large ground plane to connect directly
to PGND. If the bottom layer is a ground
plane, add vias near PGND.
3.
Ensure that the high-current paths at GND
and VIN have short, direct, and wide traces.
4.
Place the ceramic input capacitor, especially
the small package size (0603) input bypass
capacitor, as close to VIN and PGND as
possible to minimize high frequency noise.
5.
Keep the connection of the input capacitor
and IN as short and wide as possible.
6.
Place the VCC capacitor as close to VCC
and GND as possible.
MPQ4432 Rev. 1.1
5/28/2020
Top Layer
Inner Layer 1
Inner Layer 2
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
28
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
Bottom Layer
Figure 8: Recommended PCB Layout
MPQ4432 Rev. 1.1
5/28/2020
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
29
MPQ4432 - 36V, 2.2A, LOW IQ, SYNCHRONOUS STEP-DOWN CONVERTER
TYPICAL APPLICATION CIRCUITS
U1
VIN
3.3V-36V
2
C1B
10μF
C1A
10μF
R1
100kΩ
GND
VIN
C1C C1D
0.1μF 0.1μF
11
C5
0.1μF
L1
MPQ4432
5
EN
BST
EN
3, 10
SW
3.3V/2.2A
10μH
R3
1MΩ
12
R5
100kΩ
VCC
C4
1μF
VOUT
GND
15
R4
316kΩ
7
PG
FB
C6
5pF
C2A C2B
22μF 22μF
PG
14
SS
C3
4.7nF
6
SYNC
SYNC
FREQ
16
R2
169kΩ
1
BIAS
PGND
AGND
13
PHASE
4, 9
PHASE
8
Figure 9: VOUT = 3.3V, fSW = 500kHz
U1
VIN
3.3V-36V
GND
2
C1A
10μF
R1
100kΩ
C1B
10μF
C1C C1D
0.1μF 0.1μF
5
EN
VIN
BST
11
MPQ4432
EN
SW
3, 10
C5
0.1μF
L1
R3
41.2kΩ
12
R5
100kΩ
PG
VCC
FB
C4
1μF
3.3V/2.2A
10μH
C6
10pF
C2A C2B
22μF 22μF
VOUT
GND
15
R4
13kΩ
7
PG
SS
14
C3
4.7nF
SYNC
6
SYNC
FREQ
16
R2
169kΩ
PHASE
BIAS
PGND
AGND
13
1
4, 9
PHASE
8
Figure 10: VOUT = 3.3V, fSW = 500kHz for
工商网监
湘ICP备2023018690号
