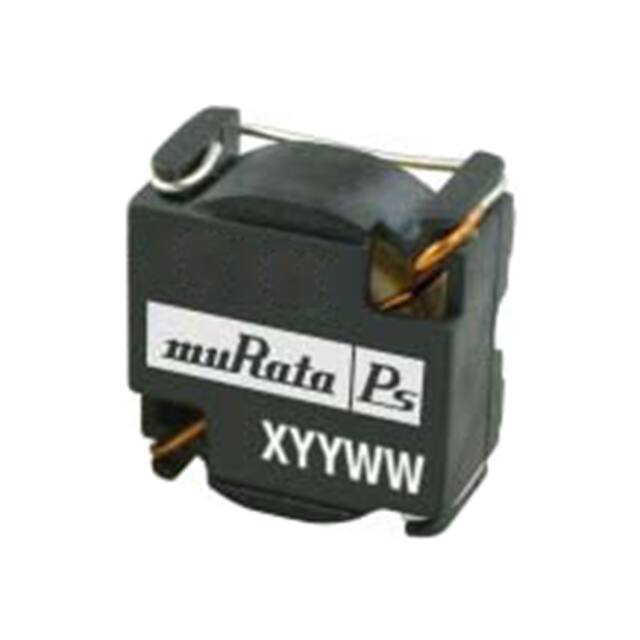

4000 Series www.murata-ps.com Toroidal Surface Mount Inductors SELECTION GUIDE FEATURES „ RoHS compliant „ 3.3μH to 330μH „ Surface mount „ J-STD-020C reflow „ Up to 5.20A IDC „ UL94 V-0 package materials „ Compact size „ Toroidal construction minimizes EMI „ Pick & place compatible „ Backward compatible with Sn/Pb soldering systems Order Code Inductance (10kHz, 10mVAC) Nom. μH Inductance Range (10kHz, 10mVAC) Min. - Max. μH 403R3C 404R7C 406R8C 40100C 40150C 40220C 40330C 40470C 40680C 40101C 40151C 40221C 40331C 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 330 2.4-3.9 3.7-6.1 5.3-8.8 7.2-12.0 11.9-19.8 16.2-27.0 24.8-41.4 35.3-58.9 50.3-83.9 74.4-124 115-192 165-275 247-412 DC Current1 DC Resistance Max. A Max. mΩ 5.20 4.40 3.60 3.00 2.40 2.10 1.66 1.42 1.20 0.94 0.76 0.67 0.54 17 19 20 23 30 35 54 79 148 177 273 405 610 ABSOLUTE MAXIMUM RATINGS Operating free air temperature range -40°C to 85°C Storage temperature range -40°C to 125°C SOLDERING INFORMATION2 PRODUCT OVERVIEW Peak reflow temperature 245˚C The 4000 series is a range of surface mount toroidal inductors designed for use in switching power supplies and DC/DC converters. The parts are ideal for applications requiring low profile compact components in a surface mount package. Pin finish Pure tin dip All specifications typical at TA=25°C 1 Maximum DC current occurs when either the inductance falls to 75% of its nominal value or when its temperature rise reaches 40°C, whichever is sooner. 2 For further information, please visit www.murata-ps.com/rohs   For full details go to www.murata-ps.com/rohs www.murata-ps.com/support KMP_4000C_D01 Page 1 of 2 4000 Series Toroidal Surface Mount Inductors PACKAGE SPECIFICATIONS MECHANICAL DIMENSIONS RECOMMENDED FOOTPRINT DETAILS 14.10 (0.555) Max. 40331C 13.21 (0.520) 14.22 (0.560) Max. 11.68 (0.460) 1.52 (0.060) XYYWW S All dimensions in mm (inches). TUBE OUTLINE DIMENSIONS x4 PLACES 0.127 (0.005) 0.60±0.15 (0.024±0.006) 8.76 (0.345) Max. 9.2 (0.362) 15.00 (0.591) 12.32 (0.485) 10.60 (0.417) All dimensions in mm (inches).. Package weight 3.2g. Murata Power Solutions, Inc. 11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A. ISO 9001 and 14001 REGISTERED All dimensions in mm (inches). Tube quantity: 30 Tube material: Antistatic coated clear PVC Tube length: 475±2 [18.701±0.079] Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. © 2018 Murata Power Solutions, Inc. www.murata-ps.com/support KMP_4000C_D01 Page 2 of 2
