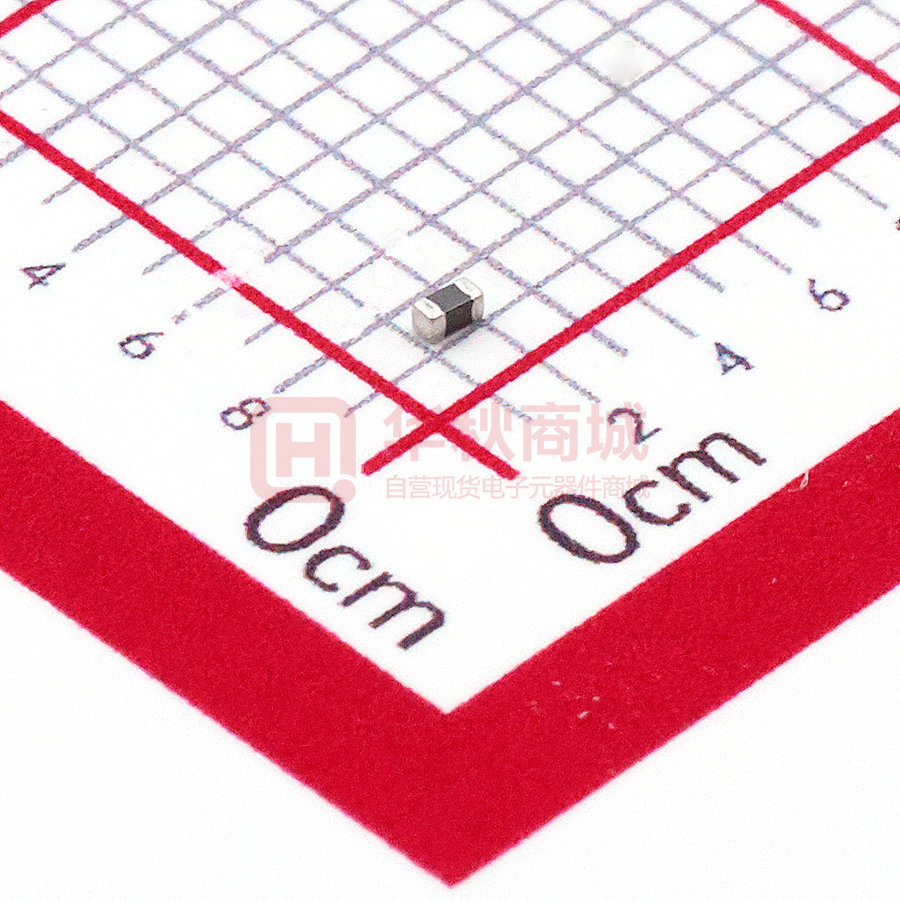

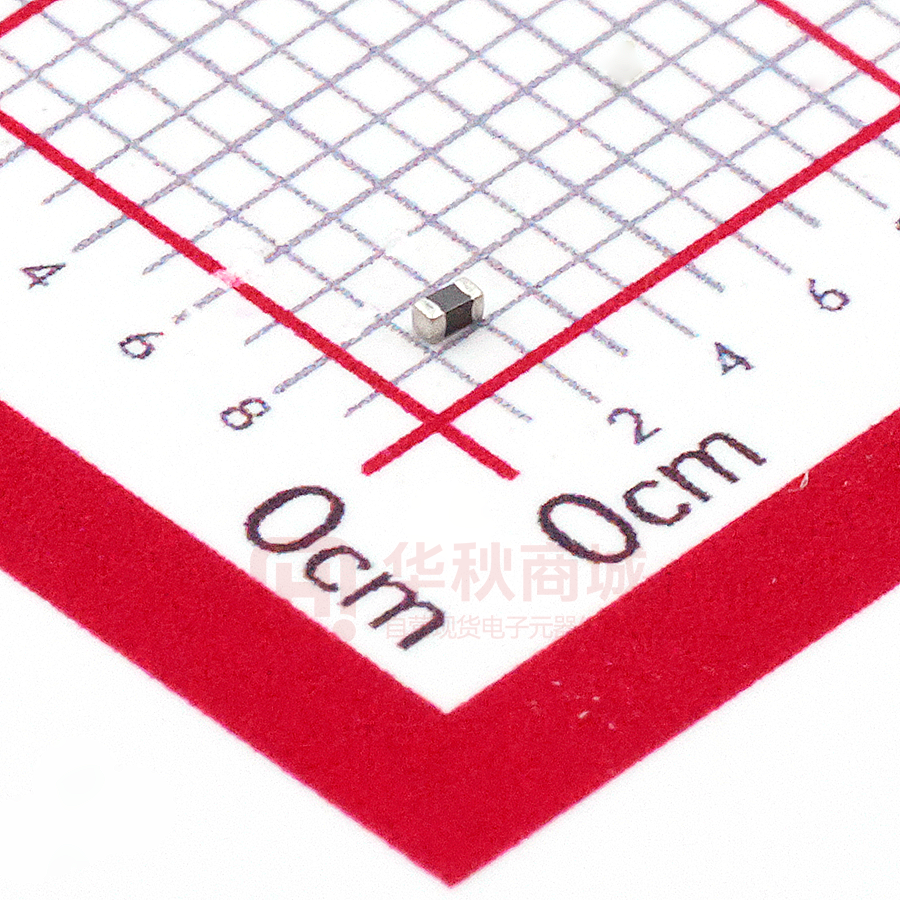

BLM15EX331SN1D

Note: This datasheet may be out of date. Please download the latest datasheet of BLM15EX331SN1# from the official website of Murata Manufacturing Co., Ltd. https://www.murata.com/en-global/products/productdetail?partno=BLM15EX331SN1%23 Product Search Data Sheet BLM15EX331SN1# “#” indicates a package specification code. < List of part numbers with package codes > BLM15EX331SN1J BLM15EX331SN1B BLM15EX331SN1D Appearance & Shape Features Excellent high frequency impedance characteristics with 0402 (EIA) size. Features 1. Small size: 1.0x0.5mm (0402) 2. Suitable for noise suppression in 1GHz or higher frequency 3. Low DC Resistance/Large Rated Current (BLM15E) Realize a Low DC Resistance than conventional products. 4. No Lead production using Ni+Sn plating in termination Applications 1. EMI suppression for Note PC and DSC 2. Noise suppression for data line in mobile phone 3. Copying machines, communications equipment, digital TV / VTR noise suppression. 4. Noise suppression in mobile wireless machine. Applications Other Usage For general Packaging Information Packaging Specifications Minimum Order Quantity J 330mm Paper Tape 50000 B Bulk(Bag) 1000 D 180mm Paper Tape 10000 1 of 3 Atten ti o n 1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : https://www.murata.com/ Last updated ：2019/09/05 Product Search Data Sheet BLM15EX331SN1# Note: This datasheet may be out of date. Please download the latest datasheet of BLM15EX331SN1# from the official website of Murata Manufacturing Co., Ltd. https://www.murata.com/en-global/products/productdetail?partno=BLM15EX331SN1%23 “#” indicates a package specification code. Specifications Shape SMD Mass(typ.) 0.001g Size Code (in mm) 1005 Number of Circuit 1 Size Code (in inch) 0402 Length 1.0mm Length Tolerance ±0.05mm Width 0.5mm Width Tolerance ±0.05mm Thickness 0.5mm Thickness Tolerance ±0.05mm Impedance (at 100MHz) 330Ω Impedance (at 100MHz) Tolerance ±25% Impedance (at 1GHz) 450Ω Impedance (at 1GHz) Tolerance ±40% Rated Current (at 85 ℃) 1.1A Rated Current (at 125 ℃) 700mA DC Resistance(max.) 0.205Ω Operating Temperature Range -55 ℃ to 125 ℃ 2 of 3 Atten ti o n 1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : https://www.murata.com/ Last updated ：2019/09/05 Product Search Data Sheet BLM15EX331SN1# Note: This datasheet may be out of date. Please download the latest datasheet of BLM15EX331SN1# from the official website of Murata Manufacturing Co., Ltd. https://www.murata.com/en-global/products/productdetail?partno=BLM15EX331SN1%23 “#” indicates a package specification code. Product Data Impedance-Frequency Characteristics Derating of Rated Current Equivalent Circuit 3 of 3 Atten ti o n 1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : https://www.murata.com/ Last updated ：2019/09/05
