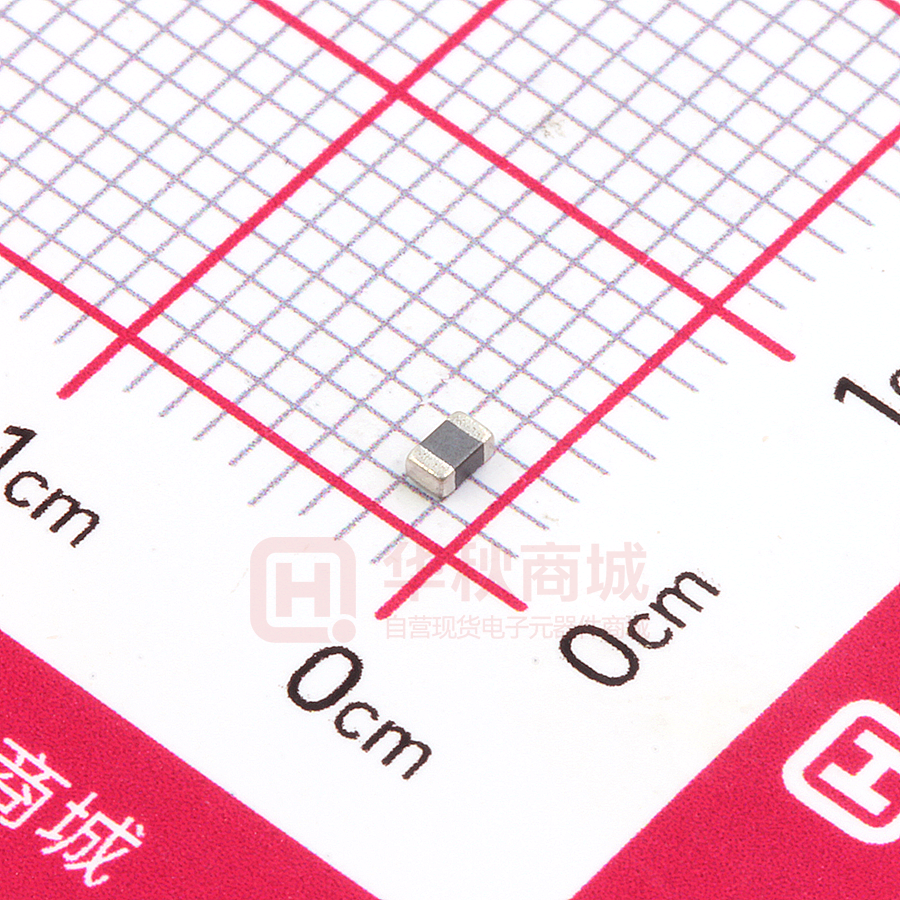

Spec No.: JENF243A 9102N-01
P6/11
9.3 Break down force of tape
Cover tape (or top tape)
Applied to paper carrier tape
5 N min.
Applied to Plastic carrier tape
10 N min.
Bottom tape (only when the cavities of the carrier tape are punched type)
5 N min.
9.4 Peeling off force of tape
Speed of peeling off
Peeling off force
300 mm/min
Paper tape: 0.1 N to 0.6 N (The lower limit is for typical value.)
Plastic tape: 0.2 N to 0.7 N (The lower limit is for typical value.)
9.5 Dimensions of leader section, trailer section and reel
A vacant section is provided in the leader (start) section and trailer (end) section of the tape for the product. The leader
section is further provided with an area consisting only of the cover tape (or top tape). (See the diagram below.)
9.6 Marking for reel
Customer part number, Murata part number, inspection number (*1), RoHS marking (*2), quantity, etc.
*1 Expression of inspection No.: (1) Factory code
□□
○○○○
(2) Date
First digit: year/last digit of year
(1)
(2)
(3)
Second digit: month/Jan. to Sep.→1 to 9, Oct. to Dec.→O, N, D
Third, Fourth digit: day
(3) Serial No.
*2 Expression of RoHS marking: (1) RoHS regulation conformity
ROHSY
()
(2) Murata classification number
(1)
(2)
9.7 Marking on outer box (corrugated box)
Customer name, purchasing order number, customer part number, Murata part number, RoHS marking (*2), quantity, etc.
MURATA MFG CO., LTD
Spec No.: JENF243A 9102N-01
P11/11
11.9 Storage and transportation
Storage period
Use the product within 6 months after delivery.
If you do not use the product for more than 6 months, check solderability before using it.
Storage conditions
• The products shall be stored in a room not subject to rapid changes in temperature and
humidity. The recommended temperature range is -10°C to +40°C. The recommended relative
humidity range is 15% to 85%.
Keeping the product in corrosive gases, such as sulfur, chlorine gas or acid may cause the
poor solderability.
• Do not place the products directly on the floor; they should be placed on a palette so that they
are not affected by humidity or dust.
• Avoid keeping the products in a place exposed to direct sunlight, heat or vibration.
• Do not keep products in bulk packaging. Bulk storage could result in collisions between the
products or between the products and other parts, resulting in chipping or wire breakage.
• Avoid storing the product by itself bare (i.e. exposed directly to air).
Transportation
Excessive vibration and impact reduces the reliability of the products. Exercise caution when
handling the products.
11.10 Resin coating (including moisture-proof coating)
When the product is coated/molded with resin, its electrical characteristics may change.
A wire breakage issue may occur by mechanical stress caused by the resin, amount/cured shape of resin, or operating
condition etc.
Some resins contain impurities or hydrolyzable chlorine, which could result in corrosion of the conducting materials, leading
to wire breakage.
So, please pay your careful attention when you select resin in case of coating/molding the products with the resin.
Prior to use the coating resin, please make sure no reliability issue is observed by evaluating products mounted on your
board.
11.11 Mounting conditions
Check the mounting condition before using.
Using mounting conditions (nozzles, equipment conditions, etc.) that are not suitable for products may lead to pick up errors,
misalignment, or damage to the product.
11.12 Operating environment
Do not use this product under the following environmental conditions as it may cause deterioration of product quality.
(1) In the corrodible atmosphere such as acidic gases, alkaline gases, chlorine, sulfur gases, organic gases and etc.
(the sea breeze, Cl2, H2S, NH3, SO2, NO2, etc)
(2) In the atmosphere where liquid such as organic solvent, may splash on the products.
(3) In the atmosphere where the temperature/humidity changes rapidly and it is easy to dew.
11.13 Mounting density
If this product is placed near heat-generating products, be sure to implement sufficient heat-dissipating measures.
If this product is subjected to a significant amount of heat from other products, this could adversely affect product quality,
resulting in a circuit malfunction or failure of the mounted section. Also, be sure that the product is used in a manner so that
the heat that the product is subjected to from other products does not exceed the upper limit of the rated operating
temperature for the product.
12.
Note
(1)Please make sure that your product has been evaluated in view of your specifications with our product being
mounted to your product.
(2)You are requested not to use our product deviating from the reference specifications.
(3)The contents of this reference specification are subject to change without advance notice.
Please approve our product specifications or transact the approval sheet for product specifications before ordering.
MURATA MFG CO., LTD
