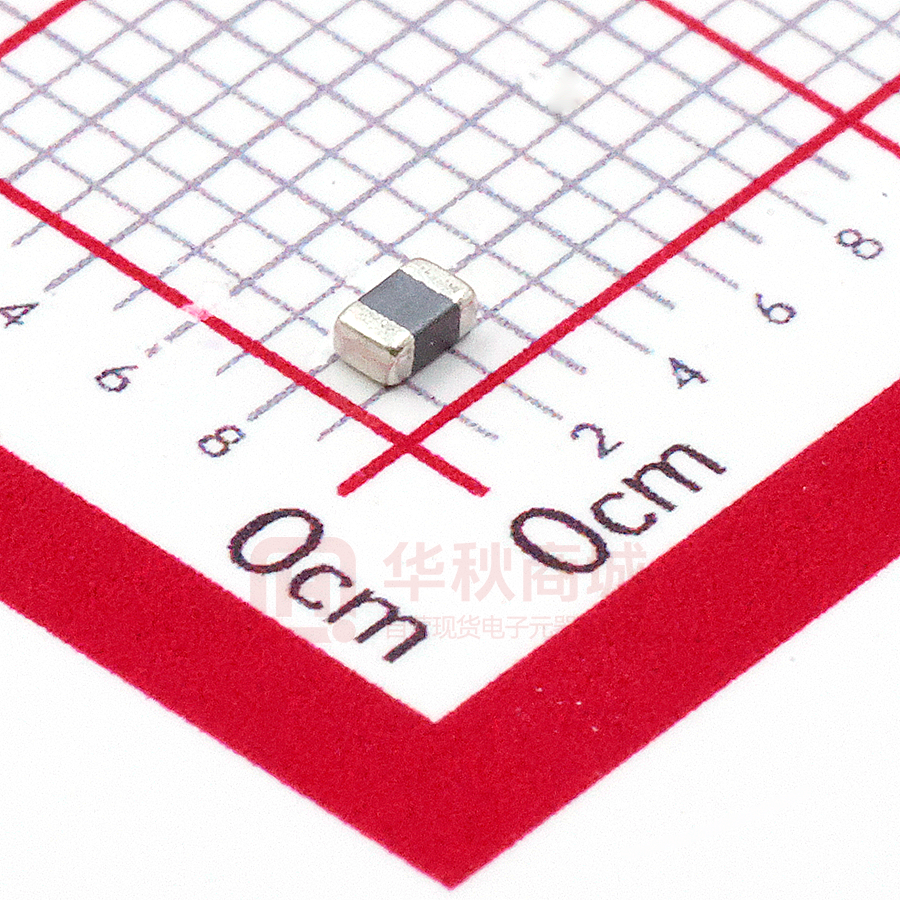

BLM21SP601SN1D

Note: This datasheet may be out of date. Product Search Data Sheet Please download the latest datasheet of BLM21SP601SN1# from the official website of Murata Manufacturing Co., Ltd. http://www.murata.com/en-us/products/productdetail?partno=BLM21SP601SN1%23 BLM21SP601SN1# “#” indicates a package specification code. < List of part numbers with package codes > BLM21SP601SN1B BLM21SP601SN1D BLM21SP601SN1J Appearance & Shape Packaging Information Standard Packaging Specifications Packing Quantity B Bulk(Bag) 1000 D 180mm Paper Tape 4000 J 330mm Paper Tape 10000 Features Applications Other Usage For general The chip ferrite beads BLM series is designed to function nearly as a resistor at noise frequencies, which greatly reduces the possibility of resonance and leaves signal wave forms undistorted. BLM series is effective in circuits without stable ground lines because BLM series does not need a connection to ground. The nickel barrier structure of the external electrodes provides excellent solder heat resistance. BLM21SP series can be used in high current circuits due to its low DC resistance. 1 of 3 Attention 1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : https://www.murata.com/ Last updated07/20/2022 Note: This datasheet may be out of date. Product Search Data Sheet Please download the latest datasheet of BLM21SP601SN1# from the official website of Murata Manufacturing Co., Ltd. http://www.murata.com/en-us/products/productdetail?partno=BLM21SP601SN1%23 BLM21SP601SN1# “#” indicates a package specification code. Specifications Shape SMD Size Code (in inch) 0805 Length 2.0mm Length　Tolerance ±0.2mm Width 1.25mm Width Tolerance ±0.2mm Thickness 0.85mm Thickness　Tolerance ±0.2mm Operating Temperature Range -55℃ to 125℃ Mass(typ.) 0.01g Number of Circuit 1 Rated Current (at 85℃) 2.3A Rated Current (at 125℃) 1.5A DC Resistance(max.) 0.06Ω Impedance (at 100MHz) 600Ω Impedance (at 100MHz) Tolerance Size Code (in mm) ±25% 2012 2 of 3 Attention 1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : https://www.murata.com/ Last updated07/20/2022 Note: This datasheet may be out of date. Product Search Data Sheet Please download the latest datasheet of BLM21SP601SN1# from the official website of Murata Manufacturing Co., Ltd. http://www.murata.com/en-us/products/productdetail?partno=BLM21SP601SN1%23 BLM21SP601SN1# “#” indicates a package specification code. Product Data Impedance-Frequency Characteristics Derating of Rated Current Equivalent Circuit 3 of 3 Attention 1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : https://www.murata.com/ Last updated07/20/2022
