Noise Suppression Products/EMI Suppression Filters > Block Type EMIFILr (LC Combined) > Lead Type
Data Sheet
1
Block Type EMIFILr (LC Combined)
Lead Type
BNX00* Series
■ Dimensions
■ Dimensions
BNX002/BNX003
12.0±0.5
CB
CG
13.5 max.
18.5 max.
ø1.0
5.0±0.5
0.8
±0.1
ø1.0
7.5±0.2
PSG: Power supply ground
CG: Load circuit ground
CB: Load circuit + Bias
B
ø1.0
0.6
±0.1
2.5±0.2
2.5±0.2
2.5±0.2
CG
PSG
3.5±1.0
ø0.8
0.6
±0.1
ø0.8
2.5±0.2
7.5±0.2
11.0±0.5
18 max.
13 max.
0.8
±0.1
ø0.8
5.0±0.5
3.5±1.0
BNX005
12.0±0.5
11.0±0.5
PSG: Power supply ground
CG: Load circuit ground
CB: Load circuit + Bias
CB
CG
CG
PSG
(in mm)
■ Insertion Loss Characteristics (Main Items)
2.5±0.2
2.5±0.2
B
(in mm)
■ Equivalent Circuit
(50Ω - 50Ω)
0
BNX003-01
20
Insertion Loss (dB)
L1
40
(1)
BNX002-01
(BNX005-01)
L3
C2
B
L2
CB (2)
C1
CG (4)
(3) PSG
60
(1)-(4): Terminal Number
PSG: Power Supply Ground
CG: Circuit Ground
CB: Circuit+B
80
100
0.001
0.01
0.1
1
Frequency (MHz)
10
100
1000
■ Packaging
Code
Packaging
Minimum Quantity
-
Box
100
■ Rated Value
Part Number
Rated Voltage Withstand Voltage
Rated Current
Insulation Resistance(min.)
Insertion Loss

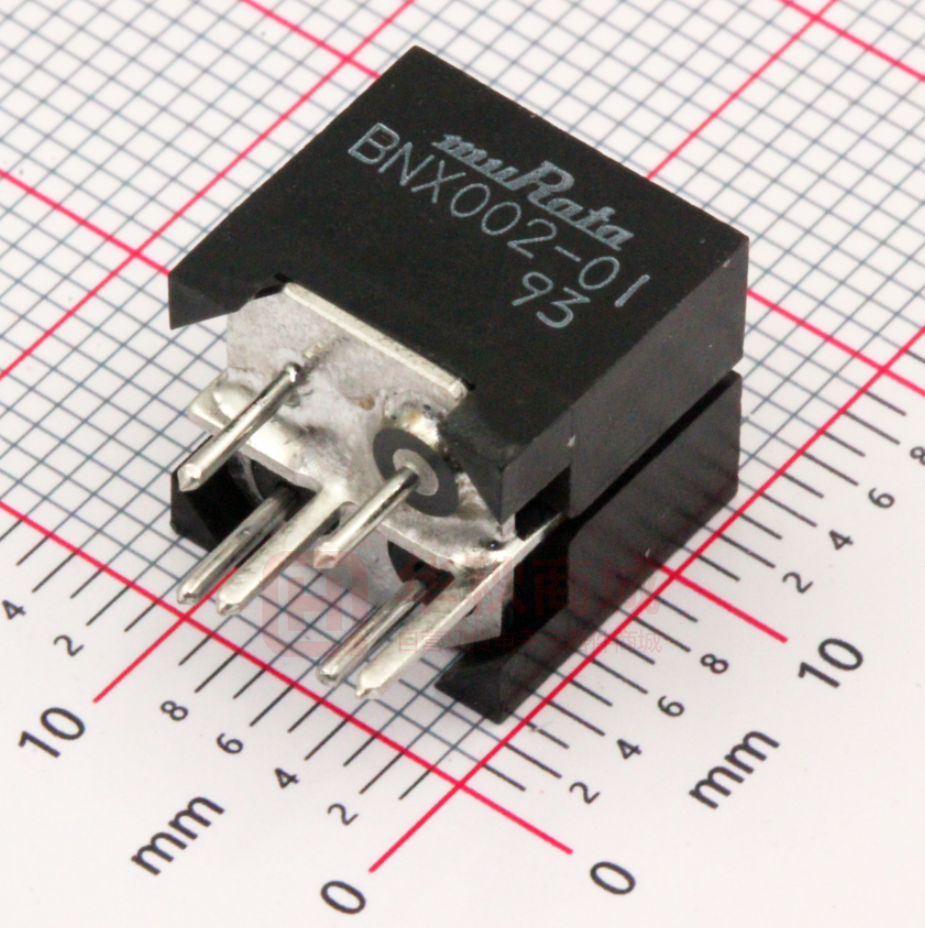

BNX002-01
50Vdc
125Vdc
10A
100M ohm
1MHz to 1GHz:40dB min. (20 to 25 degrees C line impedance=50 ohm)
BNX003-01
150Vdc
375Vdc
10A
100M ohm
5MHz to 1GHz:40dB min. (20 to 25 degrees C line impedance=50 ohm)
BNX005-01
50Vdc
125Vdc
15A
100M ohm
1MHz to 1GHz:40dB min. (20 to 25 degrees C line impedance=50 ohm)
Operating Temperature Range: -30°C to +85°C
Continued on the following page.
o This data sheet is applied for Block Type EMIFILr used for General Electronics equipment for your design.
! Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.5.1
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > Block Type EMIFILr (LC Combined) > Lead Type
Data Sheet
2
Continued from the preceding page.
■ !Caution (Rating)
Do not use products beyond the rated current and
rated voltage as this may create excessive heat
and deteriorate the insulation resistance.
o This data sheet is applied for Block Type EMIFILr used for General Electronics equipment for your design.
! Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2009.5.1
http://www.murata.com/
