Spec. No.
Reference Only
JENF243H-0006H-01
P 1/ 7

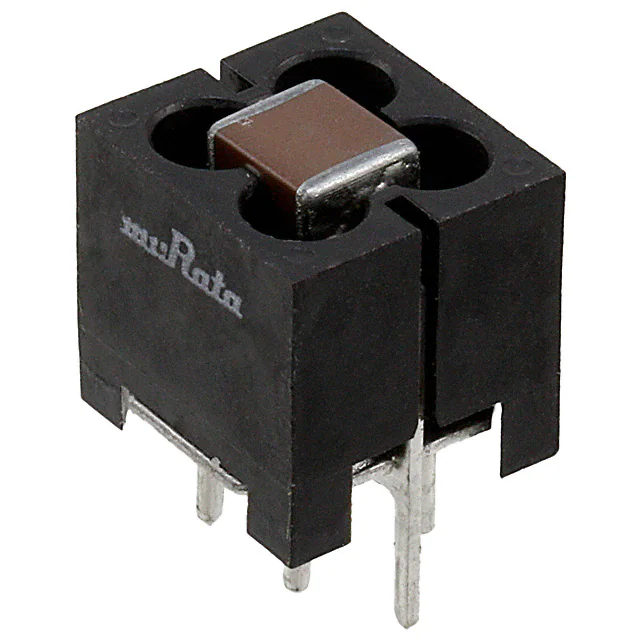

Block Type EMIFIL BNX005-01
Reference Specification
1. Scope
This reference specification applies to Block Type EMIFIL.
2. Rating
2.1
2.2
2.3
2.4
2.5
2.6
2.7
Customer Part Number
Murata Part Number
Rated Voltage
Test Voltage
Rated Current
Insulation Resistance
Voltage Drop
2.8
Insertion Loss
2.9
2.10
2.11
Equivalent Circuits
Operating Temperature
Storage Temperature
BNX005-01
50 V(DC)
125 V(DC)
15 A(DC)
100 MΩ min.
30 mV max.
1 MHz to 1 GHz : 40dB min.
Line impedance = 50 Ω
See the item 4
- 30 °C ~ + 85 °C
- 40 °C ~ + 85 °C
3. Standard Testing Condition
Temperature : Ordinary Temp. 15 °C to 35 °C
Humidity : Ordinary Humidity 25 %(RH) to 85 %(RH)
Temperature : 20 °C ± 2 °C
Humidity : 60 %(RH) to 70 %(RH)
Atmospheric pressure : 86 kPa to 106 kPa
4. Style and Dimensions
11.0±0.5
φ 1.0
±0.1
0.8
±0.2
2.5
±0.2
2.5
18.5 max.
5.0±0.5
3.5±1.0
13.5 max.
12.0±0.5
φ 1.0
φ 1.0
±0.1
0.6
±0.2
±0.2
2.5
2.5
±0.2
2.5
7.5±0.2
Note) Although some part of the product surface seems to be white in some cases, do not care because it is the
result of waxing process for humidity resistance improvement. This wax does not make bad affection to mechanical
or electrical performance, reliability of the product.
• TERMINAL LAYOUT (BOTTOM FIGURE)
• DIMENSIONS OF INSTALLATION HOLES
(front view)
CG
(3) PSG
CB (2)
(PSG)
(B)
CG
B (1)
(CG)
(CG)
(CG)
2.5±0.1 2.5±0.1
φ 1.2
(4) CG
2.5±0.1 (CB)
5.0±0.1
7.5±0.1
MURATA MFG CO.,LTD.
(in mm)
Spec. No.
Reference Only
JENF243H-0006H-01
P 2/ 7
• EQUIVALENT CIRCUIT
L1
(1)
L3
B
C2
CB (2)
C1
L2
• Unit Mass (Typical value)
3.3g
CG (4)
(3) PSG
(1) ~ (4) : Terminal
5. Marking
Filter shall be marked as follows.
Murata mark
BNX005-01
Part Number
Manufacturing Date
(Ex.) 59
5 ・・・ 1995 (Last digit of the year)
9 ・・・ September
Jan. to Sept. 1 ~ 9
Oct. : O , Nov. : N , Dec, : D
6. Electrical Performance
No.
Item
Specification
6.1
Insulation
Resistance
Meet item 2.6.
6.2
Dielectric
Strength
Filter shall be no failure.
6.3
Voltage
Drop
Meet item 2.7.
Test Method
Measured at DC rated voltage between terminal
(1)(2) and (3)(4).
Time : 1 minute
Suitable resistor : 1MΩ.
Test voltage shall be applied between terminal
(1)(2) and terminal (3)(4).
Time : 1 to 5 seconds.
Charging current : 50 mA max.
Rated Current : 15 A
A
(1)
V
Specimen
(3)
6.4
Insertion
Loss
Meet item 2.8.
50Ω
10dB
Attenuator
50Ω
Balun
(1)
(2)
Specimen
(3)
(2)
(4)
50Ω
10dB
Attenuator
(4)
E
50Ω
~
SG
∗ Method of measurement based on MIL-STD-220
Insertion Loss = 20log (E0 / E1)
E0 : Level without FILTER (short)
E1: Level with FILTER
7. Mechanical Performance
No.
7.1
7.2
Item
Appearance and
Dimensions
Marking
Specification
Meet item 4.
Marking is able to be read easily.
Test Method
Visual Inspection and measured with Slide
Calipers.
It is inspected Visually.
MURATA MFG CO.,LTD.
Spec. No.
No.
7.3
Reference Only
JENF243H-0006H-01
Item
Vibration
Specification
Meet Table 1.
Table 1
Appearance
Insulation
Resistance
Dielectric
Strength
Insertion
Loss
7.4
Solderability
No damaged
30 MΩ min.
No failure
Meet item 2.8
Then the lead is covered with a
continuous new solder coating at
least 75% along the circumference
of the immersed part.
P 3/ 7
Test Method
It shall be soldered on the substrate.
Range of Vibration Frequency :
10 to 2000 to 10Hz for 20 minutes
Testing Time : A period of 2 hours in each of 3
Mutually perpendicular directions
(Total 6 hours)
Double Amplitude : 1.5mm or acceleration 196m /
s2
Then measured after exposure in the room
condition for 4 to 24 hours.
Flux : Ethanol solution of rosin, 25(wt)%
Pre-heat : 150 ± 10 °C, 60 ~ 90 s
Solder : Sn-3.0Ag-0.5Cu
Solder Temperature 245 ± 5 °C
Immersion Time : 2 ± 0.5 seconds
1.6±0.8mm
Molten Solder
7.5
Resistance to
soldering heat
7.6
Resistance to
soldering iron
Flux : Ethanol solution of rosin, 25(wt)%
Pre-heat : 150 ± 10 °C, 60 ~ 90 s
Solder : Sn-3.0Ag-0.5Cu
Solder Temperature : 270 ± 10 °C
Immersion Time : 10s (+ 2s , - 0s)
Then measure values after exposure in the room
condition for 24 to 48 hours.
Solder : Sn-3.0Ag-0.5Cu
Tip Temperature : 350 ± 10 °C
Time : 4 ± 1 s
Then measure values after exposure in the room
condition for 24 to 48 hours.
Meet Table 1.
8. Environmental Performance
No.
Item
8.1
Temperature
Cycle
8.2
Humidity Life
8.3
Heat Life
Specification
Meet Table 1.
Test Method
1 Cycle
1 step : - 30 °C (+ 0°C , - 3°C) / 30 minutes
2 step : Room Temperature / within 5 minutes.
3 step : + 85 °C (+ 3°C , - 0°C) / 30 minutes
4 step : Room Temperature / within 5 minutes.
Total of 10 cycle
Then measured after exposure in the room
condition for 24 to 48 hours.
Temperature : 40 ± 2 °C
Humidity : 95 %(RH)
Rated Voltage : 50 V(DC)
Time : 500 h (+ 24h , - 0h)
Then measured after exposure in the room
condition for 4 to 24 hours.
Temperature : 85 ± 2 °C
Voltage : Rated Voltage × 2
Time : 1000 h (+ 48h , - 0h)
Then measured after exposure in the room
condition for 24 to 48 hours.
MURATA MFG CO.,LTD.
Spec. No.
Reference Only
JENF243H-0006H-01
P 4/ 7
9. Specification of Packaging
9.1.Packing Quantity
Individual packaging
100pcs
9.2. Packing Method
Styrene foam which have 50 pcs of the stuck products on are placed in an Individual packaging as 2 steps.
A quantity in an Outer packaging is depending on a quantity of an order.
In some cases , omit the Buffer material and/or Currugated cardboard.
9.3. Marking of packaging
(1) Individual packaing
The following items shall be marked on a label and the label is stuck on the Individual packaing.
Customer part number, MURATA part number, Inspection number(∗1), RoHS discrimination(∗2), Quantity, etc
∗1) « Expression of Inspection No. »
(1) Factory Code
(2) Date
□□
(1)
OOOO ×××
(2)
(3)
First digit
: Year / Last digit of year
Second digit
: Month / Jan. to Sep. → 1 to 9, Oct. to Dec. → O,N,D
Third, Fourth digit : Day
(3) Serial No.
∗2) « Expression of RoHS discrimination » ROHS – Y (△)
(1) (2)
(1) RoHS regulation conformity parts.
(2) MURATA classification number
(2) Marking for Outside package
The following items shall be marked on a label and the label is stuck on the outside package.
Customer name, Purchasing Order Number, Customer Part Number, MURATA part number,
RoHS discrimination(∗2) , Quantity , etc
9.4 Specification of Outer Case
(ex.)
Label
H
Outer Case Dimensions
(mm)
W
D
H
265
89
118
Standard Individual
package Quantity
in Outer Case
5
∗Above Outer Case size is typical. It depends on a quantity of an order.
W
D
MURATA MFG CO.,LTD.
Spec. No.
JENF243H-0006H-01
Reference Only
P 5/ 7
10. ! Caution
Limitation of Applications
Please contact us before using our products for the applications listed below which require especially high
reliability for the prevention of defects which might directly cause damage to the third party’s life,body or property.
(1)Aircraft equipment (2)Aerospace equipment (3)Undersea equipment (4)Power plant control equipment
(5)Medical equipment (6)Transportation equipment(automobiles,trains,ships,etc.) (7)Traffic signal equipment
(8)Disaster prevention / crime prevention equipment (9)Data-processing equipment
(10)Applications of similar complexity or with reliability requirements comparable to the applications listed in the above
11. Notice
11.1. Using the block type EMIFIL® (BNX) effectively
This product effectively prevents undesired radiation
and external noise from going out / entering the circuit
by grounding the high frequency components which
cause noise problem. Therefore, grouding condition may
affect on the performance of the filter and following
attentions should be paid for effective use.
(1) Design maximized grounding area in the P.C. board,
and grounding pattern for all the grounding terminals of
the product to be connected.(Recommended to use our
recommendation in this spec.)
(2) Minimize the distance between ground of the P.C.
board and the ground plate of the product.
(Recommended to use through-hole connection
between grounding area both of component side and
bottom side.
(3) Insert the terminals into the holes on P.C. board
completely.
(4) Don’t connect PSG terminal with CG terminal
directly. (See the item 4. TERMINAL LAYOUT)
【 P.C. BOARD PATTERNS 】
Use a bilateral P.C.board. Insert the BNX into the P.C.board until
the root of the terminal is secured. then solder.
(1) COMPONENT SIDE VIEW
(2) BOTTOM VIEW
B
PSG
PSG
B
CG
CG
PSG
B
B
CG
PSG
CG
CG
CB
CB
CG
Shield plate
Copper foil pattern
11.2. Self-heating
【Recommendation land pattern】
3.2
3.2
Through holes
φ1.2
B
PSG
2.5
(1) Use P.C. board with our recommendation on hole
diameter / land pattern dimensions, mentioned in the right
hand drawing, especially for 4 terminals which pass
current.
(2)Solder the terminals to the P.C.board with solder-cover
area at least 90%. Otherwise, excess self-heating at
connection between terminals and P.C. board may lead to
smoke and / or fire of the product even when operating at
rated current.
(3)After installing this product in your product, please make
sure of the self-heating with the rated current.
CG
CG
CB
CG
3.2
(mm)
2.5
Copper foil pattern
5.0
7.5
MURATA MFG CO.,LTD.
2.5
Though this product has a large rated current, the localized
self-heating may be caused depending on soldering
conditions. To avoid this,following attention should be paid.
Spec. No.
Reference Only
JENF243H-0006H-01
11.3. Soldering
T e m p e ra tu re (° C )
(1) Flux, Solder
· Rosin-based flux should be used.
Do not use strong acidic flux with halide content exceeding 0.2(wt)% (chlorine conversion value.)
· Use Sn-3.0Ag-0.5Cu solder.
(2) Standard flow soldering profile.
300
Pre- heating(in air)
150
Gradual Cooling
(in air)
Solder Temperature
250
200
Soldering
150°C
Solder
Temperature
250 ~ 260 °C
100
50
Soldering
Time
4~6s
1 minutes min. Soldering Time
(3) Resistance to soldering iron goes in the following condition that tip temperature is 350 °C max. and
soldering time is 5 s max.
(4) Products and the leads should not be subjected to any mechanical stress during soldering process.
(and also while subjected to the equivalent high temperature.)
11.4. Cleaning Conditions
Products shall be cleaned on the following conditions.
(1) Cleaning temperature shall be limited to 60 °C max. (40 °C max. for IPA.)
(2) Ultrasonic cleaning shall comply with the following conditions, with avoiding the resonance
phenomenon at the mounted products and P.C.B.
Power : 20W / l max.
Frequency : 28kHz to 40kHz
Time : 5 minutes max.
(3) Cleaner
1.Cleaner
· Isopropyl alcohol (IPA)
2.Aqueous agent
· PINE ALPHA ST-100S
(4) There shall be no residual flux and residual cleaner after cleaning.
In the case of using aqueous agent, products shall be dried completely after rinse with
de-ionized water in order to remove the cleaner.
(5) The surface of products may become dirty whitely after cleaning.
But there is no deterioration on mechanical, electrical characteristics and reliability.
(6) Other cleaning
Please contact us.
11.5. Operating Environment
(1) Do not use products in corrosve gases such as chlorine gas, acid or sulfide gas.
(2) Do not use products in the environment where water, oil or organic solvents may adhere to product.
MURATA MFG CO.,LTD.
P 6/ 7
Spec. No.
JENF243H-0006H-01
Reference Only
P 7/ 7
11.6. Storage condition
(1) Storage period
Use the products within 12 months after delivered.
Solderability should be checked if this period is exceeded.
(2) Storage environment condition
· Products should be stored in the warehouse on the following conditions.
Temperature : - 10 °C to + 40 °C
Humidity
: 15 % to 85% relative humidity No rapid change on temperature and humidity
· Don't keep products in corrosive gases such as sulfur, chlorine gas or acid, or it may
cause oxidization of electrode, resulting in poor solderability.
· Products should be stored on the palette for the prevention of the influence from
humidity, dust and so on.
· Products should be stored in the warehouse without heat shock, vibration, direct
sunlight and so on.
(3) Delivery
Care should be taken when transporting or handling product to avoid excessive vibration or
mechanical shock.
12.
! Notes
(1) Please make sure that your product has been evaluated in view of your specifications with our product
being mounted to your product.
(2) You are requested not to use our product deviating from the reference specifications.
(3) The contents of this reference specification are subject to change without advance notice. Please approve our
product specifications or transact the approval sheet for product specifications before ordering.
MURATA MFG CO.,LTD.
