BNX005-11

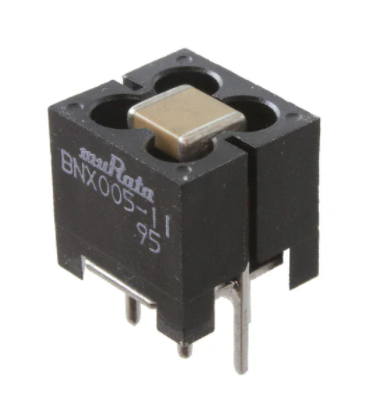

Note: This datasheet may be out of date. Product Search Data Sheet Please download the latest datasheet of BNX005-11 from the official website of Murata Manufacturing Co., Ltd. http://www.murata.com/en-us/products/productdetail?partno=BNX005-11 BNX005-11 Appearance & Shape Features The block type "EMIFIL" BNX series incorporates through-type capacitor, monolithic chip capacitors and bead. The BNX is high performance for use in DC power circuits. Features 1. The filter enables obtaining high insertion loss in wide frequency ranges from 1MHz to 1GHz. 2. Effective for impulse noise such as electrostatic discharge or spike noise. 3. There are no connection routes in the current circuits, thus ensuring highly reliable performance. Applications 1. Displays (PDP/LCD-TV) 2. Digital AV equipment 3. Amusement equipment 4. PC peripheral equipment 5. Industry equipment Applications Other Usage For general Packaging Information Standard Packaging Specifications Packing Quantity - Box 100 1 of 3 Attention 1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : https://www.murata.com/ Last updated10/10/2022 Note: This datasheet may be out of date. Product Search Data Sheet Please download the latest datasheet of BNX005-11 from the official website of Murata Manufacturing Co., Ltd. http://www.murata.com/en-us/products/productdetail?partno=BNX005-11 BNX005-11 Specifications Shape Lead Length 12.0mm Length　Tolerance ±0.5mm Width 11.0mm Width Tolerance ±0.5mm Thickness 13.0mm Thickness　Tolerance max. Rated Current 15A Operating Temperature Range -40℃ to 85℃ Mass(typ.) 3.3g Rated Voltage 50Vdc Withstanding Voltage 125Vdc Insulation Resistance(min.) 100MΩ Insertion Loss 1MHz to 1GHz:40dB min. (Line impedance=50Ω) 2 of 3 Attention 1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : https://www.murata.com/ Last updated10/10/2022 Note: This datasheet may be out of date. Product Search Data Sheet Please download the latest datasheet of BNX005-11 from the official website of Murata Manufacturing Co., Ltd. http://www.murata.com/en-us/products/productdetail?partno=BNX005-11 BNX005-11 Product Data Insertion Loss Characteristics Equivalent Circuit 3 of 3 Attention 1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : https://www.murata.com/ Last updated10/10/2022
