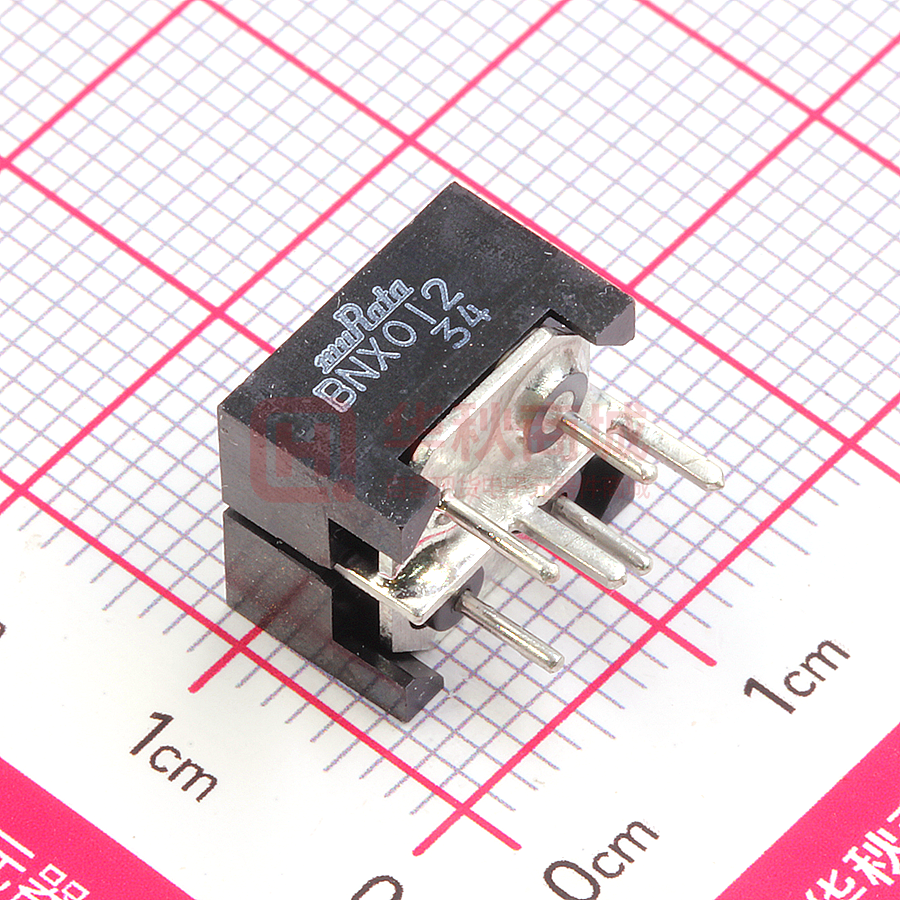

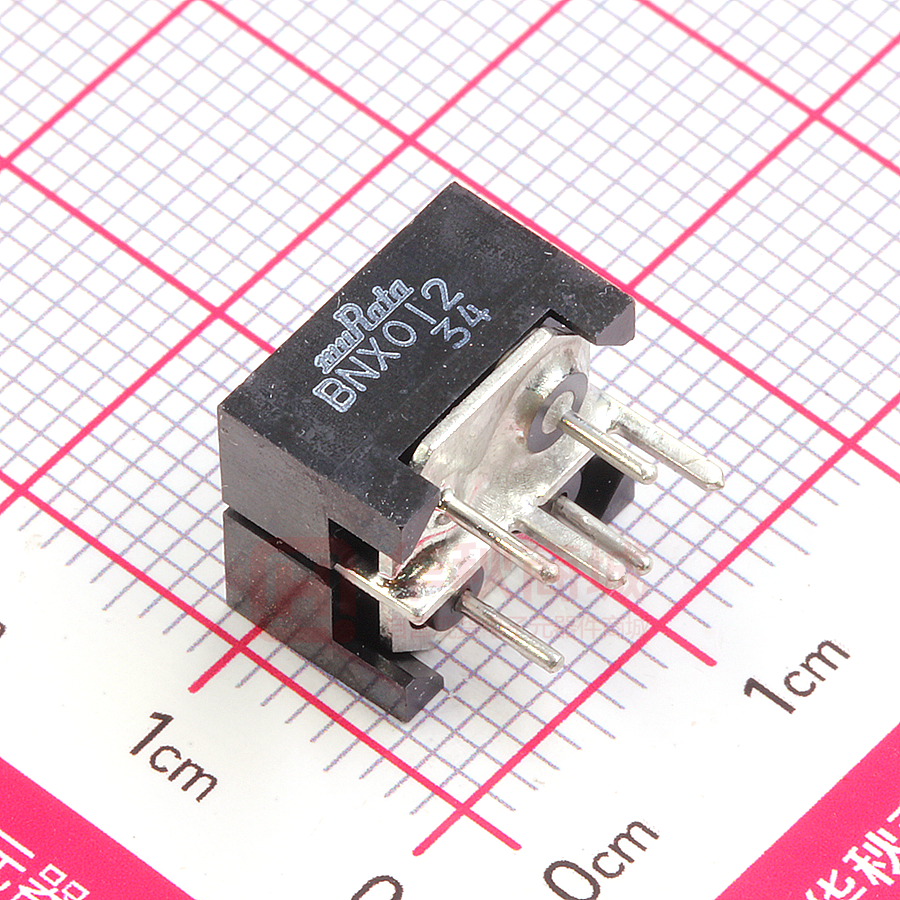

BNX012-01

Spec. No. JENF243H-0003G-01 Reference Only P 1/ 9 Block Type EMIFIL® BNX01□-01 Reference Specification 1. Scope ® This reference specification applies to Block Type EMIFIL . 2. Rating 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 Customer Part Number Murata Part Number Rated Voltage Test Voltage Rated Current (1) Insulation Resistance Voltage Drop Capacitance 2.9 Insertion Loss 2.10 2.11 2.12 Equivalent Circuits Operating Temperature Storage Temperature BNX012-01 50 V(DC) 125 V(DC) BNX016-01 25 V(DC) 62.5 V(DC) 15 A(DC) 500 M min. 50 M min. 35 mV max. 1.0 F ± 15 % 10 F ± 10 % 1 MHz to 1 GHz : 100 kHz to 1 GHz : 40dB min. 40dB min. Line impedance = 50  See the item 4 - 40 °C ~ + 125 °C - 55 °C ~ + 125 °C （Ａ） Rated Current (1) Rated current is derated according to operating temperature , as shown in the right hand graph. 15 10 5 1 0 -40 85 102.5 120 125 Operating Temperature（℃） 3. Standard Testing Condition Temperature : Ordinary Temp. 15 °C to 35 °C Humidity : Ordinary Humidity 25 %(RH) to 85 %(RH) Temperature : 20 °C ± 2 °C (BNX012-01) Temperature : 25 °C ± 2 °C (BNX016-01) Humidity : 60 %(RH) to 70 %(RH) Atmospheric pressure : 86 kPa to 106 kPa MURATA MFG CO.,LTD. Spec. No. JENF243H-0003G-01 Reference Only P 2/ 9 4. Style and Dimensions 11.0±0.2 3.2 ±0.5 34 φ0.8 0.8 ± 0.1 ±0.1 12.0± 0.5 BNX012 4.0±0.5 8.0 ±0.5 12.0±0.2 φ0.8 φ0.8 ±0.1 ±0.1 0.6± 0.1 7.5 ± 0.2 (in mm) 2.5±0.2 2.5±0.2 ( The tip by solder of terminal is not included in the dimension values. ) Note) Although some part of the product surface seems to be white in some cases, do not care because it is the result of waxing process for humidity resistance improvement. This wax does not make bad affection to mechanical or electrical performance, reliability of the product. TERMINAL LAYOUT (BOTTOM FIGURE)  DIMENSIONS OF INSTALLATION HOLES (front view) CB (2) CG (PSG) (B) CG (3) PSG (CG) B (1) (CG) (CG) 2.5±0.1 2.5±0.1  1.2 (4) CG 2.5±0.1 (CB) 5.0±0.1 7.5±0.1 (in mm)  EQUIVALENT CIRCUIT L1 (1) L3 B L2 C2 B ：Bias PSG：Power Supply Ground CG ：Circuit Ground CB ：Circuit + Bias CB (2) C1 CG (4) (3) PSG (1) ~ (4) : Terminal  Unit Mass (Typical value) 2.0g 5. Marking Filter shall be marked as follows. Murata mark BNX012 34 Part Number （Type name) Manufacturing Date (Ex.) 34 3 ･･･ 2003 (Last digit of the year) 4 ･･･ April Jan. to Sept. 1 ~ 9 Oct. : O , Nov. : N , Dec, : D MURATA MFG CO.,LTD. Spec. No. JENF243H-0003G-01 Reference Only P 3/ 9 6. Electrical Performance No. 6.1 Item Insulation Resistance Specification Meet item 2.6. 6.2 Dielectric Strength Filter shall be no failure. 6.3 Capacitance Meet item 2.8. 6.4 Insertion Loss Meet item 2.9. Test Method Measured at DC rated voltage between terminal (1)(2) and (3)(4). Time : 2 minutes Suitable resistor : 1M. Test voltage shall be applied between terminal (1)(2) and terminal (3)(4). Time : 1 to 5 seconds. Charging current : 50 mA max. Measured at the following condition between terminal (1)(2) and (3)(4). Frequency : 1 ± 0.1kHz Voltage : 1 V(rms) max. 50 10dB Attenuator Balun (1) (2) Specimen 50 (3) 50 10dB Attenuator (4) E 50 ～ SG  Method of measurement based on MIL-STD-220 6.5 Voltage Drop Meet item 2.7. Insertion Loss = 20log (E0 / E1) Ｅ0 : Level without FILTER (short) Ｅ１: Level with FILTER Rated Current : 15 A Substrate : 100 100 1.6mm (paper-phenol) Soldering : Insert the terminals into the holes on P.C. board completely. Voltage Drop Value : V1 + V2 V1 Product （4） （ 3） （ 2） （1） A V2 Substrate (1) (4):Terminal Probe of each voltmeter shall be contacted to the center of soldering parts as following figure. Paper-phenol Substrate 　　　 Probe Copper foil pattern Solder MURATA MFG CO.,LTD. Product’s Terminal Spec. No. JENF243H-0003G-01 Reference Only P 4/ 9 7. Mechanical Performance No. 7.1 7.2 7.3 Item Appearance and Dimensions Marking Vibration Specification Meet item 4. Marking is able to be read easily. Meet Table 1. Table 1 Appearance Insulation Resistance Dielectric Strength Capacitance 7.4 Solderability No damaged Meet item 2.6 No failure Meet item 2.8 Then the lead is covered with a continuous new solder coating at least 90% along the circumference of the immersed part. Test Method Visual Inspection and measured with Slide Calipers. It is inspected Visually. It shall be soldered on the substrate. Range of Vibration Frequency : 10 to 2000 to 10Hz for 20 minutes Testing Time : A period of 3 hours in each of 3 mutually perpendicular directions (Total 9 hours) Total amplitude 1.5 mm or Acceleration amplitude 196 m/s2 whichever is smaller. Then measure values after exposure in the room condition for 4 to 24 hours. Flux : Ethanol solution of rosin, 25(wt)% Pre-heat : 150 ± 10 °C, 60 ~ 90 s Solder : Sn-3.0Ag-0.5Cu Solder Temperature 245 ± 5 °C Immersion Time : 2 ± 0.5 seconds BNX012 34 1.6± 0.8 mm Molten Solder 溶融はんだ 7.5 Resistance to soldering heat Meet Table 2. Table 2 Appearance Insulation Resistance Dielectric Strength Capacitance Change No damaged Meet item 2.6 No failure Flux : Ethanol solution of rosin, 25(wt)% Pre-heat : 150 ± 10 °C, 60 ~ 90 s Solder : Sn-3.0Ag-0.5Cu Solder Temperature : 270 ± 10 °C Immersion Time : 10s (+ 2s , - 0s) Then measure values after exposure in the room condition for 24 to 48 hours. within ± 7.5% MURATA MFG CO.,LTD. Spec. No. JENF243H-0003G-01 Reference Only P 5/ 9 8. Environmental Performance The test shall be carried out after the product is soldered on the substrate. No. 8.1 Item Temperature Cycle Specification Meet Table 2. 8.2 Humidity Life Meet Table 3. Table 3 Appearance Insulation Resistance Capacitance Change 8.3 Heat Life Meet Table 4. Table 4 Appearance Insulation Resistance Capacitance Change Test Method No damaged 25 Mmin. (BNX012-01) 2.5 Mmin. (BNX016-01) 1 Cycle 1 step : - 55 °C (+ 0°C , - 3°C) / 30 minutes 2 step : Room Temperature / within 30 s 3 step : + 125 °C (+ 3°C , - 0°C) / 30 minutes 4 step : Room Temperature / within 30 s Total of 1000 cycle Then measure values after exposure in the room condition for 24 to 48 hours. Temperature : 60 ± 2 °C Humidity : 90  95 %(RH) Voltage : Rated Voltage Time : 1000 h (+ 48h , - 0h) Remove the drops and then measure values after exposure in the room condition for 24 to 48 hours. within ± 12.5% No damaged 50 Mmin. (BNX012-01) 5.0 Mmin. (BNX016-01) Temperature : 125 ± 2 °C Voltage : Rated Voltage  2 (BNX012-01) Voltage : Rated Voltage  1.5 (BNX016-01) Time : 1000 h (+ 48h , - 0h) Then measure values after exposure in the room condition for 24 to 48 hours. within ± 12.5% 9. Specification of Packaging 9.1.Packing Quantity Individual packaging 150pcs 9.2. Packing Method Styrene foam boards which have 50 pcs of the stuck products on are placed in an Individual packaging as 3 steps. A quantity in an Outer packaging is depending on a quantity of an order. Individual packaging Corrugated cardboard Buffer material Product Styrene foam board In some cases , omit the Buffer material and/or Currugated cardboard. MURATA MFG CO.,LTD. Spec. No. JENF243H-0003G-01 Reference Only P 6/ 9 9.3. Marking of packaging (1) Individual packaing The following items shall be marked on a label and the label is stuck on the Individual packaing. Customer part number, MURATA part number, Inspection number(1), RoHS discrimination(・2), Quantity, etc ・1) « Expression of Inspection No. » (1) Factory Code (2) Date □□ (1) OOOO  (2) (3) First digit : Year / Last digit of year Second digit : Month / Jan. to Sep. ・ 1 to 9, Oct. to Dec. ・ O,N,D Third, Fourth digit : Day (3) Serial No. ・2) « Expression of RoHS discrimination » ROHS – Y (△) (1) (2) (1) RoHS regulation conformity parts. (2) MURATA classification number (2) Marking for Outside package The following items shall be marked on a label and the label is stuck on the outside package. Customer name, Purchasing Order Number, Customer Part Number, MURATA part number, RoHS discrimination(・2) , Quantity , etc 9.4 Specification of Outer Case (ex.) Label H Outer Case Dimensions (mm) W D H 265 89 118 Standard Individual package Quantity in Outer Case 5 Above Outer Case size is typical. It depends on a quantity of an order. W D 10. ! Caution Limitation of Applications Please contact us before using our products for the applications listed below which require especially high reliability for the prevention of defects which might directly cause damage to the third party’s life,body or property. (1)Aircraft equipment (2)Aerospace equipment (3)Undersea equipment (4)Power plant control equipment (5)Medical equipment (6)Transportation equipment(automobiles,trains,ships,etc.) (7)Traffic signal equipment (8)Disaster prevention / crime prevention equipment (9)Data-processing equipment (10)Applications of similar complexity or with reliability requirements comparable to the applications listed in the above MURATA MFG CO.,LTD. Spec. No. JENF243H-0003G-01 Reference Only P 7/ 9 11. Notice 11.1. Using the block type EMIFIL® (BNX) effectively This product effectively prevents undesired radiation and external noise from going out / entering the circuit by grounding the high frequency components which cause noise problem. Therefore, grouding condition may affect on the performance of the filter and following attentions should be paid for effective use. (1) Design maximized grounding area in the P.C. board, and grounding pattern for all the grounding terminals of the product to be connected.(Recommended to use our recommendation in this spec.) (2) Minimize the distance between ground of the P.C. board and the ground plate of the product. (Recommended to use through-hole connection between grounding area both of component side and bottom side. (3) Insert the terminals into the holes on P.C. board completely. (4) Don’t connect PSG terminal with CG terminal directly. (See the item 4. TERMINAL LAYOUT) 【 P.C. BOARD PATTERNS 】 　 Use a bilateral P.C.board. Insert the BNX into the P.C.board until the root of the terminal is secured. then solder. (1) COMPONENT SIDE VIEW 　 (2) BOTTOM VIEW B PSG PSG B CG CG PSG B B CG PSG CG CG CB CB CG Shield plate Copper foil pattern 11.2. Self-heating 【Recommendation land pattern】 3.2 3.2 Through holes φ1.2 B PSG 2.5 (1) Use P.C. board with our recommendation on hole diameter / land pattern dimensions, mentioned in the right hand drawing, especially for 4 terminals which pass current. (2)Solder the terminals to the P.C.board with solder-cover area at least 90%. Otherwise, excess self-heating at connection between terminals and P.C. board may lead to smoke and / or fire of the product even when operating at rated current. (3)After installing this product in your product, please make sure of the self-heating with the rated current. CG CG CB CG 3.2 （mm） 2.5 Copper foil pattern 5.0 7.5 MURATA MFG CO.,LTD. 2.5 Though this product has a large rated current, the localized self-heating may be caused depending on soldering conditions. To avoid this,following attention should be paid. Spec. No. JENF243H-0003G-01 Reference Only P 8/ 9 11.3. Soldering (1) Flux, Solder · Rosin-based flux should be used. Do not use strong acidic flux with halide content exceeding 0.2(wt)% (chlorine conversion value.) · Use Sn-3.0Ag-0.5Cu solder. T e m p e ra tu re (° C ) (2) Standard flow soldering profile. Pre- heating(in air) Soldering 300 Gradual Cooling (in air) Solder Temperature 250 200 150 150°C Solder Temperature 250 ~ 260 °C 100 50 Soldering Time 4~6s 1 minutes min. Soldering Time (3) Resistance to soldering iron goes in the following condition that tip temperature is 350 °C max. and soldering time is 5 s max. (4) Products and the leads should not be subjected to any mechanical stress during soldering process. (and also while subjected to the equivalent high temperature.) 11.4. Cleaning Conditions Products shall be cleaned on the following conditions. (1) Cleaning temperature shall be limited to 60 °C max. (40 °C max. for IPA.) (2) Ultrasonic cleaning shall comply with the following conditions, with avoiding the resonance phenomenon at the mounted products and P.C.B. Power : 20W / l max. Frequency : 28kHz to 40kHz Time : 5 minutes max. (3) Cleaner 1.Cleaner · Isopropyl alcohol (IPA) 2.Aqueous agent · Higher Alcohol Type (PINE ALPHA ST-100S) (4) There shall be no residual flux and residual cleaner after cleaning. In the case of using aqueous agent, products shall be dried completely after rinse with de-ionized water in order to remove the cleaner. (5) The surface of products may become dirty whitely after cleaning. But there is no deterioration on mechanical, electrical characteristics and reliability. (6) Other cleaning Please contact us. 11.5. Operating Environment (1) Do not use products in corrosve gases such as chlorine gas, acid or sulfide gas. (2) Do not use products in the environment where water, oil or organic solvents may adhere to product. 11.6. Storage condition (1) Storage period Use the products within 12 months after delivered. Solderability should be checked if this period is exceeded. (2) Storage environment condition · Products should be stored in the warehouse on the following conditions. Temperature : - 10 °C to + 40 °C Humidity : 15 % to 85% relative humidity No rapid change on temperature and humidity MURATA MFG CO.,LTD. Spec. No. JENF243H-0003G-01 Reference Only P 9/ 9 · Don't keep products in corrosive gases such as sulfur, chlorine gas or acid, or it may cause oxidization of electrode, resulting in poor solderability. ·Products should be stored on the palette for the prevention of the influence from humidity, dust and so on. ·Products should be stored in the warehouse without heat shock, vibration, direct sunlight and so on. ·Products should be stored under the airtight packaged condition. (3) Delivery Care should be taken when transporting or handling product to avoid excessive vibration or mechanical shock. 12. ! Notes (1) Please make sure that your product has been evaluated in view of your specifications with our product being mounted to your product. (2) You are requested not to use our product deviating from the reference specifications. (3) The contents of this reference specification are subject to change without advance notice. Please approve our product specifications or transact the approval sheet for product specifications before ordering. MURATA MFG CO.,LTD.
