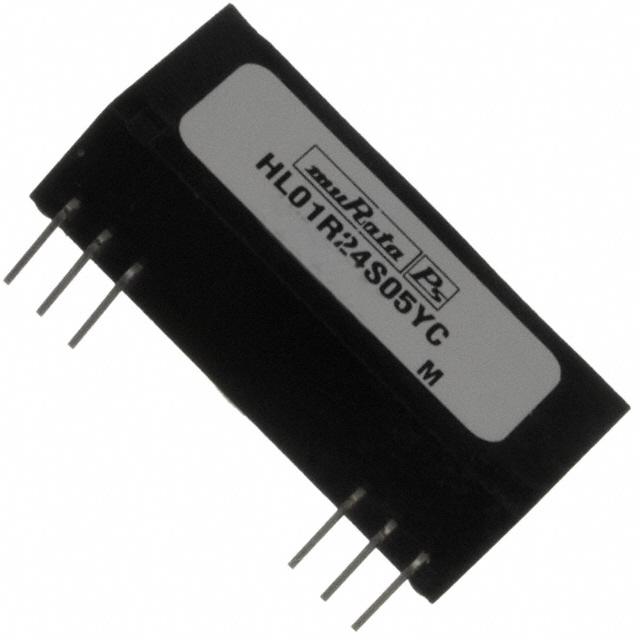

HL01R24S05YC

HL01RYC www.murata-ps.com 1 WATT REGULATED DC/DC CONVERTER OBSOLETE PRODUCT FEATURES ■ LOW COST ■ NON-CONDUCTIVE CASE ■ INTERNAL INPUT AND OUTPUT FILTERING ■ SHORT CIRCUIT PROTECTED ■ BUILT- IN STANDOFFS ■ INDUSTRY STANDARD PINOUT ■ ROHS COMPLIANT DESCRIPTION The HL01RYC Series uses advanced circuit design and packaging technology to realize superior reliability and performance. A 125kHz push-pull oscillator is used in the input stage. Beat-frequency oscillator problems are reduced when using the HL01RYC Series with high frequency isolation amplifiers. Reduced parts count and all surface mount construction add to the reliability of the HL01RYC Series. The use of surface mount devices and magnetics eliminate hand soldering operations. This "hands-free" construction increases quality and reliability while keeping cost low. ABSOLUTE MAXIMUM RATINGS ORDERING INFORMATION Internal Power Dissipation.......................................................1.2W Short Circuit Duration....................................................Continuous Lead Temperature (soldering, 10 seconds max)................+300°C * *Note: Refer to Reflow Profile for SMD Models. HL01R xxyzz Y Device Family HL Indicates DC/DC Converter Model Number Where: xx = Input Voltage y = Number or Outputs (Single "S", Dual "D") zz = Output Voltage Package Option RoHS Compliant C TYPICAL PERFORMANCE CURVES Specifications typical at TA = +25°C, nominal input voltage, rated output current unless otherwise specified. EFFICIENCY vs LOAD 60% Efficiency (%) 50% 40% 30% 20% 10% 0% 0% 25% 50% Load (mA) 75% 100% 　 For full details go to www.murata-ps.com/rohs www.murata-ps.com Technical enquiries email: sales@murata-ps.com, tel: +1 508 339 3000 TDC_HL01RYC.B02 Page 1 of 3 HL01RYC 1 WATT REGULATED DC/DC CONVERTER ELECTRICAL SPECIFICATIONS Specifications typical at TA = +25°C, nominal input voltage, rated output current unless otherwise specified. NOMINAL INPUT VOLTAGE RATED OUTPUT VOLTAGE RATED OUTPUT CURRENT (VDC) (VDC) (mA) (mA) HL01R05S05YC HL01R05S12YC HL01R05S15YC 5 5 5 5 12 15 200 83 67 50 50 50 400 400 400 58 52 52 HL01R12S05YC HL01R12S12YC HL01R12S15YC 12 12 12 5 12 15 200 83 67 40 40 40 160 160 160 58 52 52 HL01R15S05YC HL01R15S12YC HL01R15S15YC 15 15 15 5 12 15 200 83 67 30 30 30 130 130 130 58 52 52 HL01R24S05YC HL01R24S12YC HL01R24S15YC 24 24 24 5 12 15 200 83 67 20 20 20 80 80 80 58 52 52 HL01R05D05YC HL01R05D12YC HL01R05D15YC 5 5 5 ±5 ±12 ±15 ±100 ±41 ±33 50 50 50 425 400 400 45 53 53 HL01R12D05YC HL01R12D12YC HL01R12D15YC 12 12 12 ±5 ±12 ±15 ±100 ±41 ±33 40 40 40 185 160 160 45 53 53 HL01R15D05YC HL01R15D12YC HL01R15D15YC 15 15 15 ±5 ±12 ±15 ±100 ±41 ±33 30 30 30 145 130 130 45 53 53 HL01R24D05YC HL01R24D12YC HL01R24D15YC 24 24 24 ±5 ±12 ±15 ±100 ±41 ±33 20 20 20 90 80 80 45 53 53 MODEL INPUT CURRENT MIN LOAD RATED LOAD (mA) EFFICIENCY (%) Note: Other input to output voltages may be available. Please contact factory. COMMON SPECIFICATIONS Specifications typical at TA = +25°C, nominal input voltage, rated output current unless otherwise specified. PARAMETER CONDITIONS TYP MAX UNITS 5 12 15 24 30 5.25 12.6 15.75 25.2 100 VDC VDC VDC VDC mAp-p VISO= 240VAC, 60Hz 1 25 2 10 VDC Vpk G: pF μArms BW = DC to 10MHz BW =10Hz to 2MHz High Line to Low Line Rated Load to No Load 1 ±3 ±0.01 30 1 ±0.1 ±0.5 ±5 ±0.02 100 10 ±1 ±1 W % %/°C mVp-p mVrms % % INPUT Voltage Range MIN 4.75 11.4 14.25 22.8 Reflected Ripple Current ISOLATION Rated Voltage Test Voltage Resistance Capacitance Leakage Current OUTPUT Rated Power Voltage Setpoint Accuracy Temperature Coefficent Ripple & Noise Line Regulation Load Regulation GENERAL Switching Frequency Package Weight MTTF per MIL-HDBK-217, Rev. F Ground Benign TEMPERATURE Specification Operation Storage www.murata-ps.com 60 Hz, 10 Seconds 500 500 125 10 kHz g 675 kHr Circuit Stress Method -25 -40 -40 +70 +85 +110 °C °C °C Technical enquiries email: sales@murata-ps.com, tel: +1 508 339 3000 TDC_HL01RYC.B02 Page 2 of 3 HL01RYC MECHANICAL 1 WATT REGULATED DC/DC CONVERTER Package/Pinout "Y" Ò Ò   Ò Ò   4/06)%7 (,2XXYZZ9#       3)$%6)%7 Ò Ò Ò Ò Ò Ò Ò Ò %.$6)%7 — —   NU = Do Not Use.      DIP PACKAGE PIN CONNECTIONS NC = No Internal Connection. PIN# Duplicate pin functions are internally connected. All dimensions are in inches (millimeters). GRID: 0.100 inches (2.54 millimeters) Typically Marked with: specific model ordered, date code, job code and Logo. Pin base metal is phosphor bronze. Pin finish is matte tin (100-300 microinches) over a nickel barrel layer (5-40 microinches). SINGLES DUALS 1 2 3 +VIN NU NU +VIN -VOUT Common 10 11 12 -VOUT +VOUT -VIN Common +VOUT -VIN 13 14 15 -VIN +VOUT -VOUT -VIN +VOUT Common 22 23 24 NU NU +VIN Common -VOUT +VIN THROUGH-HOLE SOLDERING INFORMATION These devices are intended for wave soldering or manual soldering. They are not intended to be subject to surface mount processes under any circumstances. The normal wave soldering process can be used with these devices where the device is subjected to a maximum wave temperature of 260°C for a period of no more than 10 seconds. Within this time and temperature range, the integrity of the device’s plastic body will not be compromised and internal temperatures within the converter will not exceed 175°C. Care should be taken to control manual soldering limits identical to that of wave soldering. Murata Power Solutions, Inc. 11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A. Tel: (508) 339-3000 (800) 233-2765 Fax: (508) 339-6356 www.murata-ps.com email: sales@murata-ps.com ISO 9001 and 14001 REGISTERED 05/22/09 Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. © 2009 Murata Power Solutions, Inc. www.murata-ps.com USA: Mansfield (MA), Tel: (508) 339-3000, email: sales@murata-ps.com Canada: Toronto, Tel: (866) 740-1232, email: toronto@murata-ps.com UK: Milton Keynes, Tel: +44 (0)1908 615232, email: mk@murata-ps.com France: Montigny Le Bretonneux, Tel: +33 (0)1 34 60 01 01, email: france@murata-ps.com Germany: München, Tel: +49 (0)89-544334-0, email: munich@murata-ps.com Japan: Tokyo, Tel: 81-3-3779-1031, email: sales_tokyo@murata-ps.com Kyoto, Tel: 81-75-955-7269, email: kyoto@murata-ps.com China: Shanghai, Tel: +86 215 027 3678, email: shanghai@murata-ps.com Guangzhou, Tel: +86 208 221 8066, email: guangzhou@murata-ps.com Singapore: Parkway Centre, Tel: +65 6348 9096, email: singapore@murata-ps.com Technical enquiries email: sales@murata-ps.com, tel: +1 508 339 3000 TDC_HL01RYC.B02 Page 3 of 3
