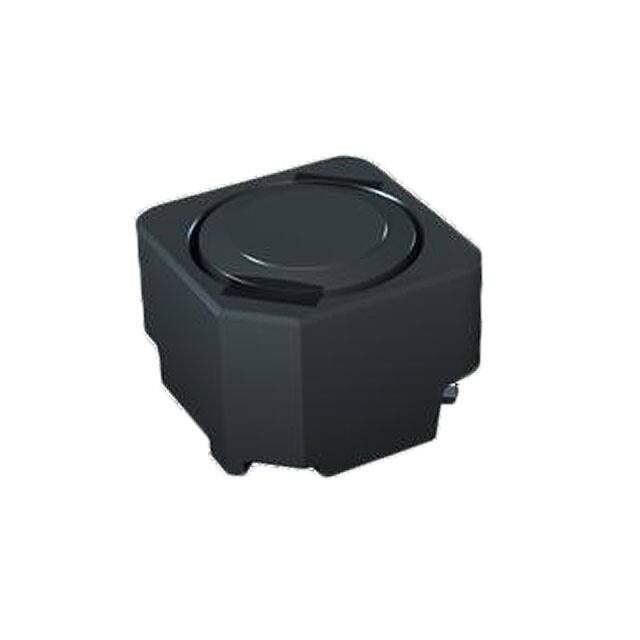

Ferrite Inductors 铁氧体功率电感器 MBH6045C Inductance Range: 1.0~470µH Recommended patterns 推荐焊盘尺寸 (Unit: mm) FEATURES • • • • (Unit: mm) 特点 • • • • AEC-Q200 Compliant. 6.2× 6.2mm Max. square, 4.8mm Max. height. Magnetically shielded. Operating temperature : -40～+150°C 符合AEC-Q200 最大6.2×6.2毫米的平面，最大高度4.8毫米 磁性屏蔽结构 使用温度范围：-40～+150°C STANDARD PART NUMBERS 标准零件号码 TYPE MBH6045C High current type (Quantity/reel; 1000 PCS) 零件号码 电感值(1) 公差 Part Number Inductance(1) (µH) Tolerance (%) MBH6045C-1R5NA=P3 MBH6045C-3R3NA=P3 MBH6045C-4R7NA=P3 * MBH6045C-6R8NA=P3 MBH6045C-100MA=P3 * MBH6045C-150MA=P3 MBH6045C-220MA=P3 * MBH6045C-330MA=P3 * MBH6045C-470MA=P3 * MBH6045C-680MA=P3 * MBH6045C-101MA=P3 * MBH6045C-151MA=P3 * MBH6045C-221MA=P3 1.5 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 ±30 ±30 ±30 ±30 ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 最大直流电阻(2) (典型) DC Resistance(2) (mΩ) Tolerance ±20%or±30% 17 ±30 24 ±30 29 ±30 51 ±30 63 ±20 99 ±20 139 ±20 178 ±20 256 ±20 347 ±20 487 ±20 772 ±20 1080 ±20 最大电感值减小电流(3) (典型) 最大温度上升电流(3) (典型) Inductance Decrease Current(3) (A) Max.(Typ.) ΔL/L=10% Temperature Rise Current(3) ∆T=40°C (A) Max. (Typ.) 6.3 (8.4) 4.1 (5.4) 3.3 (4.4) 2.7 (3.6) 2.3 (3.0) 1.8 (2.4) 1.5 (2.0) 1.2 (1.6) 1.1 (1.4) 0.90 (1.2) 0.71 (0.95) 0.58 (0.77) 0.47 (0.63) 4.3 (5.4) 3.4 (4.3) 2.8 (3.6) 2.1 (2.7) 2.0 (2.4) 1.5 (1.8) 1.2 (1.5) 1.1 (1.4) 1.0 (1.2) 0.84 (0.99) 0.70 (0.82) 0.51 (0.60) 0.48 (0.56) * Under development 1) Inductance is measured with a LCR meter 4284A(Agilent Technologies) or equivalent. Test frequency at 100kHz (2) DC resistance is measured with 34420A (Agilent Technologies) or 3541(HIOKI). (Reference ambient temperature 25°C) (3) Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value, coil temperature to rise by 40°C, whichever is smaller. (Reference ambient temperature 25°C) (1) LCR仪表4284A (Agilent技术)或者功能相同的仪器在100kHz下测 试电感值。 (2) 通过数码万用表34420A（Agilent技术）或者3541(HIOKI)测试直 流电阻。（环境温度为25°C） (3) 允许最大直流电的范围是以下两者中比较小的一个：引起电感值 从最初值降低10%，或者线圈温度升高40°C。 （参考周围环境温度25°C）。 Continued on next page 接下页 Ferrite Inductors 铁氧体功率电感器 MBH6045C continued from previous page 接上页 STANDARD PART NUMBERS 标准零件号码 TYPE MBH6045C Low DC resistance type 零件号码 电感值(1) 公差 Part Number Inductance(1) (µH) Tolerance (%) MBH6045C-1R0ND=P3 MBH6045C-1R5NB=P3 MBH6045C-3R3NB=P3 MBH6045C-4R7NB=P3 MBH6045C-6R8NB=P3 MBH6045C-100MB=P3 * MBH6045C-150MB=P3 MBH6045C-220MB=P3 MBH6045C-330MB=P3 MBH6045C-470MB=P3 MBH6045C-680MB=P3 MBH6045C-101MB=P3 * MBH6045C-151MB=P3 * MBH6045C-221MB=P3 * MBH6045C-331MB=P3 MBH6045C-471MB=P3 1.0 1.5 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 330 470 ±30 ±30 ±30 ±30 ±30 ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 (Quantity/reel; 1000 PCS) 最大直流电阻(2) (典型) DC Resistance(2) (mΩ) Tolerance ±20%or±30% 14 ±30 15 ±30 19 ±30 23 ±30 27 ±30 38 ±20 55 ±20 78 ±20 103 ±20 130 ±20 215 ±20 340 ±20 480 ±20 780 ±20 970 ±20 1420 ±20 最大电感值减小电流(3) (典型) 最大温度上升电流(3) (典型) Inductance Decrease Current(3) (A) Max.(Typ.) ΔL/L=10% Temperature Rise Current(3) ∆T=40°C (A) Max. (Typ.) 4.4 (5.8) 3.5 (4.7) 2.3 (3.1) 2.0 (2.6) 1.6 (2.1) 1.2 (1.7) 0.90 (1.2) 0.90 (1.2) 0.70 (0.93) 0.56 (0.74) 0.48 (0.64) 0.40 (0.53) 0.32 (0.43) 0.26 (0.35) 0.23 (0.30) 0.18 (0.24) 4.4 (5.5) 4.4 (5.5) 3.5 (4.4) 3.2 (4.1) 2.6 (3.3) 2.5 (3.0) 2.1 (2.5) 1.7 (2.0) 1.5 (1.7) 1.1 (1.4) 0.94 (1.1) 0.83 (0.98) 0.71 (0.83) 0.56 (0.66) 0.48 (0.56) 0.41 (0.48) * Under development 1) Inductance is measured with a LCR meter 4284A(Agilent Technologies) or equivalent. Test frequency at 100kHz (2) DC resistance is measured with 34420A (Agilent Technologies) or 3541(HIOKI). (Reference ambient temperature 25°C) (3) Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value, coil temperature to rise by 40°C, whichever is smaller. (Reference ambient temperature 25°C) (1) LCR仪表4284A (Agilent技术)或者功能相同的仪器在100kHz下测 试电感值。 (2) 通过数码万用表34420A（Agilent技术）或者3541(HIOKI)测试直 流电阻。（环境温度为25°C） (3) 允许最大直流电的范围是以下两者中比较小的一个：引起电感值 从最初值降低10%，或者线圈温度升高40°C。 （参考周围环境温度25°C）。
