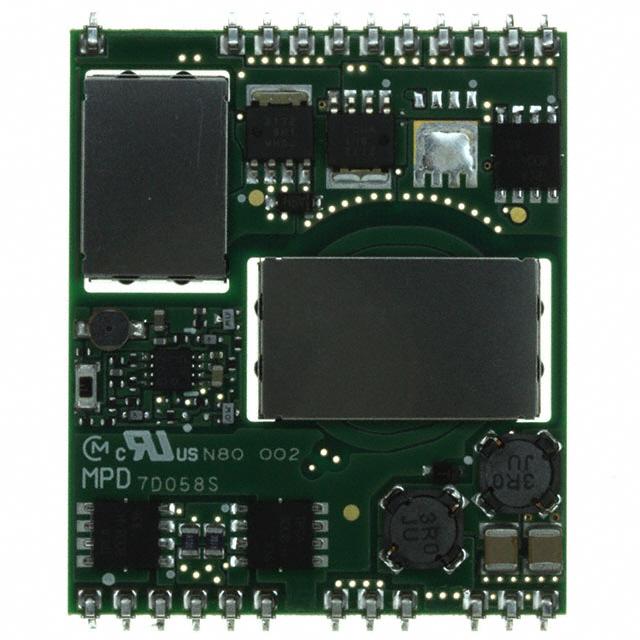

MPD7D058S

MPD7D05*S Specification 1 DC-DC Converter Specification MPD7D05*S 1 . Application This specification applies to DC-DC Converter MPD7D05*S(*:2∼8) for telecommunication / data-communication equipment. For any other application, please contact us before using this product. 2 . Customer Reference Customer Spec. Number Customer Part Number 3 . Customer & Murata Part Number Nominal Output Voltage [V] 1.2V 1.5V 1.8V 2.5 V 3.3V 5.0V Customer Part Number Part Number MPD7D052S MPD7D053S MPD7D054S MPD7D056S MPD7D057S MPD7D058S Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 2 1.59±0.5 4 . Appearance, Dimensions Objective Products MPD7D05*S (*：2・3・4・6・7・8) 一番端子ﾏｰｸ Marking of No.1 pin Marking of No.1 pin 4e 23 22 21 9 20 10 19 17 13 16 14 15 e e e 18 12 (1.59) e 2e e e 8 36.2±0.5 24 e 2e 6 ①②③ 5 US 4 e 3 e 2 28 C ＭＰＤ７Ｄ０④⑤Ｓ 1 e=2.54±0.2 4.2max 42.4±0.5 誤差は累積しない。 Tolerance is not accumulated. ※ 45.0±0.6 ※製品下部クリアランス受け入れ検査規格 0.08min ｺﾌﾟﾗﾅﾘﾃｨ0.1以下 Coplanarity Max0.1 ※Clearance of product bottom 0.08min 単位：ｍｍ [unit：mm] Marking θ 0∼10° 1.3±0.3 (1) MFG ID (2) Lot No. ①②③ ①Production factory Mark ②Production Year +0.1 0.55 -0.15 ③Production Month（1,2,3,…9,O,N,D） (3) Product Number ④⑤Part number of underlined. MPD7D05*S Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 3 5 . Pin Number and Function Pin No. Symbol 1,28 NCo 2 3 4 5 6 8 9 10 12 13 14 15 16 17 18 19 20 21 22 23 24 ALM NC RC NC PO -Vin -Vin -Vin +Vin +Vin +Vin +Vout +Vout +Vout +Vout -Vout -Vout -Vout -Vout -Vout -Vout Function One pin of two corners of PWB. For dipping resin to glue on backside of motherboard. Alarm output to stop all in abnormality. Remote ON/OFF Parallel operation. (-)Input (-)Input (-)Input (+)Input (+)Input (+)Input (+)Output (+)Output (+)Output (+)Output (-)Output (-)Output (-)Output (-)Output (-)Output (-)Output 6. Block Diagram 6.1 Entire Product +Vout +Vin Filter 13 14 8 フィルタ部 12 DRIVE DRIVE -Vout 9 10 6 4 2 -Vin 15 16 17 18 19 20 21 22 23 24 PO 制御回路部 RC Controller ALM Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 4 7. Environmental Conditions 7 .1 Operating Temperature Range 7 .2 Operating Humidity Range 7 .3 Storage Temperature Range 7 .4 Storage Humidity Range -40°C ~ +85°C (With power derated.) 20% ~ 85% （No water condenses.） -45°C ~ +90°C 10% ~ 95%( No water condenses.) 8. Absolute Rating Item Unit Absolute Rating V 0 Continuous V 75 200µs V 90 V 8 mA 10 Minimum Input Voltage Maximum Input Voltage ALM Applied VoltageRC Applied Voltage PO Applied Voltage Maximum ALM Sink Current Time Remarks Slew rate 42V/10µs No voltage, no matter how instantaneous, shall be applied beyond the absolute maximum voltage rating to this product. If you apply any voltage over this limit the product characteristics will deteriorate or the product itself will be destroyed. Even though it may continue operating for a while after the over-voltage event, its life will likely be shortened significantly. Reliability and life of the module may degrade similarly if the maximum operating voltage rating is continuously exceeded. This product is designed to operate within the maximum operating voltage rating specification. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 5 9. Characteristics 9 .1 Electrical Characteristics (Ta=25°C) 9 .1 .1 General Characteristics Unless otherwise specified, (Ta= -40 to +85°C with power derated.) Value Item Condition Unit Min. Typ. Max. Natural Air Convection Min 0.2m/s 36 48 75 V Turn-on Input Voltage Vin=increasing 32 - 36 V Input Voltage difference of Turn-on and Turn-off PO pin : Open or Connected to PO pin of other DC-DC Converters 2.0 - - V Galvanic Isolation Voltage Input time : 1 minute 1500 - - Vdc Input Voltage Range Symbol Vin Item Noise (Radiation, Conduction) Safety Standard Maximum Number of Parallel Operation Standard Note In accordance with VCCI Class A Refer to Test Circuit in clause 10 Recognized UL60950(UL/C-UL), UL file No.E190503 Complied IEC 60950 CE Marking CE Mark is shown on a package box. 2 to 5 pcs Refer to specific power derating. Note 1 : Please connect an external input filter to the product input pins for input chattering expected in application. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 6 9 .1 .2 Specific Characteristics (Ta= -40 to +85°C with power derated.) Part Number MPD7D052S Value Item Condition Symbol Nominal Output Voltage Vo Output Voltage Variation Δregtot Unit Min. Typ. Max. - 1.2 - V +5 % Vin=36 to 75V, Io=0 to 16A Ta=-40 to +85°C -3 Output Current Io Power derated. 0 - 16 A Efficiency η at rated Vin, Io, Ta=25℃ - 86 - % - - 50 mVpp Vr Refer to Test Circuit - - 100 16.5 - - A Vovp Output halts in latch-up mode after mask time 0.5msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. 1.44 - - V Vlvp Output halts in latch-up mode after mask time 500msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. - - 1.08 V Ripple Voltage Ripple Voltage & Noise Over Current Protection Over Voltage Protection Low Voltage Protection Iocp ! Caution The above electrical characteristics are guaranteed in the condition that the impedance of the input power supply is sufficiently low as shown in clause 10. Connecting an input inductance or using an input power supply with output inductance may cause an unstable operation of this product. Please check the proper operation of this product with the peripheral circuits on your product. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 7 9 .1 .3 Specific Characteristics (Ta= -40 to +85°C with power derated.) Part Number MPD7D053S Value Item Symbol Condition Unit Min. Typ. Max. - 1.5 - V +5 % Nominal Output Voltage Vo Output Voltage Variation Δregtot Vin=36 to 75V, Io=0 to 17ATa=-40 to +85°C -3 Output Current Io Power derated. 0 - 17 A Efficiency η at rated Vin, Io, Ta=25°C - 84 - % Ripple Voltage Vr - - 50 - - 100 17.5 - - A Vovp Output halts in latch-up mode after mask time 0.5msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. 1.8 - - V Vlvp Output halts in latch-up mode after mask time 500msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. - - 1.35 V Refer to Test Circuit Ripple Voltage & Noise Over Current Protection Over Voltage Protection Low Voltage Protection Iocp mVpp ! Caution The above electrical characteristics are guaranteed in the condition that the impedance of the input power supply is sufficiently low as shown in clause 10. Connecting an input inductance or using an input power supply with output inductance may cause an unstable operation of this product. Please check the proper operation of this product with the peripheral circuits on your product. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 8 9 .1 .4 Specific Characteristics (Ta= -40 to +85°C with power derated.) Part Number MPD7D054S Value Item Nominal Output Voltage Output Voltage Variation Condition Symbol Vo Δregtot Unit Min. Typ. Max. - 1.8 - V +5 % Vin=36 to 75V, Io=0 to 15ATa=-40 to +85°C -3 Output Current Io Power derated. 0 - 16 A Efficiency η at rated Vin, Io, Ta=25°C - 86 - % - - 50 Vr Refer to Test Circuit - - 100 16.5 - - A Vovp Output halts in latch-up mode after mask time 0.5msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. 2.16 - - V Vlvp Output halts in latch-up mode after mask time 500msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. - - 1.62 V Ripple Voltage Ripple Voltage & Noise Over Current Protection Over Voltage Protection Low Voltage Protection Iocp mVpp ! Caution The above electrical characteristics are guaranteed in the condition that the impedance of the input power supply is sufficiently low as shown in clause 10. Connecting an input inductance or using an input power supply with output inductance may cause an unstable operation of this product. Please check the proper operation of this product with the peripheral circuits on your product. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 9 9 .1 .5. Specific Characteristics (Ta= -40 to +85°C with power derated.) Part Number MPD7D056S Value Item Condition Symbol Nominal Output Voltage Vo Output Voltage Variation Δregtot Output Current Efficiency - 2.5 - V +5 % Io Power derated. 0 - 15 A η at rated Vin, Io, Ta=25℃ - 89 - % - - 50 - - 100 15.4 - - A Vovp Output halts in latch-up mode after mask time 0.5msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. 3.0 - - V Vlvp Output halts in latch-up mode after mask time 500msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. - - 2.25 V Vr Low Voltage Protection Max. -3 Refer to Test Circuit Ripple Voltage & Noise Over Voltage Protection Typ. Vin=36 to 75V, Io=0 to 15A Ta=-40 to +85°C Ripple Voltage Over Current Protection Unit Min. Iocp mVpp ! Caution The above electrical characteristics are guaranteed in the condition that the impedance of the input power supply is sufficiently low as shown in clause 10. Connecting an input inductance or using an input power supply with output inductance may cause an unstable operation of this product. Please check the proper operation of this product with the peripheral circuits on your product. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 10 9 .1 .6 Specific Characteristics (Ta= -40 to +85°C with power derated.) Part Number MPD7D057S Value Item Condition Symbol Nominal Output Voltage Vo Output Voltage Variation Δregtot Output Current Efficiency ! - 3.3 - V +5 % Io Power derated. 0 - 15 A η at rated Vin, Io, Ta=25°C - 90 - % - - 50 - - 100 15.4 - - A Vovp Output halts in latch-up mode after mask time 0.5msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. 3.96 - - V Vlvp Output halts in latch-up mode after mask time 500msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. - - 2.97 V Vr Low Voltage Protection Max. -3 Refer to Test Circuit Ripple Voltage & Noise Over Voltage Protection Typ. Vin=36 to 75V, Io=0 to 15A Ta=-40 to +85°C Ripple Voltage Over Current Protection Unit Min. Iocp mVpp Caution The above electrical characteristics are guaranteed in the condition that the impedance of the input power supply is sufficiently low as shown in clause 10. Connecting an input inductance or using an input power supply with output inductance may cause an unstable operation of this product. Please check the proper operation of this product with the peripheral circuits on your product. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 11 9 .1 .7 Specific Characteristics (Ta= -40 to +85°C with power derated.) Part Number MPD7D058S Value Item Condition Symbol Nominal Output Voltage Vo Output Voltage Variation Δregtot Output Current Efficiency ! - 5.0 - V +5 % Io Power derated. 0 - 10 A η at rated Vin, Io, Ta=25°C - 90 - % - - 50 - - 100 10.3 - - A Vovp Output halts in latch-up mode after mask time 0.5msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. 6.0 - - V Vlvp Output halts in latch-up mode after mask time 500msec (typ) to avoid malfunction by noise and transient change. Input turn off and on to reset. - - 4.5 V Vr Low Voltage Protection Max. -3 Refer to Test Circuit Ripple Voltage & Noise Over Voltage Protection Typ. Vin=36 to 75V, Io=0 to 10A Ta=-40 to +85°C Ripple Voltage Over Current Protection Unit Min. Iocp mVpp Caution The above electrical characteristics are guaranteed in the condition that the impedance of the input power supply is sufficiently low as shown in clause 10. Connecting an input inductance or using an input power supply with output inductance may cause an unstable operation of this product. Please check the proper operation of this product with the peripheral circuits on your product. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 12 Power Derating MPD7D052S < For Reference Only > Output Current (A) Power Derating of MPD7D052S Vin=36 to 75V 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0.0 100LFM,１ｐｃｓ (27) 36 100LFM,2ｐｃｓ (29) 38 100LFM,3ｐｃｓ (31) 46 100LFM,5ｐｃｓ 100LFM,4ｐｃｓ 200LFM,１ｐｃｓ (35) 46 (45) 57 -40 -20 0 20 40 60 Ambient Temp(℃) 33.9 200LFM,2ｐｃｓ 27.7 200LFM,3ｐｃｓ 21.5(14.7) 200LFM,4ｐｃｓ 15.3(12.0) 9.0 (9.3) 200LFM,5ｐｃｓ (6.6) (3.9) 80 100 100LMF=0.5m/s 200LFM=1.0m/S We would like to emphasize that these data are based on our experimental measurement. Please confirm that the maximum temperature of components mounted on a DC-DC Converter is 120°C or less in your application. For parallel operation, Please equalize line impedance from each of DC-DC Converters. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 13 Power Derating MPD7D053S < For Reference Only > Output Current (A) Power Derating of MPD7D053S Vin=36 to 75V 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0.0 (33) 42 (34) 43 (36) 44 (39) 47 38.2 30.9 (35.7) 23.7 (28.9) 16.4 (22.1) (15.3) 9.1 (8.5) (49) 54 -40 -20 0 20 40 60 Ambient Temp(℃) 80 100 100LFM,１ｐｃｓ 100LFM,2ｐｃｓ 100LFM,3ｐｃｓ 100LFM,4ｐｃｓ 100LFM,5ｐｃｓ 200LFM,１ｐｃｓ 200LFM,2ｐｃｓ 200LFM,3ｐｃｓ 200LFM,4ｐｃｓ 200LFM,5ｐｃｓ 100LMF=0.5m/s 200LFM=1.0m/S We would like to emphasize that these data are based on our experimental measurement. Please confirm that the maximum temperature of components mounted on a DC-DC Converter is 120°C or less in your application. For parallel operation, Please equalize line impedance from each of DC-DC Converters. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 14 Power Derating MPD7D054S < For Reference Only > Output Current (A) Power Derating of MPD7D054S Vin=36 to 75V 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0.0 (2) 11 100LFM,１ｐｃｓ 100LFM,2ｐｃｓ (7) 15 100LFM,3ｐｃｓ 100LFM,4ｐｃｓ (14) 23 39.6 (27) 35 32.8 (35.0) 25.9 (29.0) (22.9) 19.1 (16.9) 12.2 (10.8) (54) 62 -40 -20 0 20 40 60 Ambient Temp(℃) 80 100 100LFM,5ｐｃｓ 200LFM,１ｐｃｓ 200LFM,2ｐｃｓ 200LFM,3ｐｃｓ 200LFM,4ｐｃｓ 200LFM,5ｐｃｓ 100LMF=0.5m/s 200LFM=1.0m/S We would like to emphasize that these data are based on our experimental measurement. Please confirm that the maximum temperature of components mounted on a DC-DC Converter is 120°C or less in your application. For parallel operation, Please equalize line impedance from each of DC-DC Converters. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 15 Power Derating MPD7D056S < For Reference Only > Power Derating of MPD7D056S Vin=36 to 75V 80.0 (12) 23 Output Current (A) 70.0 (15) 25 60.0 50.0 (19) 29 40.0 (27) 36 30.0 20.0 28.7 (26.9) 23.5 (22.1) 18.4 (17.3) 13.3 8.1 (12.5) (7.7) (46) 53 10.0 0.0 -40 -20 0 20 40 60 Ambient Temp(℃) 80 100LFM,１ｐｃｓ 100LFM,2ｐｃｓ 100LFM,3ｐｃｓ 100LFM,4ｐｃｓ 100LFM,5ｐｃｓ 200LFM,１ｐｃｓ 200LFM,2ｐｃｓ 200LFM,3ｐｃｓ 200LFM,4ｐｃｓ 200LFM,5ｐｃｓ 100 100LMF=0.5m/s 200LFM=1.0m/S We would like to emphasize that these data are based on our experimental measurement. Please confirm that the maximum temperature of components mounted on a DC-DC Converter is 120°C or less in your application. For parallel operation, Please equalize line impedance from each of DC-DC Converters. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 16 Power Derating MPD7D057S < For Reference Only > Power Derating of MPD7D057S Vin=36 to 75V 80.0 (-4) -2 100LFM,１ｐｃｓ (0) 1 100LFM,2ｐｃｓ 100LFM,3ｐｃｓ Output Current (A) 70.0 60.0 50.0 100LFM,4ｐｃｓ (4) 6 40.0 35.3 (33.1) 28.9 (27.1) 22.4 (21.0) 16.0 (15.0) 9.5 (8.9) (14) 16 30.0 20.0 (36) 40 10.0 0.0 -40 -20 0 20 40 60 Ambient Temp(℃) 80 100 100LFM,5ｐｃｓ 200LFM,１ｐｃｓ 200LFM,2ｐｃｓ 200LFM,3ｐｃｓ 200LFM,4ｐｃｓ 200LFM,5ｐｃｓ 100LMF=0.5m/s 200LFM=1.0m/S We would like to emphasize that these data are based on our experimental measurement. Please confirm that the maximum temperature of components mounted on a DC-DC Converter is 120°C or less in your application. For parallel operation, Please equalize line impedance from each of DC-DC Converters. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 17 Power Derating MPD7D058S < For Reference Only > Power Derating of MPD7D058S vin=36 to 75V Output Current (A) 60.0 100LFM,１ｐｃｓ (15) 36 50.0 100LFM,2ｐｃｓ 100LFM,3ｐｃｓ 100LFM,4ｐｃｓ (18) 38 40.0 (21) 41 30.0 100LFM,5ｐｃｓ 26.8 21.8 (22.9) 16.8 (18.6) 11.9 (14.4) 6.9 (10.1) (5.9) (27) 46 20.0 (44) 59 10.0 0.0 -40 -20 0 20 40 60 Ambient Temp(℃) 80 100 200LFM,１ｐｃｓ 200LFM,2ｐｃｓ 200LFM,3ｐｃｓ 200LFM,4ｐｃｓ 200LFM,5ｐｃｓ 100LMF=0.5m/s 200LFM=1.0m/S We would like to emphasize that these data are based on our experimental measurement. Please confirm that the maximum temperature of components mounted on a DC-DC Converter is 120°C or less in your application. For parallel operation, Please equalize line impedance from each of DC-DC Converters. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 18 9. 2 Operation information 9. 2. 1 Reset Condition In order to reset all function, the input Voltage is set under 5V for Min.1 second. Input Voltage 36∼75V Reset Condition Max. 5V Min. 1 second 9. 2. 2 Over Voltage Protection Output halts in latch-up mode after 0.5msec(typ) mask time while Output Voltage is over the value of over voltage protection specified in 9.1. clause with failure of controller circuit. Output will re-start after input turns off for Min. 1 second with input voltage less than 5V. Output voltage might exceed the point at over voltage protection under the specific condition of transient change of input voltage or output load, in this condition over voltage protection wait its start until the mask time. It is recommended to evaluate your appliance installed with DC-DC converter. Input Voltage 36∼75V Re-Start Condition Max. 5V Min. 1 second Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 19 9. 2. 3 Low Voltage Protection Output halts in latch-up mode after 500msec(typ) mask time while output voltage is below the value of low voltage protection specified in 9.1.clause with failure of controller circuit or over load condition. Output will re-start after input turns off for Min.1 second with input voltage less than 5V. Input Voltage 36∼ 75V Re-Start Condition Max. 5V Min. 1 second 9. 2. 4 Remote On/Off Control Start and halt is possible with a control signal. While the control signal stops output from DC-DC converter, alarm output does not send any signal. Start : RC is open or connected to-Vin. Halt : RC is connected to +Vin. 9. 2. 5 Alarm Output ALM pin is down to the same voltage level of-Vin pin and sends an alarm signal. (open-drain output) Sink current in ALM pin is Max.10mA. It is possible to halt all of the connected DC-DC converters when any one is halted with over voltage protection or low voltage protection, with connecting all ALM pins for the application of parallel/multiple operation (Note 3) with plural DC-DC converters. The maximum number connecting DC-DC converters is 5pcs of parallel operation,10pcs of multiple operation , for the purpose of halting all DC-DC converters connected with ALM pin each other. Please contact us when more than these fi gures. Note 3 The parallel operation of this series is limited to only the same model. 9. 2. 6 Synchronous Turn-on/off It is possible to avoid the unevenness of turn-on timing with unifying the various Turn-on input voltage to a ertain voltage which one DC-DC converter has, and with connecting PO pins each other for the application of parallel/multiple operation (Note 3) of plural DC-DC converters. It is necessary to connect PO pins for parallel operation. The maximum number connecting DC-DC converters is 5pcs of parallel operation, 10pcs of multiple operation, for the purpose of synchronous turn-on/off with connecting PO pins. Please contact us when more than these figures. Note 3 The parallel operation of this series is limited to only the same model. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 20 9. 3 Reliability 9. 3. 1 Humidity Test Parts are subjected to a temperature 40°C 土 2°C with 90∼95% for 100 hours. Return the parts to room temperature (25°C) for 4 hours and measure. The initial values under item 9-1 should be met. (JIS-C-0022) 9. 3. 2 Thermal Cycle Test Parts are subjected to 5 cycle of the following. The parts are placed in room temperature (25°C) for 2 hours and are measured. The initial values under item 9-1 should be met. Step Condition 1 2 3 4 -40±3°C Room Temp. +85±3°C Room Temp. 9. 3. 3 Vibration Vibration Frequency Amplitude ： Time 30 minutes 5∼10 minutes 30 minutes 5∼10 minutes 10∼55Hz ： 1.5mm max. 10 to 55Hz, 1.5mm amplitude, 1 hour for each each of X,Y,Z directions. No damage in appearance and no deviation from electrical characteristics(9-1). 9. 3. 4 Mechanical Shock 20G, 1 time for each X,Y,Z directions. No damage in appearance and no deviation from electrical characteristics(9-1). 9. 3. 5 Soldering Heat Resistance Immerse the part of lead where it is to be soldered on a motherboard in a solder bath of 260+/-5°C for 3+/-0.5s. Then tested products are left for 2 hours. There is no damage in appearance and no deviation from electrical characteristics in clause 9. 9. 3. 6 Solderability of Leads The lead pins will be immersed in the Isopropyl Alcohol (JIS K 1522) with Rosin (JIS K5902) solution (the concentration of Rosin will be allowed 10wt% to 35wt%, and normally approx. 25wt% will be used without any specific requirement.). Then the lead pins will be immersed in the solder H63A (JIS Z 3282) solution at the temperature of 230°C +/-5°C for 3+/-0.5seconds, and pulled up completely. The solder will adhere to over 75% of immersed area. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 21 10. Test Circuit In the following test circuit, the measured values should meet those of clause 9. 10.1 General Measure Circuit Input filter(Note3) Oscilloscope A Ein V Stabilized DC power supply (Note 3) A1 V1 RL Load Isolated DC-DC Converter A V Multimater Please use the external input filter (See in clause 10-1-4) for input chattering expected in evaluation. 10.1.1 Output Ripple & Noise Coaxial cable : 1.5D-2V, (JISC3501), Length is 1.5m +I N +O UT Ein -IN -O UT C1 =10μF (Ceramic Capacitor) Oscilloscope fBW : 500M Hz with Feed thru-Termination Keisokugiken TR C-50F Equivalent circuit R: 50Ω C:0.01μF Capacitor : 10μF Input Output (Connect to tip of output pins.) Coaxial cable A: Output Ripple Voltage&Noise B: Output Ripple Voltage A B C: Switching Period C Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 22 10.1.2 Radiation Noise Isolated DC-DC Clamper Clamper Converter Resistive ZCAT3035-1330(TDK), 5pcs in ZCAT3035-1330(TDK), 12 pcs 10.1.3 Conduction Noise Isolated DC-DC LISN Resistive Converter KNW-407 Ceramic Capacitor：1uF（It is necessary to connect a Kyoritsu capacitor for Measurement at Radiation Noise, Conductive Noise, Output ripple & Noise. Please measure Radiation Noise, Conductive Noise and Output ripple & Noise with conforming to the Test Circuit in clause 10 Otherwise the noise might not meet the specified values. 10.1.4 External input filter R1 C1 C2 C3 C4 R2 R3 R4 C5 C6 C7 C8 C9 C1∼C10 ：4.7μF R1∼R5 ：82Ω Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 23 274.5 B A 44.0 B A-A’ Cross Section P1 P1 300.0 P1 P1=53.0 A 11. Packaging Information 11.1 Tray Dimensions DC-DC Converters are put in the trays. (See Fig.1) P2 P2=56.0 44.0 200.0 10.0 174.5 B-B’ Cross Section Fig.1 Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 24 11.2 Contained pieces of products per corrugated box. Maximum Contained products pieces 90 pcs/corrugated box. Further plural sheets of corrugated cardboard are placed on the top of the dummy tray according to number of contained trays in order to full up the space in a corrugated box. 11.3 Packaging Form Trays with products are lidded and packed in a corrugated box. (See Fig.2) Dummy tray Tray Containning products Corrugated cardboard (310) Lebel (68) 0) (21 Corrugated box Dimension [unite : mm]of Corrugated box is reference only. Fig.2 Marking on the box 1. MURATA Parts Number 2. Quantity 3. Inspection No. 4. CE Mark Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 25 12. Production factory Komatsu Murata Mfg.Co.,Ltd. Wakura Murata Mfg. Co., Ltd. Kanazu Murata Mfg.Co.,Ltd. ! . Caution 1 . Be sure to provide an appropriate fail-safe function on your product to prevent secondary damage that may be caused by the functional trouble or the failure of this product. 2 . Please contact us before using this product for the applications listed below which require especially high reliability for the prevention of defects and failure , which might directly cause damage to the third party’s life, body or property. ①Aircraft equipment ②Aerospace equipment ③Undersea equipment ④Power plant control equipment ⑤Medical equipment ⑥Transportation equipment (vehicles, trains, ships, etc.) ⑦Traffic signal equipment ⑧Disaster prevention /crime prevention equipment ⑨Any other application of similar complexity and/or reliability requirements to the applications listed above. ! Notice 1 . Please make sure that the evaluation and testing are completed with this product actually assembled on your product. 2 . All the items and parameters in this product specification have been prescribed on the premise that our product is used for the purpose, under the condition and in the environment mutually agreed upon. Please do not to use this product deviating from such agreement. 3 . We consider it not appropriate to include other terms and conditions for transaction warranty in product specifications, drawings or other technical documents. Therefore, if your technical documents include such terms and conditions as warranty clause, product liability clause, or intellectual property infringement liability clause, we will not be able to accept such terms and conditions unless they are based on the governmental regulation or they are stated in a separate contract agreement. 4 . Please return one duplicate of this product specification to us with your receipt signature. If the duplicates are not returned by Oct.28.2005, this product specification will be deemed to have been received by you. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 26 13. Notice 13. 1 Soldering 13.1. 1 Flux Please solder this product with Rosin Flux, which contains of 0.2wt%. or less chlorine. Please do not use high activity acid flux or water soluble flux because they may erode metal or glass portion of this product and may cause defectiveness or deterioration of this product. 13.1. 2 Solder Please use the solder H60, H63(JIS Z3282)or the equivalent type. Please use the solder paste of equivalent type H60, H63. 13.1. 3 Recommended Soldering Conditions Re-flow Solder Reflow Soldering Profiles JEDEC IPC/JEDEC J-STD-020D Table 5-2 Classification Reflow Profiles Pb-Free Assembly Large Body Profile details Soldering temperature Soldering time Heating time Preheating time Programming rate Descending rate Total soldering time Time ※ ：245 ºC +0/-5 ：30 seconds,240∼245 ºC ：60∼150 seconds,217 ºC or more. ：60∼120seconds,150∼200 ºC ：3 ºC /sec.Max.,217∼245 ºC ：6 ºC /sec.Max. ：8 minutes Max.,25∼245 ºC ：Max 2 times. The solder used to this product is melted in reflow process. Therefore do not add excessive vibration and strong air below to this product during reflow. Please take out the products from a reflow furnace after the product temperature is cooled down thoroughly. When this product is mounted on backside of a motherboard like the below figure, the measurement except soldering should be taken with dipping thermal setting resin around NCo pins and a metal core cover to prevent this product from dropping. Mother board Isolated DC-DC Converter 13. 2 Cleaning 13. 2. 1 Please clean this product to remove flux by using dip, boil, and vapor methods in isopropyl alcohol for up to 5 minutes. Please inform us if you are to use aqueous or semi –aqueous cleaning or other methods. Do not use ultrasonic cleaning because semiconductor device on this product maybe damaged by resonance. 13. 2. 2 After cleaning, please dry this product thoroughly. If you touch the wet product, marking maybe erased or blurred. Do not measure electrical characteristics, until this product gets dried enough. 13. 2. 3 If you don’t clean this product with no-cleaning type flux, you must confirm fully in advance the reliability of this product. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7 MPD7D05*S Specification 27 13. 3 Storage 13. 3. 1 Please store the products in room where the temperature/humidity is stable and direct sunlight cannot come in, and use the products within 6 months after delivery. Please avoid damp and heat or such places where the temperature greatly changes, as water may condense on this product, and the quality of characteristics may be reduced, and/or be the solderability may be degraded. If this product needs to be stored for a long time (more than 1 year), this product may be degraded in solderability and/or corroded. Please test the solderability of this product regularly. Baking before reflow process is unnecessary to store the products under 30℃,60%RH or less up to 6 months. If the storage condition is over above mentioned, recommend a baking at 100±5℃,24 hours before reflow process. 13. 3. 2 Please do not store this product in the conditions such as a dusty place, a place exposed directly to sea breeze, or in an atmosphere containing corrosive gas (Cl2, NH3, SO2, NOX and so on). 13. 4 Operational Environment and Operational Conditions 13. 4. 1 Operational Environment This product is not water-, chemical- or corrosion-proof. In order to prevent leakage of electricity and abnormal temperature rise of this product, do not use this product in the following conditions: (1) in an atmosphere containing corrosive gas (Cl2, NH3, SO2, NOX and so on) (2) in a dusty place (3) in a place exposed to direct sunlight (4) in such a place where water splashes or in such a humid place where water condenses (5) in a place exposed to sea breeze (6) in any other places similar to the above 13. 4. 2 Operational Conditions Please use this product within specified values (power supply, temperature, input, output, load condition, and so on). If not used within the specified values, defectiveness and deterioration of this product may be caused. Even if this product can endure the condition for short time, it may cause degradation of reliability. It is recommended that a fuse is inserted in input line (Vin) to secure safety in any abnormality such as internal circuit of Isolated DC-DC Converter broken down. Also please take care that the external voltage over output voltage of DC-DC Converter does not applies to output of this Isolated DC-DC Converter. 13. 4. 3 Note prior to use Defectiveness and reliability degradation may be caused if high static electricity, over rated voltage or reverse voltage are applied to this product. Please be sure to avoid the followings: (1) over rating power supply, reverse power supply or inadequate connection of 0 V(DC)line (2) electrostatic discharge from production line and/or operator (3) electrified product from electrostatic induction Please avoid an excessive mechanical shock. If this product is dropped on the floor, etc., a crack to the core of inductors and monolithic ceramic capacitors may occur. Please handle with care to avoid a strong shock to this product. Do not give excessive mechanical stress to the product with your handling. Please control to bend in a maximum of 0.2mm in your application. 13. 5 Transportation When transporting this product, please pack it in order to avoid damage by mechanical vibration or mechanical shock, and please give instructions and set guidelines to the carriers to prevent rough handling. When transporting this product overseas (in particular, by sea), bad environment of transportation may be expected, therefore please pack this product considering mechanical strength, vibration-resistance and humidity-resistance. The packaging designed for domestic sales may not suitable for overseas transportation. Please contact us if this product with domestic packing is transported overseas. Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2010.5.7
