MPDTH04040WAH

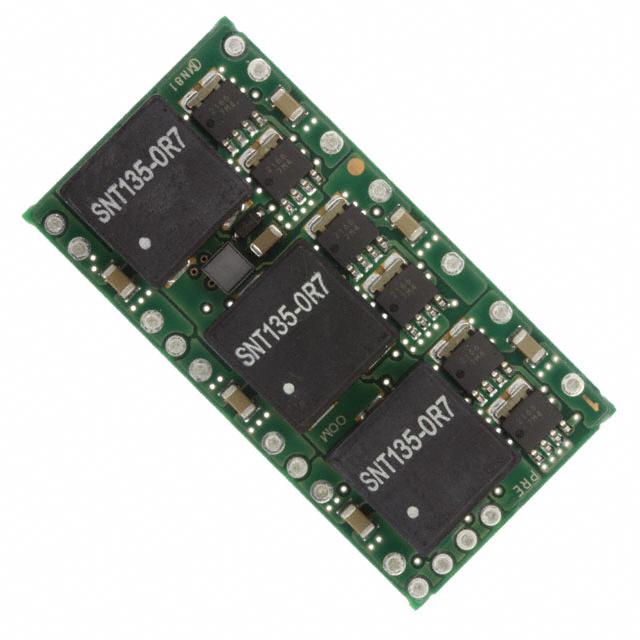

MPDTH**04WAS/WAH Short Form 1 DC-DC Converter Short Form MPDTH**040WAS/WAH (50A/60A output POL-Alliance product) Features ・Point-of-Load Alliance product ・Up to 50A/60A output current ・Wide-Output Voltage Adjust (0.8-2.5V or 0.8-5.5V) ・High efficiency up to 93% or 95% TYP (@5Vin 2.5V/45Aout) or (@12Vin 3.3V/35Aout ) ・Wide Operating Temp - 40 ºC to + 85 ºC ・Open frame TH or SMT termination ・Auto-Track TM Sequencing ・Margin Up/Down Controls ・Pre-Biased start-up ・Output Over-Current Protection ・Output Voltage Sense ・ON/OFF Inhibit ・Under-Voltage Lockout ・Safety Agency Approvals: UL/cUL 60950,EN60950,VDE Ordering Information 0 Input Voltage Output Voltage 2.95V to 4.5V 4.5V to 5.5V 8V to 14V 0.8V to 1.65V 0.8V to 2.5V 0.8V to 5.5V OPTIONS: Output Current Model Number 60A 60A 50A “WAS” -- SMT termination, MPDTH04040WA(S)/(H) MPDTH04040WA(S)/(H) MPDTH12040WA(S)/(H) “WAH” – TH termination Dimensions 51.94 47.62 1.52 3.17 6 Places 9.52 1.52 17 16 12 11 10 15 14 13 18 9.52 9.52 9.40 MAX. 9 Solder Ball φ 1.02 20 Places 8 19 3.17 3 Places 20 23.49 26.54 1 2 4 3 9.52 5 7 3.17 9.52 6.35 2 Places 6 SIDE VIEW 9.52 TOP VIEW SMT outline [in (mm)] 51.94 47.62 1.52 3.17 6 Places 3.55 9.52 1.52 17 3.17 3 Places 23.49 18 16 9.52 9.52 15 14 13 φ 1.02 20 Places 12 11 10 9 8 19 20 26.54 1 2 9.52 3 4 5 6 7 Host Board 3.17 9.52 6.35 2 Places TOP VIEW 9.52 Pin No. Signal 1. GND 2. Vin 3. GND 4. Vin 5. GND 6. Vin 7. Inhibit 8. UVLOprog 9. Vout 10. GND Down Pin No. Signal 11. +Sense 12. Vout 13. GND 14. -Sense 15. Vout 16. GND 17. VoAdjust 18. Track 19. Margin Up 20. Margin 9.07 MAX. SIDE VIEW TH outline [in (mm)] 2012.1.7 MPDTH**04WAS/WAH Short Form 2 Standard Application Track Margin Margin Down Up 330uF 19 2,4,6 20 680uF 11 UVLO + 330uF 9,12,15 18 8 MPDTH**040 Vin + RL 17 7 1,3,5 Open =ON + 14 10,13 R1 16 Short =OFF Output Voltage Adjustment R1  10k  0.8V - 2.49k Vout - 0.8V : MPDTH04040 R1  10k  0.8V -1.696k Vout - 0.8V : MPDTH12040 （Ta=25℃） General Specifications Item Input voltage Output voltage Symbol Condition Vin Vout Vin=2.95Vto 4.5V Parts Number Min. Typ. Max. Unit MPDTH04040 2.95 － 5.5 V MPDTH12040 8.0 12.0 14.0 MPDTH04040 0.8 － 1.65 0.8 － 2.5 0.8 － 5.5 Vin=4.5Vto 5.5V Vin=8.0Vto14.0V MPDTH12040 V Total output variation Regtot Rset 1% tolerance, ±100ppm/℃ － － ±3 %Vo Output current Iout MPDTH04040 0 － 60 A MPDTH12040 0 － 50 Vin=5.0V, Vout=2.5V,Iout=60A － 15 － Vin=12.0V, Vout=3.3V,Iout=50A － 15 － Vin=5.0V,Vout=2.5V,Iout=45A － 93 － Vin=12.0V,Vout=3.3V, Iout=35A － 95 － Ripple voltage Efficiency Vrip Eff mVp-p % 2012.1.7 MPDTH**04WAS/WAH Short Form 3 Thermal Derating MPDTH04040W Safe Operating Area (Vin=3.3V,Vout=1.5V) MPDTH12040W Safe Operating Area (Vin=12V,Vout=1.2V) 90 90 80 80 70 400LFM Ta - °C 400LFM 200LFM 50 Nat conv 60 200LFM 100LFM 50 Nat conv 40 40 30 30 20 20 0 10 20 30 40 50 60 0 10 20 Iout - Amps 30 40 50 Iout - Amps Conversion Efficiency MPDTH12040W Efficiency (Vin=12V) Efficiency - % Ta - °C 70 60 100 95 90 85 80 75 70 65 60 55 50 45 40 0.8V 1.2V 1.8V 2.5V 3.3V 5.0V 0 5 10 15 20 25 30 35 40 45 50 Iout - Amps 2012.1.7
