Contents
Product specifications are as of February 2020.
Part Numbering
Basic Characteristics of NTC Thermistor
Basic Characteristics of POSISTOR
Mar.6,2020
p2
p7
p8
1 NTC Thermistor Chip Type 0402 (1005) Size
(Meet AEC-Q200 rev.D)
p9
2 NTC Thermistor Chip Type 0603 (1608) Size
(Meet AEC-Q200 rev.D)
p10
3 NTC Thermistor Chip Type 0603 (1608) Size
for Conductive Glue
p11
NTC Thermistors Chip Type
Standard Land Pattern Dimensions
Temperature Characteristics (Center Value)
Specifications and Test Methods
!Caution/Notice
p12
p13
p15
p18
4 NTC Thermistor Thermo String Cooper Wire Type
for Temperature Sensor
NTC Thermistor Thermo String Nickel Copper Wire Type
for Temperature Sensor
Temperature Characteristics (Center Value)
Specifications and Test Methods
!Caution/Notice
p22
p23
p24
p25
p27
5 NTC Thermistors Temperature Sensor
Lead Type
Specifications and Test Methods
p28
p29
6 NTC Thermistors Temperature Sensor
Lead Insulation Type
Specifications and Test Methods
p30
p31
NTC Thermistors Temperature Sensor Lead/
Lead Insulation Type
Temperature Characteristics (Center Value)
!Caution/Notice
p32
p33
NTC Thermistors Chip Type/Thermo String/
Lead Type Package
p35
7 PTC Thermistor (POSISTOR) for Overheat Sensing
Chip Type 0603 (1608) Size (Meet AEC-Q200 rev.D)
Specifications and Test Methods
p38
p43
8 PTC Thermistor (POSISTOR) for Overcurrent Protection
Chip Type 0603 (1608) Size (Meet AEC-Q200 rev.D)
Specifications and Test Methods
p45
p48
9 PTC Thermistor (POSISTOR) for Overcurrent Protection
Chip Type 0805 (2012) Size (Meet AEC-Q200 rev.D)
Specifications and Test Methods
p50
p54
POSISTOR Chip Type !Caution/Notice
p58
10 PTC Thermistor (POSISTOR)
for Overcurrent Protection Lead Type
Specifications and Test Methods
!Caution/Notice
p67
p77
p80
POSISTOR Chip Type Package
POSISTOR Lead Type Package
p81
p82
Please check the MURATA website (https://www.murata.com/)
if you cannot find a part number in this catalog.
1
2
3
4
5
6
7
8
9
10
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
o Part Numbering
NTC Thermistors for Temperature Compensation Chip Type
(Part Number)
0S
RB
6 7
8
NC
P 18 XH 103 J
1
2 3
4
5
1Product ID
5Resistance
Expressed by three figures. The unit is ohm (Ω). The first and
second figures are significant digits, and the third figure expresses
the number of zeros that follow the two figures.
Product ID
NC
NTC Thermistors Chip Type
2Series
Ex.)
Code
Resistance
Code
Series
102
1kΩ
G
Conductive Glue Series
103
10kΩ
P
Plated Termination Series
104
100kΩ
U
High Reliability Series
6Resistance Tolerance
3Dimensions (L x W)
Code
Resistance Tolerance
Code
Dimensions (L x W)
EIA
D
±0.5%
15
1.00 x 0.50mm
0402
E
±3%
18
1.60 x 0.80mm
0603
F
±1%
J
±5%
4Temperature Characteristics
2
Code
Temperature Characteristics
7Individual Specifications
WB
Nominal B-Constant 4050–4099K
WD
Nominal B-Constant 4150–4199K
Code
Individual Specifications
WF
Nominal B-Constant 4250–4299K
pS
for Automotive
WL
Nominal B-Constant 4450–4499K
WM
Nominal B-Constant 4500–4549K
XC
Nominal B-Constant 3100–3149K
Code
XF
Nominal B-Constant 3250–3299K
RB
Paper Taping 4mm Pitch (4000 pcs.)
XH
Nominal B-Constant 3350–3399K
RC
Paper Taping 2mm Pitch (10000 pcs.)
XM
Nominal B-Constant 3500–3549K
XQ
Nominal B-Constant 3650–3699K
XV
Nominal B-Constant 3900–3949K
XW
Nominal B-Constant 3950–3999K
Structures and others are expressed by two figures.
8Packaging
Packaging
R03E.pdf
Mar.6,2020
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
NTC Thermistor for Temperature Sensor Thermo String Type
(Part Number)
NXF
S
15
XH
103
1
2
3
4
5
F
A
2
1Product ID
025
:
7Lead Wire Type
Product ID
NXF
B
6 7 8 9
NTC Thermistors Sensor Thermo String Type
Code
Lead Wire Type
A
ø0.3mm Copper Lead Wire with Polyurethane Coat
E
ø0.3mm Nickel Copper Lead Wire with Modified Polyester Coat
2Individual Specifications
Code
Individual Specifications
S
for Automotive
8Shape of the Lead Wire Kink
Shape of the Lead Wire Kink
Code
3Chip Dimensions
Code
Dimensions (L x T)
EIA
15
1.00 x 0.50mm
0402
1
The Twist of Lead Wire Type
2
Standard Type (Cooper Wire Type)
A
Standard Type (Nickel Copper Wire Type)
9Packaging
4Temperature Characteristics
Code
Temperature Characteristics
WB
Nominal B-Constant 4050–4099K
WF
Nominal B-Constant 4250–4299K
Code
Packaging
B
Bulk
:Dimensions (Full Length)
XH
Nominal B-Constant 3350–3399K
Code
Dimensions (Full Length)
XM
Nominal B-Constant 3500–3549K
021
21mm
XV
Nominal B-Constant 3900–3949K
025
25mm
030
30mm
5Resistance
035
35mm
Expressed by three figures. The unit is (Ω). The first and second
figures are significant digits, and the third figure expresses the
number of zeros that follow the two figures.
040
40mm
045
45mm
050
50mm
060
60mm
070
70mm
080
80mm
Ex.
Code
Resistance
103
10kΩ
473
47kΩ
104
100kΩ
6Resistance Tolerance
Code
Resistance Tolerance
F
±1%
E
±3%
090
90mm
100
100mm
110
110mm
120
120mm
130
130mm
140
140mm
150
150mm
3
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistor for Temperature Sensor/Lead Type
(Part Number)
NXR
S
15
XH
103
1
2
3
4
5
F
A
1Product ID
B
040
:
7Lead Wire Type
Product ID
NXR
1
6 7 8 9
NTC Thermistor Sensor/Lead Type
Code
Lead Wire Type
A
Lead Type: ø0.4mm Copper-clad Fe Wire, Tinned
Lead Insulation Type: ø0.46mm Cu Wire with Coat
2Individual Specifications
Code
Individual Specifications
S
Automotive Type
3Chip Dimensions
Code
Dimensions (L x T)
15
1.00 x 0.50mm
8Shape of the Lead Wire
Code
Shape of the Lead Wire
1
Lead Spacing 2.5mm
3
Lead Spacing 5.0mm
5
Lead Spacing 2.5mm (Insulation Type)
9Packaging
4Temperature Characteristics
Code
Packaging
Code
Temperature Characteristics
A
Ammo Pack Taping
XH
Nominal B-Constant 3350–3399K
B
Bulk
XM
Nominal B-Constant 3500–3549K
XV
Nominal B-Constant 3900–3949K
WB
Nominal B-Constant 4050–4099K
Code
Lead Type
Lead Insulation Type
WF
Nominal B-Constant 4250–4299K
010
10mm
–
020
20mm
–
5Resistance
025
–
25mm
Expressed by three figures. The unit is (Ω). The first and second
figures are significant digits, and the third figure expresses the
number of zeros that follow the two figures.
030
30mm
30mm
035
–
35mm
040
40mm
40mm
045
–
45mm
050
50mm
50mm
016
16mm (Taping Type)
–
Ex.
Code
Resistance
202
2.0kΩ
103
10kΩ
104
100kΩ
6Resistance Tolerance
4
Code
Resistance Tolerance
F
±1%
E
±3%
J
±5%
:Dimensions (Full Length)
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
PTC Thermistors (POSISTOR) for Overheat Sensing Chip Type
(Part Number)
PR
F
1
2 3
18
BB 471 Q
S5
RB
4
7
8
5
6
1Product ID
5Resistance
Expressed by three figures. The unit is ohm (Ω). The first and
second figures are significant digits, and the third figure expresses
the number of zeros that follow the two figures.
Product ID
PR
PTC Thermistors Chip Type
2Series
Ex.)
Code
Series
F
for Overheat Sensing
Code
Resistance
471
470Ω
6Resistance Tolerance
3Dimensions (L x W)
Code
Resistance Tolerance
Sensing Temp. Tolerance
Code
Dimensions (L x W)
Q
Special Tolerance
±5°C
18
1.60 x 0.80mm
R
Special Tolerance
±3°C
4Temperature Characteristics
7Individual Specifications
Code
Temperature Characteristics-Curie Point
Code
Individual Specifications
AS
130°C
S5
for Automotive
AR
120°C
BA
110°C
8Packaging
BB
100°C
Code
Packaging
BC
90°C
RB
Paper Taping (4mm Pitch) (4000 pcs.)
BD
80°C
BE
70°C
BF
60°C
BG
50°C
PTC Thermistors (POSISTOR) for Overcurrent Protection Chip Type
(Part Number)
PR
G 21 AR 420 M
S1
RA
1
2 3
7
8
4
5
6
1Product ID
5Resistance
Product ID
PR
PTC Thermistors Chip Type
2Series
Code
Series
G
for Overcurrent Protection
Expressed by three-digit alphanumerics. The unit is ohm (Ω). The
first and second figures are significant digits, and the third figure
expresses the number of zeros that follow the two figures. If there
is a decimal point, it is expressed by the capital letter "R." In this
case, all figures are significant digits.
Ex.)
Code
Resistance
4R7
4.7Ω
420
42Ω
3Dimensions (L x W)
6Resistance Tolerance
Code
Dimensions (L x W)
18
1.60 x 0.80mm
Code
21
2.00 x 1.25mm
M
±20%
Q
Special Tolerance
Resistance Tolerance
4Temperature Characteristics
Code
Temperature Characteristics
AR
Curie Point 120°C
BB
Curie Point 100°C
BC
Curie Point 90°C
7Individual Specifications
Ex.)
Code
Individual Specifications
Sp
for Automotive
8Packaging
Code
Packaging
RA
Embossed Taping (4mm Pitch) (4000 pcs.)
RB
Paper Taping (4mm Pitch) (4000 pcs.)
RK
Embossed Taping (4mm Pitch) (3000 pcs.)
5
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
PTC Thermistors (POSISTOR) for Overcurrent Protection Lead Type
(Part Number)
PT
GL
4 S
AS
220
K
1
2
3 4
5
6
7
4B51 B0
8
9
6Resistance
1Product ID
Product ID
PT
PTC Thermistors
2Series
Code
Series
GL
for Overcurrent Protection Lead Type
Expressed by three-digit alphanumeric. The unit is ohm (Ω). The
first and second figures are significant digits, and the third figure
expresses the number of zeros that follow the two figures. If there
is a decimal point, it is expressed by the capital letter "R." In this
case, all figures are significant digits.
Ex.)
Code
Resistance
R22
0.22Ω
2R2
2.2Ω
220
22Ω
3Dimensions
Code
Dimensions
4
Nominal Body Diameter 4mm Series
5
Nominal Body Diameter 5mm Series
Code
Resistance Tolerance
6
Nominal Body Diameter 6mm Series
K
±10%
7
Nominal Body Diameter 7mm Series
M
±20%
9
Nominal Body Diameter 9mm Series
A
Nominal Body Diameter 10mm Series
8Individual Specifications
C
Nominal Body Diameter 12mm Series
Ex.)
E
Nominal Body Diameter 14mm Series
Code
Individual Specifications
4B51
Lead Type, others
9Packaging
4Individual Specifications
Code
Individual Specifications
Code
Packaging
S
for Automotive
A0
Ammo Pack
B0
Bulk
5Temperature Characteristics
6
7Resistance Tolerance
Code
Temperature Characteristics
AS
Curie Point 130°C
AR
Curie Point 120°C
R03E.pdf
Mar.6,2020
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
Basic Characteristics of NTC Thermistor
Basic Characteristics
1. Zero-power Resistance of Thermistor: R
Resistance vs. Temperature
102
Resistance vs. Temperature Characteristics, R/R25
Measured by zero-power in specified ambient
temperatures.
R=R0 expB (1/T-1/T0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (1)
R: Resistance in ambient temperature T (K)
(K: absolute temperature)
R0: Resistance in ambient temperature T0 (K)
B: B-constant of Thermistor
2. B-Constant
as (1) formula
B= n (R/R0) / (1/T-1/T0)
3. Thermal Dissipation Constant
When electric power P (mW) is spent in ambient
temperature T1 and thermistor temperature rises T2, the
formula is as follows;
P=C (T2-T1)
C: Thermal dissipation constant (mW/°C)
Thermal dissipation constant varies with dimensions,
measurement conditions, etc.
4. Thermal Time Constant
Period in which Thermistor's temperature will change
63.2% of its temperature difference from ambient
temperature T0 (°C) to T1 (°C).
101
1
10-1
B=3450
B=3900
B=4100
10-2
-20
0
20 40 60 80 100 120
Temperature (°C)
Thermal Time Constant
T1
5. Maximum Operating Current
It is possible to keep Thermistor's temperature rising max.
0.1˚C.
Temperature
X
63.2%
T0
Time
7
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
Basic
Basic Characteristics
Characteristics of
of POSISTOR
POSISTOR
Basic Characteristics
Although there is a negligible difference between the
normal and "Curie Point" temperature, POSISTOR
shows almost constant resistance-temperature
characteristics. Yet they have resistance-temperature
characteristics that cause resistance to sharply increase
when the temperature exceeds the Curie Point.
The Curie Point (C.P.) is defined as the temperature at
which the resistance value is twice the one at 25 °C.
Resistance-Temperature Characteristic
5
10
Resistance Change Ratio, R/R25
POSISTOR has three main characteristics.
1. Resistance-Temperature Characteristics
BD BC BB AR
4
10
3
10
2
10
10
1
0
This shows the relation between applied voltage when
voltage applied to POSISTOR causes balancing of inner
heating and outer thermal dissipation and stabilized
current. This has both a maximum point of current and
constant output power.
100
150
C.P. (AR: 120°C)
Temperature (°C)
200
Current-Voltage Characteristics (Static Characteristics)
3
10
Ta=25°C
Current (mA)
2. Current-Voltage Characteristics (Static Characteristics)
50
2
10
10
1
0.1
1
10
2
10
Voltage (V)
3. Current-Time Characteristics (Dynamic Characteristics)
Current-Time Characteristics (Dynamic Characteristics)
1.5
Current (A)
This shows the relation between current and time before
inner heating and outer thermal dissipation arrive at
equilibrium state. This features having large initial current
and abruptly continuous attenuating portion.
Ta=25°C
1.0
0.5
Time (sec.)
8
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020

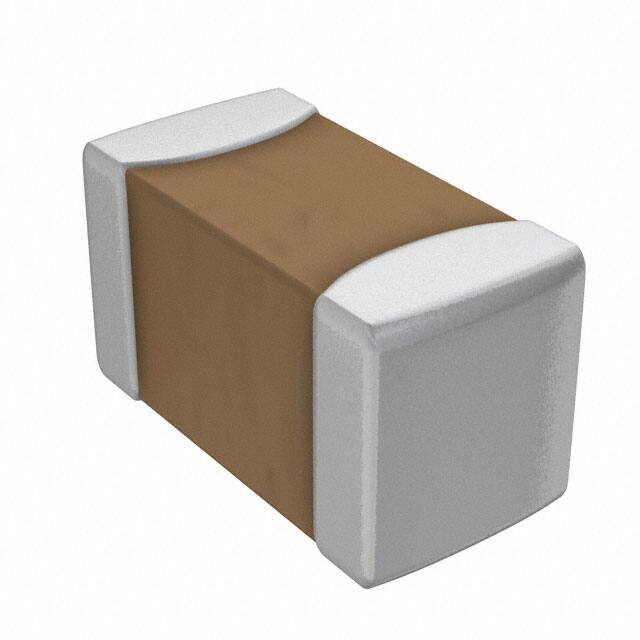

NTC Thermistors for Automotive
1
Chip Type 0402 (1005) Size (Meet AEC-Q200 rev.D)
0.5±0.05
Chip NTC Thermistors have Ni barrier termination,
provide excellent solderability and offer high
stability in environment due to unique inner
construction.
Available Market is Automotive market where request
the high reliability.
0.25±0.10
0.25±0.10
0.5±0.05
1.0±0.05
Features
1. Excellent solderability and high stability in
environment
2. Excellent long time aging stability
3. High accuracy in resistance and B-constant
4. Reflow soldering possible
5. Lead is not contained in the product
6. NCU series are recognized by UL/cUL.
(UL1434, File No.E137188)
Electrode
(Cu System + Ni Plating + Sn Plating)
(in mm)
Detailed are accessable from the following URL.
https://www.murata.com/en-global/products/thermistor/ntc/ncu
Applications
1. Car audio, car navigation
2. Various engine control units
3. Circuits for ETC equipment
4. Various motor driving circuits
5. Temperature compensation for various circuits
Part Number
NCU15XH103D6SRC
Resistance
(25°C)
(ohm)
B-Constant
B-Constant
B-Constant
B-Constant
Maximum Operating Maximum Typical Dissipation
(25-50°C)
(25-80°C)
(25-85°C)
(25-100°C)
Current (25°C)
Voltage Constant (25°C)
(K)
(Reference Value) (K) (Reference Value) (K) (Reference Value) (K)
(mA)
(V)
(mW/°C)
10k ±0.5% 3380 ±0.7%
3428
3434
3455
0.100
5
1
NCU15XH103F6SRC
10k ±1%
3380 ±1%
3428
3434
3455
0.100
5
1
NCU15XH103p6SRC
10k
3380 ±1%
3428
3434
3455
0.100
5
1
1
NCU15WB473D6SRC
4101
4108
4131
0.046
5
NCU15WB473F6SRC
47k ±0.5% 4050 ±0.5%
47k ±1%
4050 ±1%
4101
4108
4131
0.046
5
1
NCU15WB473p6SRC
47k
4050 ±1%
4101
4108
4131
0.046
5
1
1
NCU15WF104D6SRC 100k ±0.5% 4250 ±0.5%
4303
4311
4334
0.032
5
NCU15WF104F6SRC
100k ±1%
4250 ±1%
4303
4311
4334
0.032
5
1
NCU15WF104p6SRC
100k
4250 ±1%
4303
4311
4334
0.032
5
1
A blank column is filled with resistance tolerance codes (E: ±3%, J: ±5%).
Operating Temperature Range: -40°C to +150°C
If there is any additionally electrical characteristics, please contact from close sales office or website.
9
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors for Automotive
Chip Type 0603 (1608) Size (Meet AEC-Q200 rev.D)
0.8±0.15
Chip NTC Thermistors have Ni barrier termination,
provide excellent solderability and offer high
stability in environment due to unique inner
construction.
Available Market is Automotive market where request
the high reliability.
0.2-0.6
0.2-0.6
1.6±0.15
0.8±0.15
2
Features
1. Excellent solderability and high stability in
environment
2. Excellent long time aging stability
3. High accuracy in resistance and B-constant
4. Flow/Reflow soldering possible
5. Lead is not contained in the product
6. NCU series are recognized by UL/cUL.
(UL1434, File No.E137188)
Electrode
(Cu System + Ni Plating + Sn Plating)
(in mm)
Detailed are accessable from the following URL.
https://www.murata.com/en-global/products/thermistor/ntc/ncu
Applications
1. Car audio, car navigation
2. Various engine control units
3. Circuits for ETC equipment
4. Various motor driving circuits
5. Temperature compensation for various circuits
Part Number
NCU18XH103D6SRB
Resistance
(25°C)
(ohm)
B-Constant
B-Constant
B-Constant
B-Constant
Maximum Operating Maximum Typical Dissipation
(25-50°C)
(25-80°C)
(25-85°C)
(25-100°C)
Current (25°C)
Voltage Constant (25°C)
(K)
(Reference Value) (K) (Reference Value) (K) (Reference Value) (K)
(mA)
(V)
(mW/°C)
10k ±0.5% 3380 ±0.7%
3428
3434
0.100
5
1
NCU18XH103F6SRB
10k ±1%
3380 ±1%
3428
3434
3455
0.100
5
1
NCU18XH103p6SRB
10k
3380 ±1%
3428
3434
3455
0.100
5
1
1
NCU18WB473D6SRB
4101
4108
4131
0.046
5
NCU18WB473F6SRB
47k ±0.5% 4050 ±0.5%
47k ±1%
4050 ±1%
4101
4108
4131
0.046
5
1
NCU18WB473p6SRB
47k
4050 ±1%
4101
4108
4131
0.046
5
1
1
NCU18WF104D6SRB 100k ±0.5% 4250 ±0.5%
4303
4311
4334
0.032
5
NCU18WF104F6SRB
100k ±1%
4250 ±1%
4303
4311
4334
0.032
5
1
NCU18WF104p6SRB
100k
4250 ±2%
4303
4311
4334
0.032
5
1
NCU18WM154p6SRB
150k
4500 ± 3%
4571
4582
4614
0.026
5
1
NCU18WM224p6SRB
220k
4500 ± 3%
4571
4582
4614
0.021
5
1
NCU18WM474p6SRB
470k
4500 ± 3%
4571
4582
4614
0.015
5
1
A blank column is filled with resistance tolerance codes (E: ±3%, J: ±5%).
Operating Temperature Range: -40°C to +150°C
If there is any additionally electrical characteristics, please contact from close sales office or website.
10
3455
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors for Automotive
Chip Type 0603 (1608) Size for Conductive Glue
1.6±0.15
0.025±0.015
Features
0.025±0.015
0.8±0.15
NCG18, 0603 sized Chip NTC Thermistor enables
conductive glue mounting.
1. Excellent solderability and high stability in
environment
2. Excellent long time aging stability
3. High accuracy in resistance and B-constant
4. Glue mounting possible
5. Lead is not contained in the product
0.2 to 0.6
0.2 to 0.6
Ag /Pd System
Thermistor
3
0.8±0.15
0.025±0.015
0.025±0.015
(in mm)
Applications
Detailed are accessable from the following URL.
https://www.murata.com/en-global/products/thermistor/ntc
1. Various engine control units
2. ABS control unit
3. High power devices (IGBT)
4. Various circuits requiring low temperature
mounting below solder melting point.
5. Temperature compensation for various circuits
requiring high temperature.
Part Number
NCG18XH103F0SRB
Resistance B-Constant
B-Constant
B-Constant
B-Constant
Maximum Operating Maximum Typical Dissipation
(25°C)
(25-50°C)
(25-80°C)
(25-85°C)
(25-100°C)
Current (25°C)
Voltage
Constant (25°C)
(ohm)
(K)
(Reference Value) (K) (Reference Value) (K) (Reference Value) (K)
(mA)
(V)
(mW/°C)
3380 ±1%
3428
3434
3455
0.100
5
1
NCG18WF104F0SRB 100k ±1% 4200 ±1%
10k ±1%
4255
4260
4282
0.032
5
1
Operating Temperature Range: -55°C to +150°C
11
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
NTC Thermistors Chip Type Standard Land Pattern Dimensions
c
Chip
b
Part Number
NCU15
NCU18
NCG18
12
Solder Resist
Land
a
(in mm)
Dimensions (mm)
Mounting
Methods
Chip (L x W)
Reflow Soldering
1.0 x 0.5
Flow Soldering
Reflow Soldering
Conductive Glue
1.6 x 0.8
1.6 x 0.8
a
b
c
0.6
0.4-0.5
0.5
0.6-1.2 0.8-0.9 0.6-0.8
0.6-1.2 0.6-0.7 0.6-0.8
0.6
0.6
1.0
R03E.pdf
Mar.6,2020
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors Chip Type Temperature Characteristics (Center Value)
Part Number NCUppXH103D NCUppXH103 NCUppWB473D NCUppWB473 NCUppWF104D NCUppWF104 NCUppWM154 NCUppWM224
Resistance
10kΩ±0.5%
10kΩ
47kΩ±0.5%
47kΩ
100kΩ±0.5%
100ΩW
150kΩ
220kΩ
B-Constant
3380K±0.7%
3380K
4050K±0.5%
4050K
4250K±0.5%
4250K
4500K
4500K
Temp. (°C) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ)
–40
197.390
195.652
1690.586
1747.920
4221.283
4397.119
7899.466
11585.884
–35
149.390
148.171
1215.318
1245.428
2995.044
3088.599
5466.118
8016.973
–30
114.340
113.347
882.908
898.485
2146.996
2197.225
3834.499
5623.931
–25
88.381
87.559
647.911
655.802
1554.599
1581.881
2720.523
3990.100
–20
68.915
68.237
480.069
483.954
1136.690
1151.037
1951.216
2861.784
–15
54.166
53.650
359.009
360.850
839.019
846.579
1415.565
2076.162
–10
42.889
42.506
270.868
271.697
624.987
628.988
1036.984
1520.909
469.678
471.632
–5
34.196
33.892
206.113
206.463
767.079
1125.049
0
27.445
27.219
158.126
158.214
355.975
357.012
572.667
839.912
5
22.165
22.021
122.267
122.259
272.011
272.500
431.264
632.521
10
18.010
17.926
95.256
95.227
209.489
209.710
327.405
480.194
15
14.720
14.674
74.754
74.730
162.559
162.651
250.538
367.455
20
12.099
12.081
59.075
59.065
127.057
127.080
193.166
283.310
25
10.000
10.000
47.000
47.000
100.000
100.000
150.000
220.000
30
8.309
8.315
37.636
37.643
79.222
79.222
117.281
172.012
35
6.939
6.948
30.326
30.334
63.167
63.167
92.293
135.364
40
5.824
5.834
24.583
24.591
50.677
50.677
73.090
107.198
45
4.911
4.917
20.043
20.048
40.904
40.904
58.240
85.419
50
4.160
4.161
16.433
16.433
33.195
33.195
46.665
68.441
55
3.539
3.535
13.545
13.539
27.091
27.091
37.605
55.153
60
3.024
3.014
11.223
11.209
22.224
22.224
30.453
44.665
65
2.593
2.586
9.345
9.328
18.323
18.323
24.804
36.379
70
2.233
2.228
7.818
7.798
15.184
15.184
20.293
29.763
12.635
75
1.929
1.925
6.571
6.544
12.635
16.679
24.462
80
1.673
1.669
5.548
5.518
10.566
10.566
13.776
20.205
85
1.455
1.452
4.704
4.674
8.873
8.873
11.428
16.761
90
1.270
1.268
4.004
3.972
7.481
7.481
9.520
13.962
95
1.112
1.110
3.422
3.388
6.337
6.337
7.966
11.684
2.902
5.384
5.384
100
0.976
0.974
2.936
6.688
9.809
105
0.860
0.858
2.528
2.494
4.594
4.594
5.639
8.270
110
0.759
0.758
2.184
2.150
3.934
3.934
4.772
6.998
115
0.673
0.672
1.893
1.860
3.380
3.380
4.052
5.942
120
0.598
0.596
1.646
1.615
2.916
2.916
3.454
5.067
125
0.532
0.531
1.436
1.406
2.522
2.522
2.955
4.334
130
0.476
0.474
1.256
1.227
2.190
2.190
2.536
3.719
135
0.426
0.424
1.102
1.075
1.907
1.907
2.182
3.200
140
0.383
0.381
0.969
0.945
1.665
1.665
1.884
2.763
145
0.344
0.342
0.854
0.831
1.459
1.459
1.632
2.394
150
0.311
0.309
0.755
0.735
1.282
1.282
1.418
2.079
Continued on the following page.
13
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
NTC Thermistors Chip Type Temperature Characteristics (Center Value)
Continued from the preceding page.
For Conductive Glue
Part Number NCUppWM474
Resistance
470kΩ
Resistance
10ΩW
100ΩW
B-Constant
4500K
B-Constant
3380K
4200K
Temp. (°C) Resistance (kΩ)
14
Part Number NCG18XH103 NCG18WF104
Temp. (°C) Resistance (kΩ) Resistance (kΩ)
–40
24751.661
–55
481.258
13019.2917
–35
17127.169
–50
352.304
8807.8909
–30
12014.762
–45
261.060
6042.9955
–25
8524.305
–40
195.661
4205.6861
–20
6113.811
–35
148.177
2966.4355
–15
4435.437
–30
113.351
2118.7894
–10
3249.216
–25
87.562
1531.3193
–5
2403.515
–20
68.239
1118.4222
0
1794.358
–15
53.651
825.5695
5
1351.294
–10
42.507
615.5264
10
1025.870
–5
33.893
463.1041
15
785.018
0
27.219
351.7064
20
605.252
5
22.021
269.3046
25
470.000
10
17.926
207.8907
30
367.480
15
14.674
161.7224
35
289.186
20
12.081
126.7225
40
229.014
25
10.000
100.0000
45
182.485
30
8.315
79.4390
50
146.215
35
6.948
63.5094
55
117.828
40
5.834
51.0835
60
95.420
45
4.917
41.3360
65
77.718
50
4.161
33.6281
70
63.584
55
3.535
27.5103
75
52.260
60
3.014
22.6211
80
43.166
65
2.586
18.6920
85
35.808
70
2.228
15.5246
90
29.828
75
1.925
12.9466
95
24.961
80
1.669
10.8488
100
20.955
85
1.452
9.1290
105
17.668
90
1.268
7.7128
110
14.951
95
1.110
6.5455
115
12.695
100
0.974
5.5722
120
10.824
105
0.858
4.7638
125
9.259
110
0.758
4.0868
130
7.945
115
0.672
3.5178
135
6.837
120
0.596
3.0403
140
5.904
125
0.531
2.6336
145
5.113
130
0.474
2.2902
150
4.442
135
0.424
1.9976
140
0.381
1.7475
145
0.342
1.5332
150
0.309
1.3491
R03E.pdf
Mar.6,2020
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
NTC Thermistors Chip Type Specifications and Test Methods
NCU Series (For AEC-Q200 rev.D)
No. AEC-Q200 Test Item
1
2
Specifications
Pre-and
Post-Stress
Electrical Test
High Temperature
Exposure (Storage)
AEC-Q200 Test Methods
-
(*1)
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
Leave continuously according to the following table for
1000hrs.
Operating Temp. Range: -40 to +150°C Type
150±3°C
Operating Temp. Range: -40 to +125°C Type
125±3°C
Measurement at 24±2hrs. after test condition.
Perform 1000 cycles according to the four heat treatments
listed in the following table.
3
Temperature
Cycling
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
Step
1
2
3
4
Temp. (deg.C) -55+0/-3 Room Temp. 125+3/-0 Room Temp.
15±3
15±3
Time (min.)
1
1
Measurement at 24±2hrs. after test condition.
Apply the 24-hrs. heat (25 to 65 °C) and humidity (80 to 98%)
treatment shown below, 10 consecutive times.
4
Moisture
Resistance
Temperature(°C)
Humidity Humidity Humidity Humidity Humidity
90 to 98% 80 to 98% 90 to 98%80 to 98% 90 to 98%
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
+10
deg.C
-2
Initial measurement
0 1 2 3 4 5 6 7 8 9 101112131415161718192021222324
Hrs.
One cycle = 24hrs.
Measurement at 24±2hrs. after test condition.
5
Biased Humidity
(*2)
· Resistance(R25) change should be less than ±10%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
85±2 °C, 85%RH in air for 1000hrs.
with Permissive Operating Current.
Measurement at 24±2hrs. after test condition.
6
Operational Life
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
85±3 °C in air for 1000hrs.
with Permissive Operating Current.
Measurement at 24±2hrs. after test condition.
7
External Visual
No defects of abnormalities.
Visual Inspection.
8
Physical
Dimension
Within the specified dimensions.
Using calipers.
9
Terminal Strength
(Leaded)
N/A
Resistance to
Solvents
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
Per MIL-STD-202 Method 215
Solvent 1: 1 part (by volume) of isopropyl alcohol
3 parts (by volume) of mineral spirits.
11 Mechanical Shock
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
Per MIL-STD-202 Method 213 Test Condition F
1500g's, 0.5ms, In 3 directions perpendicularly intersecting
each other (total 18 times).
12 Vibration
(*1)
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
Simple harmonic motion between 10Hz to 2.0k Hz and back to
10 Hz of max. amplitude 1.5mm for 20min. This motion should
be applied 12 times in each of 3 mutually perpendicular
directions (total of 36 times).
(*1)
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
Per MIL-STD-202 Method 210
Test Condition B, 260 °C for 10 +/-1sec.
10
13
Resistance to
Soldering Heat
· The Test Condition specification (*1,*2) is applied to the follow P/N.
P/N: NCU15XH103ppSRp, NCU15WB473ppSRp, NCU15WF104ppSRp, NCU18XH103ppSRp
(*1) Resistance(R25) change should be less than 1%
B-constant(B25/50) change should be less than 1%
(*2) Resistance(R25) change should be less than 5%
B-constant(B25/50) change should be less than 1%
Continued on the following page.
15
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors Chip Type Specifications and Test Methods
Continued from the preceding page.
No. AEC-Q200 Test Item
Specifications
AEC-Q200 Test Methods
Perform 300 cycles according to the two heat treatments listed
in the following table. (Maximum transfer time is 20sec.)
14 Thermal Shock
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
15 ESD
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
Per AEC-Q200-002
16 Solderability
Minimum 95% of the whole electrode surface
should be covered with solder.
Per J-STD-002
SMD b) Method B @ 215 °C category 3.
Within the specified tolerance.
Resistance at 25 °C.
B-constant (B25-50)
Step
Temp. (°C)
Time (min.)
1
2
-55+0/-3 125+3/-0
15±3
15±3
Measurement at 24±2hrs. after test condition.
17
Electrical
Characterization
18 Flammability
19 Board Flex
N/A
(*1)
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
Per AEC-Q200-005
Bend the board 2.0mm for 60sec.
Use the follow land size.
Type
NCU15_SRC
NCU18_SRB
a
0.6
1.2
b
1.4
2.4
c
0.5
0.6
b
c
a
(in mm)
20
Terminal Strength
(SMD)
(*1)
· Resistance(R25) change should be less than ±5%.
· B-constant(B25/50) change should be less than ±2%.
· No visible damage.
Per AEC-Q200-006
Apply a *17.7N force to the side of device for 60sec.
Use follow land size.
*4.9N (NCP15_SRC)
Type
NCU15_SRC
NCU18_SRB
a
0.4
1.0
b
1.5
3.0
c
0.5
1.2
(in mm)
· The Test Condition specification (*1,*2) is applied to the follow P/N.
P/N: NCU15XH103ppSRp, NCU15WB473ppSRp, NCU15WF104ppSRp, NCU18XH103ppSRp
(*1) Resistance(R25) change should be less than 1%
B-constant(B25/50) change should be less than 1%
(*2) Resistance(R25) change should be less than 5%
B-constant(B25/50) change should be less than 1%
16
b
c
a
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
NTC Thermistors Chip Type Specifications and Test Methods
NCG18 Series (For Conductive Glue)
No.
Item
Rating value
Method of Examination
1
Dry Heat
· Resistance (R25) change should be less than ±3%
· B-constant (B25-50) change should be less than ±1%
· No visible damage.
150±3°C in air, for 1000 +48/-0hrs. without loading.
2
Cold
· Resistance (R25) change should be less than ±1%
· B-constant (B25-50) change should be less than ±1%
· No visible damage.
-40±3°C in air, for 1000 +48/-0hrs. without loading.
3
Damp Heat
60±2°C, 90 to 95%RH in air, for 1000 +48/-0hrs. without
loading.
4
High Temperature Load
150±3°C in air, with Permissive Operating Current (D.C.
0.31mA) for 1000 +48/-0hrs.
5
High Temperature Humidity
Load
6
· Resistance (R25) change should be less than ±3%
· B-constant (B25-50) change should be less than ±1%
· No visible damage.
85±2°C, 85%RH in air, with Permissive Operating Current (D.C.
0.31mA) for 1000 +48/-0hrs.
1000 cycles of the following sequence without loading.
Temp. (°C)
Step
Time (min.)
1
-55+0/-3
15
2
+150+3/-0
15
Thermal Shock
Mount NTC Thermistor with conductive glue on Ceramic
substrate, and apply 4.90N of force as shown below.:
F
7
Robustness of Electrode
NTC
· No peeling of the electrodes.
F
Ceramic Substrate
8
Vibration Resistant
· Resistance (R25)
change should be less than ±1%
· B-constant (B25-50)
change should be less than ±1%
· No visible damage.
Solder NTC Thermistor on the glass epoxy PCB as shown
below.
Frequency: 10Hz to 2000Hz to 10Hz (20min.)
Max. amplitude: 3.0mm
Vibrated for a period of 4hrs. in three (3) directions
perpendicularly intersecting each other (for total of 12hrs.).
NTC
Ceramic Substrate
· NTC Thermistor should be mounted on the Ceramic substrate with "Standard Land Dimensions" by our recommendable conductive glue (PC3000:
Manufactured by Heraeus) and be tested. Thickness of the conductive glue screening should be 50μm.
· R25 means the zero-power resistance at 25°C.
· B25-50 is calculated by the zero-power resistances of NTC Thermistor at 25°C and at 50°C.
· After each test, NTC Thermistor should be kept for 1hr. at room temperature (normal humidity and normal atmospheric pressure).
Then the resistances (R25 and R50) should be measured and the appearance should be visually examined.
· In the case that of R25 or B25-50 changes are greater than the specified value due to the method of mounting with conductive glue, these specifications
should be judged by an evaluation with the chip only (not mounting).
17
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
NTC Thermistors Chip Type !Caution/Notice
!Caution (Storage and Operating Conditions)
This product is designed for application in an
ordinary environment (normal room temperature,
humidity and atmospheric pressure).
Do not use under the following conditions because
all of these factors can deteriorate the product
characteristics or cause failures and burn-out.
1. Corrosive gas or deoxidizing gas
(Chlorine gas, Hydrogen sulfide gas, Ammonia gas,
Sulfuric acid gas, Nitric oxide gas, etc.)
!Caution (Other)
Be sure to provide an appropriate fail-safe function
on your product to prevent secondary damages that may be
caused by the abnormal function or the failure of our
product.
Notice (Storage and Operating Conditions)
To keep the mounting nature of product from declining,
the following storage conditions are recommended.
1. Storage condition:
Temperature -10 to +40°C
Humidity less than 75%RH (not dewing condition)
2. Storage term:
Use this product within 6 months after delivery by
first-in and first-out stocking system.
3. Storage place:
Do not store this product in corrosive gas
(Sulfuric acid gas, Chlorine gas, etc.) or in direct
sunlight.
Notice (Rating)
Use this product within the specified temperature
range.
Higher temperature may cause deterioration of the
characteristics or the material quality of this
product.
18
2. Volatile or flammable gas
3. Dusty conditions
4. Under vacuum, or under high or low pressure
5. Wet or humid locations
6. Places with salt water, oils, chemical liquids or
organic solvents
7. Strong vibrations
8. Other places where similar hazardous conditions
exist
R03E.pdf
Mar.6,2020
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors Chip Type !Caution/Notice
Notice (Soldering and Mounting) NCU15/18 Series
1. Mounting Position
Choose a mounting position that minimizes the stress
imposed on the chip during flexing or bending of the
board.
Component Direction
(Worse)
(Better)
Locate this
product
horizontal to
the direction in
which stress
acts.
Mounting Close to Board Separation Line
C
Perforation
Holes
A
(a) Solder within the temperature and time combinations,
indicated by the slanted lines in the following graphs.
(b) Excessive soldering conditions may cause dissolution
of metalization or deterioration of solder-wetting on
the external electrode.
(c) In the case of repeated soldering, the accumulated
soldering time should be within the range shown in the
following figures. (For example, Reflow peak
temperature: 260°C, twice -> The total accumulated
soldering time at 260°C is within 30sec.)
D
Slit
Keep this product on the
PC Board away from the
Separation Line.
Worst ← A-C-B-D → Better
NCU15 Series
Allowable Reflow Soldering Temp. and Time
280
Temperature (°C)
2. Allowable Soldering Temperature and Time
B
270
260
250
240
230
220
0
10 20 30 40 50 60 70 80 90
Time (sec.)
NCU18 Series
Allowable Reflow Soldering Temp. and Time
280
280
270
270
Temperature (°C)
Temperature (°C)
Allowable Flow Soldering Temp. and Time
260
250
240
230
220
210
260
250
240
230
220
210
0
10
20
Time (sec.)
30
0 10 20 30 40 50 60 70 80 90 100110
Time (sec.)
Continued on the following page.
19
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors Chip Type !Caution/Notice
Continued from the preceding page.
NCU15 Series
Reflow Soldering Conditions
Temperature (°C)
}@#!-++#," *##+.#0 230#0-q*#$-0-*"#0',%
H J
,13t!'#,2.0#&# 2',%+ 7! 31# !0 !)-,2&#!#0 +'!
body. The difference between preheating temperature
and maximum temperature in the profile shall be 100 °C.
(b) Rapid cooling by dipping in solvent or by other means is
not recommended.
300
0#&# 2',%H', '0J
Soldering
1-2min.
*20sec.
Gradual Cooling
(in air)
200
100
0
* In the case of repeated soldering, the accumulated
soldering time should be within the range shown in "2.
Allowable Soldering Temperature and Time."
0#&# 2',%B{z±10°C, 1-2min.
Soldering: 240-260°C, 20sec.
NCU18 Series
300
0#&# 2',%H', '0J
Reflow Soldering Conditions
Gradual Cooling
Soldering
(in air)
Temperature (°C)
Temperature (°C)
Flow Soldering Conditions
200
100
0
1-2min.
5. Cleaning Conditions
For removing the flux after soldering, observe the
following points in order to avoid deterioration of the
characteristics or any change of the external electrodes'
quality.
F*# 1#)##.+-3,2#". 021 ,"2
 120 2#$0-+ ,
occurrence of resonance in ultrasonic cleaning.
F*# 1#"-,-2!*# ,2&#.0-"3!21',2&#! 1#-$31',%
non-washed type flux.
1-2min.
*20sec.
Gradual Cooling
(in air)
100
0#&# 2',%B{z±10°C, 1-2min.
Soldering: 230-260°C, 10sec.
4. Solder and Flux
H{J-*"#0 ," 12#
(a) Reflow Soldering: NCU15/NCU18 Series
For your reference, we are using the solder paste
below for any internal tests of this product.
F M705-GRM360-K2-V
(Sn:Ag:Cu=96.5wt%:3.0wt%:0.5wt%)
(Manufactured by Senju Metal Industry Co., Ltd.)
(b) Flow Soldering: NCU18 Series
We are using the following solder paste for any
internal tests of this product.
F,B%B3@52B}@z52Bz@52
Soldering
200
0
*10sec.
0#&# 2',%H', '0J
300
0#&# 2',%B{z±10°C, 1-2min.
Soldering: 230-260°C, 20sec.
(2) Flux
Use rosin type flux in the soldering process.
If the flux below is used, some problems might be
caused in the product characteristics and reliability.
*# 1#"-,-231#2#27.#1-$r36@
F20-,% !'"'!r36H5'2&& *'"#!-,2#,2#6!##"',%
0.1wt%).
F 2#0Q1-*3 *#r36
(*Water-soluble flux can be defined as non-rosin type
flux including wash-type flux and non-wash-type
flux.)
NCU15
NCU18
Solvent
Isopropyl Alcohol
Isopropyl Alcohol
Dipping Cleaning
Less than 5min. at room
temp. or less than 2min.
at 40°C max.
Less than 5min. at room
temp. or less than 2min.
at 40°C max.
Ultrasonic Cleaning
Less than 5min.
20W/ Frequency of 28
2-~z) 8@
Less than 1min.
20W/ Frequency of
1#4#0 *{z2-{zz) 8@
Drying
After cleaning, promptly dry this product.
Continued on the following page.
20
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors Chip Type !Caution/Notice
Continued from the preceding page.
6. Printing Conditions of Solder Paste
FThe amount of solder is critical. Standard height of fillet
is shown in the table below.
FToo much soldering may cause mechanical stress,
resulting in cracking, mechanical and/or electronic
damage.
Reference: Optimum Solder Amount
E
T
Electrode
Solder
Solder
The Solder Paste Thickness
T
NCU15
Part Number
150μm
1/3E<
=T<
=E
NCU18
200μm
0.2mm<
=T<
=E
7. Adhesive Application and Curing
FThin or insufficient adhesive may result in loose
component contact with land during flow soldering.
FLow viscosity adhesive causes chips to slip after
mounting.
Notice (Mounting) NCG18 Series
In your mounting process, observe the following points in
order to avoid deterioration of the characteristics or
destruction of this product. The mounting quality of this
product may also be affected by the mounting conditions,
shown in the points below.
1. Recommendable Land Size
Too small a land size parameter 'a' may cause an
electric short mode of this product by conductive glue
expanding on the surface of this product on mounting.
3. Screening Conditions of Conductive glue
(1) Recommendable Screening Size
b'
a'
a'
c'
Land pad size 0.65
b'
c'
0.55
0.95
(in mm)
(2) Recommendable thickness of conductive glue
screening shall be 50μm.
b
a
c
Land pad size
a
b
0.6
0.6
c
1.0
(3) Too much conductive glue gives an electric short
mode of this product by conductive glue expanding on
the surface of this product on mounting.
(in mm)
2. Recommendable Conductive Glue
· PC3000 (Manufactured by Heraeus)
4. There is a possibility of unexpected failure in your
mounting process, caused by mounting conditions.
Please evaluate whether this product is correctly
mounted under your mounting conditions.
Notice (Handling)
The ceramic of this product is fragile, and care must
be taken not to load an excessive press-force or
to give a shock at handling.
Such forces may cause cracking or chipping.
21
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors for Automotive
Thermo String Cooper Wire Type for Temperature Sensor
1.2±0.4
1.2±0.4
This product is a small flexible lead type NTC Thermistor
with a small head and a thin lead wire.
ø0.30±0.05
3+2/-1
1. High accuracy and high sensibility temperature sensing
is available in a small and highly accurate NTC
Thermistor.
2. Narrow space temperature sensing is available from the
small sensing head and the thin lead wire.
3. Flexibility and a wide variety of lengths (60 mm to
150mm)
enables the design of flexible temperature sensing
architectures.
4. This product is compatible with our 0402 (EIA) size
chip Thermistor.
5. Excellent long-time aging stability
6. This is a halogen-free product.*
* Cl= max.900ppm,
Br=max.900ppm and Cl+Br=max.1500ppm
7. Lead is not contained in the product.
(in mm)
The full length 60mm to 150mm interval 10mm.
NXFS15_1B Type (twist)
1.2±0.4
60 to 100±2
110 to 150±3
1.2±0.4
ø0.30±0.05
3+2/-1
4
60 to 100±2
110 to 150±3
Features
Applications
1. Car audio, car navigation
2. Various engine control units
3. Circuits for ETC equipment
4. Various motor driving circuits
5. Temperature compensation for various circuits
The full length 60mm to 150mm interval 10mm.
(in mm)
NXFS15_2B Type (without twist)
Detailed are accessable from the following URL.
https://www.murata.com/en-global/products/thermistor/ntc/nxf
Part Number
Resistance B-Constant
B-Constant
B-Constant
B-Constant
Maximum Operating Rated Electric Typical Dissipation Thermal Time
(25°C) (25-50°C)
(25-80°C)
(25-85°C)
(25-100°C)
Current (25°C)
Power (25°C) Constant (25°C)
Constant
(ohm)
(K)
(Reference Value) (K) (Reference Value) (K) (Reference Value) (K)
(mA)
(mW)
(mW/°C)
(25°C) (s)
NXFS15XM202EApBppp
2k±3%
3500±1%
3539
3545
3560
0.27
7.5
1.5
4
NXFS15XV302FApBppp
3k±1%
3936±1%
3971
3977
3989
0.22
7.5
1.5
4
NXFS15XH103FApBppp
10k ±1% 3380 ±1%
3428
3434
3455
0.12
7.5
1.5
4
NXFS15XV103FApBppp
10k ±1% 3936 ±1%
3971
3977
3989
0.12
7.5
1.5
4
NXFS15WB473FApBppp 47k ±1% 4050 ±1%
4101
4108
4131
0.06
7.5
1.5
4
NXFS15WF104FApBppp 100k ±1% 4250 ±1%
4303
4311
4334
0.04
7.5
1.5
4
p is filled with lead shape (1: twist, 2: without twist).
ppp is filled with total-length codes. (60-150mm interval 10mm, ex. 060=60mm)
Maximum Operating Current raises Thermistor's temperature by 0.1°C.
Rated Electric Power is necessary electric power for Thermistor's temperature to rise 5°C by self heating at 25°C in still air.
Operating Temperature Range: -40°C to +125°C
22
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors for Automotive
Thermo String Nickel Copper Wire Type for Temperature Sensor
1.2±0.4
1.2±0.4
This product is a small flexible lead type NTC Thermistor
with a small head and a thin lead wire.
21.0 to 50.0±2
Features
ø0.30±0.05
3+2/-1
1. High accuracy and high sensibility temperature sensing
is available in a small and highly accurate NTC
Thermistor.
Nickel Copper Wire Type has high thermal response than
the Cooper Wire Type.
2. Narrow space temperature sensing is available from the
small sensing head and the thin lead wire.
3. Flexibility and a wide variety of lengths (21 mm to 50mm)
enables the design of flexible temperature sensing
architectures.
4. This product is compatible with our 0402 (EIA) size
chip Thermistor.
5. Excellent long-time aging stability
6. This is a halogen-free product.*
* Cl= max.900ppm,
Br=max.900ppm and Cl+Br=max.1500ppm
7. Lead is not contained in the product.
The full length 21mm, 25 to 50mm interval 5mm
(in mm)
NXFS15_AB Type (without twist)
4
Detailed are accessable from the following URL.
https://www.murata.com/en-global/products/thermistor/ntc/nxf
Applications
1. Car audio, car navigation
2. Various engine control units
3. Circuits for ETC equipment
4. Various motor driving circuits
5. Temperature compensation for various circuits
Part Number
Resistance B-Constant
B-Constant
B-Constant
B-Constant
Maximum Operating Rated Electric Typical Dissipation Thermal Time
(25°C) (25-50°C)
(25-80°C)
(25-85°C)
(25-100°C)
Current (25°C)
Power (25°C) Constant (25°C)
Constant
(ohm)
(K)
(Reference Value) (K) (Reference Value) (K) (Reference Value) (K)
(mA)
(mW)
(mW/°C)
(25°C) (s)
NXFS15XV302FEABppp
3k±1%
3936±1%
3971
3977
3989
0.14
3
0.6
3
NXFS15XV502FEABppp
5k±1%
3936±1%
3971
3977
3989
0.11
3
0.6
3
NXFS15XH103FEABppp
10k±1% 3380±1%
3428
3434
3455
0.077
3
0.6
3
NXFS15XV103FEABppp
10k±1% 3936±1%
3971
3977
3989
0.077
3
0.6
3
NXFS15WB473FEABppp
47k±1% 4050±1%
4101
4108
4131
0.036
3
0.6
3
NXFS15WF104FEABppp
100k±1% 4250±1%
4303
4311
4334
0.024
3
0.6
3
ppp is filled with total-length codes. (21, 25, 30, 35, 40, 45, 50mm, ex. 050=50mm)
Maximum Operating Current raises Thermistor's temperature by 0.1°C.
Rated Electric Power is necessary electric power for Thermistor's temperature to rise 5°C by self heating at 25°C in still air.
Operating Temperature Range: -40°C to +125°C
23
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
NTC Thermistors Thermo String Type Temperature Characteristics (Center Value)
Part Number NXFS15XM202 NXFS15XV302 NXFS15XV502 NXFS15XH103 NXFS15XV103 NXFS15WB473 NXFS15WF104
Resistance
2.0kΩ
B-Constant
3500K
3.0kΩ
5.0kΩ
10kΩ
10kΩ
47kΩ
100kΩ
3936K
3936K
3380K
3936K
4050K
4250K
Temp. (°C) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ)
4
24
–40
44.981
101.251
168.752
195.652
337.503
1747.920
4397.119
–35
33.671
73.000
121.666
148.171
243.332
1245.428
3088.599
–30
25.444
53.249
88.748
113.347
177.496
898.485
2197.225
–25
19.417
39.258
65.430
87.559
130.859
655.802
1581.881
–20
14.955
29.228
48.714
68.237
97.428
483.954
1151.037
–15
11.619
21.969
36.615
53.650
73.230
360.850
846.579
–10
9.097
16.659
27.764
42.506
55.529
271.697
628.988
–5
7.178
12.740
21.233
33.892
42.467
206.463
471.632
0
5.707
9.824
16.374
27.219
32.747
158.214
357.012
5
4.568
7.635
12.725
22.021
25.450
122.259
272.500
10
3.682
5.980
9.966
17.926
19.932
95.227
209.710
15
2.986
4.718
7.864
14.674
15.727
74.730
162.651
20
2.437
3.749
6.249
12.081
12.498
59.065
127.080
25
2.000
3.000
5.000
10.000
10.000
47.000
100.000
30
1.651
2.416
4.027
8.315
8.054
37.643
79.222
35
1.370
1.959
3.264
6.948
6.529
30.334
63.167
40
1.143
1.597
2.662
5.834
5.324
24.591
50.677
45
0.958
1.310
2.183
4.917
4.366
20.048
40.904
50
0.807
1.080
1.801
4.161
3.601
16.433
33.195
55
0.682
0.896
1.493
3.535
2.985
13.539
27.091
60
0.580
0.746
1.244
3.014
2.488
11.209
22.224
65
0.495
0.625
1.041
2.586
2.083
9.328
18.323
70
0.424
0.526
0.876
2.228
1.752
7.798
15.184
75
0.365
0.444
0.740
1.925
1.480
6.544
12.635
80
0.315
0.377
0.628
1.669
1.256
5.518
10.566
85
0.273
0.321
0.535
1.452
1.070
4.674
8.873
90
0.237
0.275
0.458
1.268
0.916
3.972
7.481
95
0.207
0.236
0.394
1.110
0.787
3.388
6.337
100
0.181
0.204
0.340
0.974
0.679
2.902
5.384
105
0.160
0.177
0.294
0.858
0.588
2.494
4.594
110
0.141
0.154
0.256
0.758
0.512
2.150
3.934
115
0.124
0.134
0.223
0.672
0.446
1.860
3.380
120
0.110
0.117
0.195
0.596
0.391
1.615
2.916
125
0.098
0.103
0.172
0.531
0.343
1.406
2.522
R03E.pdf
Mar.6,2020
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
NTC Thermistors Thermo String Type Specifications and Test Methods
No.
Item
Specifications
Except XM202&XV302
1
High Temperature
Storage Test
2
Low Temperature
Storage Test
3
Humidity Storage
Test
4
High Humidity
Load Test
· Resistance (R25°C)
fluctuation rate: less than ±1%.
· B-Constant (B25/50°C)
fluctuation rate: less than ±1%.
Test Methods
XM202&XV302
· Resistance (R25°C)
fluctuation rate: less than ±3%.
· B-Constant (B25/50°C)
fluctuation rate: less than ±2%.
· Resistance (R25°C)
fluctuation rate: less than ±1%.
· B-Constant (B25/50°C)
fluctuation rate: less than ±1%.
· Resistance (R25°C) fluctuation rate: less than ±2%
· B-Constant (B25/50°C) fluctuation rate: less than ±1%
5
Thermal Shock
· Resistance (R25°C)
fluctuation rate: less than ±3%.
· B-Constant (B25/50°C)
fluctuation rate: less than ±1%.
· Resistance (R25°C)
fluctuation rate: less than ±3%.
· B-Constant (B25/50°C)
fluctuation rate: less than ±2%.
6
Insulation Break down Voltage
· No damage electrical characteristics on DC100 V, 1min.
125±2°C in air, for 1000 +48/-0hrs. without loading.
-40 +0/-3°C in air, for 1000 +48/-0hrs. without loading.
85±2°C, 85%RH in air, for 1000 +48/-0hrs. without loading.
85±2°C , 85%RH in air with 'Operating Current for Sensor,' for
1000 +48/-0hrs.
-55 +0/-3°C, 30min. in air
+125 +3/-0°C, 30min. in air (1 cycle)
Continuous 1000 cycles, without loading.
2mm length of coating resin from the top of Thermistor is to be
dipped into beads of lead (Pb), and DC100V is applied to circuit
between beads of lead (Pb) and lead wire for 1min.
4
Both lead wires are dipped into 350±10°C solder for
3.5±0.5sec., or 260±5°C solder for 10±1sec. according to Fig-1
(solder ).
7
Resistance to
Soldering Heat
· Resistance (R25°C) fluctuation rate: less than ±1%
· B-Constant (B25/50°C) fluctuation rate: less than ±1%
1 to 2mm
Solder
Fig-1
8
Solderability
· More than 90% of lead wire surface shall be covered by
solder.
Both lead wires are dipped into flux (25wt% Colophony isopropyl alcohol ) for 5 to 10sec. Then
both lead wires are dipped into 245±5°C solder
for 2±0.5sec. according to Fig-1.
The lead wire shall be inserted in a ø1.0mm hole until resin part
contacts with a substrate as shown in Fig-2. And 1N force for
10sec. shall be applied to the lead wire.
9
Lead Wire Pull
Strength
· Resistance (R25°C) fluctuation rate: less than ±1%
· B-Constant (B25/50°C) fluctuation rate: less than ±1%
1N (10sec.)
Fig-2
* · R25 is zero-power resistance at 25°C.
· B25/50 is calculated by zero-power resistance of Thermistor in 25°C -50°C.
· After each test, NTC Thermistor should be kept for 1hr. at room temperature (normal humidity and normal atmospheric pressure).
Continued on the following page.
25
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors Thermo String Type Specifications and Test Methods
Continued from the preceding page.
No.
Item
Specifications
Test Methods
Hold the lead wires as in Fig-3. Bend by 90 degrees and again
bend back to the initial position. Then bend to the other side by
90 degrees and again bend back to the initial position. After
bending process, 10N force for 3sec. shall be applied to the
lead wire.
10
Lead Wire Bending
Strength
· Lead wire does not break.
10N (3sec.)
Fig-3
NTC Thermistor shall be dropped without any force onto
concrete floor from 1 meter height one time.
11 Free Fall
NTC Thermistor shall be fixed to the vibration test equipment
as shown below.
Frequency: 10Hz to 2000Hz to 10Hz (20min.)
Max. amplitude: 1.5mm
Vibrated for a period of 4hrs. in three (3) directions
perpendicularly intersecting each other (for total of 12hrs.)
4
Mount
12 Vibration
· Resistance (R25°C) fluctuation rate: less than ±1%
· B-Constant (B25/50°C) fluctuation rate: less than ±1%
· No visible damage at resin part.
Solder is attached
from the reverse side.
The resin head is held
against the mount.
* · R25 is zero-power resistance at 25°C.
· B25/50 is calculated by zero-power resistance of Thermistor in 25°C -50°C.
· After each test, NTC Thermistor should be kept for 1hr. at room temperature (normal humidity and normal atmospheric pressure).
26
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
NTC Thermistors Thermo String Type !Caution/Notice
!Caution (Storage and Operating Conditions)
This product is designed for application in an
ordinary environment (normal room temperature,
humidity and atmospheric pressure).
Do not use under the following conditions because
all of these factors can deteriorate the product
characteristics or cause failures and burn-out.
1. Corrosive gas or deoxidizing gas
(Chlorine gas, Hydrogen sulfide gas, Ammonia gas,
Sulfuric acid gas, Nitric oxide gas, etc.)
2. Volatile or flammable gas
3. Dusty conditions
4. Under vacuum, or under high or low pressure
5. Wet or humid locations
6. Places with salt water, oils, chemical liquids or
organic solvents
7. Strong vibrations
8. Other places where similar hazardous conditions
exist
!Caution (Other)
Be sure to provide an appropriate fail-safe function
on your product to prevent secondary damages that may be
caused by the abnormal function or the failure of our
product.
4
Notice (Storage and Operating Conditions)
To keep solderability of product from declining, the
following storage conditions are recommended.
1. Storage condition:
Temperature -10 to +40°C
Humidity less than 75%RH (not dewing condition)
2. Storage term:
Use this product within 6 months after delivery by
first-in and first-out stocking system.
3. Storage place:
Do not store this product in corrosive gas
(Sulfuric acid gas, Chlorine gas, etc.) or in direct
sunlight.
Notice (Rating)
Use this product within the specified temperature
range.
Higher temperature may cause deterioration of the
characteristics or the material quality of this
product.
Notice (Soldering and Mounting)
Please note as shown below when you mount this product.
1. Do not melt solder in the resin head when you solder
this product. If you do so, it has a possibility of wire break,
electric short mode failure and wire coating break.
In case you cut the lead wire of this product less than
20mm from the resin head, the heat of the melted solder
at the lead wire edge is propagated easily to the resin
head along the lead wire.
2. Do not touch the resin head directly with the soldering iron.
It may cause the melting of solder in the resin head.
3. Do not separate the parallel lead wires 10mm or less
from the resin head, when you separate parallel lead
wires.
4. If you mold this product by resin, please evaluate
the quality of this product before you use it.
5. Do not bend the lead wire radius 1mm or less when
you bend the lead wire.
Notice (Handling)
The ceramic of this product is fragile, and care must
be taken not to load an excessive press-force or
to give a shock at handling.
Such forces may cause cracking or chipping.
27
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors for Automotive
Temperature Sensor Lead Type
4.0 max.
2.0 max.
This thermistor is for normal temperature level sensors
having self-subsistence due to strong lead strength
based on chip NTC.
10.0 to 50.0±1.0
Features
5
1. This highly accurate NTC Thermistor provides extremely
precise temperature sensing.
2. This product is compatible with 1005 (1.0mm x 0.5mm)
size NTC Thermistor.
3. The variation per hour of this product is highly stable.
4. This product is produced with an automation line that
was consistent from lead to packaging so that a product
of uniform quality may be obtained at low cost in large
quantities.
5. Since this product has strong lead intensity with original
lead mounting technique, it is bent at the time of use and
can withstand processing, etc., readily.
Taping package can be supported.
2.5±1
ø0.40±0.05
The full length 10.0 to 50.0mm interval 10.0mm
(in mm)
Detailed are accessable from the following URL.
https://www.murata.com/en-global/products/thermistor/ntc/nxr
Applications
1. For temperature detection of a car airconditioning
2. For temperature detection of a car electrical component
3. For temperature detection of a car light
4. For temperature detection of a medical equipment rank "C"
Part Number
Resistance B-Constant
B-Constant
B-Constant
B-Constant
Maximum Operating Rated Electric Typical Dissipation Thermal Time
(25°C)
(25-50°C)
(25-80°C)
(25-85°C)
(25-100°C)
Current (25°C) Power (25°C) Constant (25°C)
Constant
(ohm)
(K)
(Reference Value) (K) (Reference Value) (K) (Reference Value) (K)
(mA)
(mW)
(mW/°C)
(25°C) (s)
NXRS15XM202EA1Bppp
2k ±3%
3500 ±1%
3539
3545
3560
0.27
7.5
1.5
4
NXRS15XV302FA1Bppp
3k ±1%
3936 ±1%
3971
3977
3989
0.22
7.5
1.5
4
NXRS15XV502FA1Bppp
5k ±1%
3936 ±1%
3971
3977
3989
0.17
7.5
1.5
4
NXRS15XH103FA1Bppp
10k ±1%
3380 ±1%
3428
3434
3455
0.12
7.5
1.5
4
NXRS15XV103FA1Bppp
10k ±1%
3936 ±1%
3971
3977
3989
0.12
7.5
1.5
4
NXRS15WB333JA1Bppp 33k ±5%
4050 ±3%
4101
4108
4131
0.07
7.5
1.5
4
NXRS15WB473FA1Bppp 47k ±1%
4050 ±1%
4101
4108
4131
0.06
7.5
1.5
4
NXRS15WF104FA1Bppp 100k ±1% 4250 ±1%
4303
4311
4334
0.04
7.5
1.5
4
ppp is filled with Total-length codes. (10 to 50mm interval 10mm, ex. 040=40mm)
Maximum Operating Current rises Thermistor's temperature by 0.1°C.
Rated Electric Power is necessary electric power that thermistor's temperature rises 5°C by self-heating at 25°C in still air.
Taping type of part numbers with "3A016" is available (Lead Spacing=5mm).
Operating Temperature Range: -40°C to +125°C
28
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
NTC Thermistors Temperature Sensor Lead Type Specifications and Test Methods
No.
Item
1
Low Temperature
Storage Test
2
High Temperature
Storage Test
3
High Temperature
Load Test
4
Humidity Load
Test
5
Thermal Shock
6
Insulation Break down Voltage
Specifications
· Resistance (R25°C) fluctuation rate: less than ±1%
· B-Constant (B25/50°C) fluctuation rate: less than ±1%
Test Methods
-40 +0/-3°C in air, for 1000 +48/-0hrs. without loading.
125±2°C in air, for 1000 +48/-0hrs. without loading.
125±2°C in air, with ‘Operating Current for Sensor’ for
1000 +48/-0hrs.
· Resistance (R25°C) fluctuation rate: less than ±3%
· B-Constant (B25/50°C) fluctuation rate: less than ±1%
85±2°C, 85±5%RH in air, with ‘Operating Current for Sensor’
for 1000 +48/-0hrs.
-40°C +0/-3°C, 30min. in air
+125°C +3/-0°C, 30min. in air
Continuous 100 cycles, without loading.
· No damage electrical characteristics on D.C.100 V, 1min.
2mm length of coating resin from the top of thermistor is to be
dipped into beads of lead (Pb), and DC100V 1min. is applied to
circuit between beads of lead (Pb) and lead wire.
Both lead wires are dipped into 350±10°C solder for
3.5±0.5sec., or 260±5°C solder for 10±1sec. according to Fig-1.
(solder )
7
Resistance to
Soldering Heat
· Resistance (R25°C) fluctuation rate: less than ±1%
· B-Constant (B25/50°C) fluctuation rate: less than ±1%
Solder
Fig-1
8
Solderability
· More than 90% of lead wire surface shall be covered by
solder.
5
Both lead wires are dipped into flux (25wt% colophony
isopropyl alcohol ) for 5 to 10sec.
Then both lead wires are dipped into 245±5°C solder
for 2±0.5sec. according to Fig-1.
One end of a lead wire shall be fixed and 2.5N force for 10sec.
shall be applied to the other lead wire as shown in Fig-2.
9
Lead Wire Pull
Strength
· Resistance(R25°C) fluctuation rate: less than ±1%
· B-Constant(B25/50°C) fluctuation rate: less than ±1%
· No visible damage at resin part.
2.5N (10sec.)
Fig-2
One lead wire is held and 2.5N force is applied. Then the body
of NTC thermistor is bent by 90° and again bent back to the
initial position. This sequence shall be completed twice. See
Fig-3.
10
Lead Wire Bending
Strength
· Lead wire does not break.
90°
2.5N
Fig-3
11 Free Fall
12 Vibration
· Resistance (R25°C) fluctuation rate: less than ±1%
· B-Constant (B25/50°C) fluctuation rate: less than ±1%
· No visible damage at resin part.
NTC thermistor shall be dropped without any force onto
concrete floor from 1 meter height one time.
NTC thermistor shall be fixed to the vibration test Equipment.
Vibration of total 1.5mm amplitude, Frequency sequence of
10Hz – 2000Hz – 10Hz in 20min., shall be applied for right
angled 3 directions for 2hrs. duration each.
* · R25 is zero-power resistance at 25°C.
· B25/50 is calculated by zero-power resistance of Thermistor in 25°C-50°C.
· After each test, NTC Thermistor should be kept for 1hr. at room temperature (normal humidity and normal atmospheric pressure).
29
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors for Automotive
Temperature Sensor Lead Insulation Type
4.0 max.
(5.0mm)
A
2.5±1.0
Features
B
1. NXR series can accurately detect temperature with
NCP15 series on the head of parts.
2. The insulation coat with polyulethane on the surface of
lead wire : 100VDC.
3. You can choose NTC characteristics from NCP15 series.
4. The resistance drift is low in the reliability test.
5. The production capacity is bigger and NXR is produced
almost entirely in an automation line.
6. Adopt to Sb regulation
25.0 to 50.0±1.0
This thermistor is for normal temperature level sensors
having self-subsistence due to strong lead strength
based on chip NTC.
2.0 max.
0.46±0.05
The full length 25.0 to 50.0mm interval 5.0mm
A: Epoxy Resin
B: Copper Lead Wire with Polyurethane Coat
(in mm)
Detailed are accessable from the following URL.
https://www.murata.com/en-global/products/thermistor/ntc/nxr
Applications
1. For temperature detection of a car airconditioning
2. For temperature detection of a car electrical component
3. For temperature detection of a car light
4. For temperature detection of a medical equipment rank "C"
6
Part Number
Resistance B-Constant
B-Constant
B-Constant
B-Constant
Maximum Operating Rated Electric Typical Dissipation Thermal Time
(25°C)
(25-50°C)
(25-80°C)
(25-85°C)
(25-100°C)
Current (25°C) Power (25°C) Constant (25°C)
Constant
(ohm)
(K)
(Reference Value) (K) (Reference Value) (K) (Reference Value) (K)
(mA)
(mW)
(mW/°C)
(25°C) (s)
NXRS15XM202EA5Bppp
2k ±3%
3500 ±1%
3539
3545
3560
0.36
13
2.6
4
NXRS15XV302FA5Bppp
3k ±1%
3936 ±1%
3971
3977
3989
0.29
13
2.6
4
NXRS15XV502FA5Bppp
5k ±1%
3936 ±1%
3971
3977
3989
0.23
13
2.6
4
NXRS15XH103FA5Bppp
10k ±1%
3380 ±1%
3428
3434
3455
0.16
13
2.6
4
NXRS15XV103FA5Bppp
10k ±1%
3936 ±1%
3971
3977
3989
0.16
13
2.6
4
NXRS15WB333JA5Bppp 33k ±5%
4050 ±3%
4101
4108
4131
0.08
13
2.6
4
NXRS15WB473FA5Bppp 47k ±1%
4050 ±1%
4101
4108
4131
0.07
13
2.6
4
NXRS15WF104FA5Bppp 100k ±1% 4250 ±1%
4303
4311
4334
0.05
13
2.6
4
ppp is fulled with Total-length codes (25 to 50mm interval 5mm, ex. 030=30mm).
Maximum Operating Current rises Thermistor's temperature by 0.1°C.
Rated Electric Power is necessary electric power that thermistor's temperature rises 5°C by self-heating at 25°C in still air.
Operating Temperature Range: -40°C to +125°C
30
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
NTC Thermistors Temperature Sensor Lead Insulation Type Specifications and Test Methods
No.
Item
Specifications
Test Methods
Both lead wires are dipped into 350±10°C solder for
3.5±0.5sec., or 260±5°C solder for 10±1sec. according to Fig-1.
(solder )
1
Resistance to
Soldering Heat
(Flow)
· Resistance (R25°C) fluctuation rate: less than ±1%.
· B-Constant (B25/50°C) fluctuation rate: less than ±1%.
Solder
1 to 2mm
Fig-1
2
Solderability
(Flow)
· More than 90% of lead wsire surface shall be covered by
solder.
Both lead wires are dipped into flux (25wt% colophony
isopropyl alcohol ) for 5 to 10sec.
Then both lead wire are dipped into 245±5°C solder
for 2±0.5sec. according to Fig-1.
One end of a lead wire shall be fixed and 2.5N force for 10sec.
shall be applied to the other lead wire as shown in Fig-2.
3
Lead Wire
Breaking Strength
· Resistance (R25°C) fluctuation rate: less than ±1%.
· B-Constant (B25/50°C) fluctuation rate: less than ±1%.
2.5N (10sec.)
Fig-2
One lead wire is held and 2.5N force is applied. Then the body
of NTC thermistor is bent by 90° and again bent back to the
initial position. This sequence shall be completed twice. See
Fig-3.
4
Lead Wire Bending
Strength
6
· Lead wire does not break.
90°
2.5N
Fig-3
5
Free Fall
· Resistance (R25°C) fluctuation rate: less than ±1%.
· B-Constant (B25/50°C) fluctuation rate: less than ±1%.
· No visible damage at resin part.
NTC thermistor shall be dropped without any force onto
concrete floor from 1 meter height one time.
NTC thermistor shall be fixed to the vibration test equipment.
Vibration of total 1.5 mm amplitude, frequency sequence of
10Hz - 2000Hz - 10Hz in 20min., shall be applied for right
angled 3 directions for 2hrs. duration each.
6
Vibration
7
Cold
8
Dry Heat
125±2°C in air, for 1000 +48/-0hrs. without loading.
9
High Temperature
with Continuous
Load
125±2°C in air, with ‘Operating Current for Sensor’
for 1000 +48/-0hrs.
10
Humidity with
Continuous Load
· Resistance (R25°C) fluctuation rate: less than ±1%.
· B-Constant (B25/50°C) fluctuation rate: less than ±1%.
· Resistance (R25°C) fluctuation rate: less than ±3%.
· B-Constant (B25/50°C) fluctuation rate: less than ±1%.
85±2°C, 85±5%RH in air, with ‘Operating Current for Sensor’
for 1000 +48/-0hrs.
-40°C +0/-3°C, 30min. in air
+125°C +3/-0°C, 30min. in air
Continuous 100 +4/-0 cycles, without loading.
11 Thermal Shock
Dielectric
12 Breakdown
Voltage
-40 +0/-3°C in air, for 1000 +48/-0hrs. without loading.
· No damage electrical characteristics on D.C.100V, 1min.
2mm length of coating resin from the top of thermistor is to be
dipped into beads of lead (Pb), and DC100V 1min. is applied to
circuit between beads of lead (Pb) and lead wire.
31
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors Temperature Sensor Lead/Lead Insulation Type Temperature Characteristics (Center Value)
Part Number NXRS15XM202 NXRS15XV302 NXRS15XV502 NXRS15XH103 NXRS15XV103 NXRS15WB333 NXRS15WB473 NXRS15WF104
Resistance
2.0kΩ
3.0kΩ
5.0kΩ
10kΩ
10kΩ
33kΩ
47kΩ
100kΩ
B-Constant
3500K
3936K
3936K
3380K
3936K
4050K
4050K
4250K
Temp. (°C) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ) Resistance (kΩ)
32
–40
44.981
101.251
168.752
195.652
337.503
1227.263
1747.920
4397.119
–35
33.671
73.000
121.666
148.171
243.332
874.449
1245.428
3088.599
–30
25.444
53.249
88.748
113.347
177.496
630.851
898.485
2197.225
655.802
1581.881
–25
19.417
39.258
65.430
87.559
130.859
460.457
–20
14.955
29.228
48.714
68.237
97.428
339.797
483.954
1151.037
–15
11.619
21.969
36.615
53.650
73.230
253.363
360.850
846.579
–10
9.097
16.659
27.764
42.506
55.529
190.766
271.697
628.988
–5
7.178
12.740
21.233
33.892
42.467
144.964
206.463
471.632
32.747
111.087
158.214
357.012
0
5.707
9.824
16.374
27.219
5
4.568
7.635
12.725
22.021
25.450
85.842
122.259
272.500
10
3.682
5.980
9.966
17.926
19.932
66.861
95.227
209.710
15
2.986
4.718
7.864
14.674
15.727
52.470
74.730
162.651
20
2.437
3.749
6.249
12.081
12.498
41.471
59.065
127.080
25
2.000
3.000
5.000
10.000
10.000
33.000
47.000
100.000
30
1.651
2.416
4.027
8.315
8.054
26.430
37.643
79.222
35
1.370
1.959
3.264
6.948
6.529
21.298
30.334
63.167
40
1.143
1.597
2.662
5.834
5.324
17.266
24.591
50.677
45
0.958
1.310
2.183
4.917
4.366
14.076
20.048
40.904
50
0.807
1.080
1.801
4.161
3.601
11.538
16.433
33.195
55
0.682
0.896
1.493
3.535
2.985
9.506
13.539
27.091
60
0.580
0.746
1.244
3.014
2.488
7.870
11.209
22.224
65
0.495
0.625
1.041
2.586
2.083
6.549
9.328
18.323
70
0.424
0.526
0.876
2.228
1.752
5.475
7.798
15.184
75
0.365
0.444
0.740
1.925
1.480
4.595
6.544
12.635
3.874
5.518
10.566
80
0.315
0.377
0.628
1.669
1.256
85
0.273
0.321
0.535
1.452
1.070
3.282
4.674
8.873
90
0.237
0.275
0.458
1.268
0.916
2.789
3.972
7.481
95
0.207
0.236
0.394
1.110
0.787
2.379
3.388
6.337
100
0.181
0.204
0.340
0.974
0.679
2.038
2.902
5.384
0.858
0.588
1.751
2.494
4.594
105
0.160
0.177
0.294
110
0.141
0.154
0.256
0.758
0.512
1.509
2.150
3.934
115
0.124
0.134
0.223
0.672
0.446
1.306
1.860
3.380
120
0.110
0.117
0.195
0.596
0.391
1.134
1.615
2.916
125
0.098
0.103
0.172
0.531
0.343
0.987
1.406
2.522
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
NTC Thermistors Temperature Sensor Lead/Lead Insulation Type !Caution/Notice
!Caution (Storage and Operating Conditions)
This product is designed for application in an
ordinary environment (normal room temperature,
humidity and atmospheric pressure).
Do not use under the following conditions because
all of these factors can deteriorate the product
characteristics or cause failures and burn-out.
1. Corrosive gas or deoxidizing gas
(Chlorine gas, Hydrogen sulfide gas, Ammonia gas,
Sulfuric acid gas, Nitric oxide gas, etc.)
2. Volatile or flammable gas
3. Dusty conditions
4. Under vacuum, or under high or low pressure
5. Wet or humid locations
6. Places with salt water, oils, chemical liquids or
organic solvents
7. Strong vibrations
8. Other places where similar hazardous conditions
exist
!Caution (Others)
Be sure to provide an appropriate fail-safe function
on your product to prevent secondary damage that may be
caused by the abnormal function or the failure of our
product.
Notice (Storage and Operating Conditions)
To keep the solderability of the product from degrading,
the following storage condition is recommended.
1. Storage condition:
Temperature -10 to +40°C
Humidity less than 75%RH (not dewing condition)
2. Storage term:
Use this product within 6 months after delivery by
first-in and first-out stocking system.
3. Handling after unpacking:
After unpacking, reseal product promptly or
store it in a sealed container with a drying agent.
4. Storage place:
Do not store this product in corrosive gas
(Sulfuric acid gas, Chlorine gas, etc.) or in direct
sunlight.
Notice (Rating)
Use this product within the specified temperature
range.
Higher temperature may cause deterioration of the
characteristics or the material quality of this
product.
Notice (Soldering and Mounting)
Please note as shown below when you mount this product.
1. Do not melt the solder in the resin head, when you solder
this product. If you melt the solder in resin the head,
the wire could break and short.
If you cut the lead wire of this product less than 8mm
from the resin head, the heat of the melted solder at the
lead wire edge is propagated easily to the resin head
along the lead wire. Please do not cut this product below
9mm.
2. Do not touch the resin head directly with the solder iron.
It may cause the melting of solder in the resin head.
3. If you mold this product with resin, please evaluate
the quality of this product before you use it.
Continued on the following page.
33
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
NTC Thermistors Temperature Sensor Lead/Lead Insulation Type !Caution/Notice
Continued from the preceding page.
Notice (Soldering and Mounting) Insulation Type
Please note as shown below when you mount this product.
1. Do not melt the solder in the resin head when you solder
this product. (more than 25mm in full length of the
product).
If you melt the solder in the resin head, it has posibility
that the wire could break and short.
2. Do not touch the resin head directly with the solder iron.
It may cause the melting of solder in the resin head.
3. When additonal processing is carried out on this product
(such as bonding, resin molding, and resin coating, etc.),
please perform an audit of quality level on an automated
machine and only use the product after confirming its
reliability.
Please talk to us if you have concern matter, like
process it under the high temperature and the high
pressure.
(For example, exposed to high-temperature and
high-pressure environment as mold sealing with
injection molding.)
Notice (Handling)
1. The ceramic element of this product is fragile, and
care must be taken not to load an excessive
press-force or not to cause a shock at handling.
Such forces may cause cracking or chipping.
2. Do not apply excessive force to the lead.
Otherwise, it may cause the junction between lead and
element to break or crack. Holding the element by the
side lead wire is recommended when lead wire is bent
or cut.
Notice (Handling) Insulation Type
1. The ceramic element of this product is fragile, and
care must be taken not to load an excessive
press-force or not to cause a shock at handling.
Such forces may cause cracking or chipping.
Especially under high-temperature environment,
there is a possibility that epoxy resin will become soft.
When you set up the processing environment, please
examine the processing method after evaluating the
quality of this product.
34
2. Do not apply excessive force to the lead.
Otherwise, it may cause the junction between lead and
element to break or crack.
Holding the element by the side lead wire is recommended
when lead wire is bent or cut.
Handle the lead with care; there is a possibility
that a crack may go into the polyurethane
insulated coat when bending the lead.
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors Chip Type/Thermo String/Lead Type Package
Minimum Quantity Guide
Part Number
Quantity (pcs.)
Paper Tape
Embossed Tape
10,000
-
4,000
-
NCU15
NCU18/NCG18
Quantity (pcs.)
Part Number
Bulk Tape
Ammo Pack Taping
NXFS
1,000
-
NXRS
500
-
-
2,500
NXRS_3A016
Chip Type/Tape Carrier Packaging
1. Dimensions of Reel
2.0±0.5
ø50 min.
ø13.0±0.2
ø21.0±0.8
ø180+0/-1.5
9.0+1.0/-0
13.0±1.0
(in mm)
2. Taping Method
(1) A tape in a reel contains Leader unit and Trailer unit where
products are not packed. (Please refer to the figure at
right.)
Leader Unit
190-250
210-250
40 min.
Trailer Unit
Vacant Section Top Tape alone
Cover Tape alone
(2) The top and base tapes or plastic and cover tape are not
stuck at the first five pitches minimum.
Chip-mounting Unit
(3) A label should be attached on the reel. (MURATA's part
number, inspection number and quantity should be
marked on the label.)
(4) Taping reels are packaged.
Direction of Feed
(in mm)
Continued on the following page.
35
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
NTC Thermistors Chip Type/Thermo String/Lead Type Package
Continued from the preceding page.
3. Paper Tape
NCU15 Series
8mm Width 2mm Pitch Tape
1.75±0.1
8.0±0.3
1.1 max.
1.05*
0.65*
Direction of Feed
ø1.5+0.1
–0
1.85*
8.0±0.3
1.15*
2.0±0.05
4.0±0.1
4.0±0.1
0.8 max.
3.5±0.05
1.75±0.1
ø1.5+0.1
–0
3.5±0.05
2.0±0.05
4.0±0.1
NCU18/NCG18 Series
8mm Width 4mm Pitch Tape
Direction of Feed * Reference Value
* Reference Value
(in mm)
(1) Other Conditions
1 Packaging
n
Products are packaged in the cavity of the base tape and
sealed by top tape and bottom tape.
2 Tape
n
Top tape and bottom tape have no joints and products
are packaged and sealed in the cavity of the base tape,
continuously.
(2) Peeling Force of Top Tape
165-180°
F
Peeling Angle: 165 to 180° against the fixed surface of tape.
Peeling Speed: 300mm/min.
Peeling Force: 0.1 - 0.6N
(3) Pull Strength
Pull strength of top tape is specified at 10N minimum.
Pull strength of bottom tape shall be specified 5N minimum.
36
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
NTC Thermistors Chip Type/Thermo String/Lead Type Package
Taping Dimensions (NXRS_3A016 Series)
Δh1
P2
P
Δh2
T
ΔS
H3
D
ød
Item
øD0
t1
P0
t2
I
W3
W0
W1
L3
H0
W2
F
P1
Code
Dimensions (mm)
Pitch of Component
P
12.7±1.0
Pitch of Sprocket Hole
P0
12.7±0.3
Lead Spacing
F
5.0±1.0
Length from Hole Center to Component Center
P2
6.35±1.3
Length from Hole Center to Lead
P1
3.85±0.7
Body Diameter
D
4.0 max.
Deviation Along Tape, Left or Right
ΔS
0±2.0
Carrier Tape Width
W3
18.0±0.5
Position of Sprocket Hole
W1
9.0±0.5
Lead Distance between Reference and Bottom Planes
H0
16.0±1.0
Height of Component
H3
7.5±1.0
I
+0.5 to -1.0
Protrusion Length
Diameter of Sprocket Hole
øD0
4.0±0.1
Lead Diameter
ød
0.40±0.05
Total Tape Thickness
t1
0.6±0.3
Total Thickness, Tape and Lead Wire
t2
1.6 max.
Deviation Across Tape
Δh1, Δh2
1.0 max.
Portion to Cut in Case of Defect
L3
11.0 +0
–2.0
Hold down Tape Width
W0
9.5 min.
Hold down Tape Position
W2
1.5±1.5
T
2.0 max.
Thickness
37
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
PTC Thermistor (POSISTOR) for Automotive
For Overheat Sensing Chip Type 0603 (1608) Size (Meet AEC-Q200 rev.D)
L
This chip "POSISTOR" is an SMD type for overheat
sensing in power transistors, power diodes and power
ICs in hybrid circuits.
W
e
g
e
W
Features
1. The SMD type's small size and light weight are
helpful in miniaturizing the circuit.
2. Excellent thermal response.
3. Elements of solid-state construction provide
excellent mechanical vibration and impact
resistance.
4. Contactless operation provides prolonged service
life and noiseless operation.
5. Lead is not contained in the terminations.
H
H
Dimensions (mm)
L
W
H
e
PRF18_RB 1.6±0.15 0.8±0.15 0.8±0.15 0.1 to 0.6
Part Number
Detailed are accessable from the following URL.
https://www.murata.com/en-global/products/thermistor/ptc/prf
Chip Type 0603 (1608) Size
Sensing Temperature
(at 4.7k ohm)
(°C)
Sensing Temperature
(at 47k ohm)
(°C)
Maximum
Voltage
(V)
Resistance
(at 25°C)
(ohm)
PRF18AS471QS5RB
145 ±5°C
-
32
470 ±50%
PRF18AR471QS5RB
135 ±5°C
150 ±7°C
32
470 ±50%
PRF18BA471QS5RB
125 ±5°C
140 ±7°C
32
470 ±50%
PRF18BB471QS5RB
115 ±5°C
130 ±7°C
32
470 ±50%
PRF18BC471QS5RB
105 ±5°C
120 ±7°C
32
470 ±50%
PRF18BD471QS5RB
95 ±5°C
110 ±7°C
32
470 ±50%
PRF18BE471QS5RB
85 ±5°C
100 ±7°C
32
470 ±50%
PRF18BF471QS5RB
75 ±5°C
90 ±7°C
32
470 ±50%
PRF18BG471QS5RB
65 ±5°C
80 ±7°C
32
470 ±50%
Sensing Temperature
(at 4.7k ohm)
(°C)
Sensing Temperature
(at 47k ohm)
(°C)
Maximum
Voltage
(V)
Resistance
(at 25°C)
(ohm)
PRF18BB471RS5RB
115 ±3°C
130 ±7°C
32
470 ±50%
PRF18BC471RS5RB
105 ±3°C
120 ±7°C
32
470 ±50%
PRF18BD471RS5RB
95 ±3°C
110 ±7°C
32
470 ±50%
PRF18BE471RS5RB
85 ±3°C
100 ±7°C
32
470 ±50%
PRF18BF471RS5RB
75 ±3°C
90 ±7°C
32
470 ±50%
PRF18BG471RS5RB
65 ±3°C
80 ±7°C
32
470 ±50%
Part Number
7
This product is applied to flow/reflow soldering.
Operating Temperature Range: -40°C to +150°C
Chip Tight Tolerance Type 0603 (1608) Size
Part Number
This product is applied to flow/reflow soldering.
Operating Temperature Range: -40°C to +150°C
38
g
-
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Standard Land Pattern Dimensions
Resistance-Temperature Characteristics (Typical)
Solder resist
Chip
Mar.6,2020
BG
1000
BF
BE
BD BB
BC BA
c
Land
AR
b
Resistance Change (R/R25)
100
a
(in mm)
Dimensions (mm)
Soldering
Part Number
Methods
a
b
c
Chip (L x W)
Flow Soldering
0.6-1.0 0.8-0.9 0.6-0.8
PRF18
1.6 x 0.8
Reflow Soldering
0.6-0.8 0.6-0.7 0.6-0.8
AS
10
1
0.1
–40 –20
0
20
40
60
80
100 120 140 160
Temperature (°C)
Overheat Protection Circuit
Overheat Sensing Circuit
+Vcc
+Vcc
R1
RE2
RL
RL1
Thermal
Connection
PTH
R1
RL2
R2
Load
RE
RE1
PTH
Resistance-Temperature Characteristics Range (Ref. Only)
PRF18AS471QS5RB
7
PRF18AR471QS5RB
100000
10000
10000
Resistance (Ω)
Resistance (Ω)
100000
1000
100
–40
1000
–20
0
20
40
60
80
Temperature (°C)
100
120
140
160
100
–40
–20
0
20
40
60
80
100
120
140
160
Temperature (°C)
Continued on the following page.
39
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
Continued from the preceding page.
Resistance-Temperature Characteristics Range (Ref. Only)
PRF18BA471QS5RB
PRF18BB471QS5RB
100000
10000
10000
Resistance (Ω)
Resistance (Ω)
100000
1000
100
–40
1000
–20
0
20
40
60
80
100
120
140
100
–40
160
–20
0
20
Temperature (°C)
PRF18BC471QS5RB
60
80
100
120
140
160
100
120
140
160
100
120
140
160
PRF18BD471QS5RB
10000
10000
Resistance (Ω)
100000
Resistance (Ω)
100000
1000
7
40
Temperature (°C)
100
–40
1000
–20
0
20
40
60
80
100
120
140
100
–40
160
–20
0
20
Temperature (°C)
40
60
80
Temperature (°C)
PRF18BE471QS5RB
PRF18BF471QS5RB
10000
10000
Resistance (Ω)
100000
Resistance (Ω)
100000
1000
100
–40
1000
–20
0
20
40
60
80
Temperature (°C)
100
120
140
160
100
–40
–20
0
20
40
60
80
Temperature (°C)
Continued on the following page.
40
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
Continued from the preceding page.
Resistance-Temperature Characteristics Range (Ref. Only)
PRF18BG471QS5RB
100000
Resistance (Ω)
10000
1000
100
–40
–20
0
20
40
60
80
100
120
140
160
Temperature (°C)
Resistance-Temperature Characteristics Range (Ref. Only) Tight Tolerance Type
PRF18BB471RS5RB
PRF18BC471RS5RB
10000
10000
Resistance (Ω)
100000
Resistance (Ω)
100000
1000
100
–40
1000
–20
0
20
40
60
80
100
120
140
100
–40
160
7
–20
0
20
Temperature (°C)
40
60
80
100
120
140
160
100
120
140
160
Temperature (°C)
PRF18BD471RS5RB
PRF18BE471RS5RB
10000
10000
Resistance (Ω)
100000
Resistance (Ω)
100000
1000
100
–40
1000
–20
0
20
40
60
80
Temperature (°C)
100
120
140
160
100
–40
–20
0
20
40
60
80
Temperature (°C)
Continued on the following page.
41
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
Continued from the preceding page.
Resistance-Temperature Characteristics Range (Ref. Only) Tight Tolerance Type
PRF18BF471RS5RB
PRF18BG471RS5RB
100000
10000
10000
Resistance (Ω)
Resistance (Ω)
100000
1000
100
–40
1000
–20
0
20
40
60
80
Temperature (°C)
7
42
100
120
140
160
100
–40
–20
0
20
40
60
80
Temperature (°C)
100
120
140
160
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
Chip Type of POSISTOR for Overheat Sensing Specifications and Test Methods
No.
1
Item
Resistance Value (at 25°C)
Rating Value
The resistance value should be within the
specified tolerance.
Method of Examination
After applying maximum operating voltage for 3min. and
leaving for 2hrs. at 25°C, measure by applying voltage of less
than 1.5VDC (by a direct current of less than 10mA).
EIAJ ET-7403 term 9
Prepare soldered PTC to PCB *1 and add the force of 5.0N (Hold
time 10±1sec.) in the direction shown below. (PTC=POSISTOR)
PTC
2
Adhesive Strength
There is no sign of electrode detachment.
F
F
Glass epoxy PCB
3
Vibration Resistance
There is no abnormal appearance after the test.
Resistance change is less than ±20%. *2
Solder PTC to PCB *1
Vibration: 10-2000-10Hz (20 min.)
Max. Amplitude: 3.0mm
Sweep rate: 1 octave/min.
Vibrate for 4hrs. in each of 3 mutually perpendicular planes for
a total of 12 hours. This test condition is according to
"MIL-STD-202G Method 204D."
PTC
Glass epoxy PCB
Solder PTC on Test Board *1, and apply force on back side of
Test Board shown below:
Bending Speed: 1.0mm/sec.
Bending Strength: 2.0mm
Hold Time: 5±1sec.
Board Dimension: 100x40x1.6t mm
Board Material: Glass epoxy
20
4
Resistance to Bending of
Substance
There is no abnormal appearance after the test.
Resistance change is less than ±20%. *2
50
Force
R230
45±2
45±2
Bending
(in mm)
PTC
5
6
Solderability
Soldering Heat Resistance
Min. 95% electrode is covered with new solder.
Resistance change is less than ±20%. *2
· Solder Temp.: 245±5°C
· Solder: Sn63%/Pb37% (or 60%/40%)
· Soaking Time: 3±0.3sec.
· Soaking Position: Until a whole electrode is soaked.
This test condition is according to "IEC 60068-2-58 (2004)."
There is no abnormal appearance after the test.
Resistance change is less than ±20%. *2
Reference standard: IEC 60068-2-58 (2004)
Solder: Sn-3.0Ag-0.5Cu
Preheat: +150 to +180°C, 120±5sec.
Peak temp.: 260±5°C
Soldering time: >220°C, 60 to 90sec.
Reflow cycle: 1 times
Test board: Glass epoxy test board (FR-4) with our standard
land size
7
*1 Above-mentioned soldering is done under the following conditions at our site.
· Glass epoxy PC board
· Standard land dimension
· Standard solder paste
· Standard solder profile
Above conditions are defined in Notice.
*2 Measure resistance after the test by applying voltage of less than 1.5VDC by a direct current of less than 10mA after product is left at 25±2°C for 2 hrs.
Continued on the following page.
43
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Chip Type of POSISTOR for Overheat Sensing Specifications and Test Methods
Continued from the preceding page.
No.
Item
Rating Value
Method of Examination
7
High Temperature Storage
Solder PTC to PCB *1
+150±2°C leave for 1000±48hrs.
8
Low Temperature Storage
Solder PTC to PCB
-40±3°C leave for 1000±48hrs.
9
Humidity Storage
Solder PTC to PCB *1
+85±3°C 85±5%RH leave for 1000±12hrs.
Solder PTC to PCB *1
Test Cycle: 300 cycles
10 Thermal Shock 1 *3
There is no abnormal appearance after the test.
Resistance change is less than ±20%. *2
Sensing temp. change is less than ±1°C.
11 Thermal Shock 2 *3
12
High Temperature Humidity
Load
13 High Temperature Continuous Load
Step
1
2
Temp. (°C)
-55±3
+150±2
Time (min.)
30
30
Solder PTC to PCB *1
Test Cycle: 1000 cycles
Step
1
2
Temp. (°C)
-55±3
+125±2
Time (min.)
30
30
Solder PTC to PCB *1
85±2°C, 85±5%RH (in air), load max. operating voltage for
1000±48 hrs.
Solder PTC to PCB *1
85±2°C (in air), load max. operating voltage for 1000±12hrs.
*1 Above-mentioned soldering is done under the following conditions at our site.
· Glass epoxy PC board
· Standard land dimension
· Standard solder paste
· Standard solder profile
Above conditions are defined in Notice.
*2 Measure resistance after the test by applying voltage of less than 1.5VDC by a direct current of less than 10mA after product is left at 25±2°C for 2hrs.
*3 We cannot guarantee the resistance change in Thermal Shock (No.10, 11) in a case of defective mounting.
7
44
R03E.pdf
Mar.6,2020
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
PTC Thermistor (POSISTOR) for Automotive
For Overcurrent Protection Chip Type 0603 (1608) Size (Meet AEC-Q200 rev.D)
L
Overcurrent Protection device with resettable function
suitable for current limiting resistor.
This product is a chip type PTC thermistor for
overcurrent protection that is suitable for the
following.
Countermeasure for short circuit testing
Current limiting resistor
W
g
e
e
W
H
H
Dimensions (mm)
L
W
H
e
PRG18_RB 1.6±0.15 0.8±0.15 0.8±0.15 0.1 to 0.6
Features
Part Number
1. Rapid operation to protect the circuit in an
overcurrent condition abnormality such as a
short circuit.
By removing the overcurrent condition, these
products automatically return to the initial
condition and can be used repeatedly.
2. Suitable for countermeasure to short circuit test
in safety standard.
3. Stable resistance after operation due to ceramic
PTC.
4. Similar size (0603 size) is possible due to the
large capacity for electric power.
5. Possible to use these products as current
limiting resistors with overcurrent protection
functions
6. The SMD type's small size and light weight are
helpful in miniaturizing the circuit.
g
-
Detailed are accessable from the following URL.
https://www.murata.com/en-global/products/thermistor/ptc/prg
Max.
Voltage
(V)
at +75°C
at +25°C
at +25°C
at -20°C
at -40°C
Max.
Current
(mA)
Resistance
(at +25°C)
(ohm)
PRG18BB330MS1RB
16
18
36
71
90
97
600
33 ±20%
PRG18BB470MS1RB
16
14
29
61
78
84
420
47 ±20%
PRG18BB101MS1RB
16
12
21
45
56
61
200
100 ±20%
PRG18BB221MS1RB
16
8
14
29
36
39
90
220 ±20%
PRG18BB471MS1RB
16
5
10
21
26
28
40
470 ±20%
Part Number
Hold Current (mA)
Trip Current (mA)
Maximum Current shows typical capacities at which the transformer can be used.
Operating Temperature Range -40°C to +75°C
Standard Land Pattern Dimensions
Protective Threshold Current Range
PRG18BB330MS1RB
Solder resist
120
Land
c
Chip
8
100
b
a
(in mm)
Current (mA)
Trip Current
80
Protective
Threshold
Current
60
40
Dimensions (mm)
Soldering
Part Number
Methods
a
b
c
Chip (L x W)
PRG18
Reflow Soldering 1.8 x 0.8 0.6-0.8 0.6-0.7 0.6-0.8
Hold Current
20
0
-40 -30 -20 -10
0
10 20 30 40 50
Ambient Temperature (°C)
60
70
80
Continued on the following page.
45
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
Continued from the preceding page.
Protective Threshold Current Range
PRG18BB470MS1RB
PRG18BB101MS1RB
90
70
80
60
Trip Current
Trip Current
50
60
50
Current (mA)
Current (mA)
70
Protective
Threshold
Current
40
40
Protective
Threshold
Current
30
30
20
20
Hold Current
Hold Current
10
10
0
-40 -30 -20 -10
0
10 20 30 40 50
Ambient Temperature (°C)
60
70
0
-40 -30 -20 -10
80
PRG18BB221MS1RB
0
10 20 30 40 50
Ambient Temperature (°C)
60
70
80
70
80
PRG18BB471MS1RB
45
30
40
25
Trip Current
Trip Current
30
25
Current (mA)
Current (mA)
35
Protective
Threshold
Current
20
20
Protective
Threshold
Current
15
10
15
10
Hold Current
Hold Current
5
5
0
-40 -30 -20 -10
0
10 20 30 40 50
Ambient Temperature (°C)
60
70
80
0
-40 -30 -20 -10
0
10 20 30 40 50
Ambient Temperature (°C)
60
Operating Time (Typical Curve)
PRG18BB330MS1RB
PRG18BB470MS1RB
10.000
10.000
-10°C
+25°C Ambient
+60°C
Temp.
-10°C
+25°C Ambient
+60°C
Temp.
8
1.000
Operating Time (sec.)
Operating Time (sec.)
1.000
0.100
0.010
0.001
10
0.100
0.010
100
Overcurrent (mA)
0.001
10
1000
PRG18BB101MS1RB
10.000
-10°C
+25°C Ambient
+60°C
Temp.
Operating Time (sec.)
Operating Time (sec.)
-10°C
+25°C Ambient
+60°C
Temp.
46
1000
PRG18BB221MS1RB
10.000
1.000
0.100
0.010
10
100
Overcurrent (mA)
100
Overcurrent (mA)
1000
1.000
0.100
0.010
10
100
Overcurrent (mA)
1000
Continued on the following page.
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
Continued from the preceding page.
Operating Time (Typical Curve)
PRG18BB471MS1RB
10.000
Operating Time (sec.)
-10°C
+25°C Ambient
+60°C
Temp.
1.000
0.100
0.010
10
100
Overcurrent (mA)
8
47
R03E.pdf
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Mar.6,2020
Chip Type of POSISTOR for Overcurrent Protection Specifications and Test Methods
PRG18BBpppMS1RB
Item
No.
Rating Value
Menthon of Examination
1
Operating Temp. Range
-20 to +75°C
Temperature range that permit to apply max. voltage to the
POSISTOR.
2
Storage Temp. Range
-40 to +125°C
Temperature range that permit to leaving without applying
power to the POSISTOR.
Within the specified range.
It is measured by below flow.
1) Applied max. voltage for 3min.
2) Storage 2hrs. in room temperature
3) Measured by four-terminal method
with less than 10mA (DC 1.5V)
3
4
5
Resistance Value at 25°C
Shear Test
Reference standard: IEC 60068-2-21 (1999)
· Solder PTC to PCB *2
· Test board: Glass epoxy test board (FR-4) with our standard
land size
· Pushing force: 5N
· Keep time: 10+/-1sec.
Vibration
Reference standard: MIL-STD-202G Method 204D
· Solder PTC to PCB *2
· Frequency range: 10Hz to 2kHz to 10Hz (About 20min.)
· Amplitude: 3.0mm
· Sweep rate: 1 octave/min.
· Direction: X-Y-Z (3 direction)
· Test time: 12hrs. (4hrs. for each axis)
· Resistance (R25) change: Less than ±20% *1
· Appearance: No defects or abnormalities
Reference standard: IEC 60068-2-21 (1999)
· Solder PTC to PCB *2
Board dimension: 100×40×1.6tmm (Glass epoxy board)
· Bending speed: 1.0mm/sec.
· Bending depth: 2.0mm
· Keep time: 5±1sec.
20
6
Bending Test
50
Force
R340
45±2
45±2
Bending depth
(in mm)
PTC
7
8
Solderability
Wetting of soldering area: >
=95%
Reference standard: IEC 60068-2-58 (2004)
· Solder: Sn-3.0Ag-0.5Cu
· Solder temp.: 245±5°C
· Immersion time: 3±0.3sec.
*1: The resistance value after the test is measured by 4-terminal method with less than 10mA (DC1.5V), after storage in 25±2°C for 2hrs.
*2: Above-mentioned soldering is done following condition at our side.
· Glass epoxy PC board
· Standard land dimension
· Standard solder paste
· Standard solder profile
Above conditions are defined in Notice.
Continued on the following page.
48
!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R03E.pdf
Mar.6,2020
Chip Type of POSISTOR for Overcurrent Protection Specifications and Test Methods
Continued from the preceding page.
No.
Item
Rating Value
Menthon of Examination
8
Resistance to Soldering Heat
Reference standard: IEC 60068-2-58 (2004)
[Reflow Method]
· Solder: Sn-3.0Ag-0.5Cu
· Preheat: +150 to +180°C, 120±5sec.
· Peak temp.: 260±5°C
· Soldering time: >220°C, 60 to 90sec.
· Reflow cycle: 1 times
· Test board: Glass epoxy test board (FR-4) with our standard
land size
9
High Temperature Storage
Reference standard: IEC 60068-2-2 (2007)
· Solder PTC to PCB *2
· +125±2°C
· 1000+48/-0hrs.
10 Low Temperature Storage
Reference standard: IEC 60068-2-1 (2007)
· Solder PTC to PCB *2
· -40±3°C
· 1000+48/-0hrs.
11 Damp Heat, Steady State
Reference standard: IEC 60068-2-67 (1995)
· Solder PTC to PCB *2
· +85±2°C, 85±5%RH
· 1000+48/-0hrs.
· Resistance (R25) change: Less than ±20% *1
· Appearance: No defects or abnormalities
12 Thermal Shock *3
Reference standard: IEC 60068-2-14 (2009)
[ Test Na ]
· Solder PTC to PCB *2
· Transport time:
工商网监
湘ICP备2023018690号
