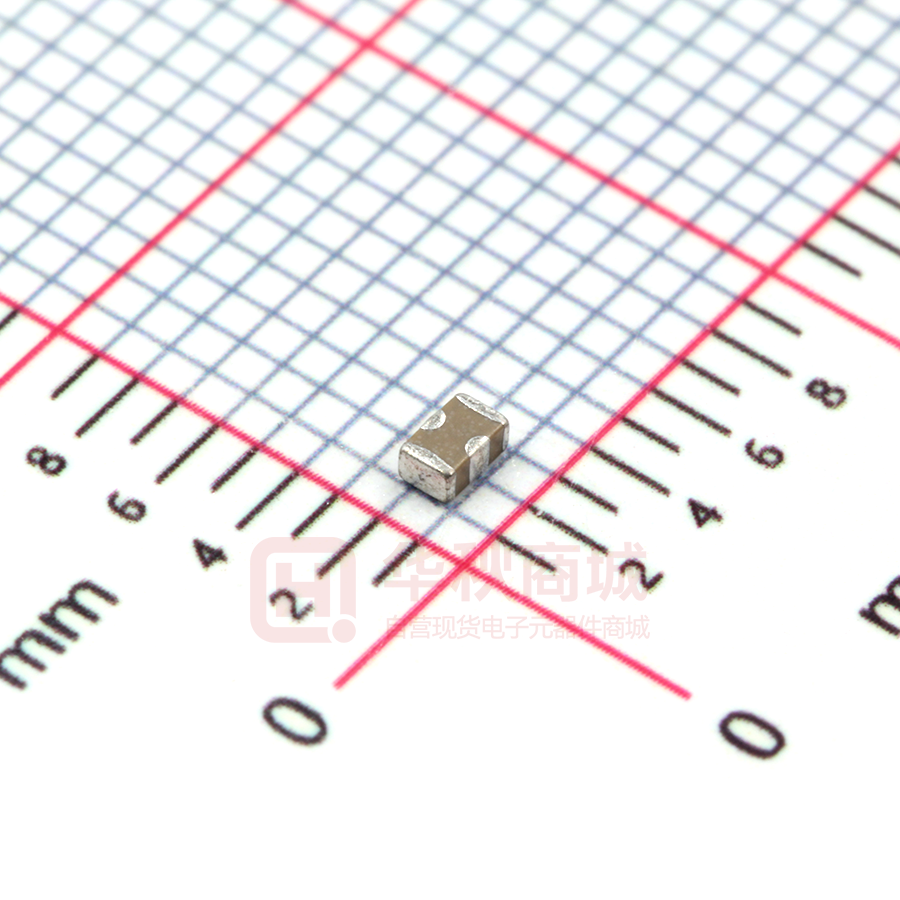

NFM21PC105B1C3D

Noise Suppression Products/EMI Suppression Filters > EMIFILr (Capacitor type) > Single Circuit Type for Large Current Data Sheet EMIFILr (Capacitor type) 1 Single Circuit Type for Large Current NFM21P Series (0805 Size) ■ Dimensions ■ Insertion Loss Characteristics (Main Items) 0.3±0.2 0.4±0.2 (50Ω - 50Ω) 0 0.85±0.1 NFM21PC104R1E3 Insertion Loss (dB) 0.6±0.2 1.25±0.1 2.0±0.2 NFM21PC224R1C3 20 (2) NFM21PC474R1C3 NFM21PC105B1A3 (10V) NFM21PC105B1C3 (16V) 40 60 NFM21PC225B0J3 NFM21PC475B1A3 (3) (2) 80 0.25±0.2 (1) 100 0.1 : Electrode 1 10 Frequency (MHz) (in mm) ■ Equivalent Circuit 100 1000 3000 ■ Packaging (1) Input Code Packaging Minimum Quantity D 180mm Paper Tape 4000 B Bulk(Bag) 500 Output (3) No polarity. GND (2) ■ Rated Value (p: packaging code) Capacitance Rated Current Rated Voltage Insulation Resistance (min.) Operating Temperature Range NFM21PC104R1E3p 0.1µF+20%-20% 2A 25Vdc 1000M ohm -55°C to +125°C NFM21PC224R1C3p 0.22µF+20%-20% 2A 16Vdc 1000M ohm -55°C to +125°C NFM21PC474R1C3p 0.47µF+20%-20% 2A 16Vdc 1000M ohm -55°C to +125°C NFM21PC105B1A3p 1.0µF+20%-20% 4A 10Vdc 500M ohm -40°C to +85°C NFM21PC105B1C3p 1.0µF+20%-20% 4A 16Vdc 500M ohm -40°C to +85°C NFM21PC225B0J3p 2.2µF+20%-20% 4A 6.3Vdc 200M ohm -40°C to +85°C NFM21PC475B1A3p 4.7µF+20%-20% 6A 10Vdc 100M ohm -40°C to +85°C Part Number Number of Circuit: 1 Continued on the following page. o This data sheet is applied for CHIP EMIFILr used for General Electronics equipment for your design. ! Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2009.5.1 http://www.murata.com/ Noise Suppression Products/EMI Suppression Filters > EMIFILr (Capacitor type) > Single Circuit Type for Large Current Data Sheet 2 Continued from the preceding page. ■ !Caution/Notice !Caution (Rating) Do not use products beyond the rated current and rated voltage as this may create excessive heat and deteriorate the insulation resistance. Notice Solderability of Tin plating termination chip might be deteriorated when low temperature soldering profile where peak solder temperature is below the Tin melting point is used. Please confirm the solderability of Tin plating termination chip before use. o This data sheet is applied for CHIP EMIFILr used for General Electronics equipment for your design. ! Note: 1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. 2009.5.1 http://www.murata.com/
